EDELBROCK INTAKE MANIFOLD,VICTOR E-TEC,GM SBC VORTEC,EFI

EDELBROCK INTAKE MANIFOLD,VICTOR E-TEC,GM SBC VORTEC,EFI

EDL 29145

$617.95
$617.95
View full details

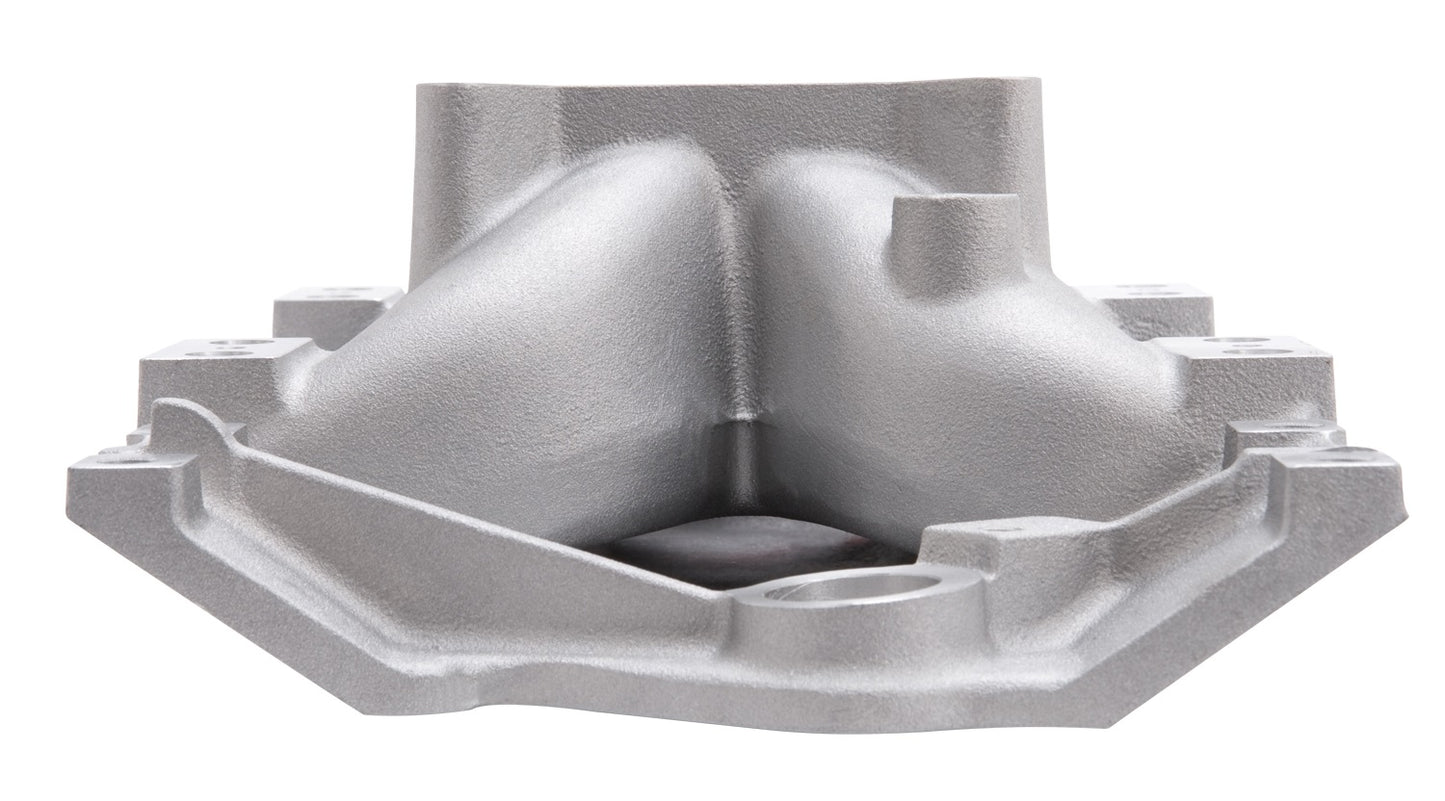

Brand New Edelbrock Victor E-Tec EFI Small Block Chevy Intake Manifold (Part #29145).

Edelbrock part #29145 Victor E-Tec EFI intake manifold is a Vortec/E-Tec version of our popular Victor E 23 degree EFI intake manifold. This manifold features a similar deep plenum and tapered cross-sections like the Victor E 23 degree and is compatible with square-bore throttle bodies. This intake manifold is one inch shorter than the existing Super Victor E-Tec EFI #29135. It also has provisions for water bypass so it can be used on Vortec engine blocks and accepts OEM alternator brackets.

Features:

  • Designed for Chevrolet 262-400 Small-Block V8
  • Can be used on Vortec engine blocks
  • Accepts OEM alternator brackets
  • Compatible with square-bore throttle bodies

Specs:

  • Finish: Satin
  • Material: Aluminum
  • Rear Maximum Height: 4.580 in
  • Single Or Dual Plane Type: Single
  • RPM Range: 2500-8000 RPM
  • Carb pad height: 6.77"
  • Port exit dimensions: 1.14"x 2.20"
Installation Notes:
  • Recommended intake gasket: Edelbrock #7235 or GM #89017465
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
  • DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
  • Carburetor size (CFM) should be selected based on your specific engine combination.
  • To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.
You can view and download the complete assembly instruction booklet here.
