MANIFOLD, 1996-02 SB CHEVY, SUPER VICTOR, VORTEC

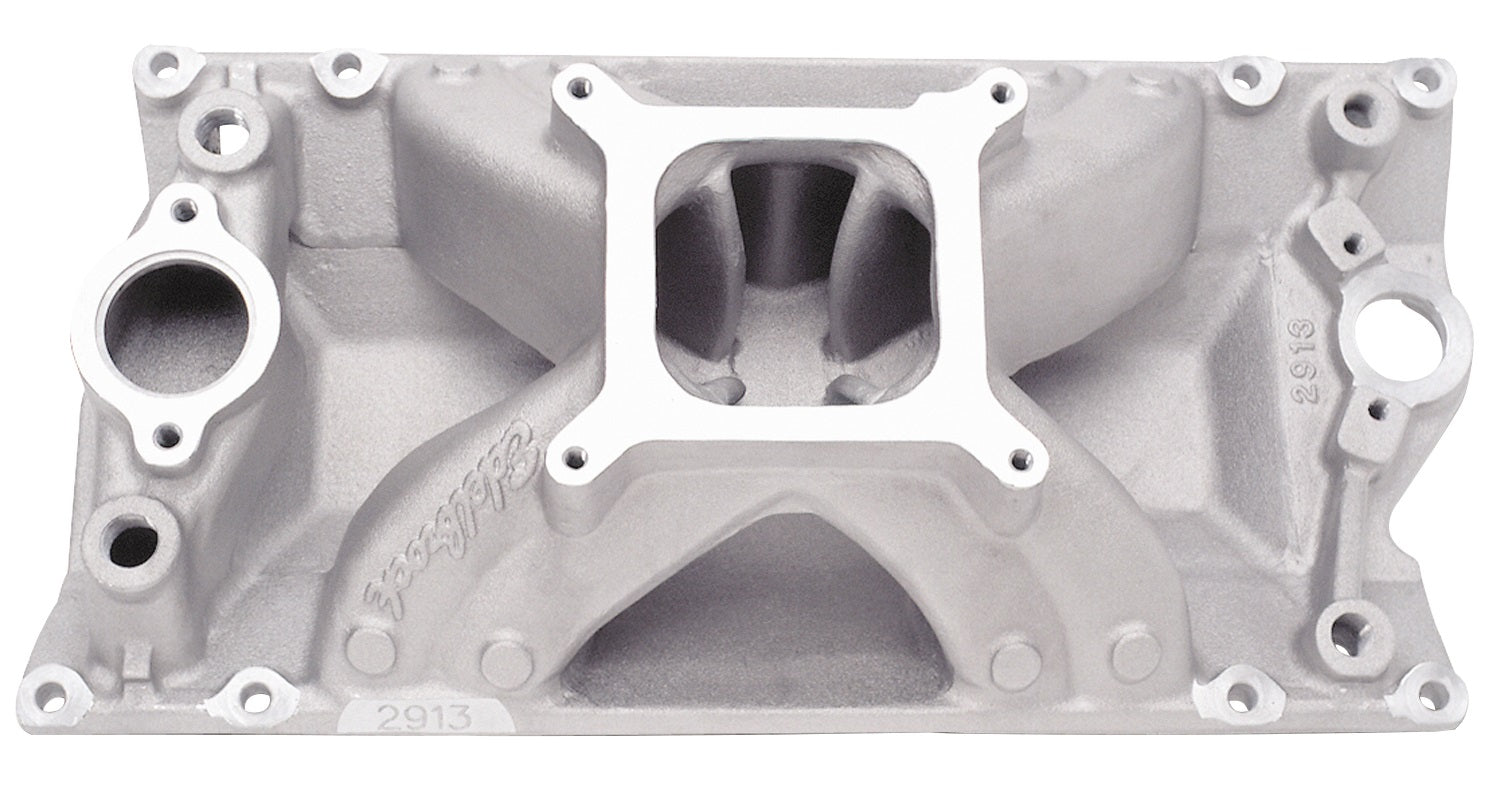

Brand New Edelbrock Super Victor Vortec Intake Manifold for Small-Block Chevy 262-400 V8 (Part #2913).

Edelbrock Super Victor Vortec intake manifold is designed for racers using Vortec cast iron or Edelbrock E-Tec aluminum cylinder heads. This manifold offers the same awesome top-end horsepower, throttle response and advanced design features as Super Victor #2925. Designed specifically to enhance the performance of the Vortec cylinder heads (also known as L31), the #2913 is the most powerful intake available for these Chevy production heads. Runners have a 2.60 square-inch cross-section.

Installation Notes:

• Use RTV sealant to properly seal end seals, such as Edelbrock High
• Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
• Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
• NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
• DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
• Carburetor size (CFM) should be selected based on your specific engine combination.
• To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.

Specs:

• Series: Victor

• Material: Aluminum
• Gasket Or Seal Included: No

• Recommended Intake Gasket: Edelbrock #7235 or GM #89017465

• Carb Pad Height: 5.63"

• Port Exit Dimensions: 2.09" tall with slanted side walls
• Vehicle Model: Chevrolet
• RPM Range: 4000-8000 RPM
• Rear Maximum Height: 5.630 in

• Plane Type: Single
