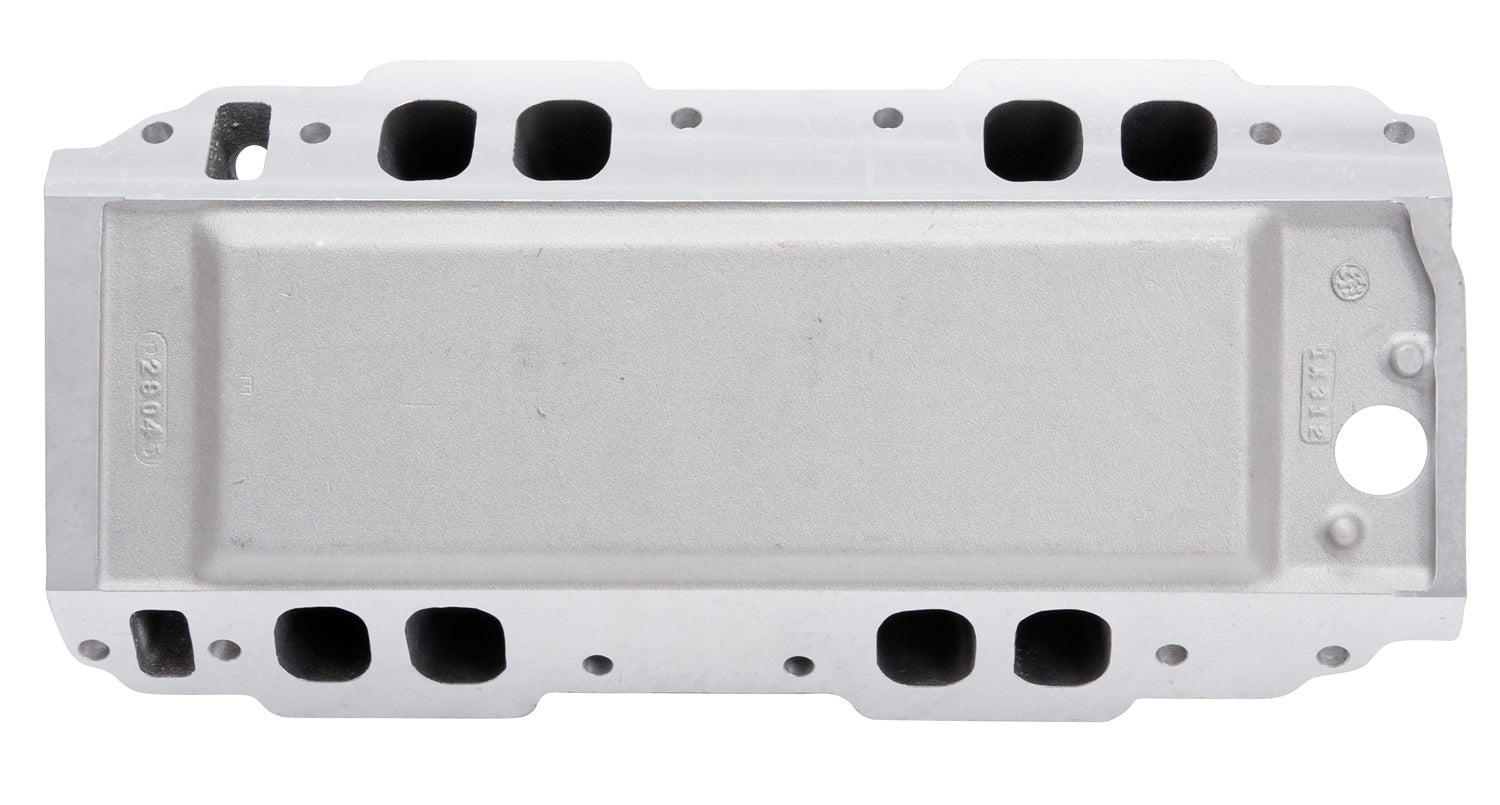

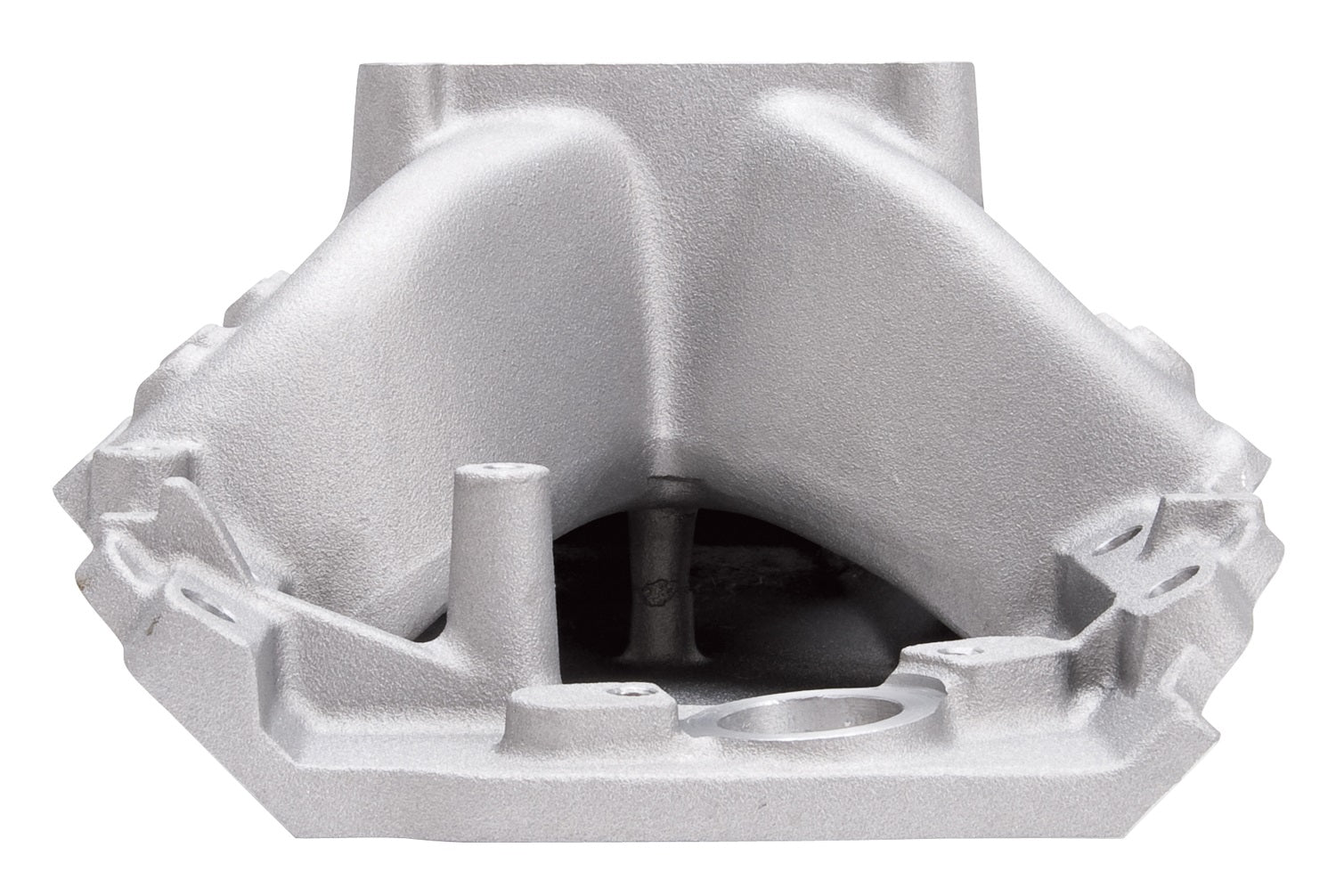

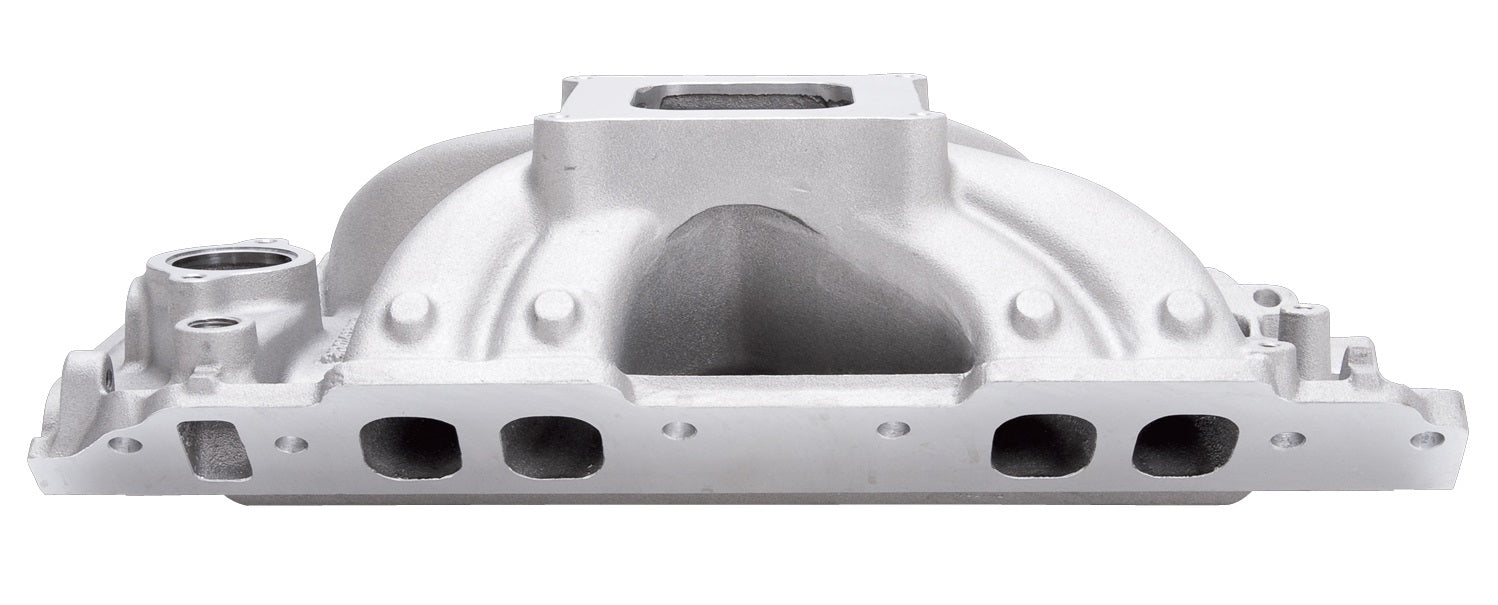

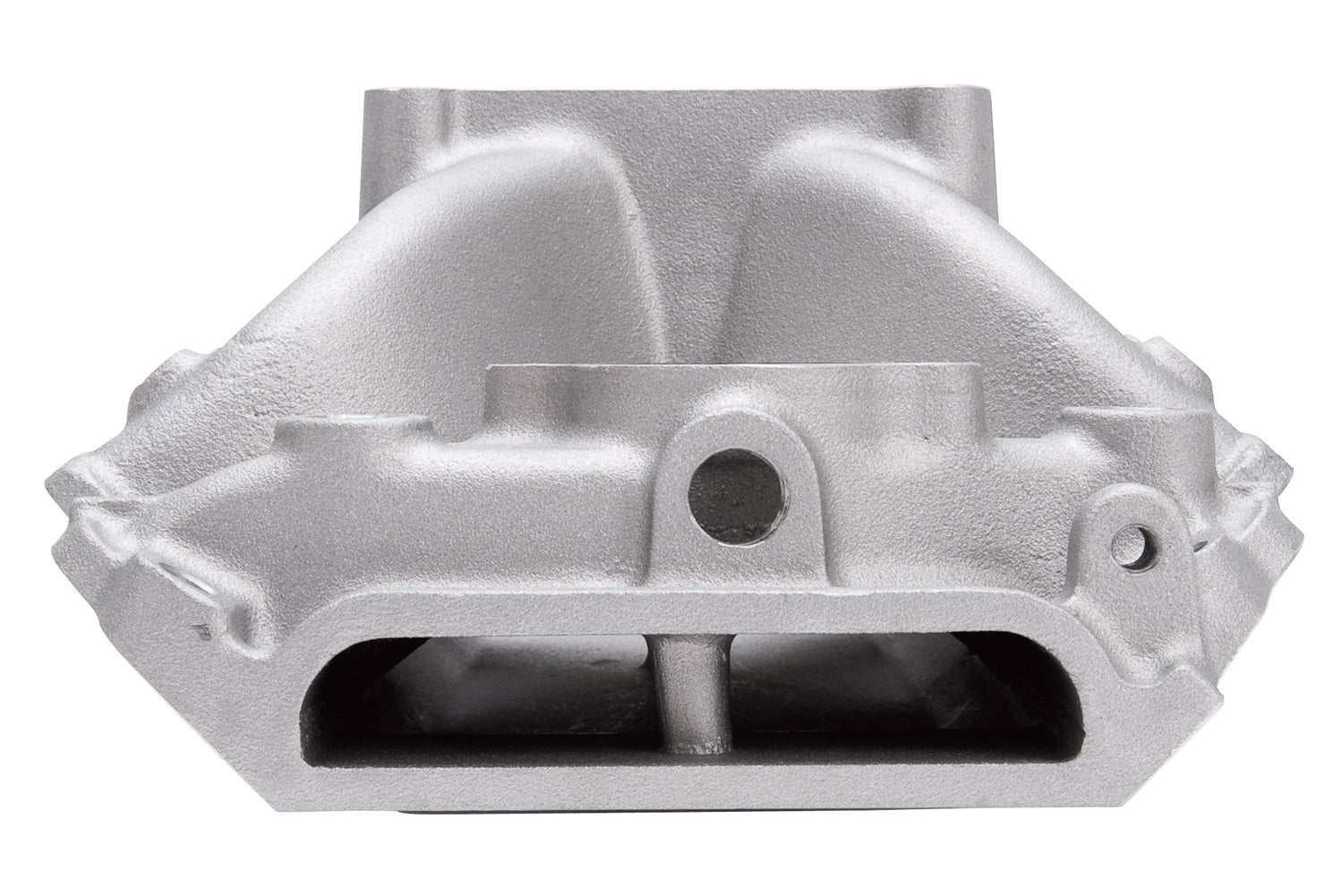

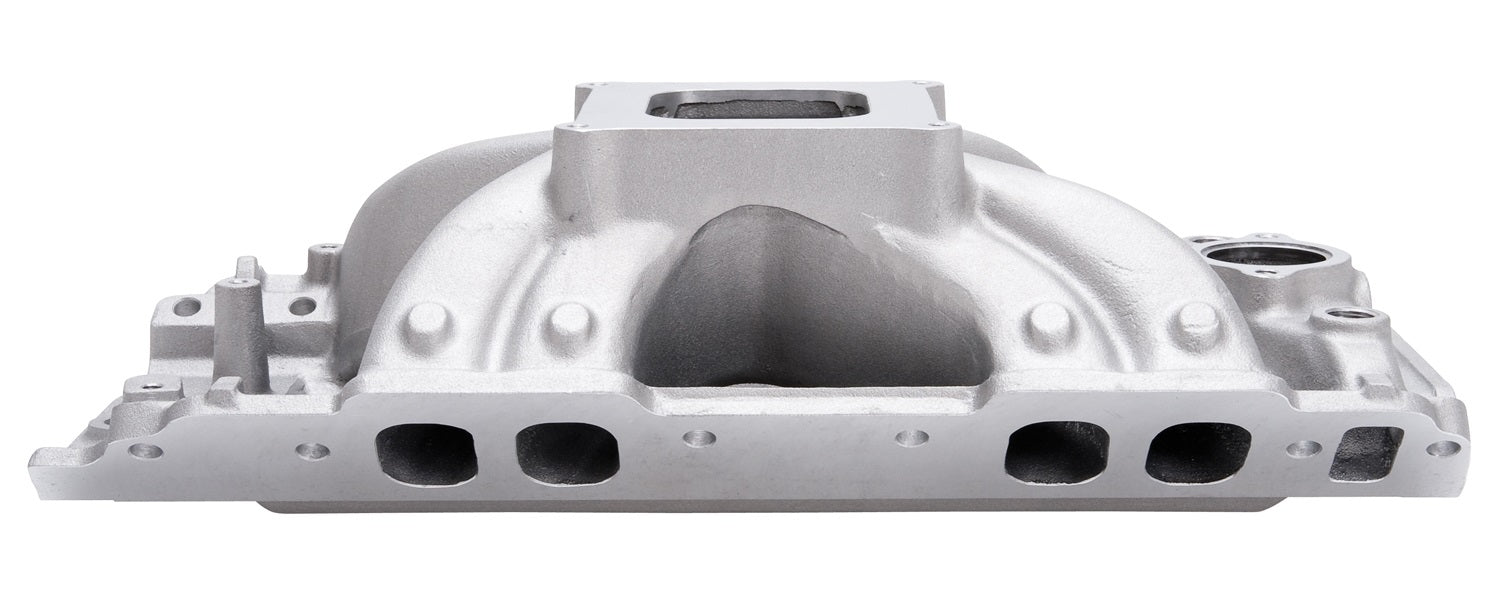

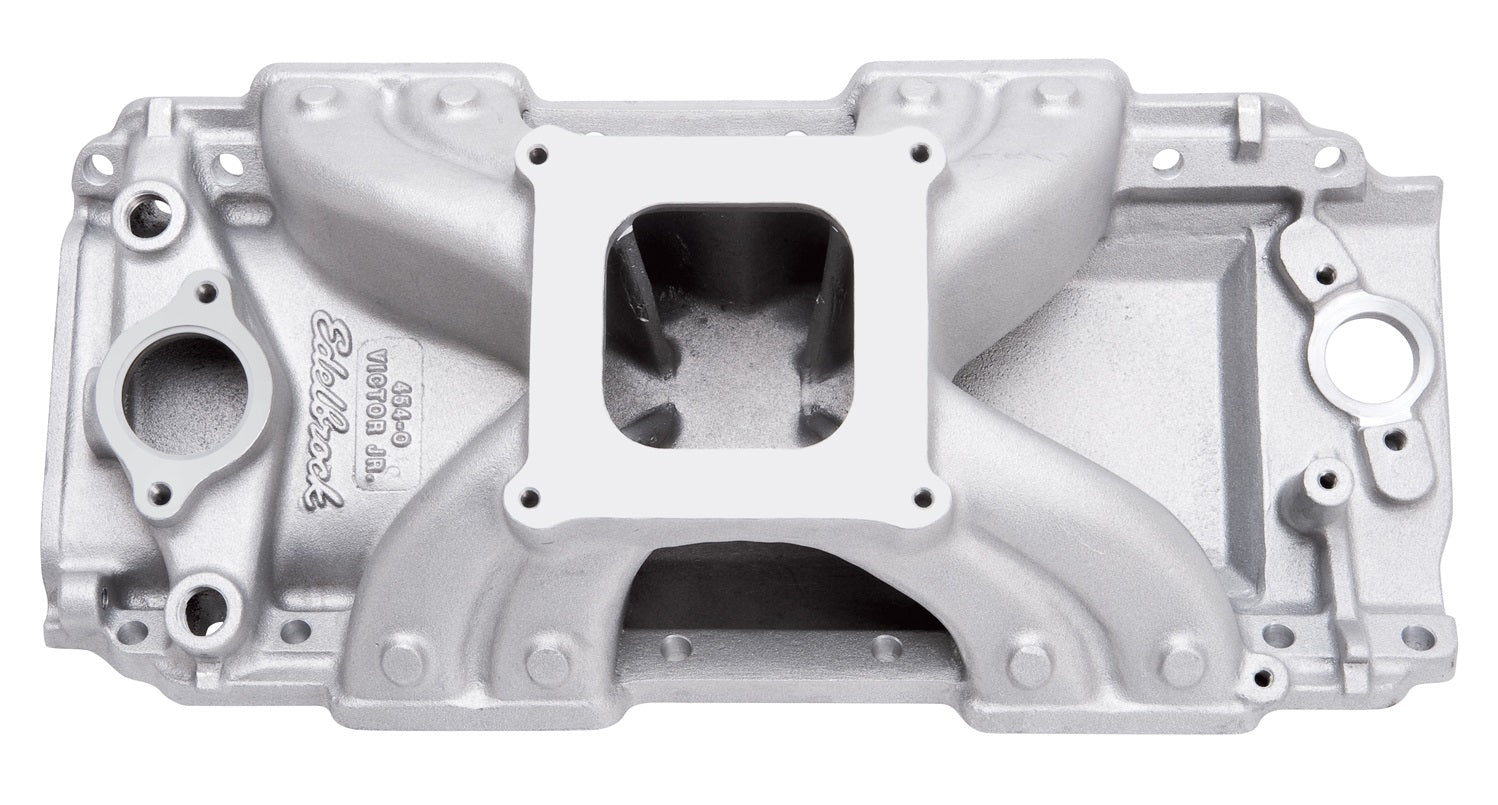

MANIFOLD, BB CHEVY 454-O, OVAL PORT, VICTOR JR

MANIFOLD, BB CHEVY 454-O, OVAL PORT, VICTOR JR

EDL 2904

$465.95
$465.95
View full details

Brand New Edelbrock Victor Jr. 454-O Intake Manifold for Big-Block Chevy 396-502 V8 (Part #2904).

Edelbrock Victor Jr. 454-O intake manifold is designed for competition 396-502 big-block Chevys with large oval-port heads (1975 & earlier). Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 C.I.D. and smaller competition engines. This intake manifold is a single plane 4150 flange competition manifold designed to fit standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24-degree Pro-Port CNC heads #61419 or #61409 for 950+ HP out-of-the-box potential!

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Edelbrock #7203
    Manifold Height: A-5.90" & B-5.90"
  • Vehicle Model: Chevrolet
  • RPM Range: 3500-7500 RPM
  • Rear Maximum Height: 5.950 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
