MANIFOLD, BB CHEVY 454-R, RECT PORT, VICTOR JR

MANIFOLD, BB CHEVY 454-R, RECT PORT, VICTOR JR

EDL 2902

$476.95
$476.95

Yes, we have this item in stock and ready to ship immediately!
View full details

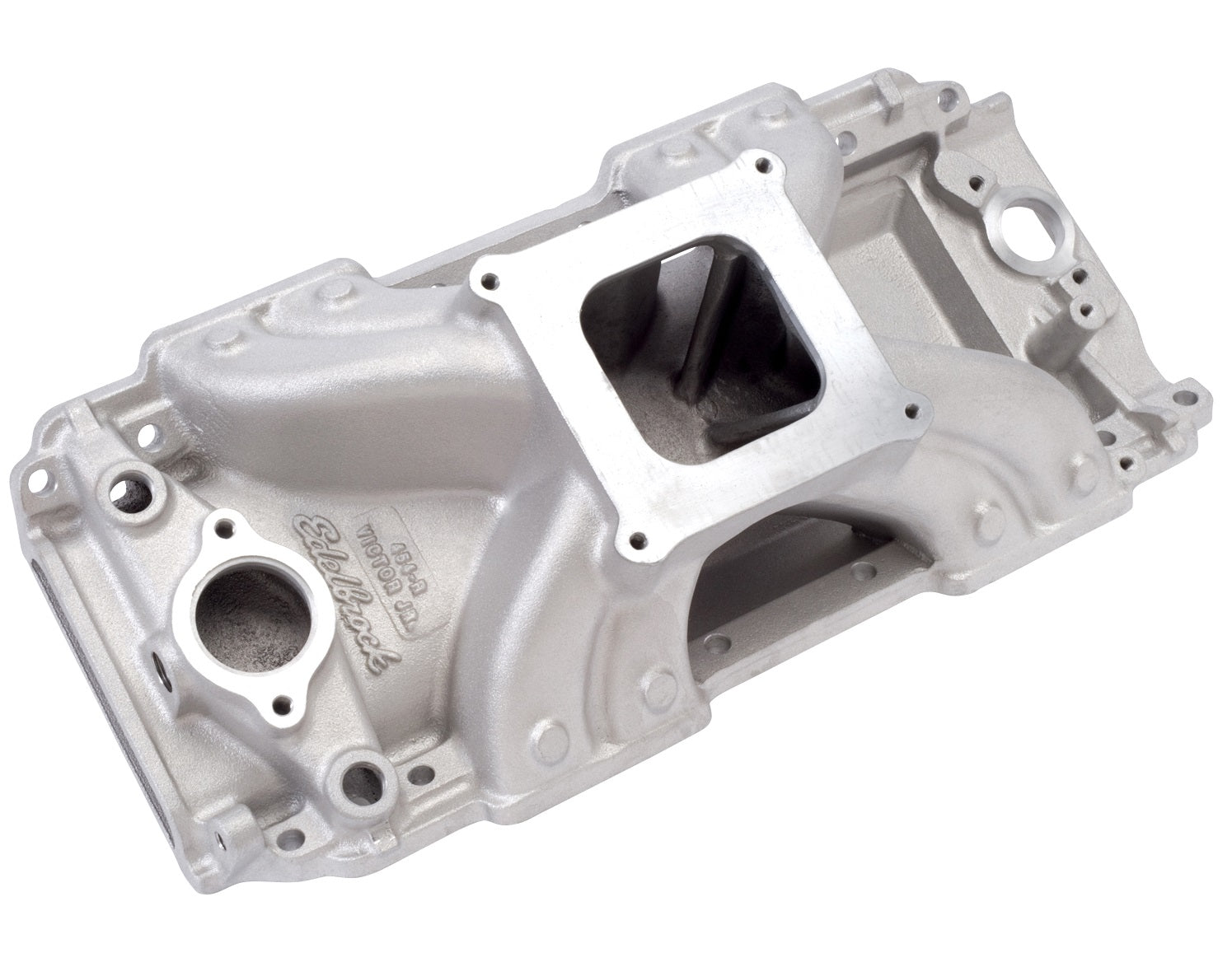

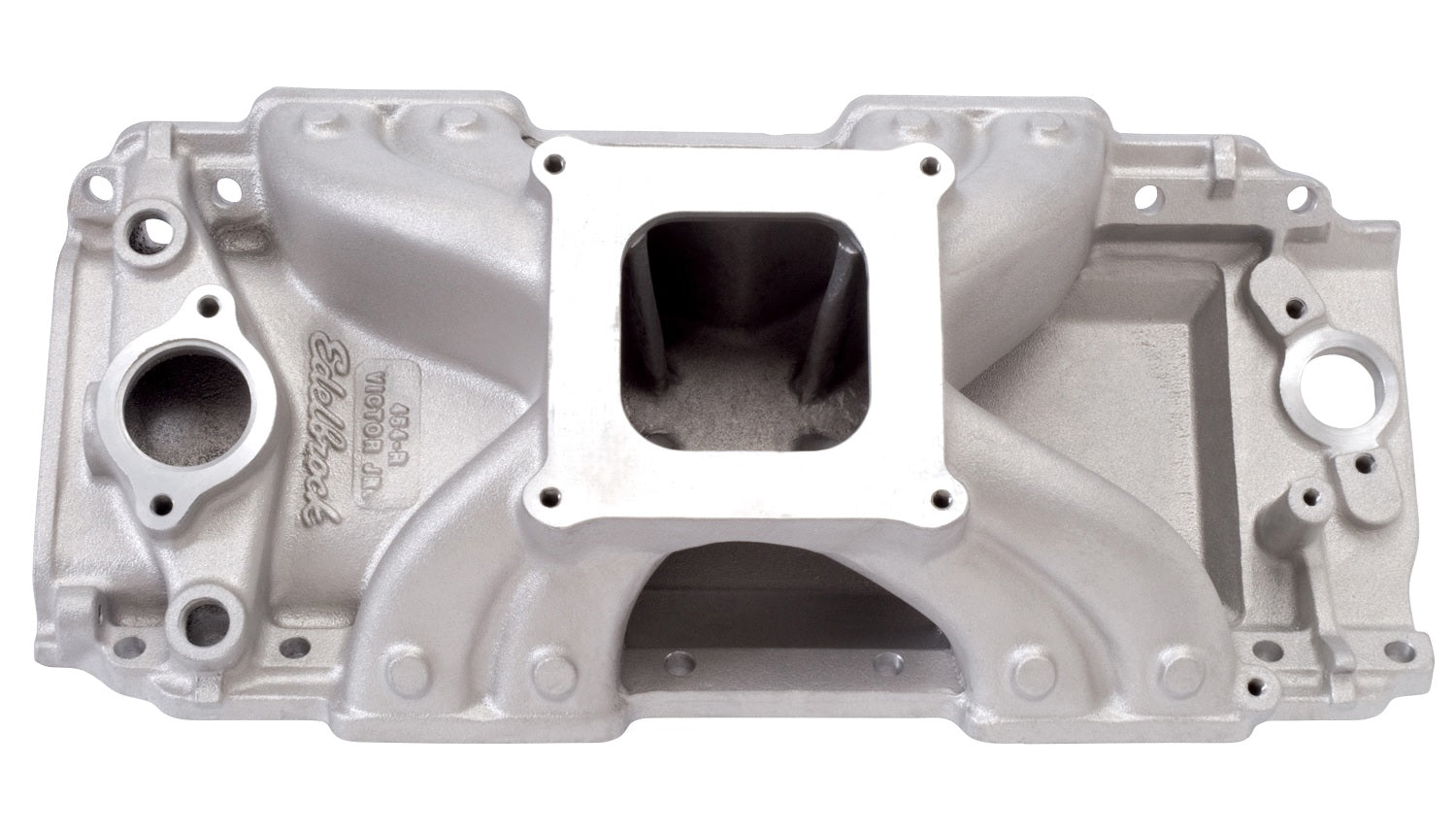

Brand New Edelbrock Victor Jr. 454-R Intake Manifold for Big-Block Chevy 396-502 V8 (Part #2902).

Edelbrock Victor Jr. 454-R intake manifold is designed for competition 396-502 big-block Chevys with rectangular-port heads. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 C.I.D. and smaller competition engines. The Victor Jr. 454-R will fit Edelbrock Victor race heads #77609 and Victor 24-degree #77409, #77459, #77429, #77479 and #77485.

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Edelbrock #7208
  • Manifold Height: A-5.90" & B-5.90"
  • Vehicle Model: Chevrolet
  • RPM Range: 3500-7500 RPM
  • Rear Maximum Height: 5.950 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
