MANIFOLD, HOLDEN VN, CARB 4150, VICTOR
MANIFOLD, HOLDEN VN, CARB 4150, VICTOR
SKU:EDL 2894
Couldn't load pickup availability

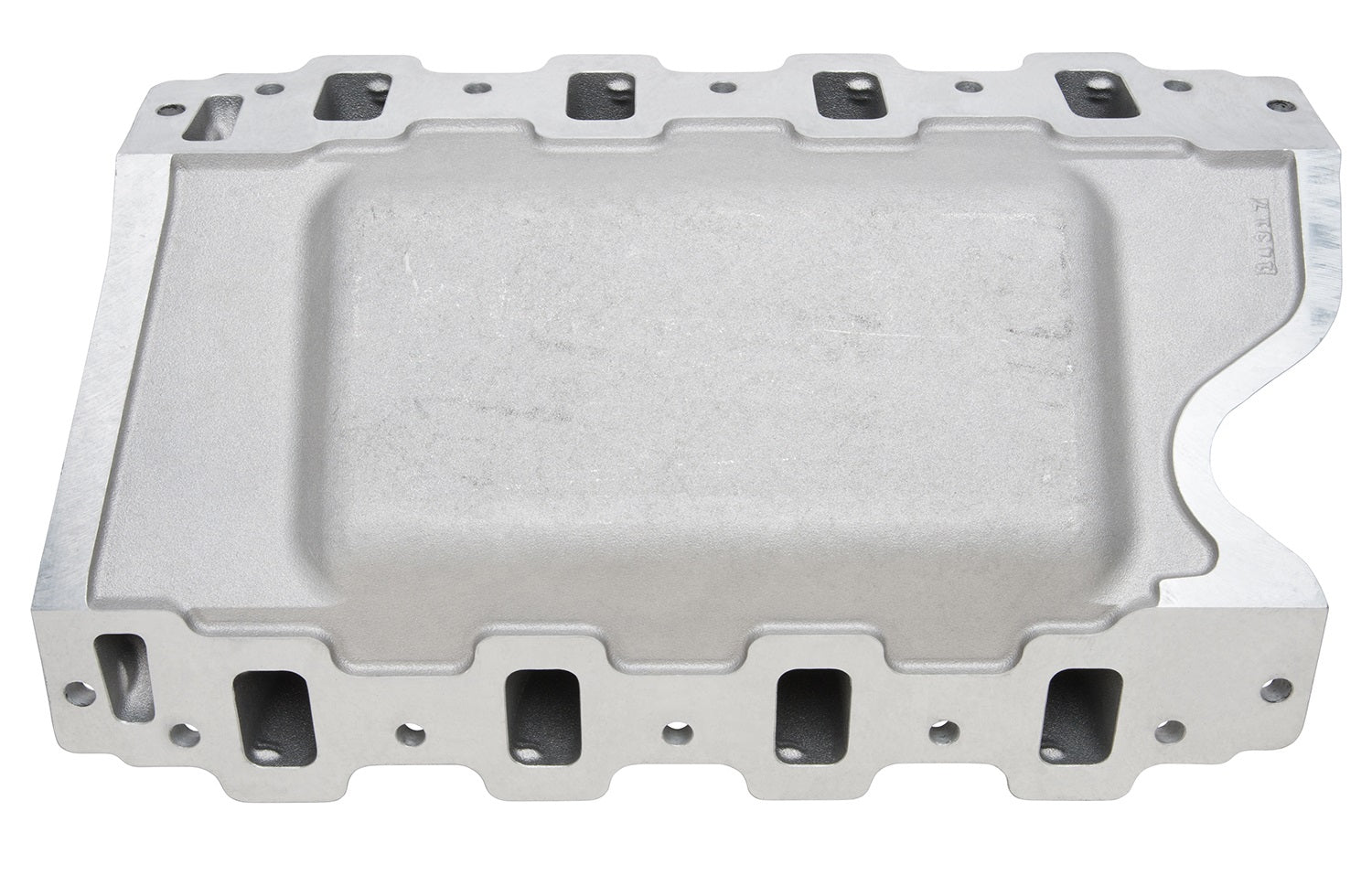

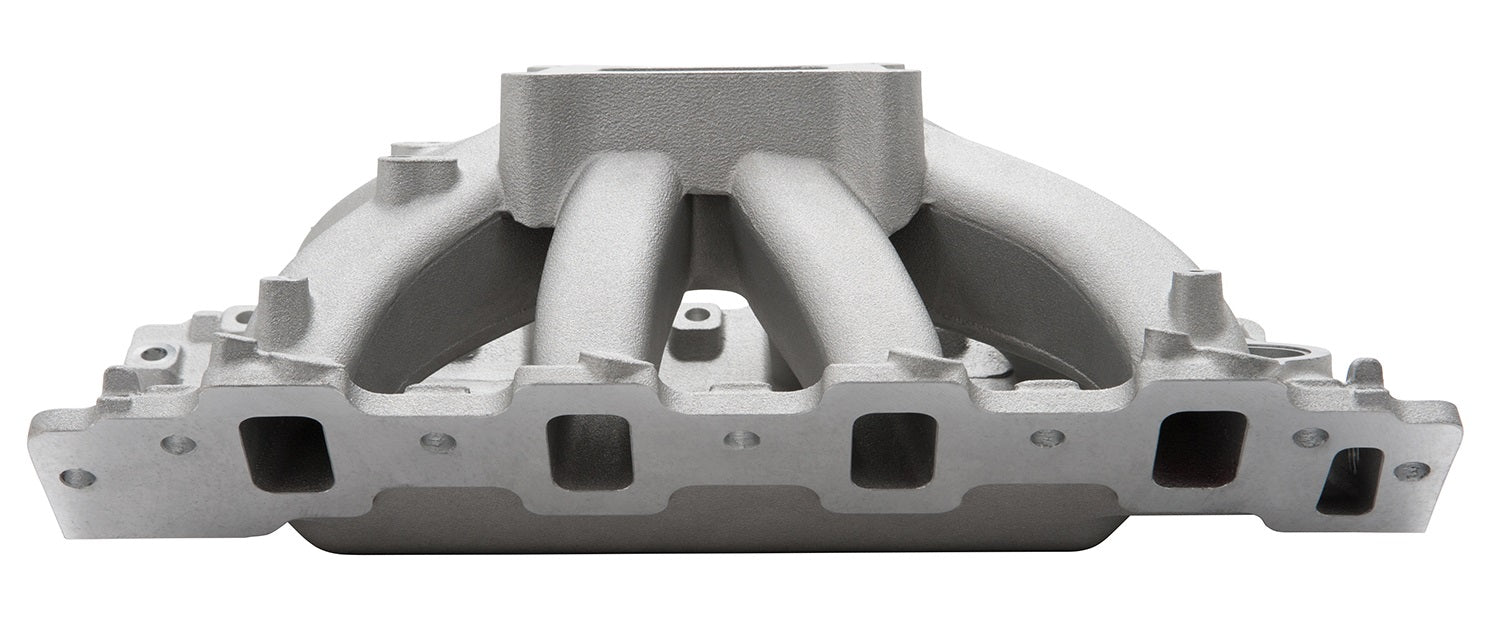

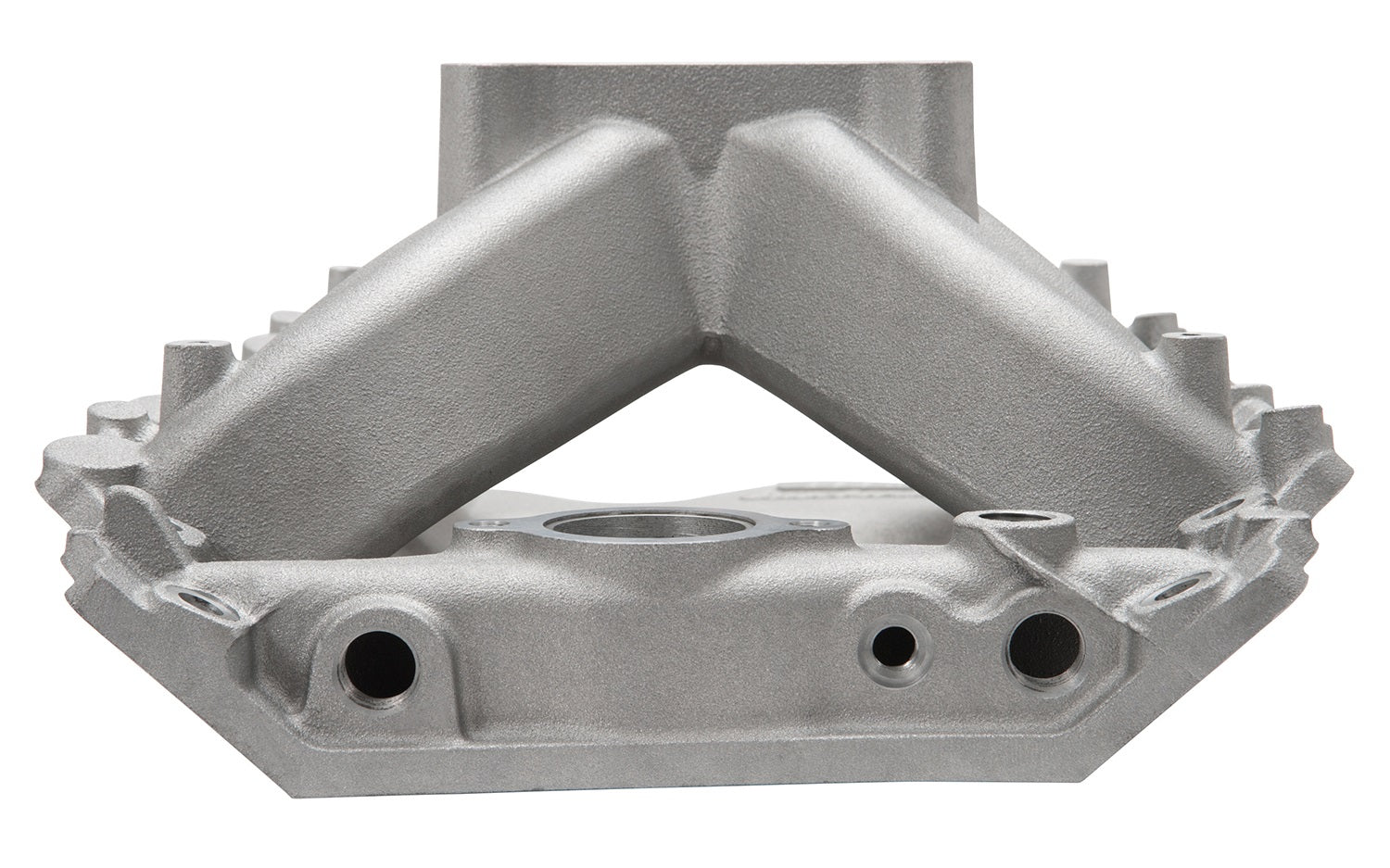

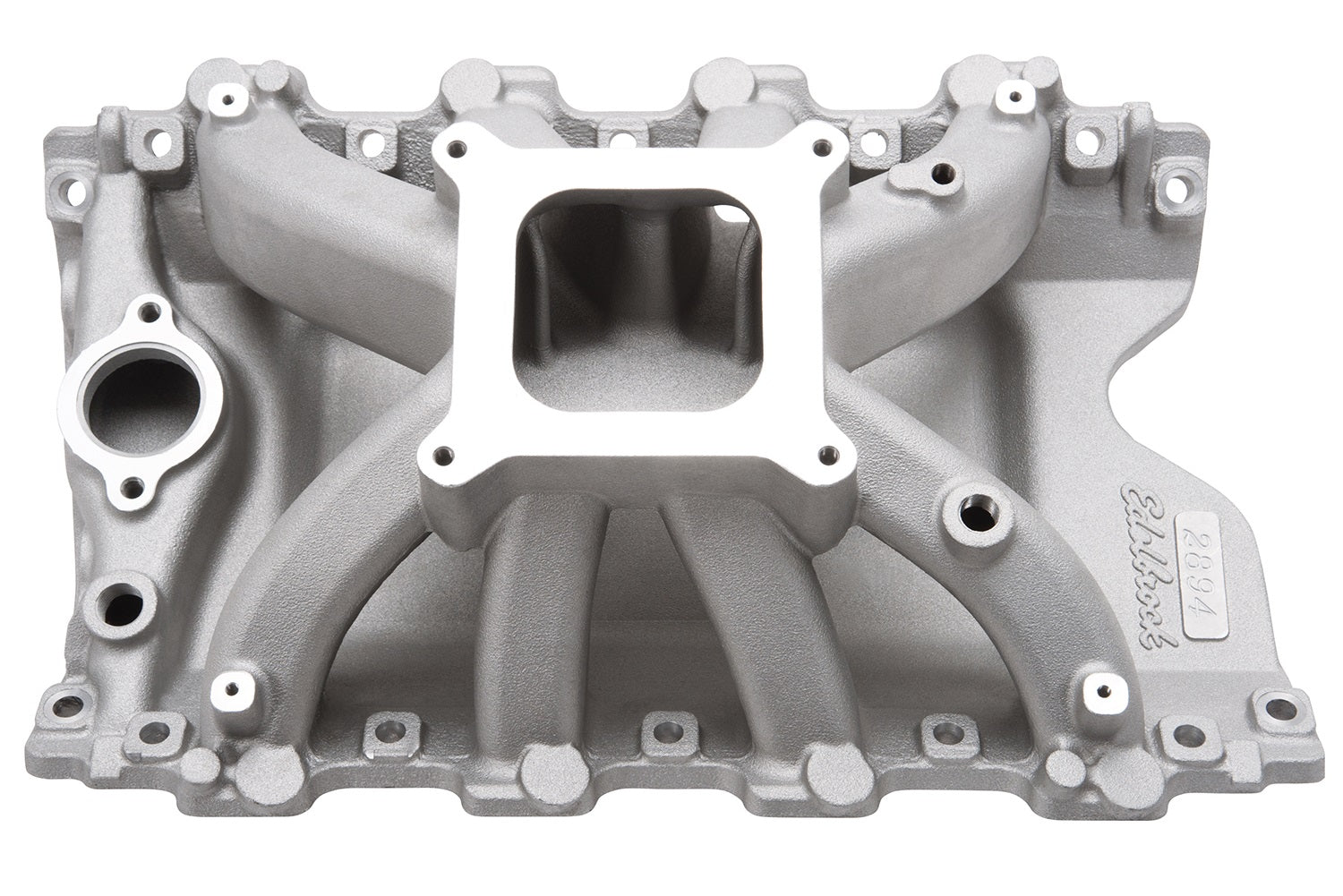

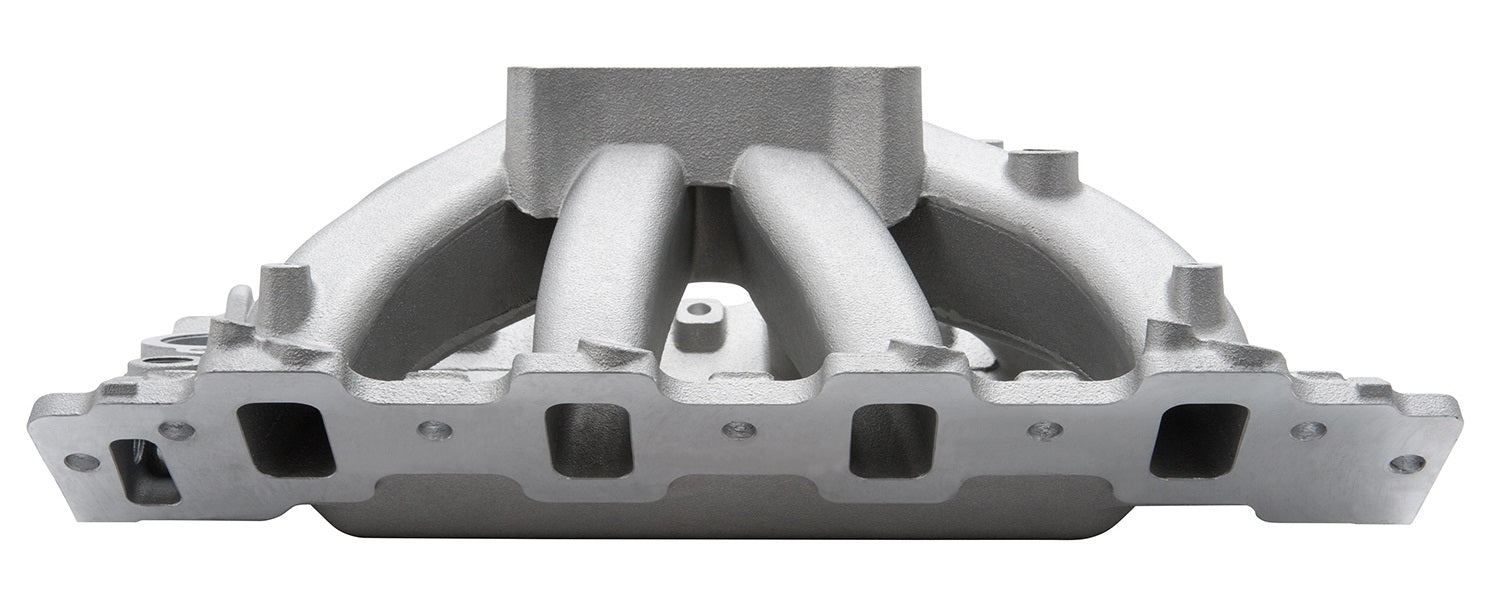

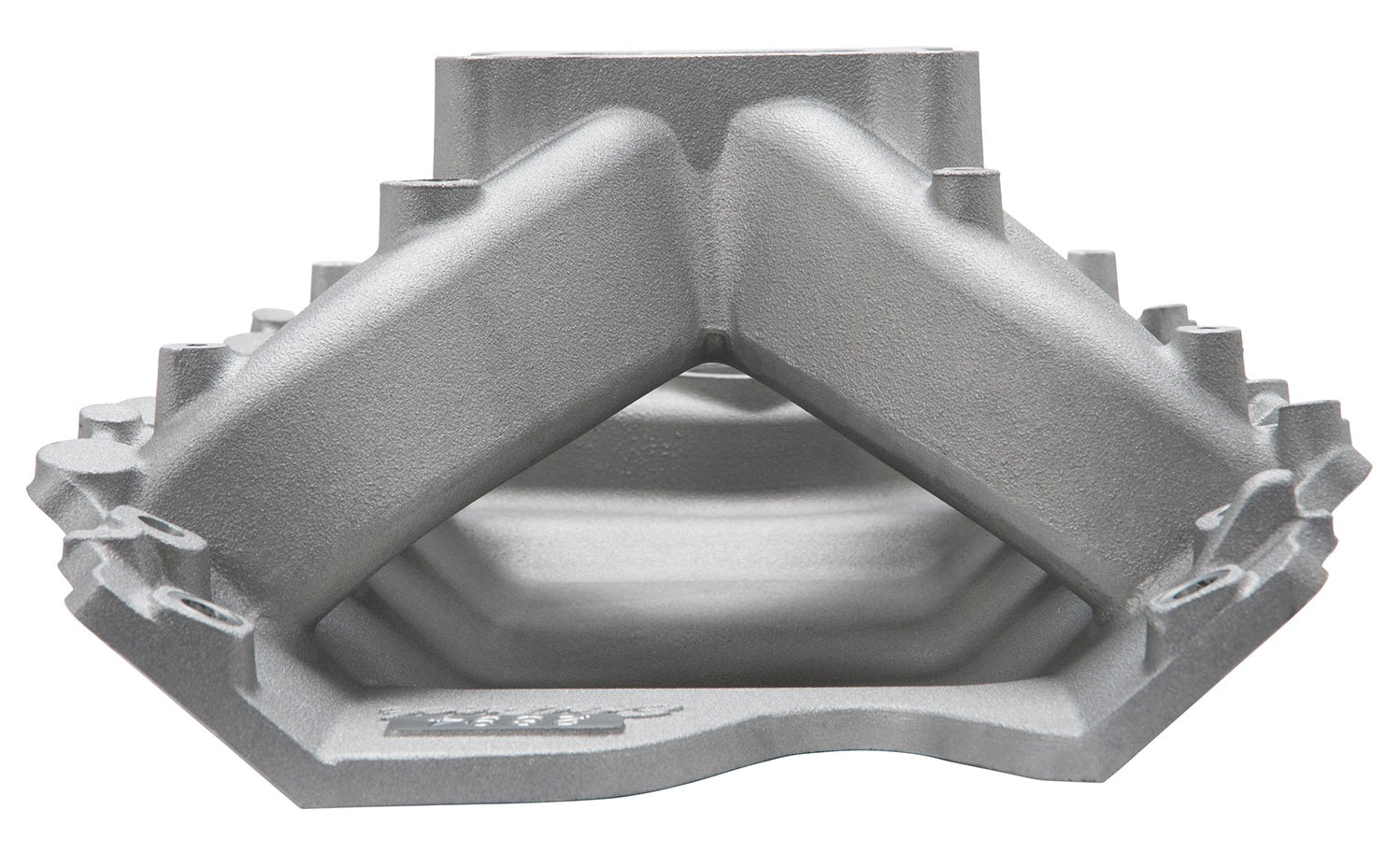

Brand New Edelbrock Victor Jr Holden Intake Manifold for 1988-1998 Holden V8 with VN Cylinder Heads (Part #2894).
Edelbrock part #2894 Victor Jr. Holden intake manifold is for use with competition 355+ C.I.D. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. This intake manifold is a single-plane design that is tuned for maximum air flow from 3500 to 7500 rpm. It features a taller design with long tapered runners for a broad operating rpm range. Will fit both stock 1988-1998 EFI style cylinder heads and the Edelbrock Holden VN RPM cylinder heads. It also features a 4150 flange for use with square-bore carburetors and throttle bodies. Includes extra material for porters to modify for use with 4500 series applications. The water outlet is machined for use with a small-block Chevy waterneck.
- 4150 series Carb Flange
- Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
- Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
Specs:
-
Series: Victor
- Material: Aluminum
-
Gasket Or Seal Included: No
-
Recommended Intake Gasket: HA424
-
Manifold Height: A-6.95", B-6.95"
-
Carb Pad Height: 6.95"
-
Port Exit Dimensions: 1.18" x 2.02"
- Carb Recommendations: OEM 4-Bbl, Edelbrock AVS2 or Performer Series 600-800 CFM
- Vehicle Model: Holden
- RPM Range: 3500-7500 RPM
-
Rear Maximum Height: 6.950 in
- Plane Type: Single
You can view and download the complete assembly instruction booklet here.
