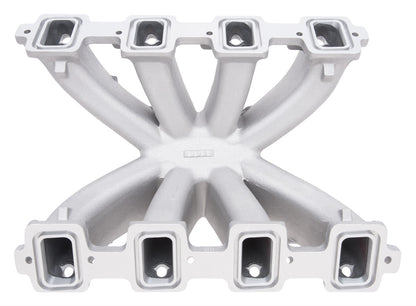

MANIFOLD, GM LS7, SUPER VICTOR, EFI, 4150 FLANGE

MANIFOLD, GM LS7, SUPER VICTOR, EFI, 4150 FLANGE

EDL 28875

$811.95
$811.95
View full details

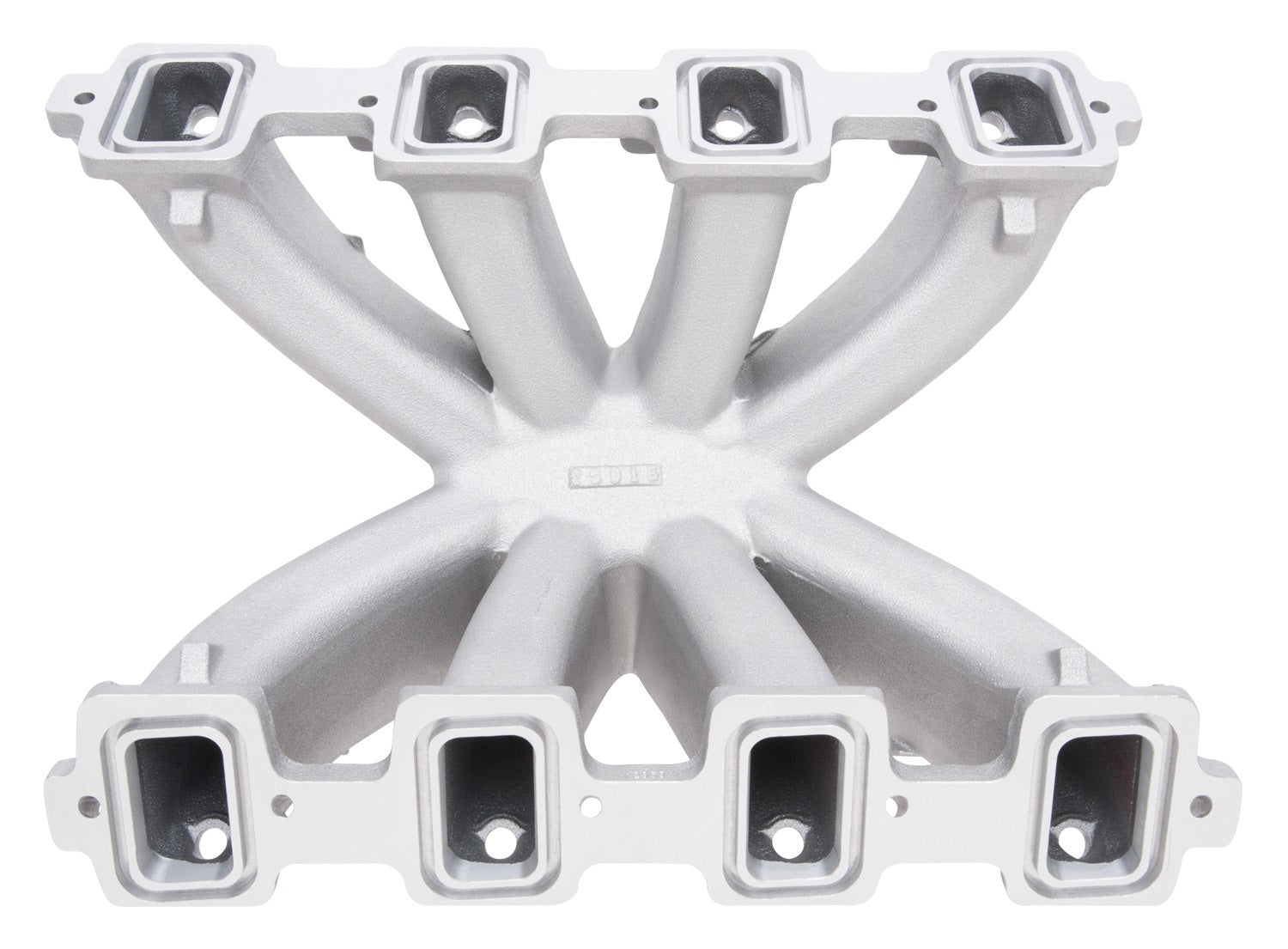

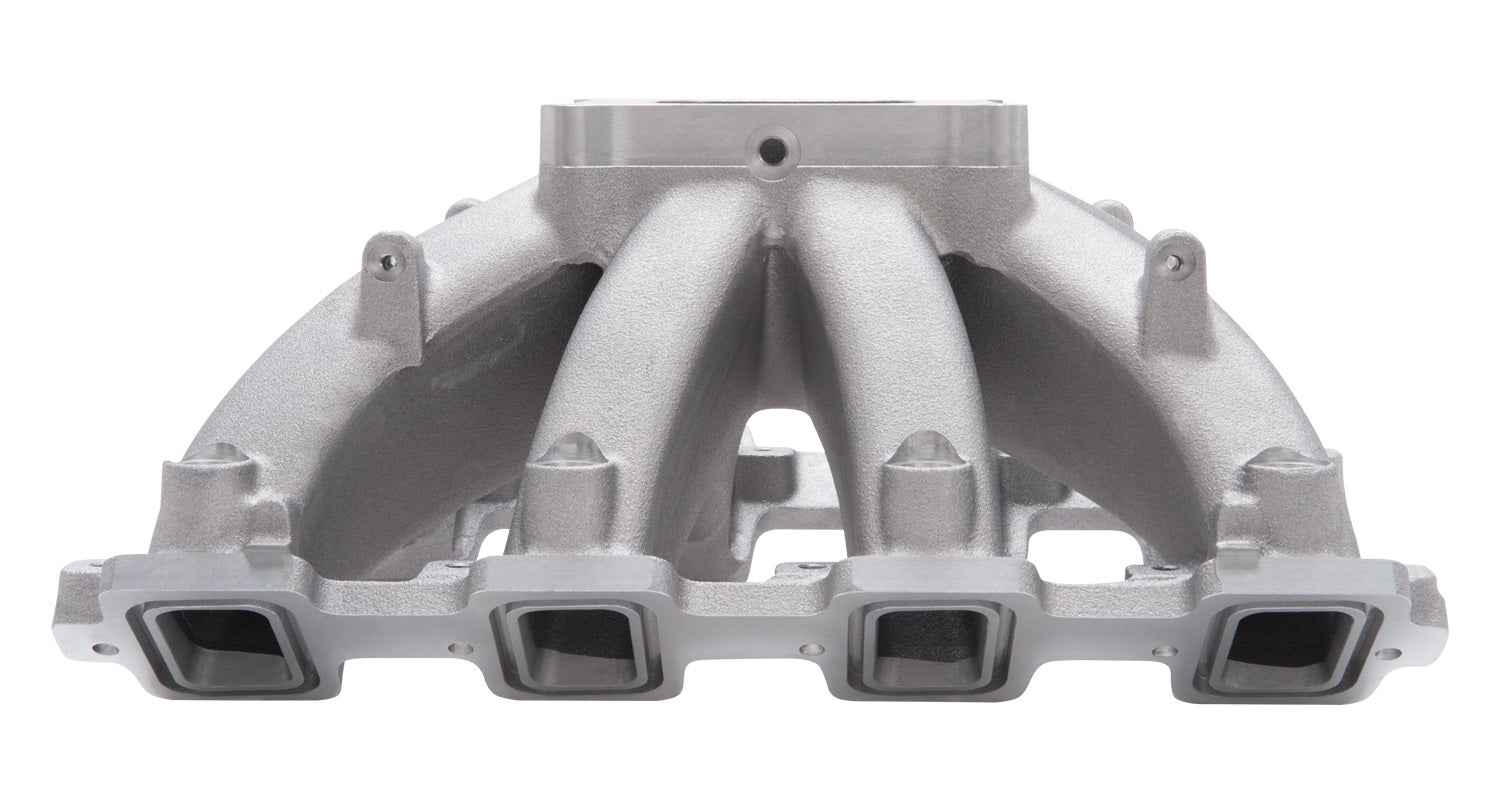

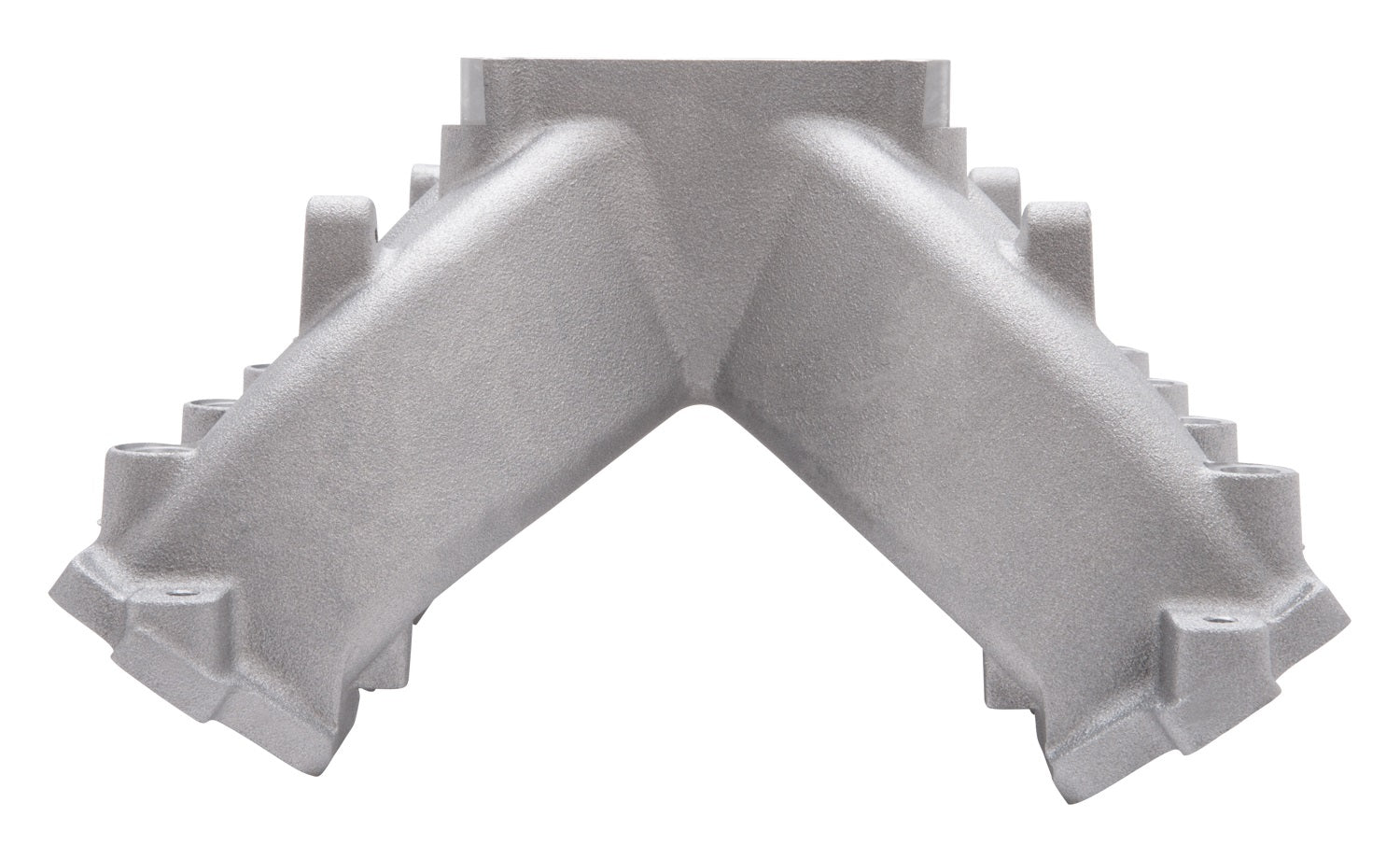

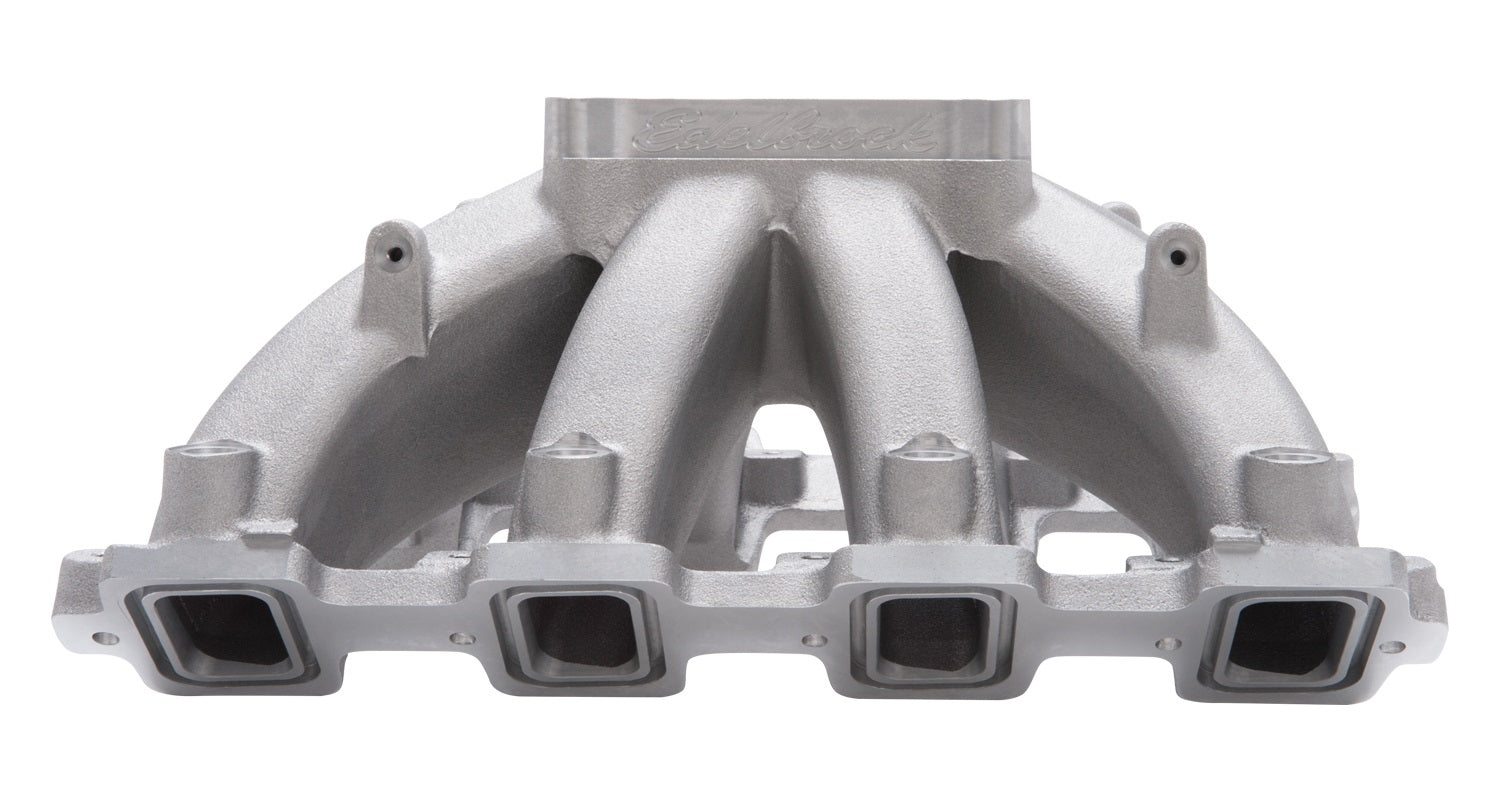

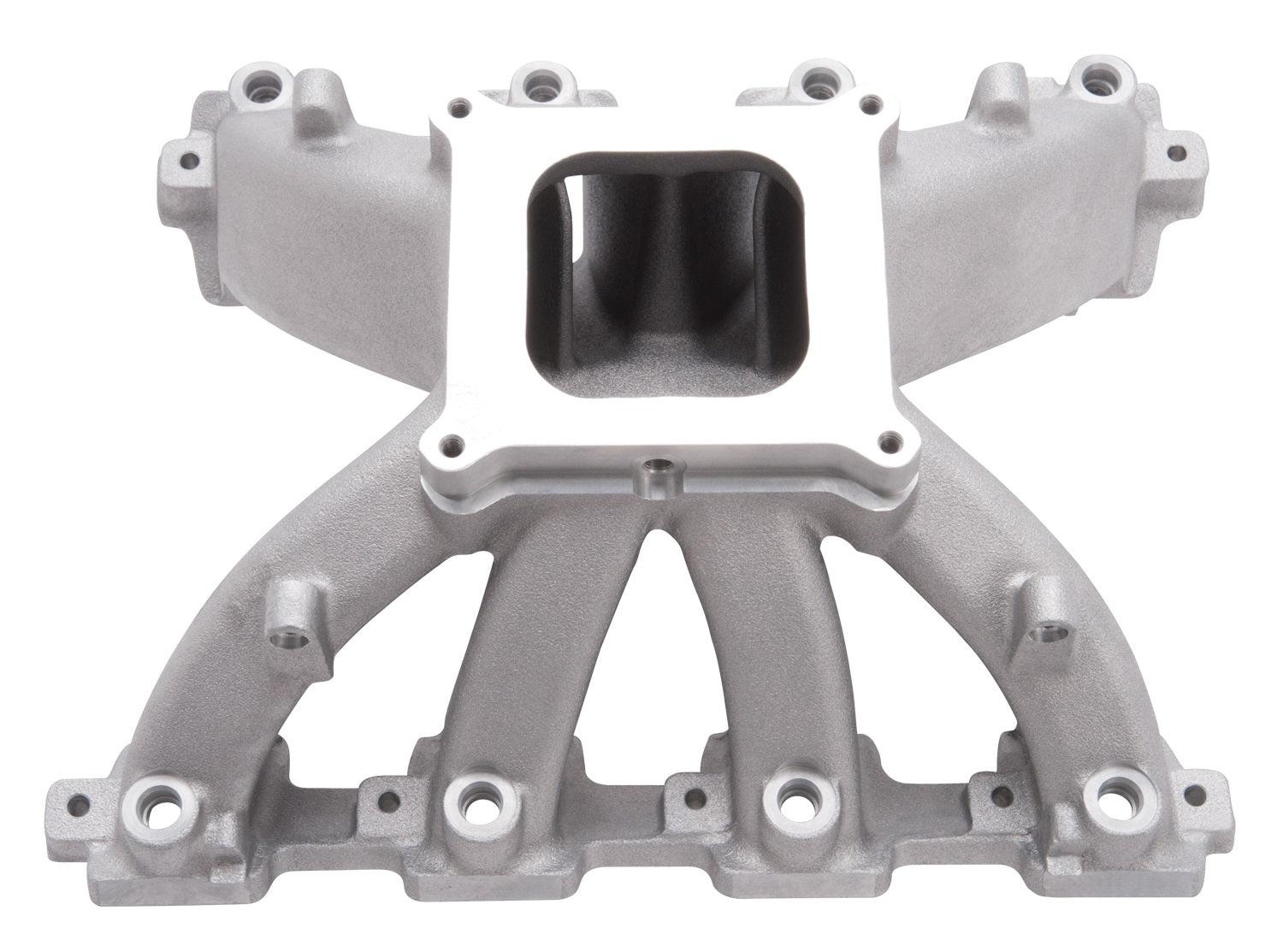

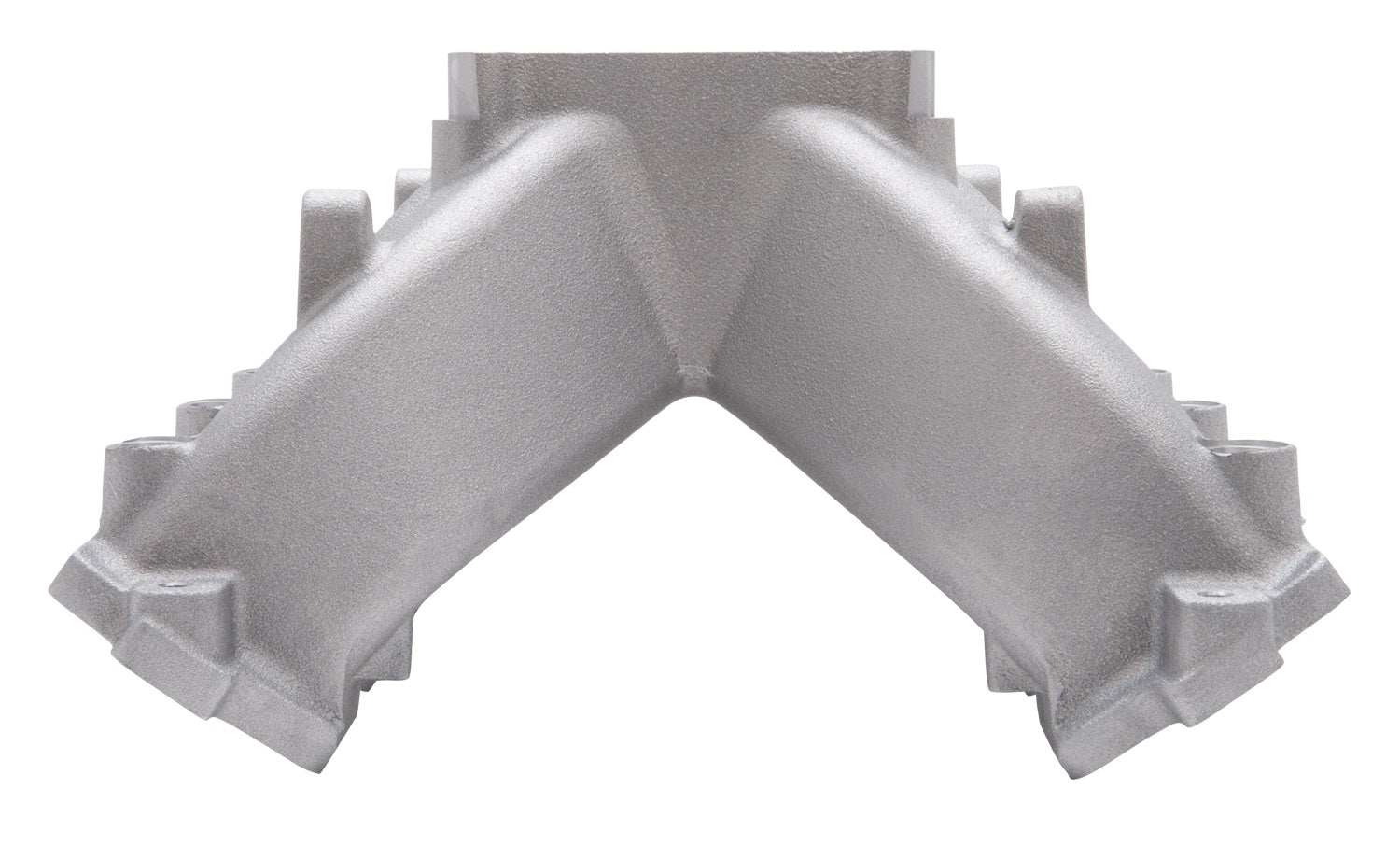

Brand New Edelbrock Super Victor for Small Block Chevy LS7 Intake Manifold EFI STD Flange (Part #28875).

Edelbrock Super Victor LS7 intake manifold is designed for Gen IV LS engines equipped with LS7 cylinder heads or Edelbrock Pro-Port Victor Jr. cylinder heads. This manifold is .75" taller than our LS3 Super Victor intakes. The new Super Victor intake manifold is capable of airflow demands of 750+ HP on naturally aspirated engines. This manifold includes machined fuel injector bosses. A carburetor mounted style throttle bracket is recommended.

Installation Notes:
  • Uses standard intake Edelbrock bolt kit #8515.
  • Designed for 4150 style throttle body.
  •  .85" taller than the Edelbrock LS3 Super Victor #28265.
  • Port exits: 1.34" w x 2.38" h.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Edelbrock #9746, LS7 style individual port O-ring seals GM PN89017852
  • Recommended Fuel Rail Kit: Edelbrock #3879
  • Port Exits: 1.34" w x 2.38" h
  • Vehicle Model: Chevrolet
  • RPM Range: 3500-8500 RPM
  • Rear Maximum Height: 8.420 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
