MANIFOLD, CHEVY SBC 15-18DEG, 4500 FLANGE, SPIDER GLIDDEN VICTOR

MANIFOLD, CHEVY SBC 15-18DEG, 4500 FLANGE, SPIDER GLIDDEN VICTOR

EDL 2858

$572.95
$572.95
View full details

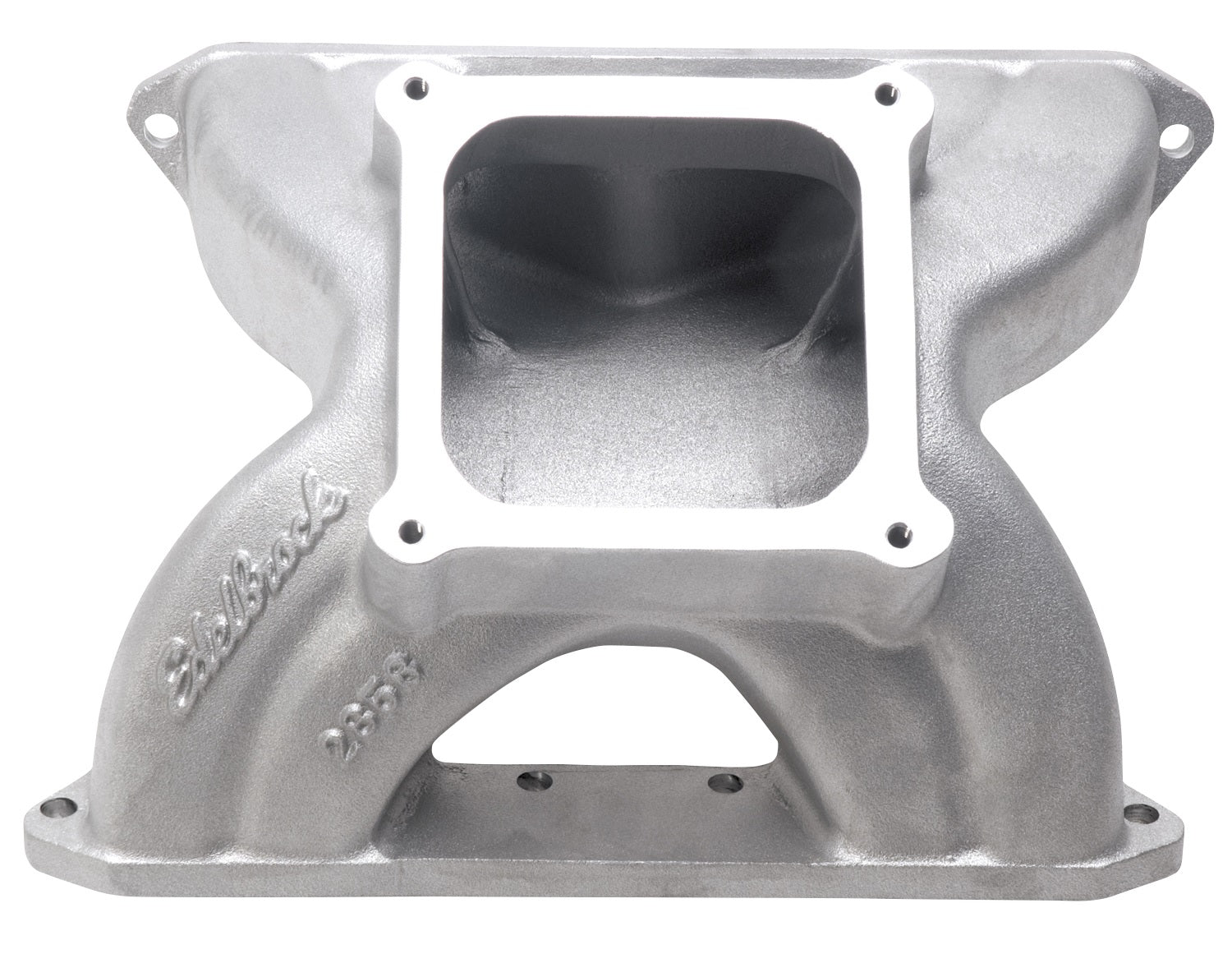

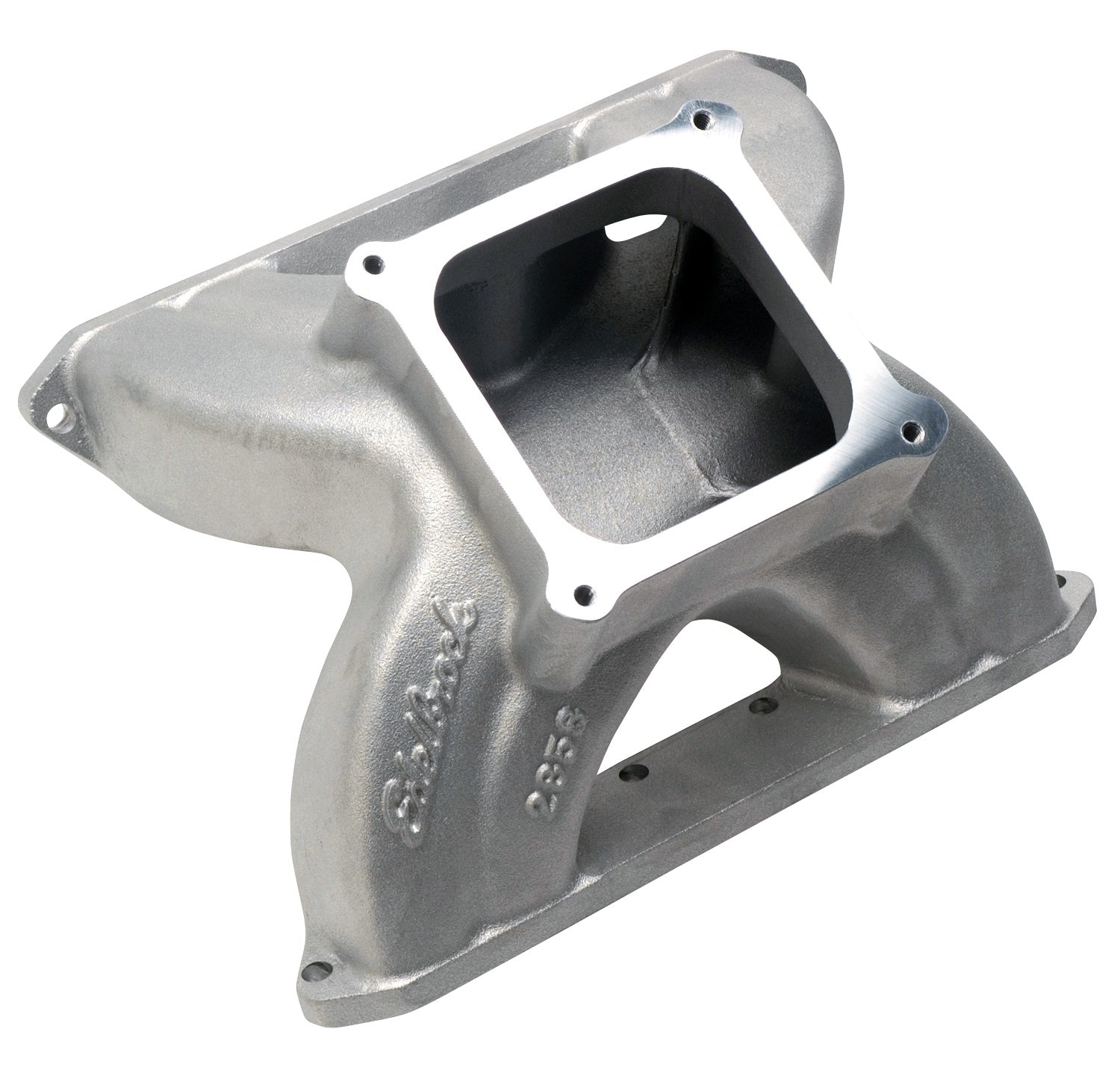

Brand New Edelbrock Victor Glidden 15-18 Degree Spider Intake Manifold for Small-Block Chevy (Part #2858).

Edelbrock Victor Glidden Spider intake manifold is intended for 375 C.I.D and up high output drag race engines. This manifold was developed in conjunction with noted drag racer Billy Glidden and is specifically designed to complement the flow characteristics of fully ported 18-degree and 15-degree cylinder heads. It features a 4500 series carb flange, and the dividers are pulled back to increase plenum size and shorten the runners for improved high rpm performance. The runners are wider at the plenum, producing approximately 3.6 square inches area at the opening. The Edelbrock Victor Glidden Spider is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.

Installation Notes:
  • Must be used with Edelbrock base plate #2992.
  • For use with 15 and 18 Degree heads.
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
  • DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
  • Carburetor size (CFM) should be selected based on your specific engine combination.
  • To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Edelbrock #7218 or Fel-Pro #1282 (spider and manifold), #1254 (base)
  • Carb Pad Height: 7.03"
  • Port Exit Dimensions: 1.21"x 2.04"
  • Vehicle Model: Chevrolet
  • RPM Range: 5000-8500 RPM
  • Rear Maximum Height: 7.030 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
