MANIFOLD, 1999-19 GM LS3/L92/L76, 6.0-6.2L, VICTOR JR, CARBURETED

MANIFOLD, 1999-19 GM LS3/L92/L76, 6.0-6.2L, VICTOR JR, CARBURETED

EDL 28457

$476.95
$476.95
View full details

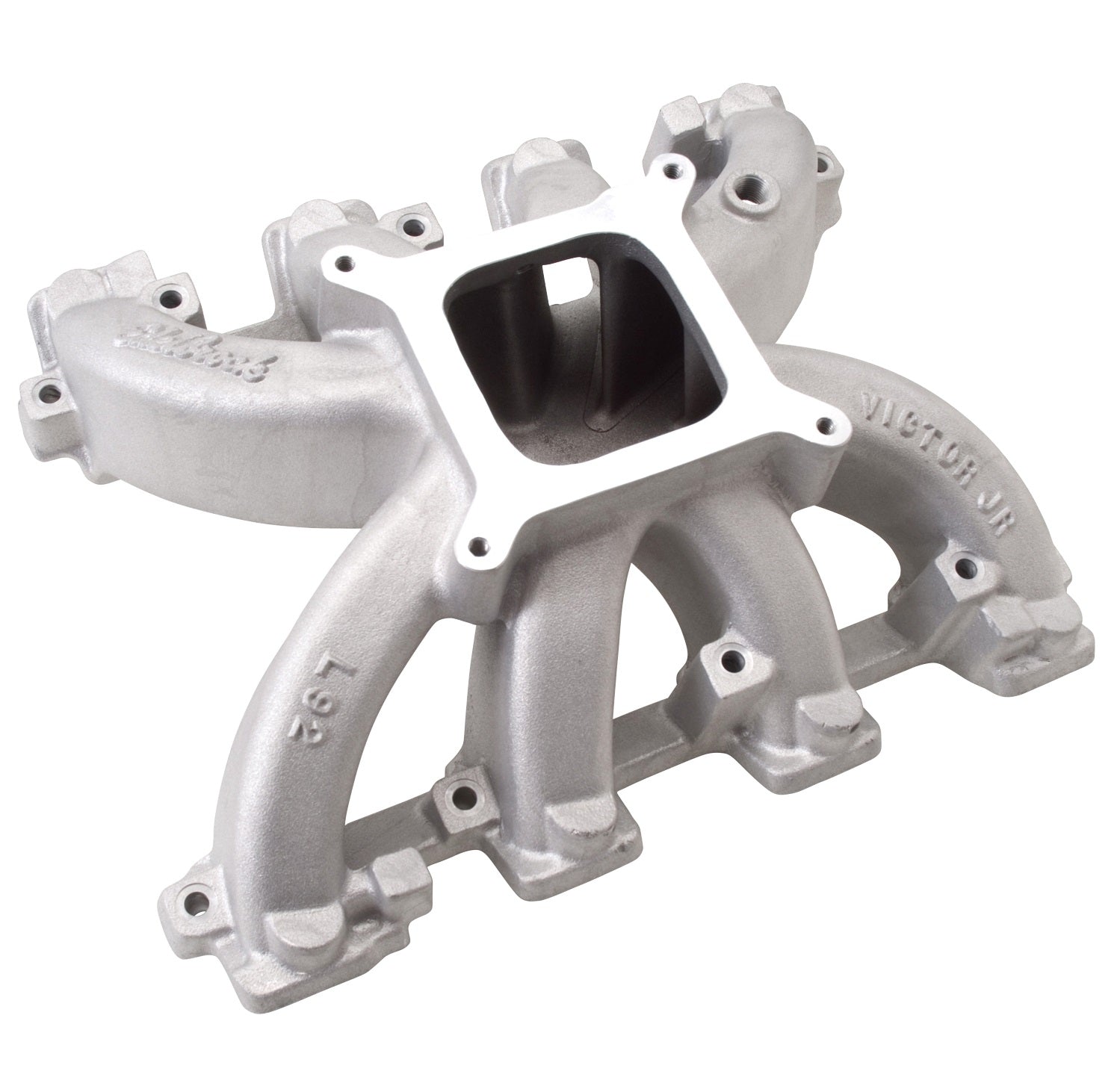

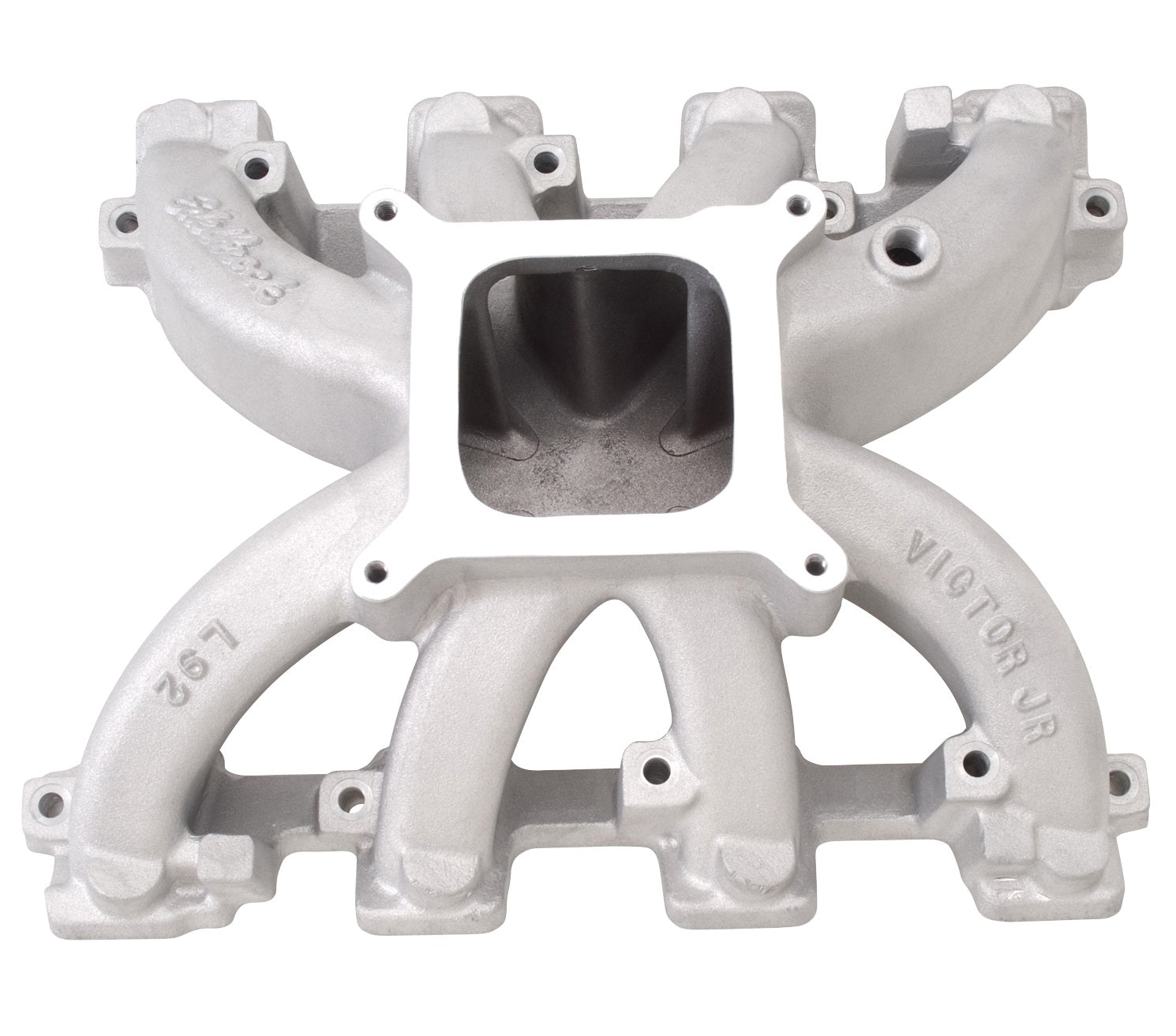

Brand New Edelbrock Victor Jr Small Block for Chevy LS3, L92, or L76 Intake Manifold Carburetor (Part #28457).

Edelbrock Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for carbureted racing applications operating between 3500-7500 rpm. This manifold uses a standard square bore carb flange that is compatible. The LS3, L92 and L76 all use the same cylinder head.

Installation Notes:
  • Uses LS3/L76/L92 style individual port O-ring seals GM PN19256623
  • 4150 Carb flange
  • L92 heads are intended for 4.00" bores and will not work with 5.7L blocks without valve reliefs

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Throttle Body Recommendations: Edelbrock #38783
  • Manifold Dimensions: Roof to bolt centerline=1.85", Floor to bolt centerline =0.57", Height=2.42", Carb pad height=7.40"
  • Vehicle Model: Chevrolet
  • RPM Range: 3500-7500 RPM
  • Rear Maximum Height: 7.4 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
