MANIFOLD, FORD 4.6L MOD, VICTOR JR, EFI

MANIFOLD, FORD 4.6L MOD, VICTOR JR, EFI

EDL 28385

$519.95
$519.95
View full details

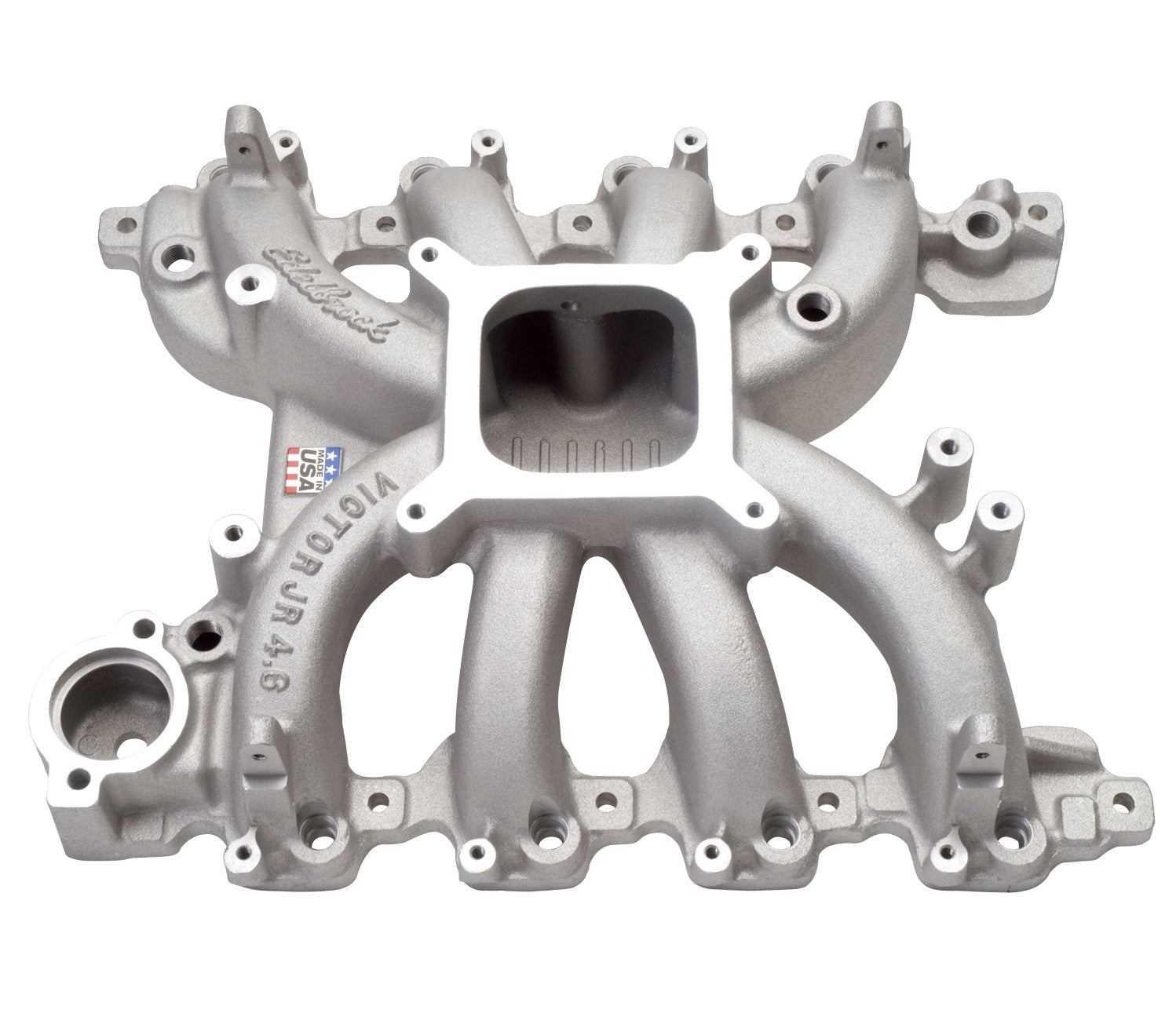

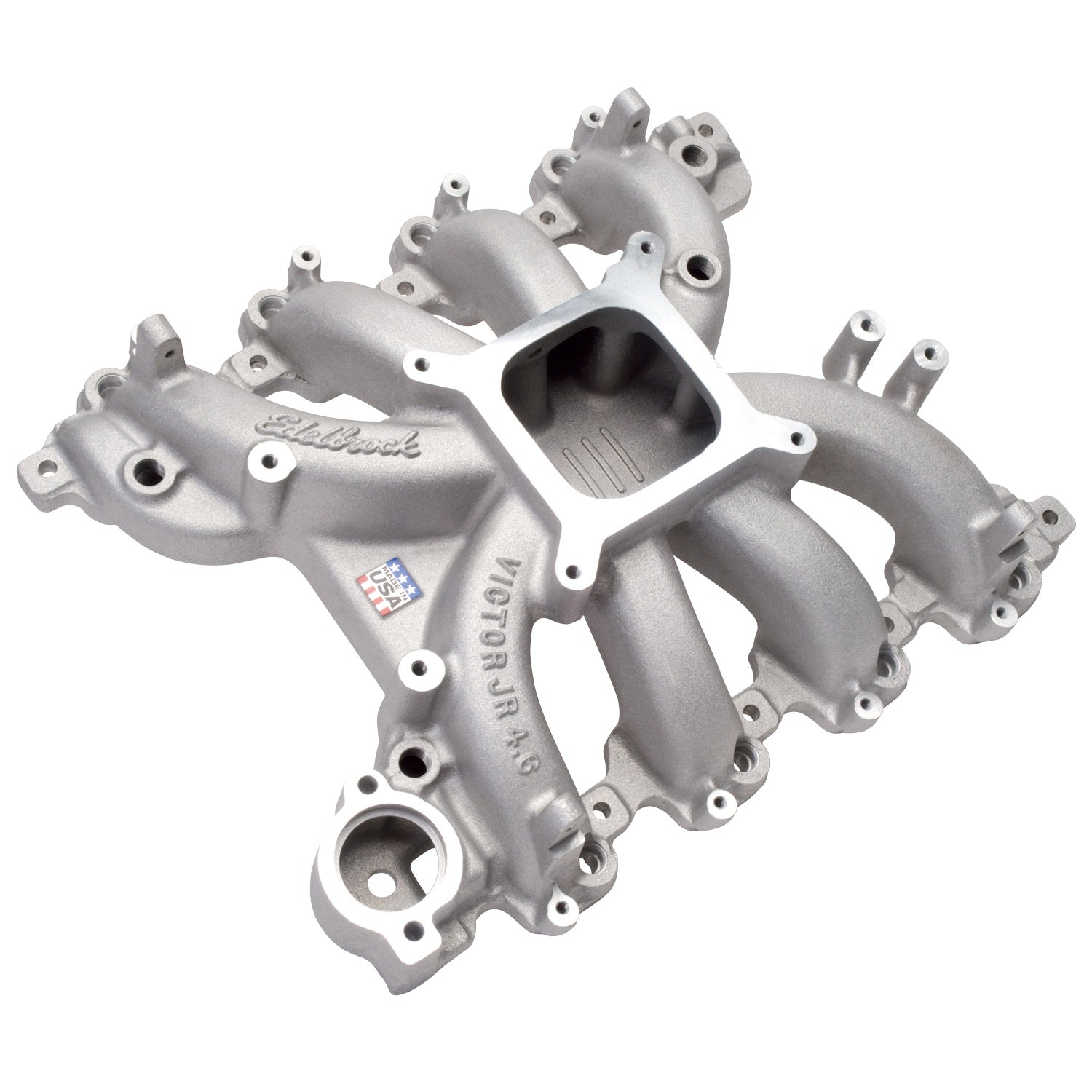

Brand New Edelbrock Victor Jr Ford 4.6L Modular Intake Manifold EFI (Part #28385).

Edelbrock Victor Jr. Ford 4.6L SOHC EFI intake manifold is designed for Ford 4.6L SOHC Modular engines, 1999-2004 SOHC Modular 4.6L engine is designed for 4.6l Ford's using EFI in racing. Timing control module available separately. Not intended for or as a stock replacement intake manifold. Whether you're building a daily driver, ultra high-performance's street machine or race car, an Edelbrock intake manifold will provide the power right where you want it. The Edelbrock Victor Jr. Ford 4.6L SOHC also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.

Installation Notes:
  • Throttle pad and plenum optimized for square-bore (4150 style) 4V throttle bodies.
  • Built in water crossover with clearance for the stock 1999-2004 alternator location.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Fuel Rail: Edelbrock #3639
  • Recommended Intake Gasket: OEM factory gaskets
  • Throttle Body Recommendations: Edelbrock #38783 4150 style 4V or #3848 competition EFI elbow and #3818 90mm throttle body.
  • Manifold Height: A-4.75", B-4.75", 0 Deg carb angle
  • Port Exit Dimensions: 1.42" x 1.72"
  • Vehicle Model: Ford
  • RPM Range: 3500-7500 RPM
  • Rear Maximum Height: 4.750 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
