MANIFOLD, 1992-04 FORD 4.6L SOHC, VICTOR JR, 4150 CARB

MANIFOLD, 1992-04 FORD 4.6L SOHC, VICTOR JR, 4150 CARB

EDL 2838

$486.95
$486.95

Yes, we have this item in stock and ready to ship immediately!
View full details

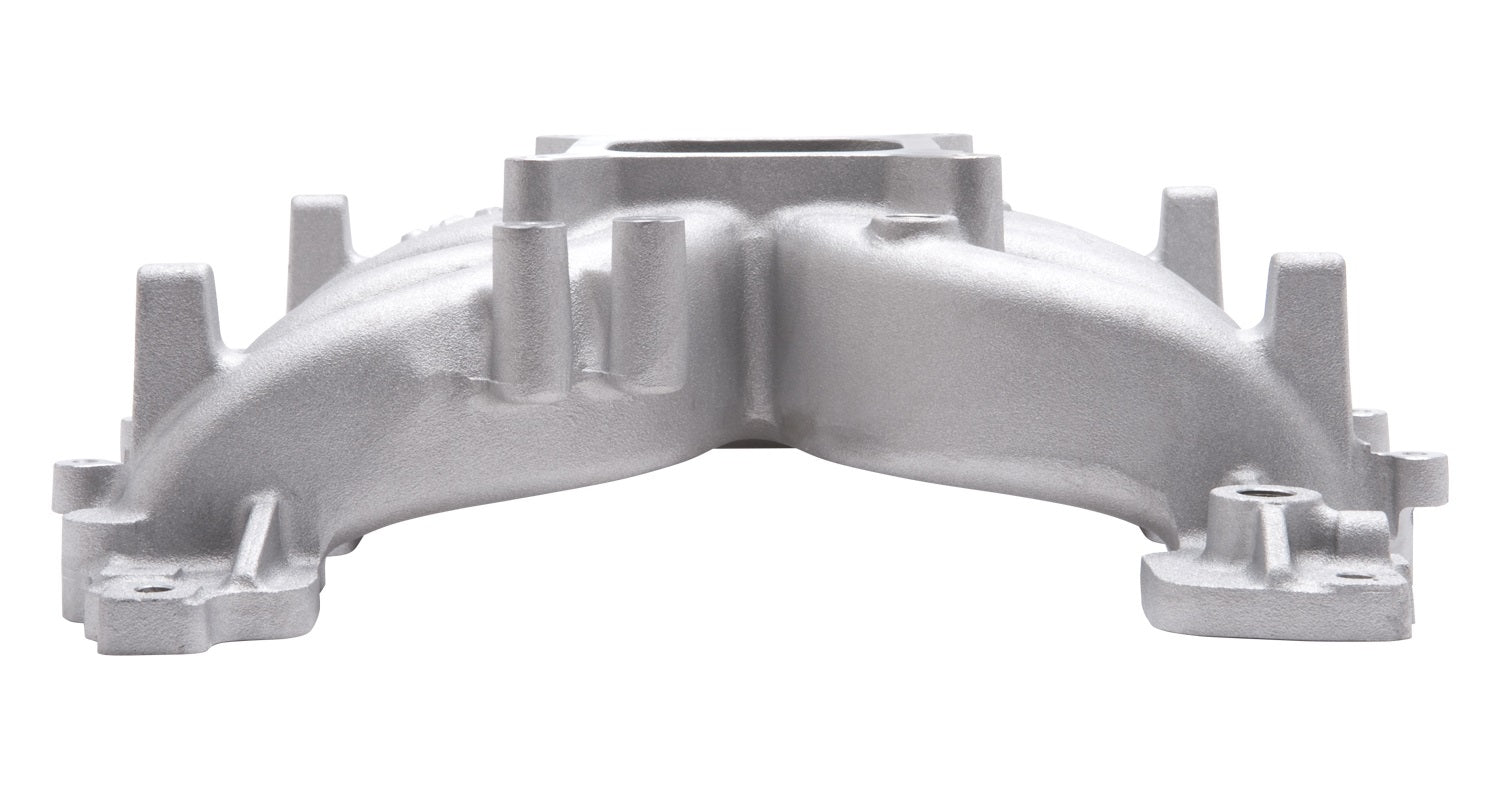

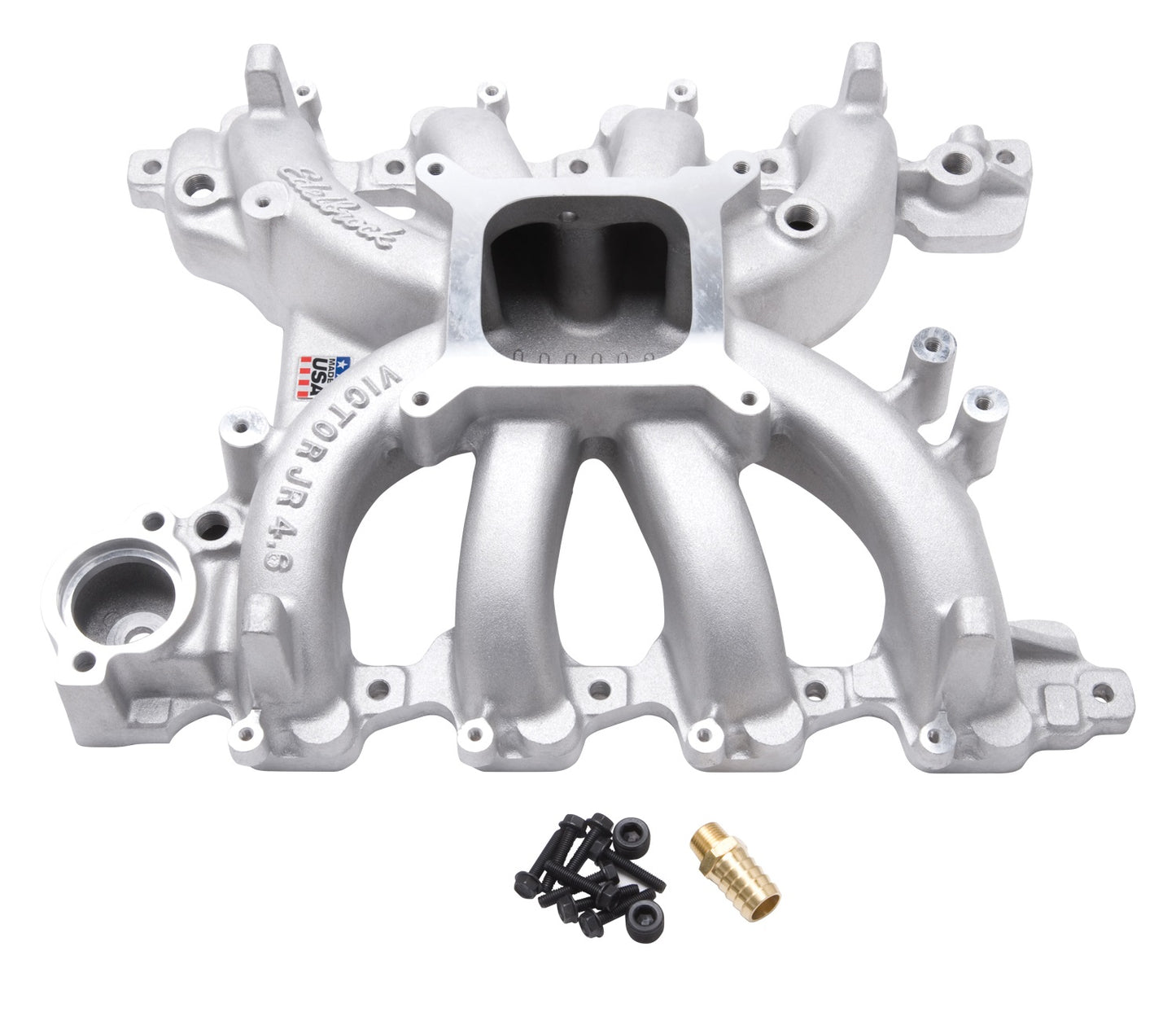

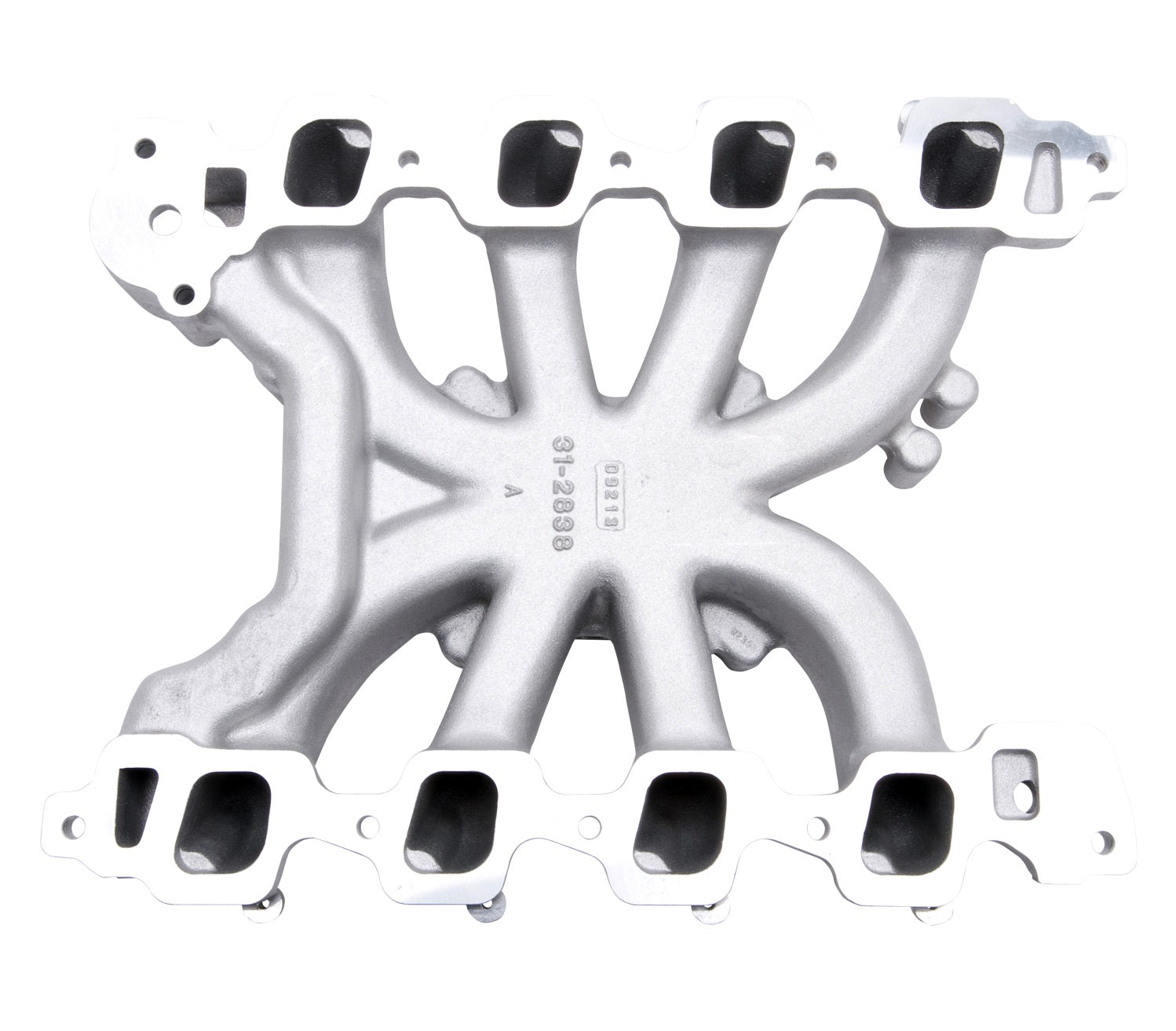

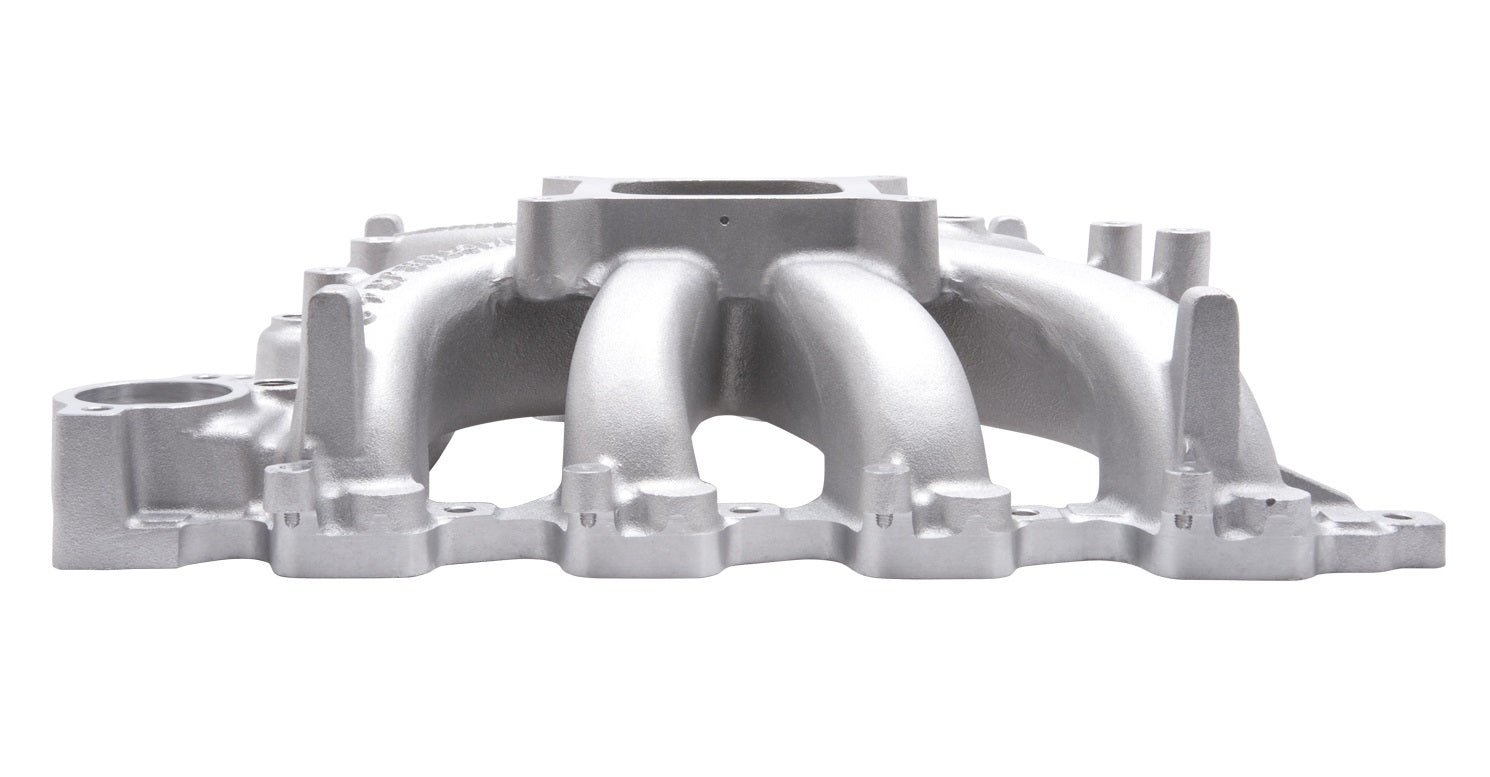

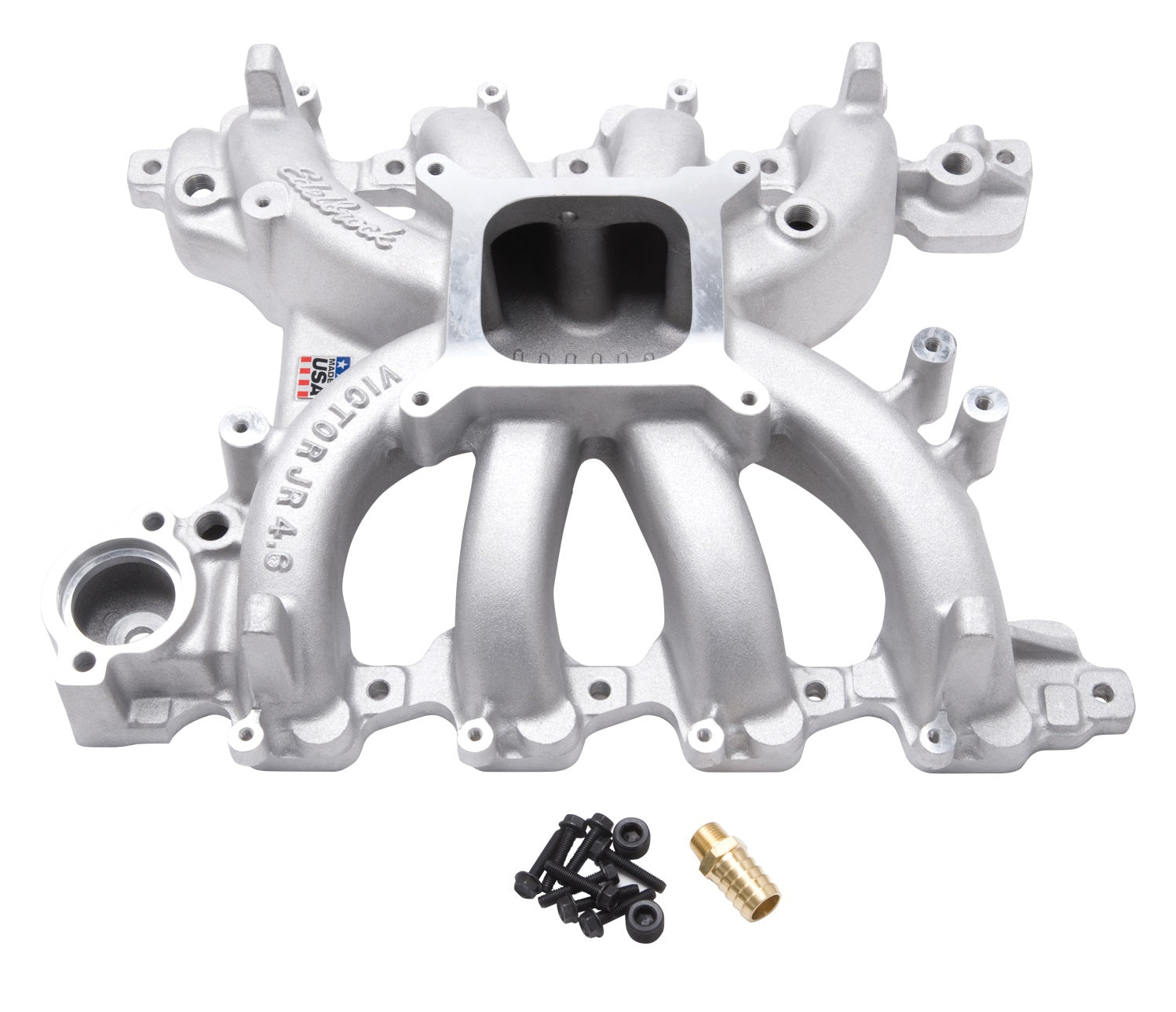

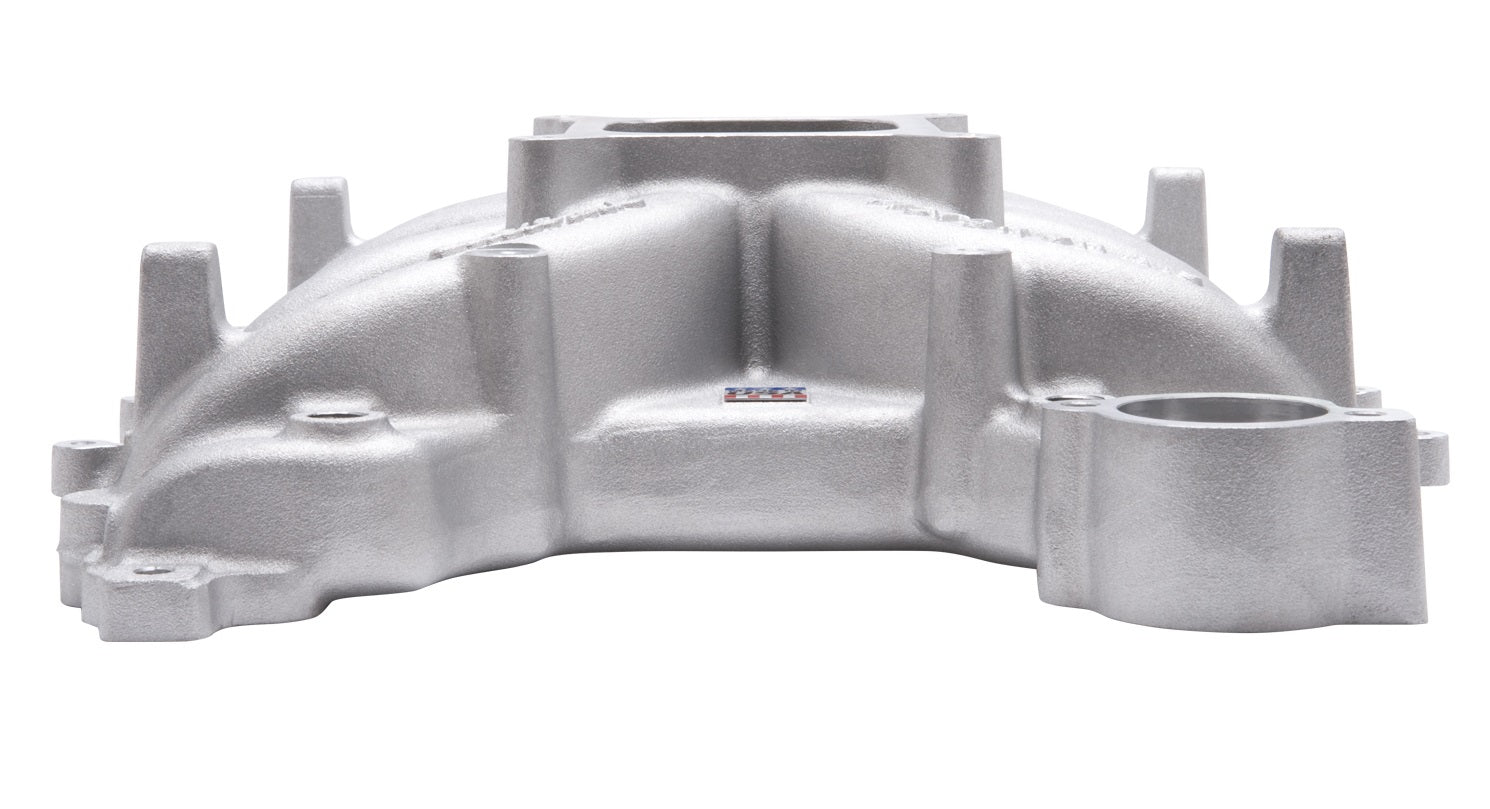

Brand New Edelbrock Victor Jr. Ford 4.6L SOHC Modular Carburetor Intake Manifold Without Electronics (Part #2838).

Edelbrock part #2838 Victor Jr. Ford 4.6L SOHC intake manifold for Ford 4.6L SOHC Modular engines allows the customer to take any 1999-2004 SOHC Modular 4.6L engine and convert it for use with a carburetor.

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: OEM factory gaskets
  • Manifold Height: A-4.75", B-4.75", 0 Deg carb angle
  • Throttle Body Recommendations: Edelbrock #38780 4150 style 4 V or #3848 competition EFI elbow and #3818 90mm throttle body
  • Port Exit Dimensions: 1.42" x 1.72"
  • Vehicle Model: Ford
  • RPM Range: 3500-7500 RPM
  • Rear Maximum Height: 4.750 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
