MANIFOLD, CHEVY LS3, EFI, 4150 FLANGE, SUPER VICTOR

MANIFOLD, CHEVY LS3, EFI, 4150 FLANGE, SUPER VICTOR

EDL 28265

$698.95
$698.95
View full details

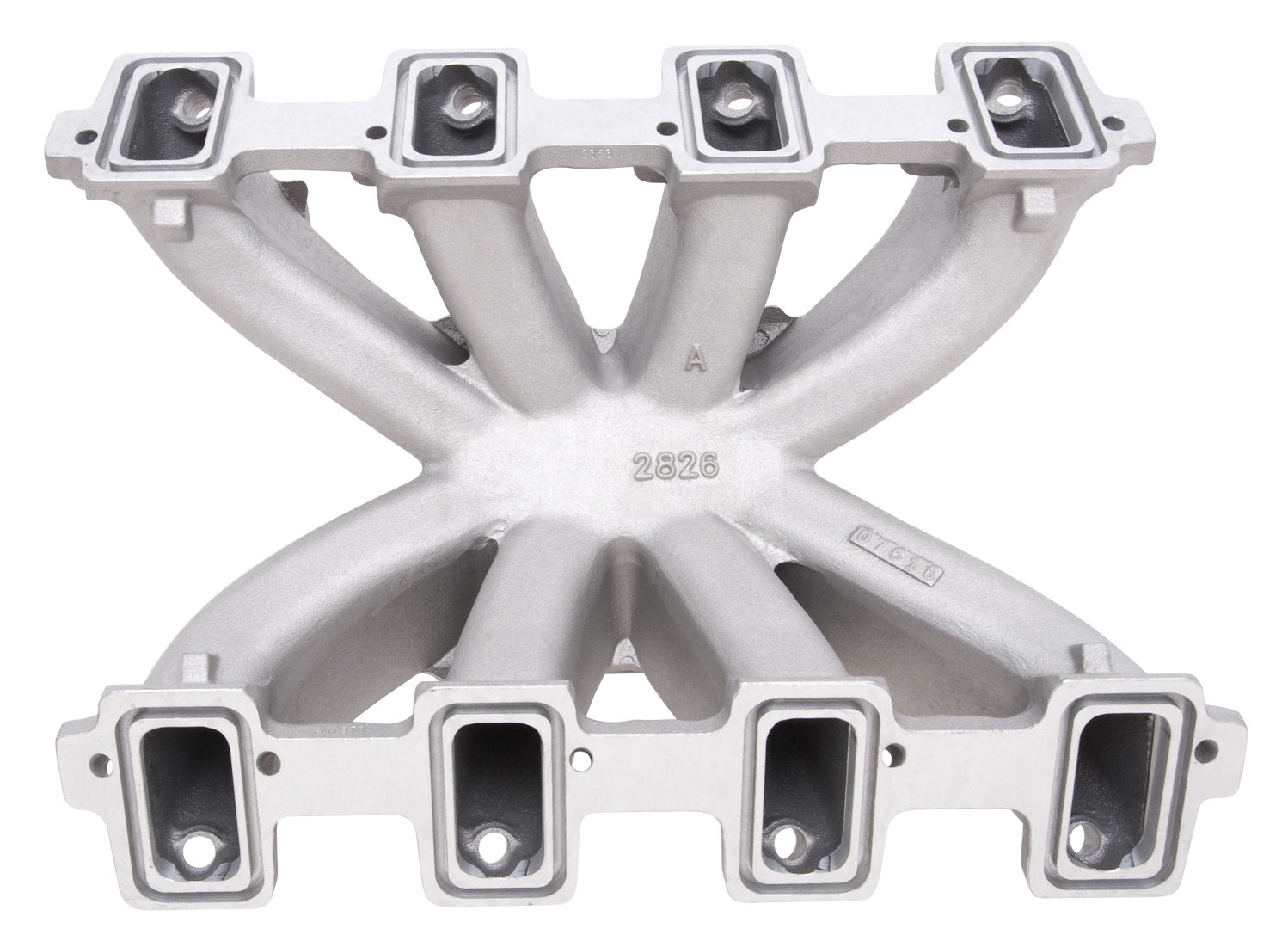

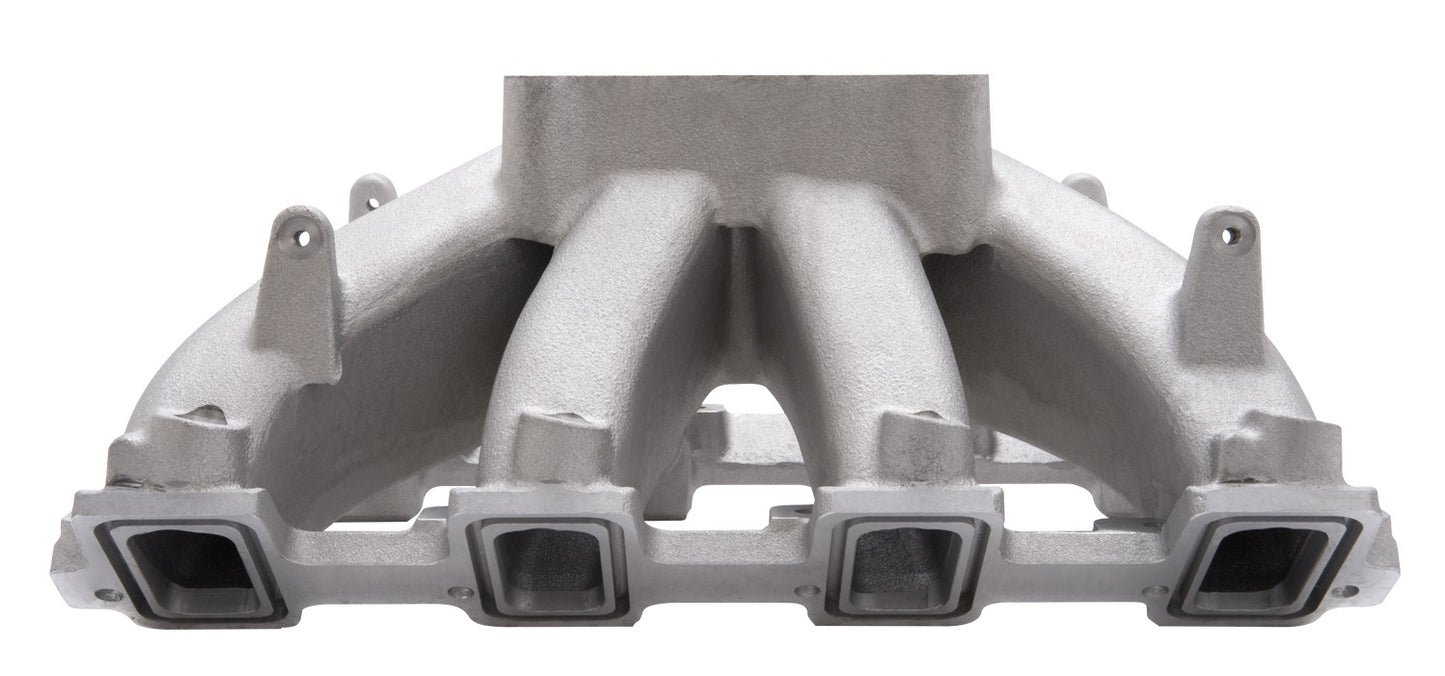

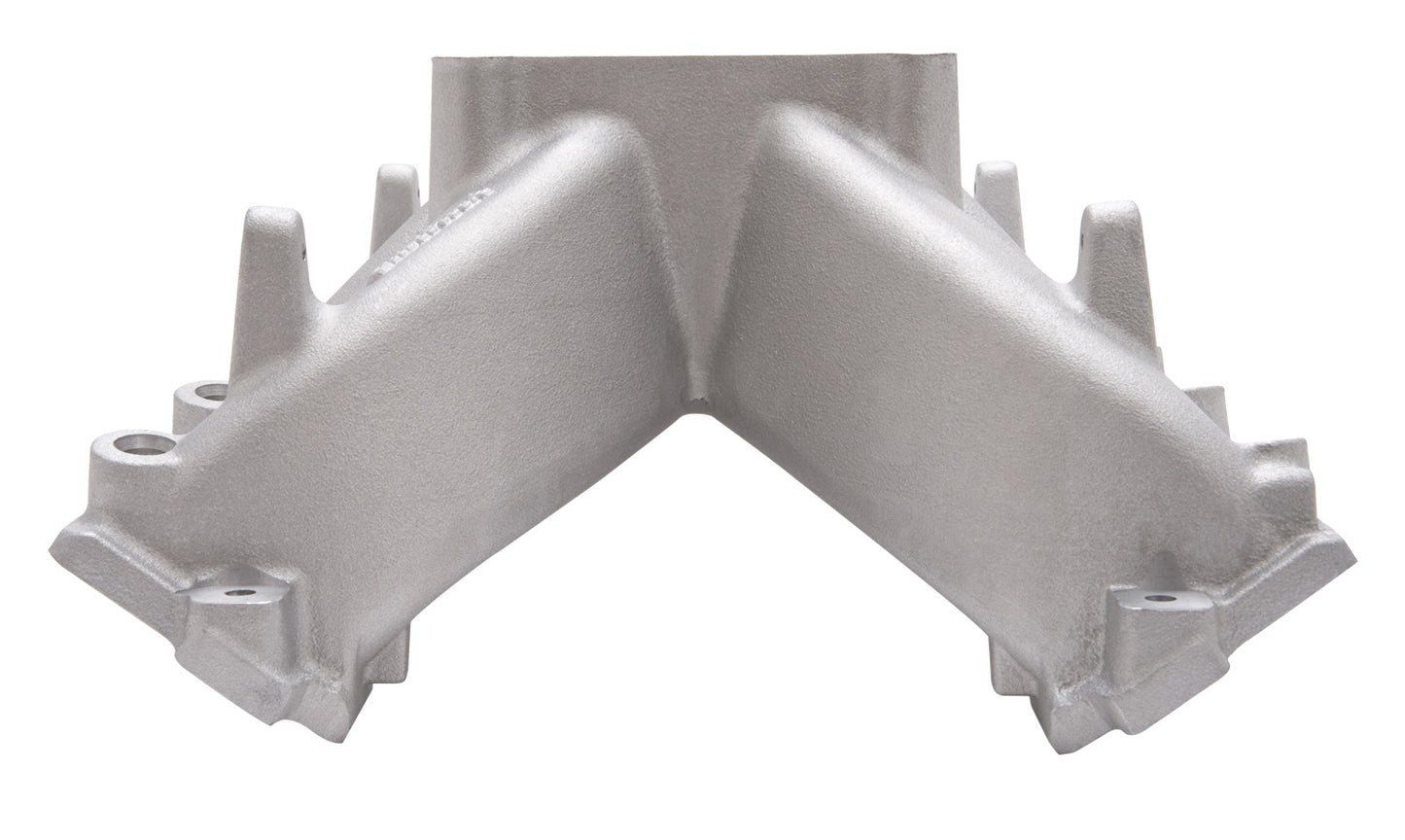

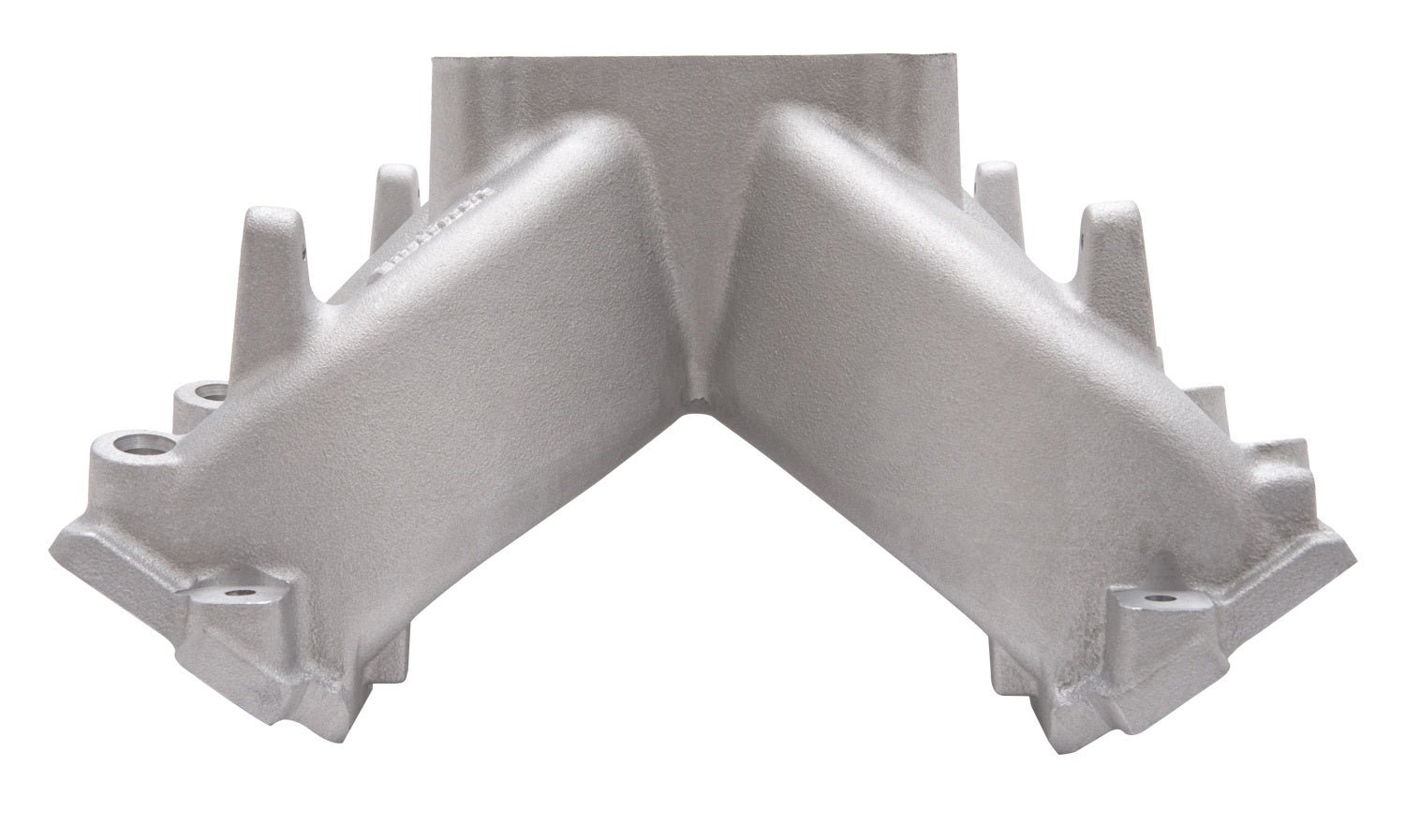

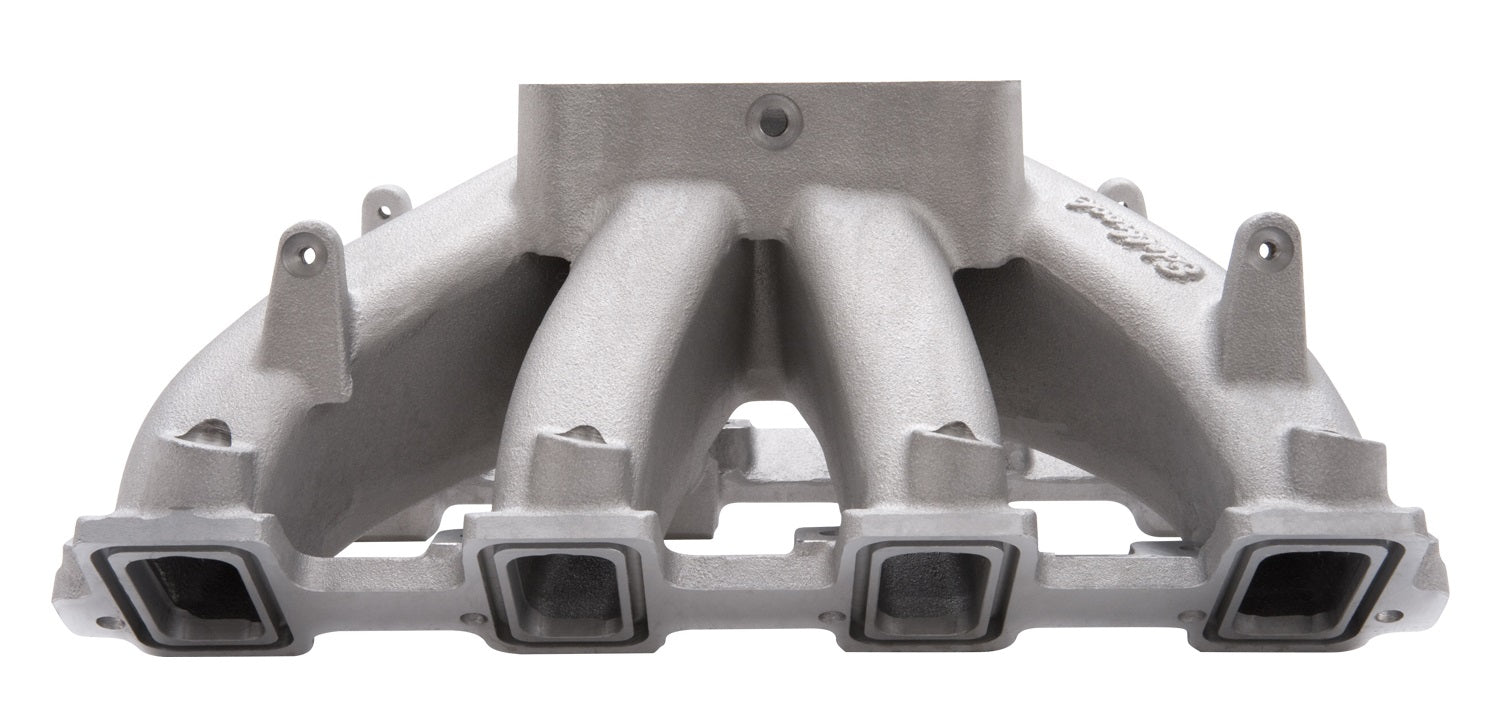

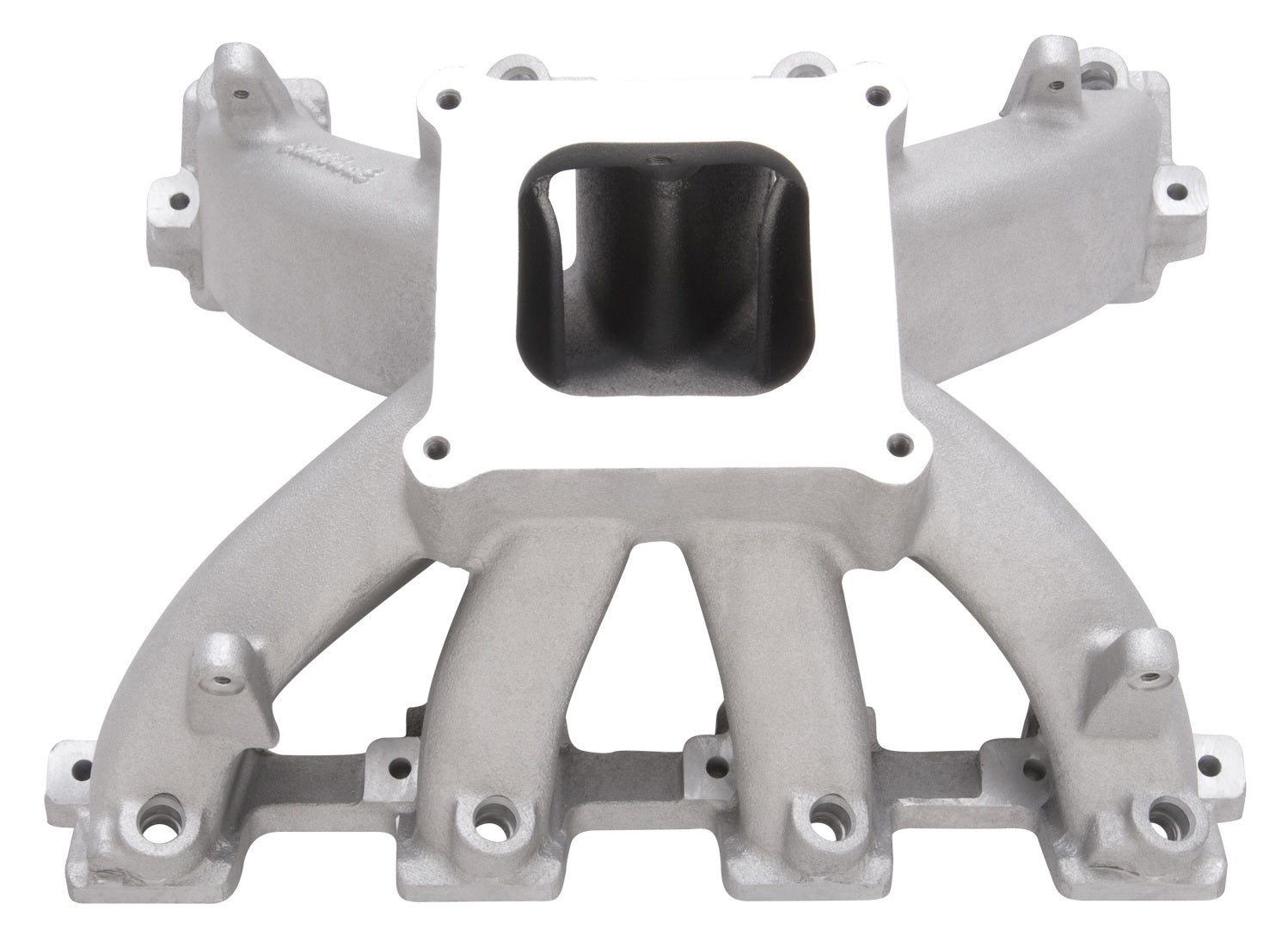

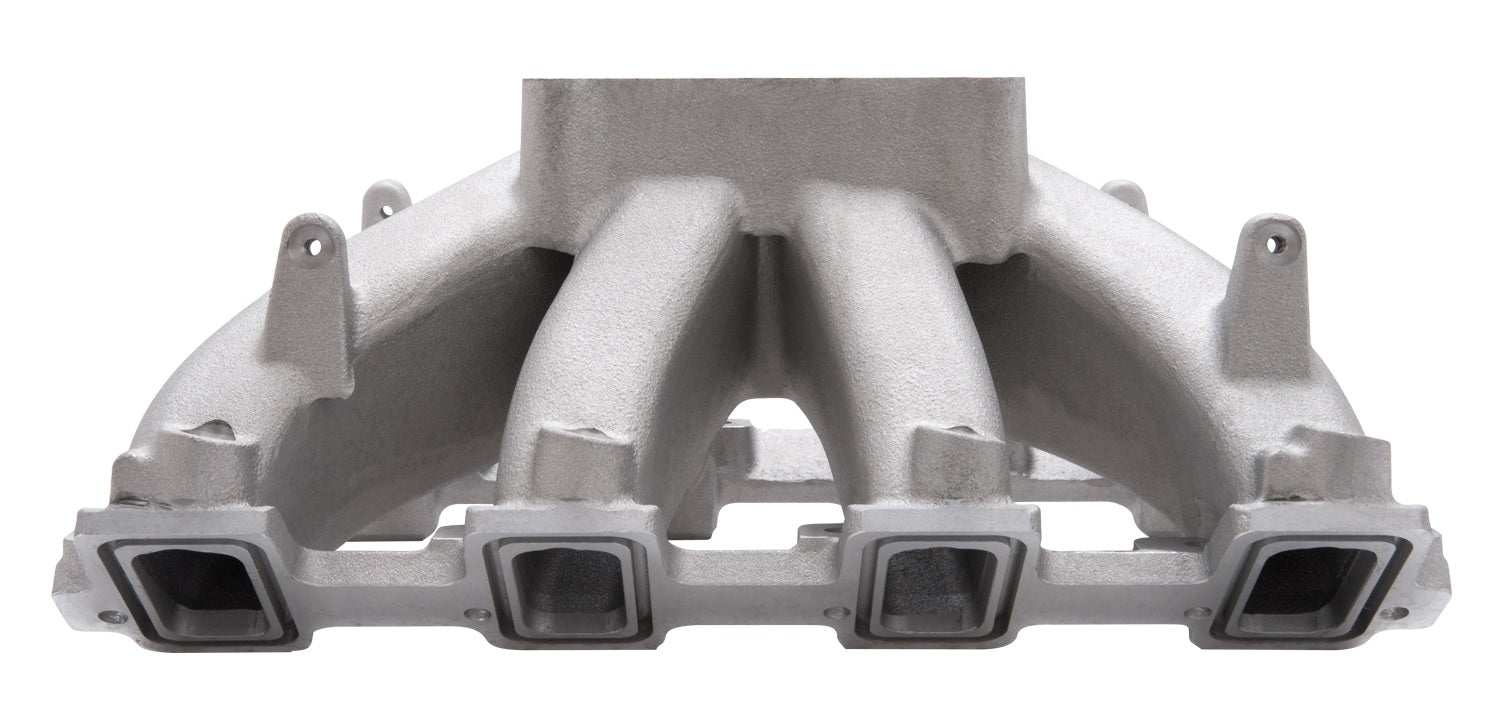

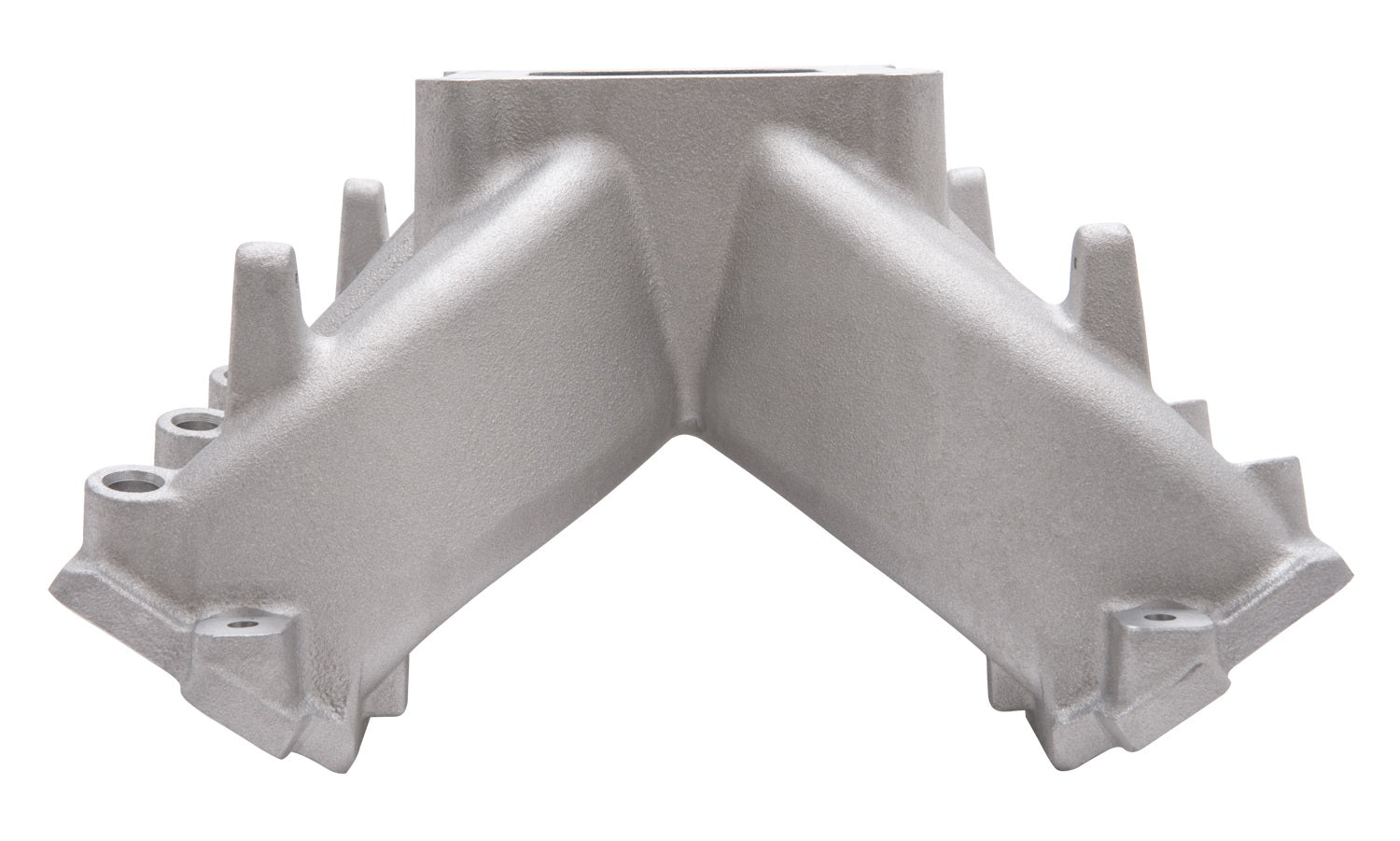

Brand New Edelbrock Super Victor EFI Small-Block Chevy LS3 4150 Carburetor Intake Manifold (Part #28265).

Edelbrock Super Victor LS3 carbureted intake manifold is designed for Gen IV LS engines equipped with LS3 cylinder heads. This new Super Victor intake manifold is ideal for anyone building a 700+ HP 4150 series carbureted large displacement racing engine operating between 3,500 - 7,500 rpm. This new Super Victor intake manifold is designed with 24% larger runners than our Victor Jr. #28457 along with a larger 4500 style plenum. The large plenum makes this intake manifold ideal for nitrous and forced induction applications. This intake manifold also features tapered runners for increased flow at high rpm. A carburetor mounted style throttle bracket is recommended.

Installation Notes:
  • Uses LS3/L76/LS92 style individual port O-Ring seals GM PN19256623
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Manifold height: A-7.67", B-7.67"
  • Carb Pad Height: 7.67"
  • Carb Recommendations: Use appropriate 4150/4500 Series racing carburetor
  • Port Exit Dimensions: 1.27" x 2.58"
  • Vehicle Model: Chevrolet
  • RPM Range: 3500-7500 RPM
  • Rear Maximum Height: 7.670 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
