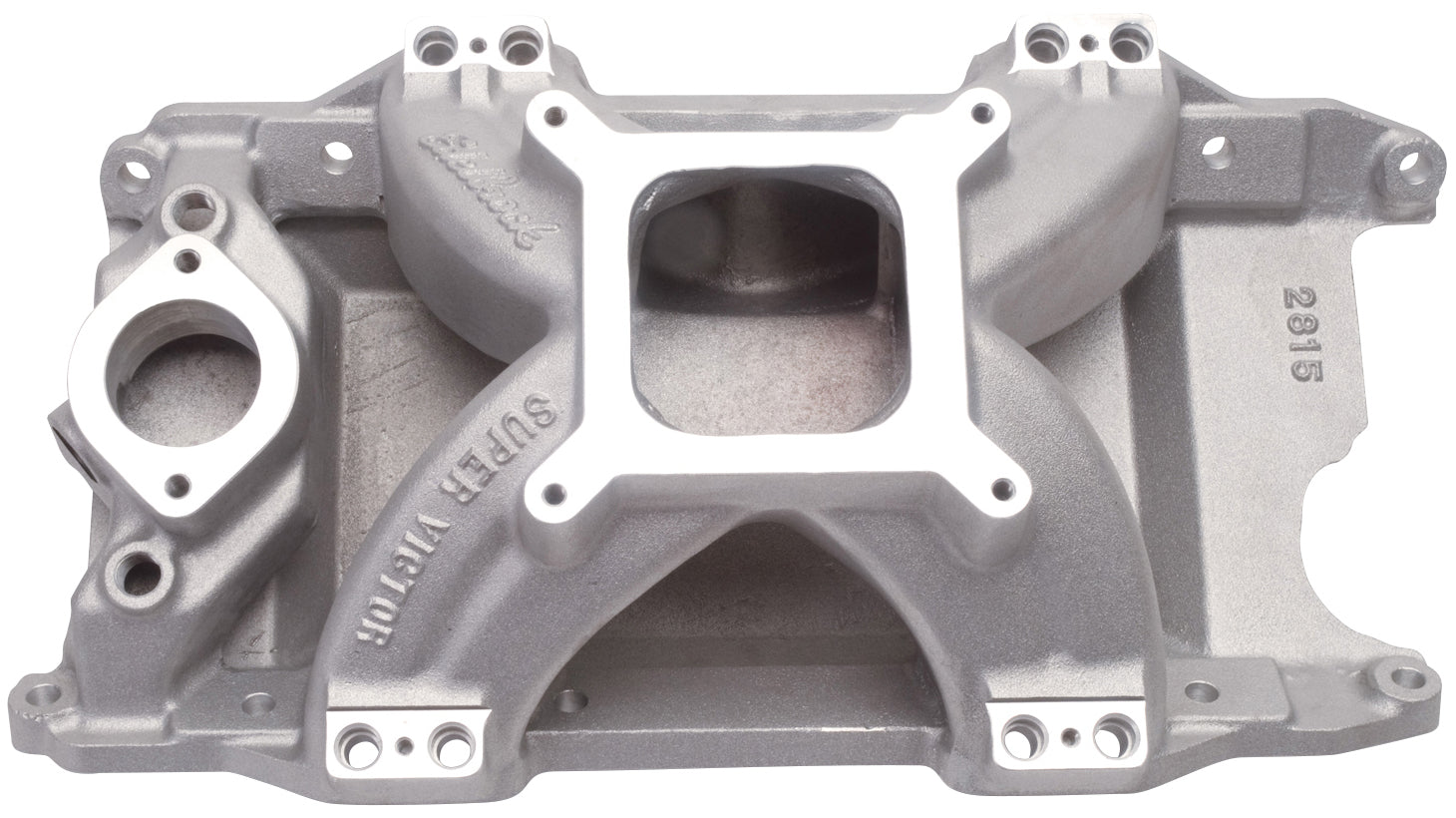

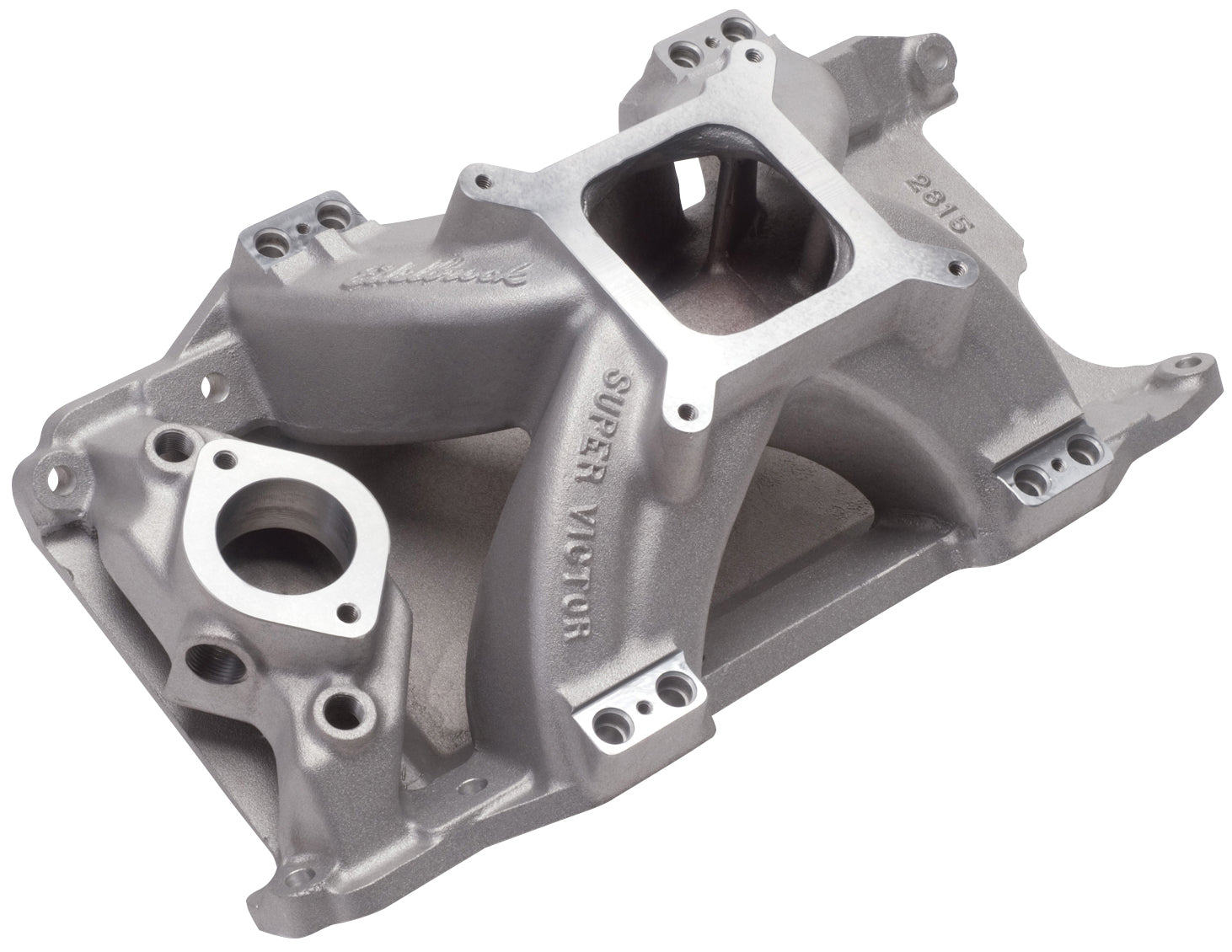

EDELBROCK INTAKE MANIFOLD,SUPER VICTOR,EFI,1968-91 CHRYSLER 340-360,LA

BRAND NEW EDELBROCK SUPER VICTOR EFI INTAKE MANIFOLD FOR 318, 340, 360 CHRYSLER "LA" SMALL BLOCK ENGINES

EDELBROCK PART #29155 VICTOR EFI INTAKE MANIFOLD IS DESIGNED FOR 340-360 C.I.D. CHRYSLERS USING STANDARD RECTANGULAR-PORT HEADS.

NOTE: WILL NOT FIT 1992 AND LATER MAGNUM ENGINES

NOTE: ACCEPTS 1975 AND EARLIER WATERNECK ONLY

FEATURES:

• FOR OVAL TRACK AND DRAG RACE ENGINES OPERATING FROM 3500-8000 RPM
• CAN BE USED ON 318 C.I.D. ENGINES WITH 340-360 HEADS
• RECOMMENDED INTAKE GASKET: EDELBROCK #7276
• MANIFOLD HEIGHT.: A-6.30", B-6.30"
• CARB RECOMMENDATIONS: USE APPROPRIATE RACING CARBURETOR
• PORT EXIT DIMENSIONS .98"X 2.15"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
