MANIFOLD, 1967-91 CHRYSLER 318-360 (LA), SUPER VICTOR

MANIFOLD, 1967-91 CHRYSLER 318-360 (LA), SUPER VICTOR

EDL 2815

$552.95
$552.95
View full details

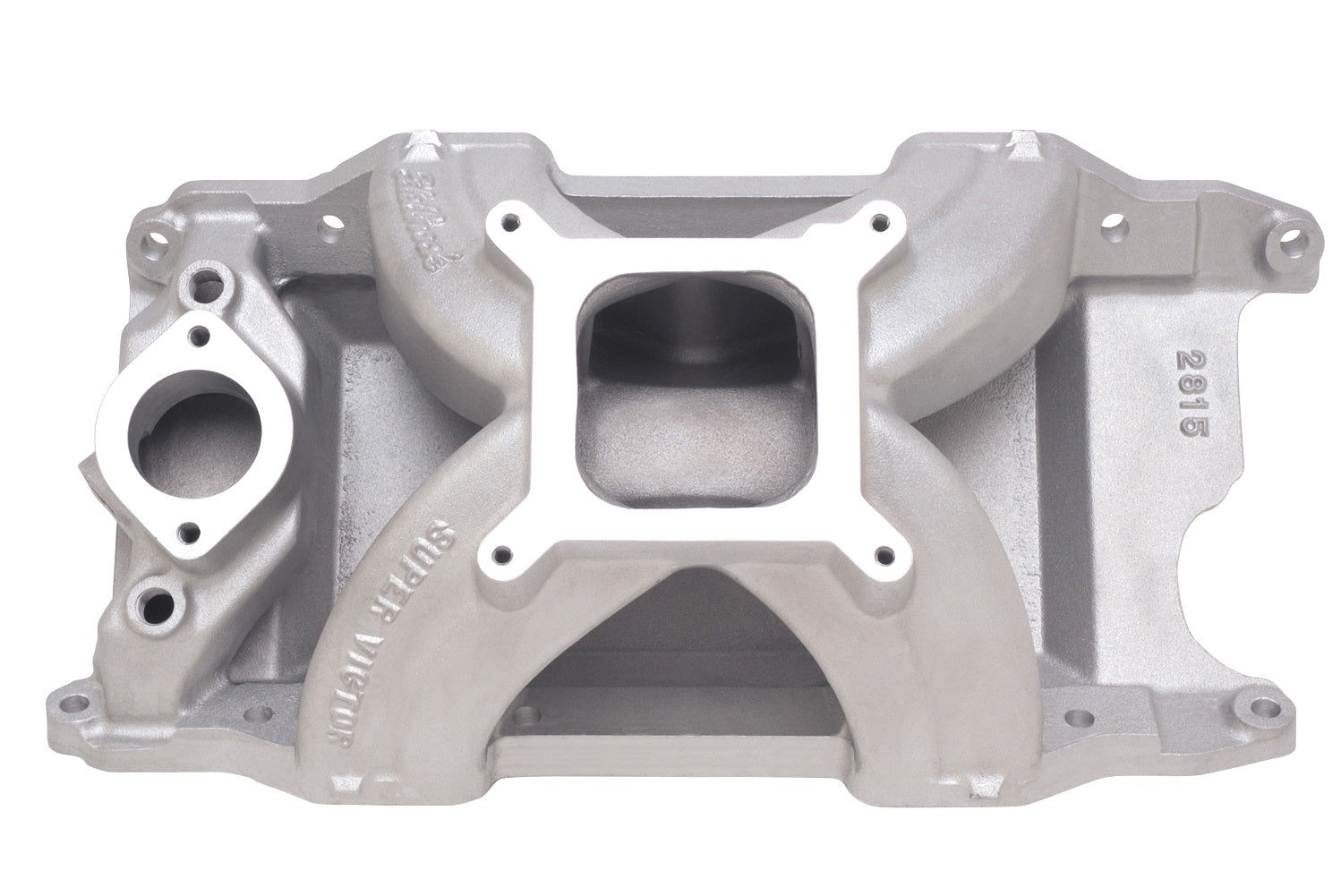

Brand New Edelbrock Super Victor Intake Manifold for Small-Block Chrysler LA Engines (Part #2815).

Edelbrock part #2815 Super Victor intake manifold is designed for small-block Chrysler engines with conventional rectangular port heads like Edelbrock Performer RPM cylinder heads or Victor heads, this single-plane Air-Gap style manifold operates from 3500 to 8000 rpm. Testing has shown substantial mid-range gains over the current designs. The runners have been cast in such a way to insure enough metal thickness to allow for gasket matching and porting. Accepts 1975 and earlier waterneck only.

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Edelbrock #7276.
  • Manifold Height.: A-6.30", B-6.30"
  • Carb Recommendations: Use appropriate racing carburetor
  • Port Exit Dimensions: .98"x 2.15"
  • Vehicle Model: Chrysler
  • RPM Range: 3500-8000 RPM
  • Rear Maximum Height: 6.300 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
