MANIFOLD, GM SB CHEVY CAST IRON VORTEC SUPER VICTOR

MANIFOLD, GM SB CHEVY CAST IRON VORTEC SUPER VICTOR

EDL 2814

$552.95
$552.95
View full details

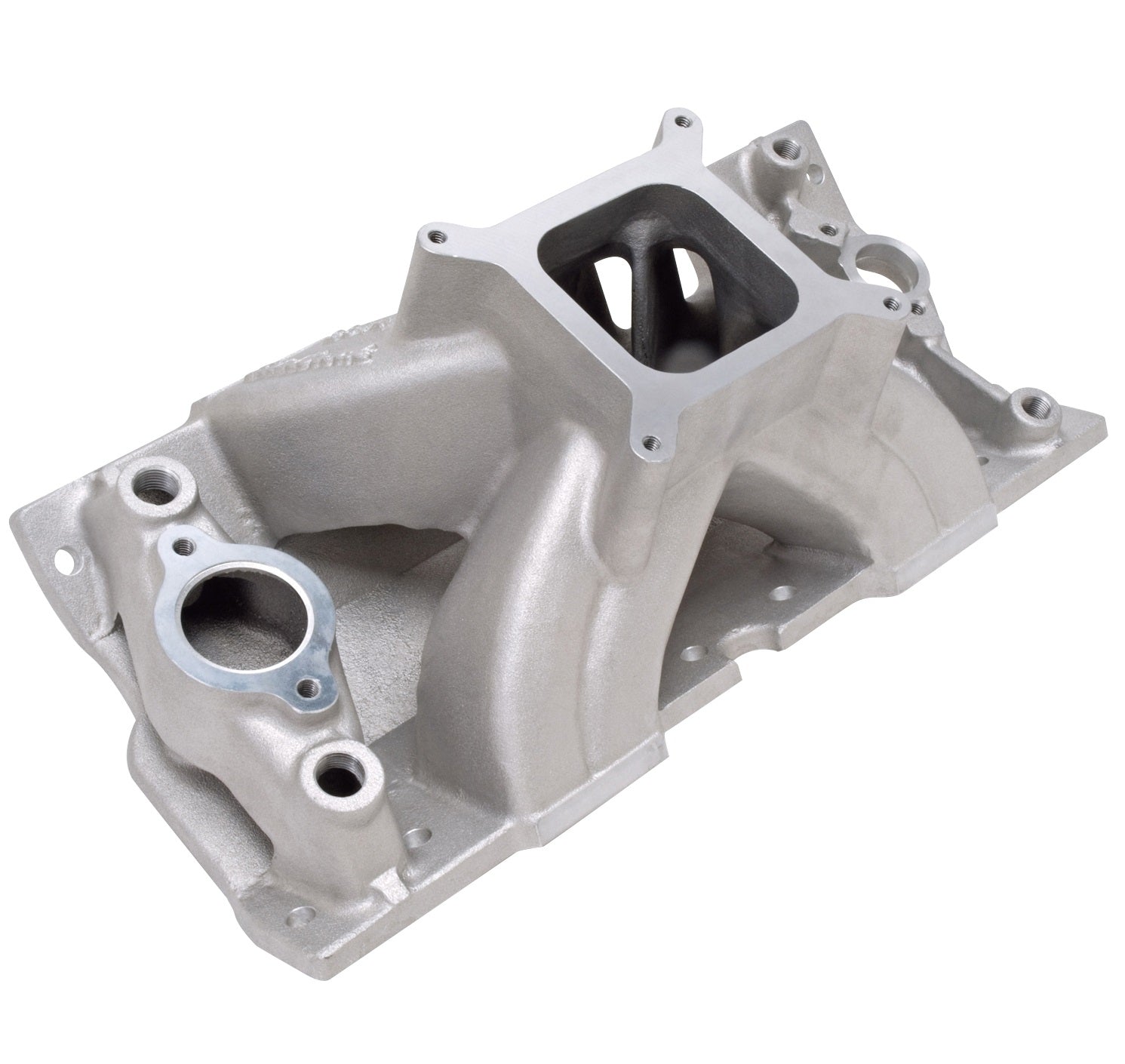

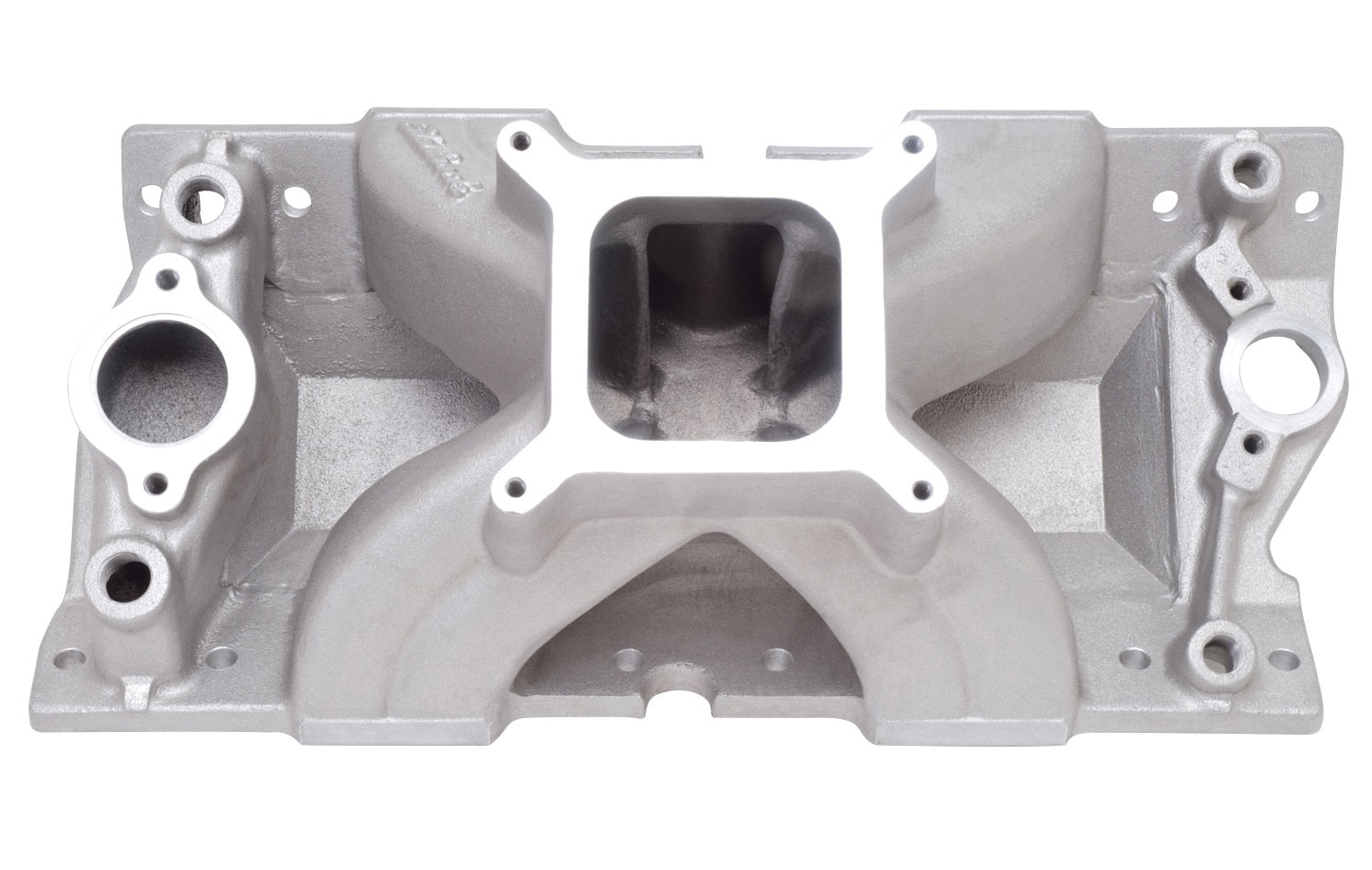

Brand New Edelbrock Super Victor Vortec Intake Manifold for Small-Block with GM Bowtie Vortec Heads (Part #2814).

Edelbrock part #2814 Super Victor Vortec Bowtie intake manifold is designed specifically for use with GM cast-iron Vortec Bowtie cylinder heads #25534351 (185cc) and #25534371 (215cc). It features raised runners that closely match the port shape and location of these heads and is the best choice for racing classes that prohibit modification to the manifold. It features the original 6-bolt pattern and 7/8" inch of additional carb pad height (compared to previous raised-runner manifolds such as #2926).

Installation Notes:
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
  •  DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.;
  • Carburetor size (CFM) should be selected based on your specific engine combination.
  • To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended intake gasket: Edelbrock #7206, #7207
  • Carb pad height: 6.77"
  • Port exit dimensions: 1.14"x 2.20"
  • Vehicle Model: Chevrolet
  • RPM Range: 4000-8000 RPM
  • Rear Maximum Height: 6.770 in
  • Plane Type: Single
