MANIFOLD, 1968-80 OLDS 350-403, VICTOR

MANIFOLD, 1968-80 OLDS 350-403, VICTOR

EDL 2812

$638.95
$638.95
View full details

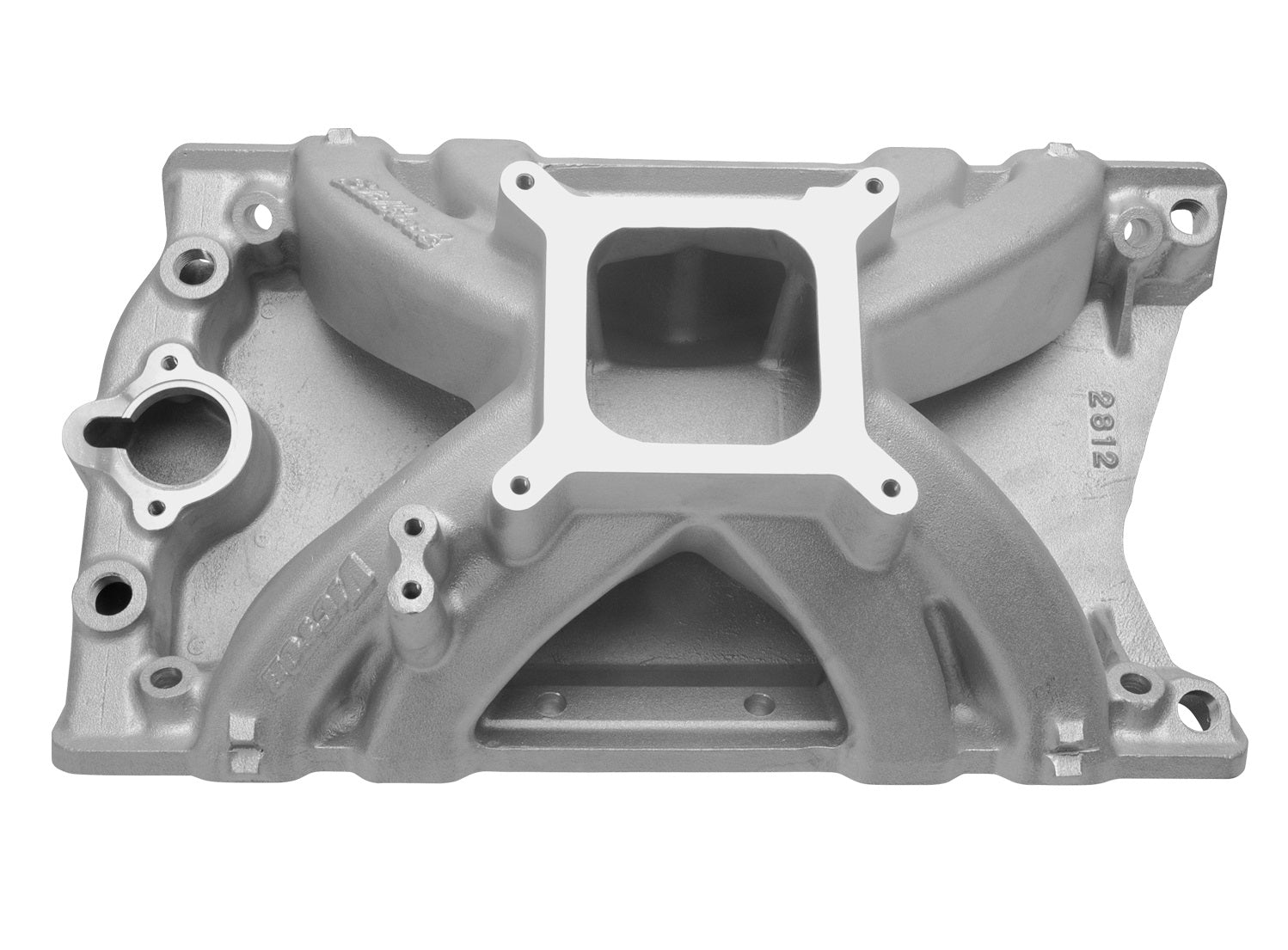

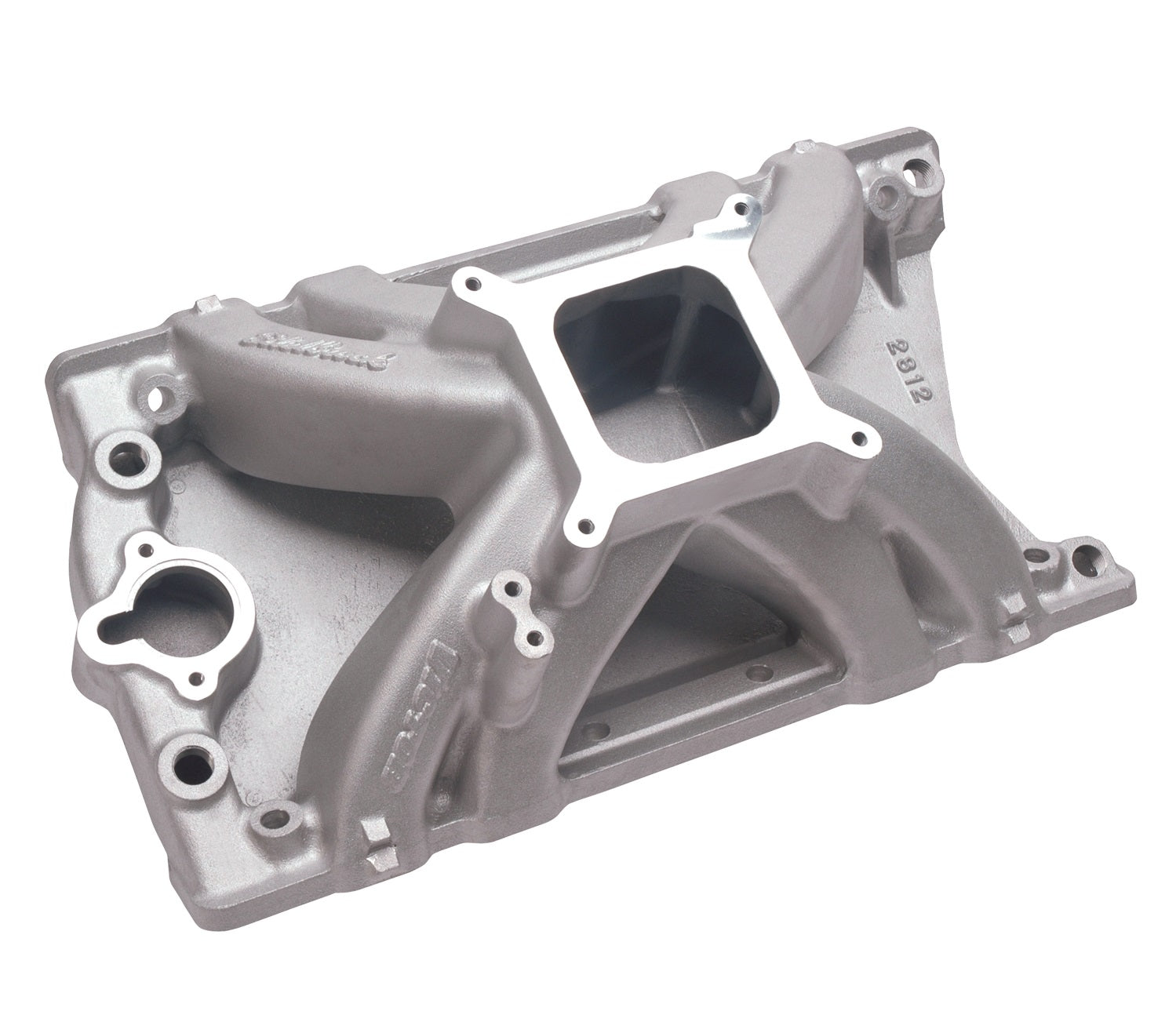

Brand New Edelbrock Victor 350 Intake Manifold for Small-Block 350-403 Oldsmobile Engines (Part #2812).

Edelbrock Victor Oldsmobile intake manifold provides power levels never before available for competition single-carb 350-403 Oldsmobile engines. Featuring a single-plane "Air-Gap" design, it accepts square-bore carb and offers significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. It features a carb mount pad height of 7" and high-flow constant area 3.2-square-inch runners. The runners have been optimized to match the flow characteristics of Edelbrock Performer RPM aluminum cylinder heads #60519 and the exit size, as-cast, is 1.28" by 1.94" with plenty of metal thickness for gasket matching and porting.

Installation Notes:
  • No provision for OEM choke.
  • Will not clear hood on 403 Oldsmobile, Firebird/Trans Am.
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Recommended Intake Gasket: Fel-Pro #MS96027
  • Carb Recommendations: Any carburetor class allowed
  • Vehicle Model: Oldsmobile
  • RPM Range: 3500-7500 RPM
  • Rear Maximum Height: 7.0 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
