MANIFOLD, GM LS1/LS2, SUPER VICTOR, 4BBL CARB

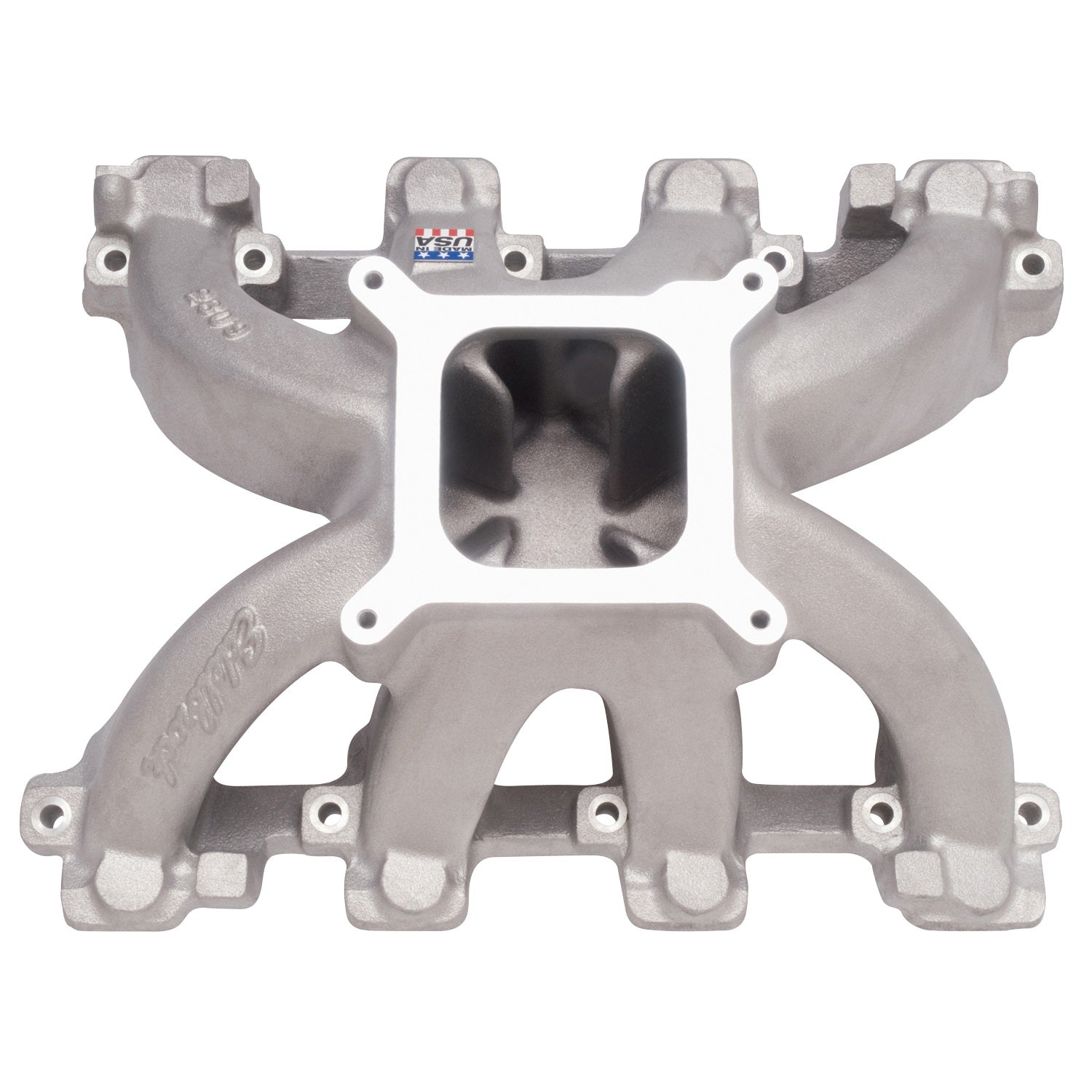

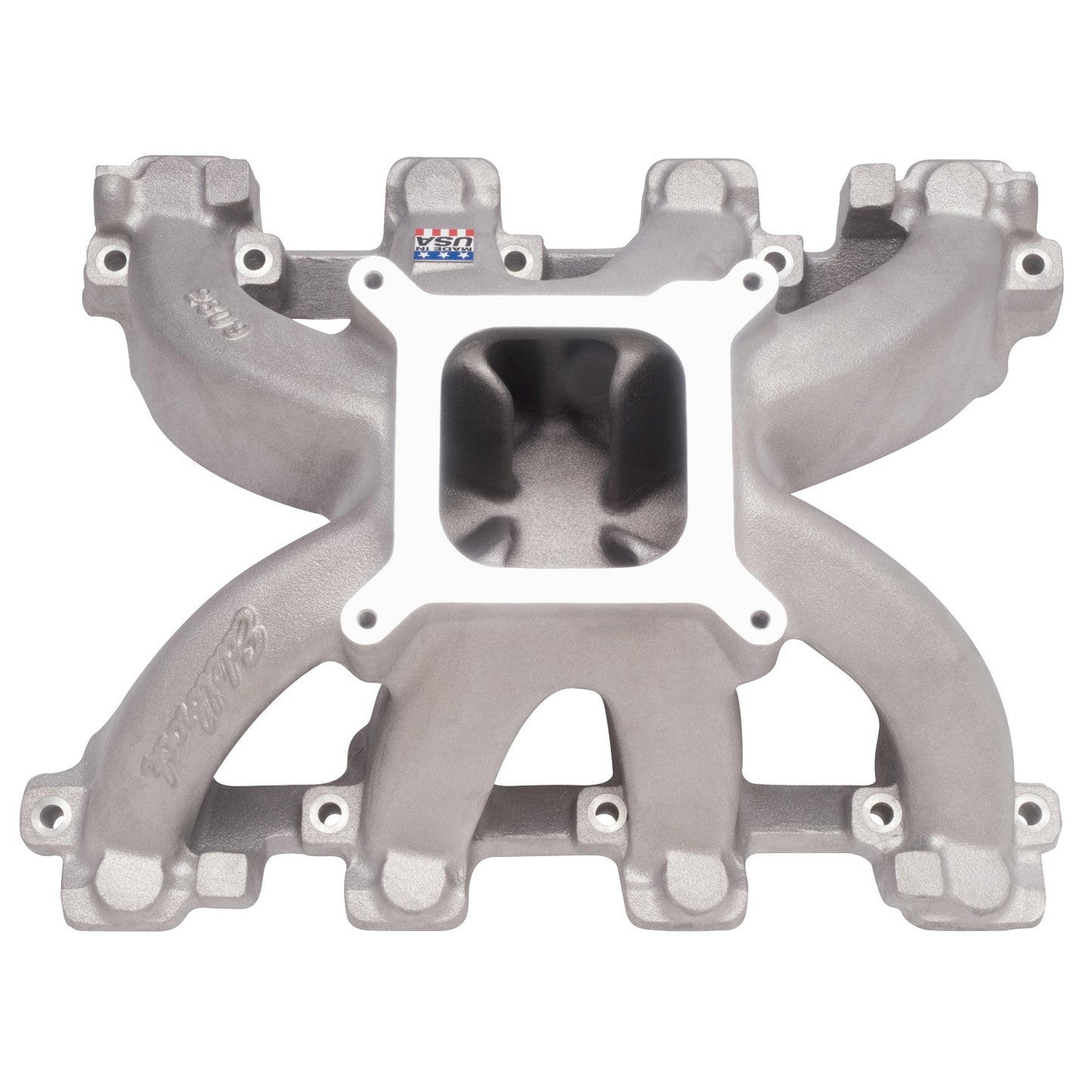

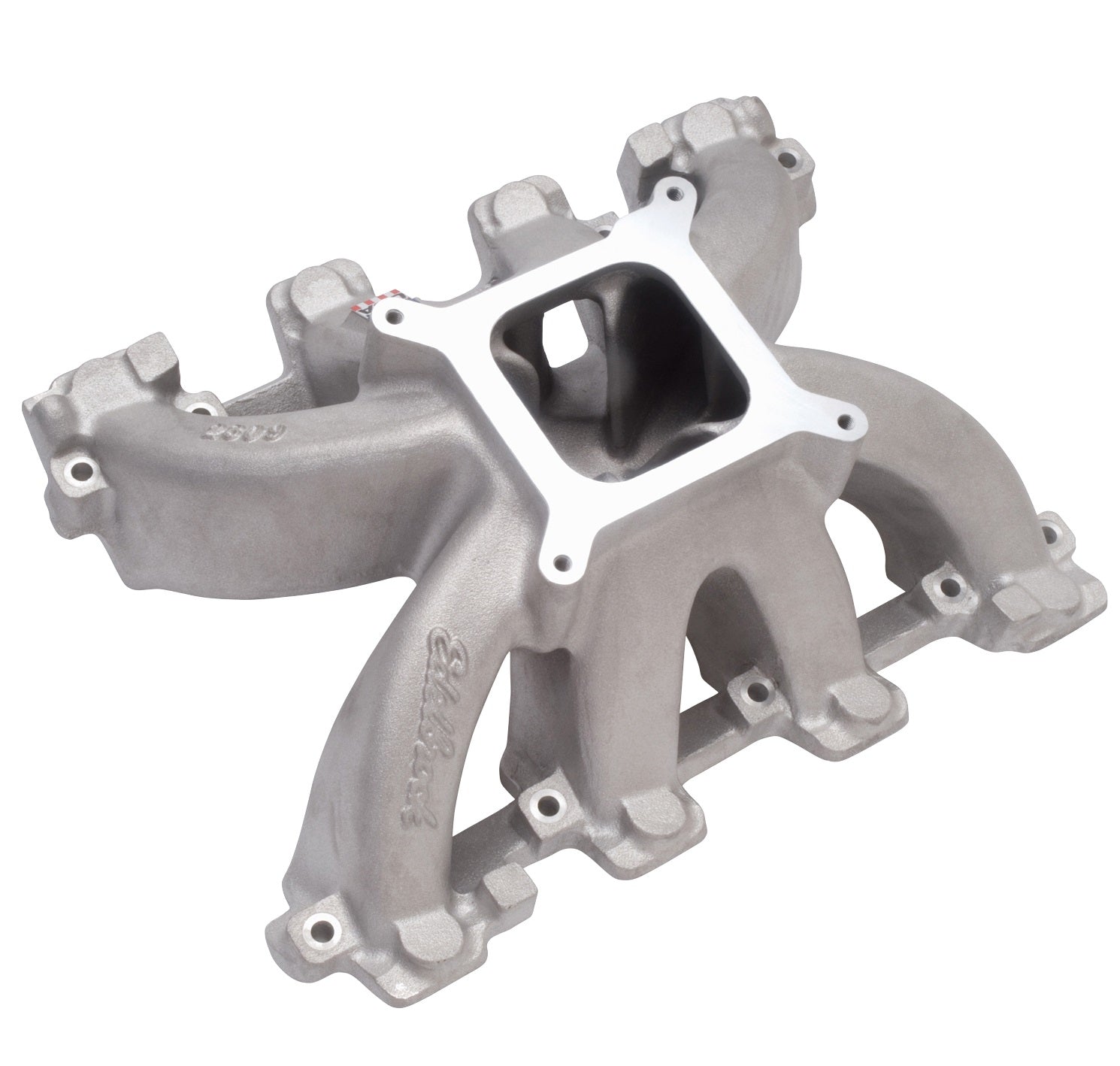

Brand New Edelbrock Super Victor Intake Manifold for Gen III LS1/LS2 (Part #28097).

Edelbrock part #28097 Super Victor LS1 intake manifold offers greater air flow potential for even bigger power gains, this manifold has been accepted by NASCAR for use in the Grand National West/Grand National East series. The carb mount pad is 1.12" taller than the Victor Jr. LS1, and the port exits have been increased to 1.08" x 2.74". Edelbrock offers the optional LS1 Timing Control Module #91238 to drive the stock LS1 Coil-on-Plug ignition system. LS2 applications require MSD's #6012 LS2 ignition controller.

Specs:

• Series: Victor

• Material: Aluminum
• Gasket Or Seal Included: No
• Recommended Intake Gasket: Fel-Pro #1312-3
• Manifold Height: A-6.07", B-6.07"

• Carb Pad Height: 6.07"

• Port Exit Dimensions: 1.08" x 2.74"
• Vehicle Model: Chevrolet
• RPM Range: 3500-8000 RPM
• Rear Maximum Height: 6.070 in

• Plane Type: Single

You can view and download the complete assembly instruction booklet here.
