MANIFOLD, GM LS1/LS2, SUPER VICTOR, 4BBL EFI

MANIFOLD, GM LS1/LS2, SUPER VICTOR, 4BBL EFI

EDL 28095

$713.95
$713.95
View full details

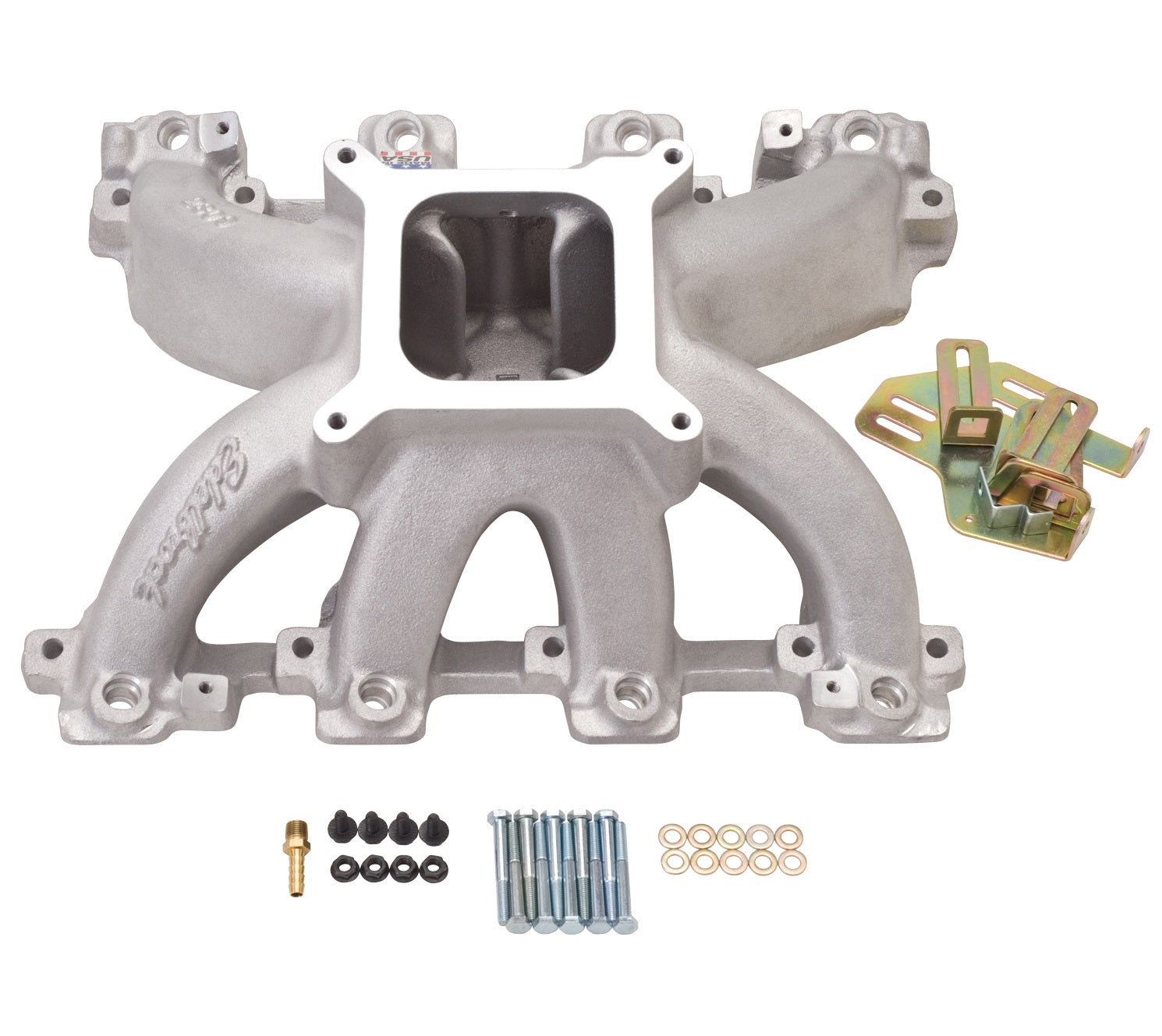

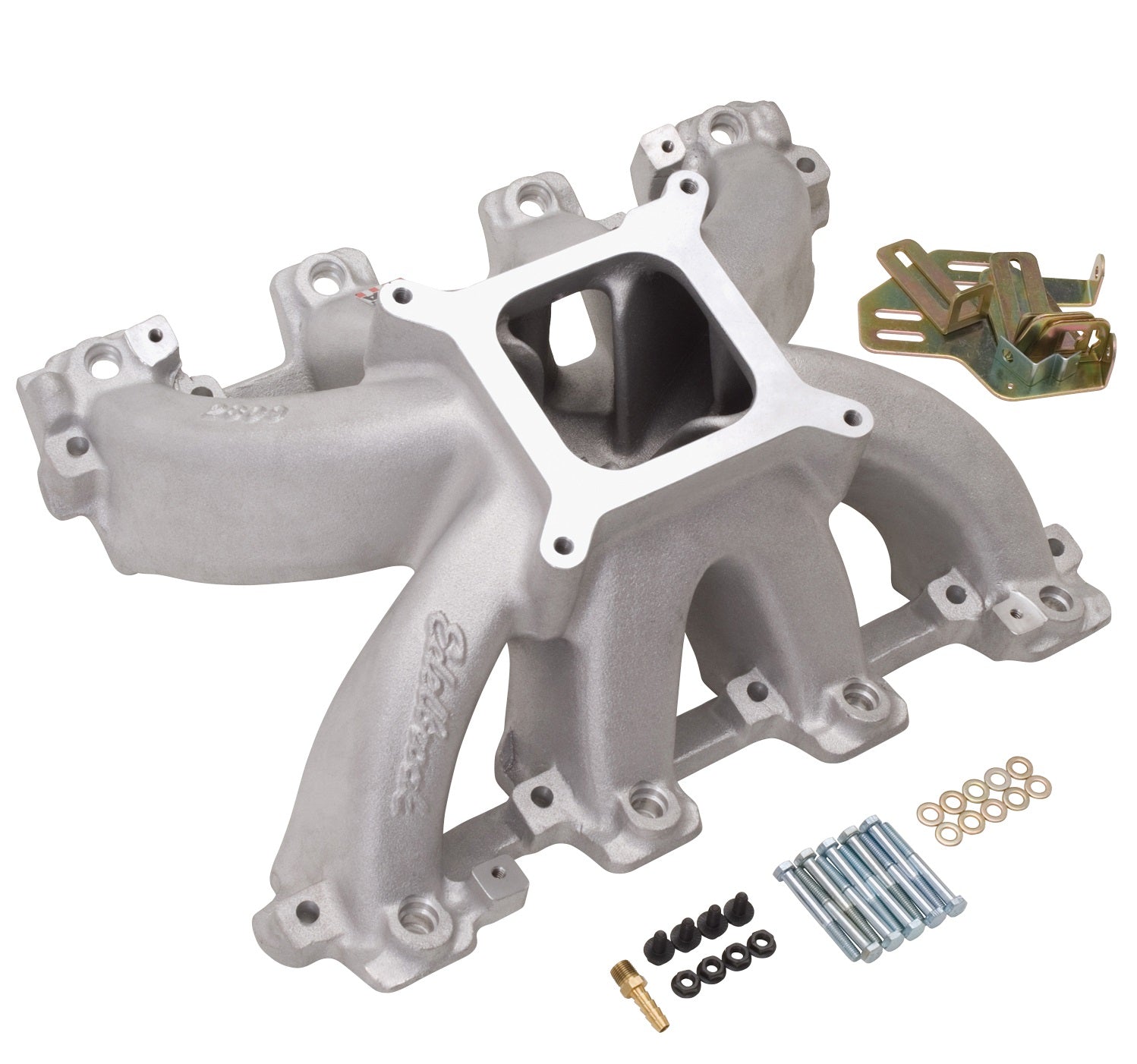

Brand New Edelbrock Super Victor EFI Intake Manifold Kit for Gen III LS1/LS2 Engines (Part #28095).

Edelbrock Super Victor LS1/LS2 EFI intake manifold offers greater air flow potential for even bigger power gains. This manifold has been accepted by NASCAR for use in the Grand National West/Grand National East series. The Throttle body flange pad is 1.12" taller than the Victor Jr. LS1, and the port exits have been increased to 1.08" x 2.74". Edelbrock offers the optional LS1 Timing Control Module #91238 to drive the stock LS1 Coil-on-Plug ignition system. LS2 applications require MSD's #6012 LS2 ignition controller (available through MSD Performance). This Super Victor EFI intake manifold is for high-output competition EFI systems and features machined injector bosses.

Installation Notes:
  • #28095 uses LS1/LS6 style individual port O-Ring seals or Edelbrock #7386
  • Crankshaft sleeve #HP3795 and Flex Plate #HP4004 is recommended when using a TH350, TH400, or 700R4 on a LS1

Specs:

  • Series: Victor
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Manifold height: A-6.07", B-6.07"
  • Carb pad height: 6.07"
  • Port exit dimensions: 1.08" x 2.74"
  • Vehicle Model: Chevrolet
  • RPM Range: 3500-8000 RPM
  • Rear Maximum Height: 6.070 in
  • Plane Type: Single

You can view and download the complete assembly instruction booklet here.
