MANIFOLD, 1996-02 SB CHEVY 5.0L-5.7L, EPS, VORTEC

MANIFOLD, 1996-02 SB CHEVY 5.0L-5.7L, EPS, VORTEC

EDL 2716

$359.95
$359.95
View full details

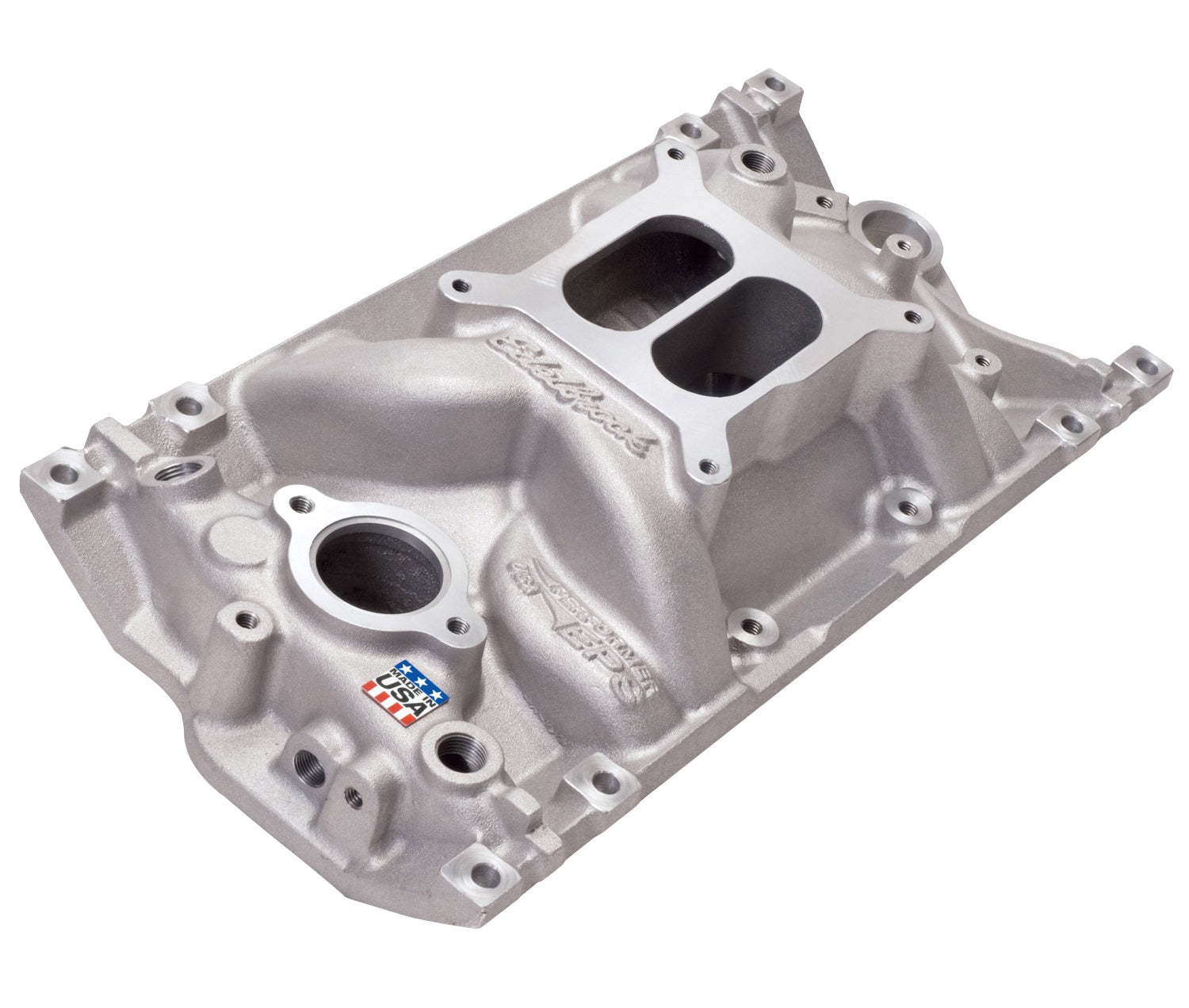

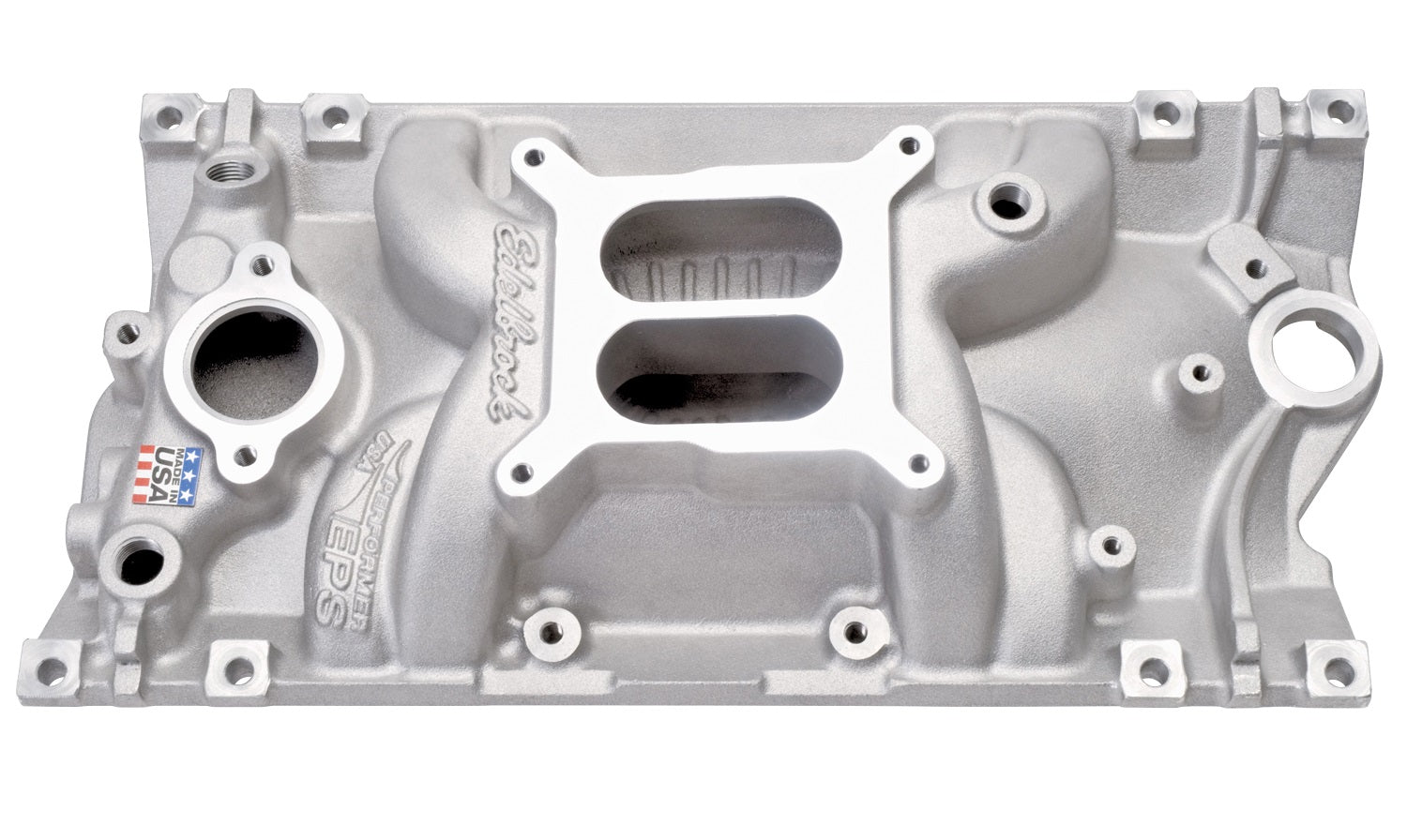

Brand New Performer EPS Vortec Intake Manifold for Small-Block Chevy (Part #2716).

Edelbrock part #2716 Performer EPS Vortec intake manifold is now available for small-block Chevys with Vortec or Edelbrock E-Tec cylinder heads, the Performer EPS dual-plane manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or Thunder Series AVS carburetors. The runner design is "tuned" for peak torque around 3500 rpm on a 350-inch engine and it's ideal for power from off-idle to 5500 rpm. Dyno tests showed gains averaging 5+ ft-lbs. of torque from 3000 to 4500 rpm for more performance where you need it most. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. Will not fit under stock Corvette hood. For Small-Block Chevrolet 262-400 V8's with E-Tec or Vortec Cylinder Heads. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR.

Specs:

  • Series: Performer
  • Material: Aluminum
  • Gasket Or Seal Included: No
  • Vehicle Model: Chevrolet
  • RPM Range: Idle-5500 RPM
  • Finish: Satin
  • Rear Maximum Height: 3.900 in
  • Plane Type: Dual
Installation Notes:
  • Manifold ht: A-3.87", B-5.28
  • Carb pad height: 4.57"
  • Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm
  • Port exit dimensions: 2.05" tall with slanted side walls.
  • Recommended intake gasket: Edelbrock #7235
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
  • DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Will not fit under stock Corvette hood.
  • Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
  • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.

You can view and download the complete assembly instruction booklet here.
