EDELBROCK INTAKE MANIFOLD,EPS,1955-86 SB CHEVY 265-400

EDELBROCK INTAKE MANIFOLD,EPS,1955-86 SB CHEVY 265-400

EDL 2701

$195.95
$195.95
View full details

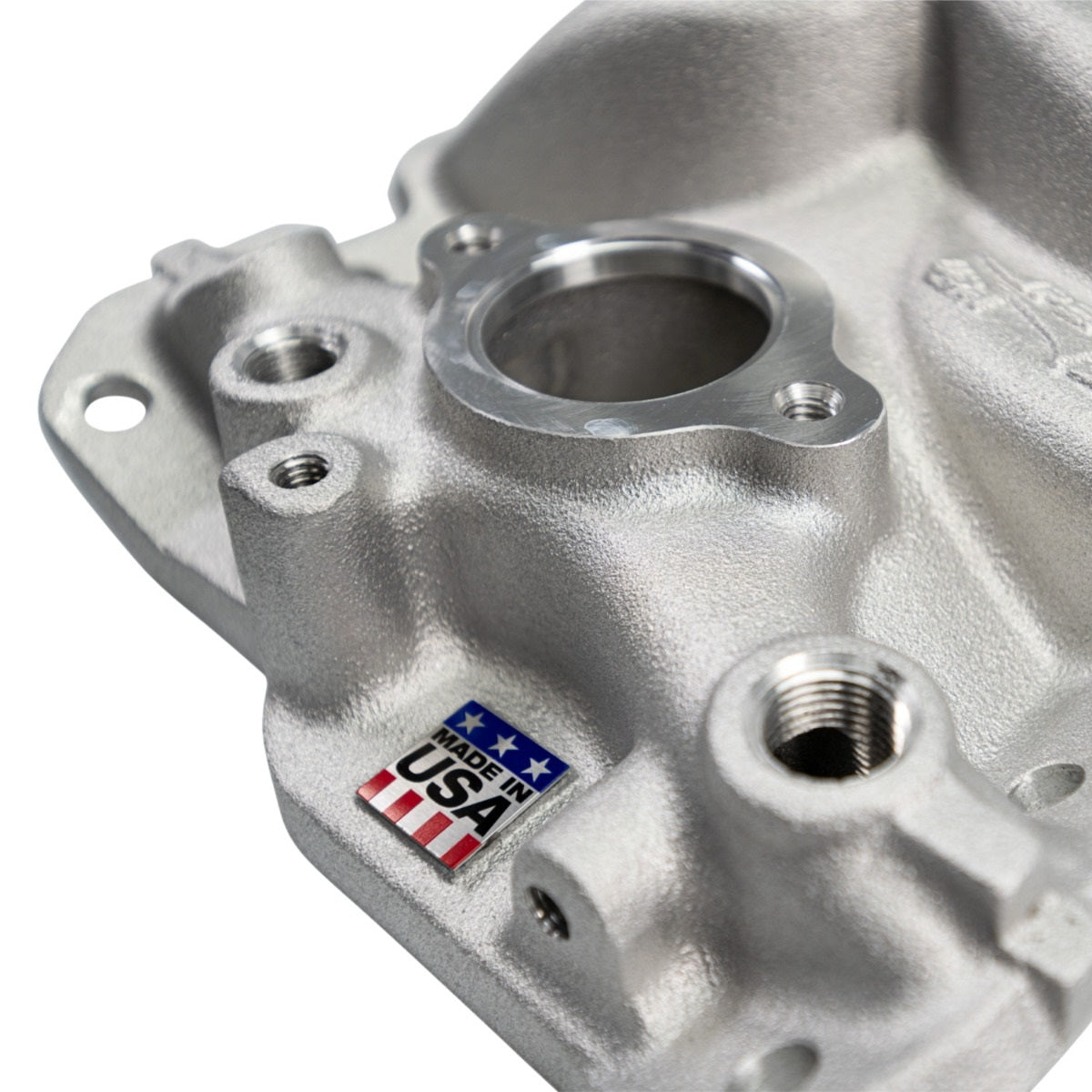

Brand New Edelbrock Performer EPS Intake Manifold, Small Block Chevy 1955-1986, Satin Finish (Part #2701).

Features:

  • Edelbrock Performer 390 Intake Manifold for 1955-86 262-400 Small-Block Chevrolet V8
  • Designed for designed for 1986 and earlier 262-400 cubic-inch Chevys
  • Accepts (4150-Style) Edelbrock Carb
  • Operating Range from Idle to 5500 RPM
  • Dual Plane Type low-rise design 180-degree firing order greatly improves torque over a wide rpm range
  • Manifold not equipped with EGR

Installation Notes:

  • Manifold ht: A-3.74", B-4.80"; Carb pad height: 4.27"; Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm; Port exit dimensions: 1.15" x 1.87".; Recommended intake gasket: Edelbrock #7201.; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.; DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.; Will not fit under stock Corvette hood.; Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.; Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.

You can view and download the complete assembly instruction booklet here.
