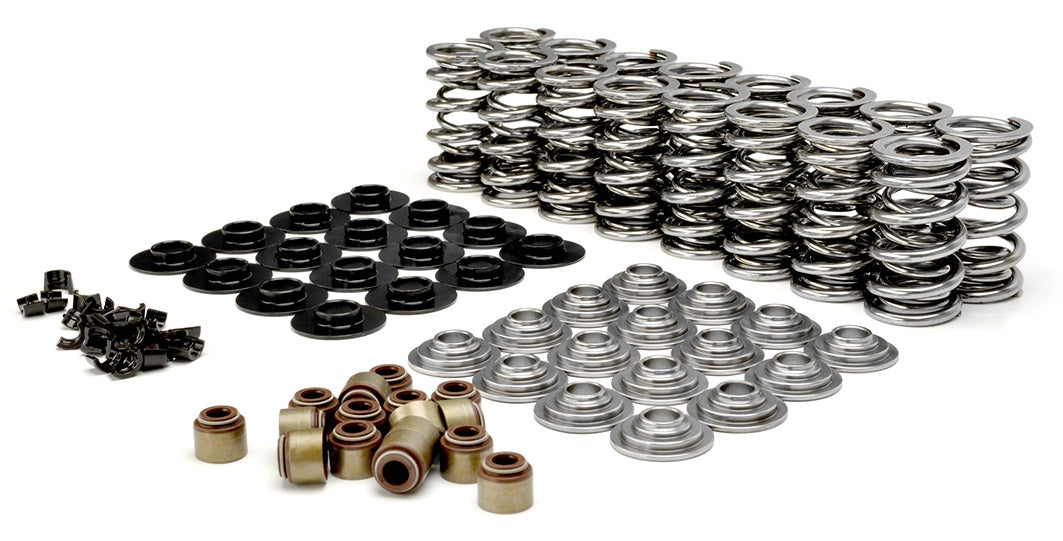

KIT, DUAL VALVE SPRING, TS, LS TYPE

Brand New Edelbrock .675" Dual Valve Spring Kit with Tool Steel Retainers for LS Engines (Part #26926TS-KIT).

This Dual Valve Spring Kit for LS engines includes carefully matched Dual Valve Springs, retainers, locks, seals and spring seats. With a .675" maximum lift, these COMP Cams Dual Valve Springs for street/strip applications are manufactured from Super Clean wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today’s engine builders and racers.

Kit Includes:

• Springs Part #26926-16
• Steel Retainers Part #1779-16
• Valve Locks Part #623-16
• Valve Seals Part #511-16
• Spring Seats Part #4695-16

Specs:

• Retainer Material: Steel

• Max Lift: 0.675

• Installed Height: 1.835

• Coil Bind Height: 1.1

• O.D. of Outer: 1.32

• I.D. of Inner/Outer: .654/.920
• Spring Rate: 505
• Seat Pressure: 129

• Make: GM
