EDELBROCK INTAKE MANIFOLD,B-4B,1967-74 BIG BLOCK BUICK 400-455

BRAND NEW EDELBROCK BUICK B-4B INTAKE MANIFOLD FOR BIG BLOCK BUICK ENGINES

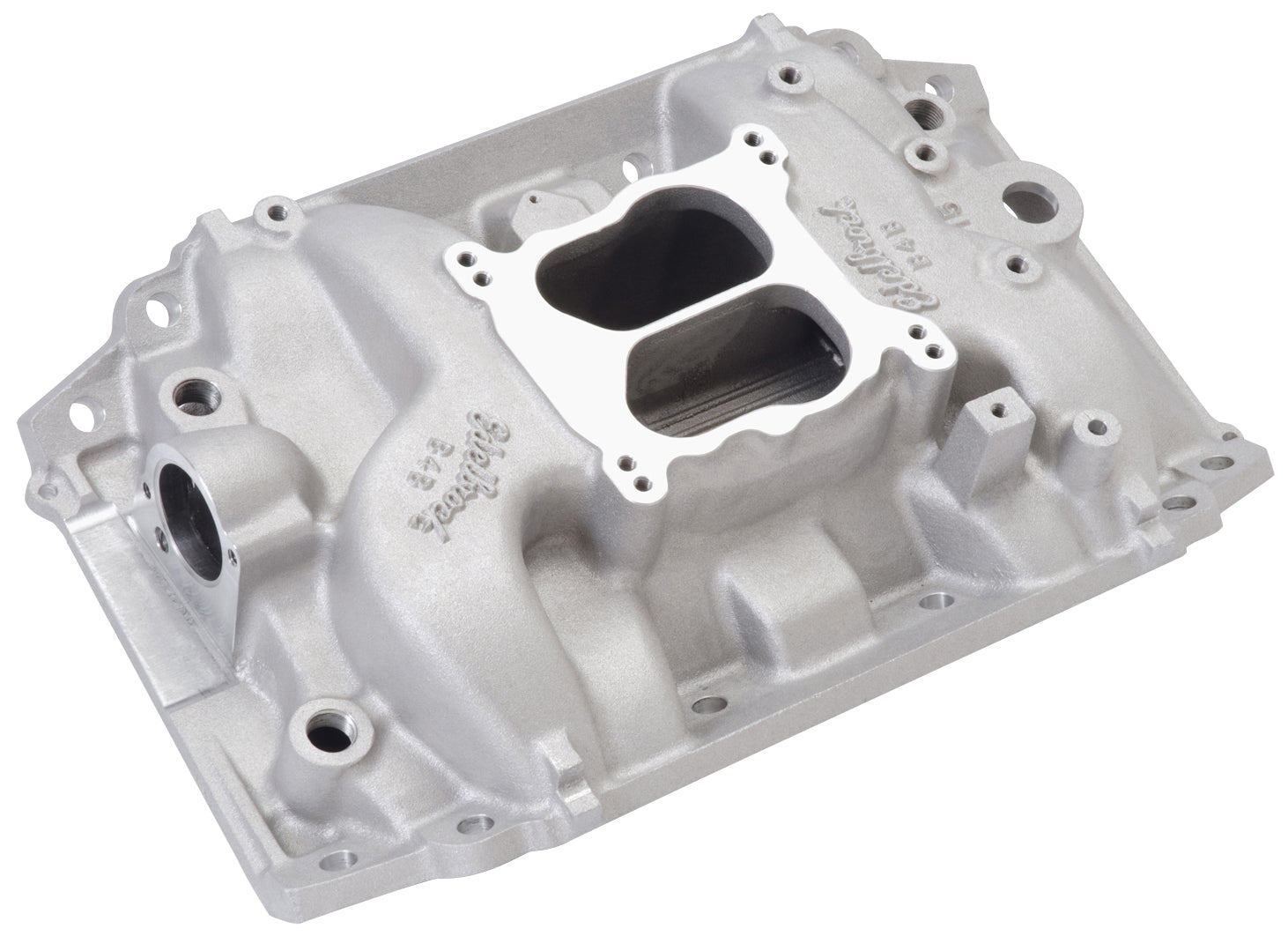

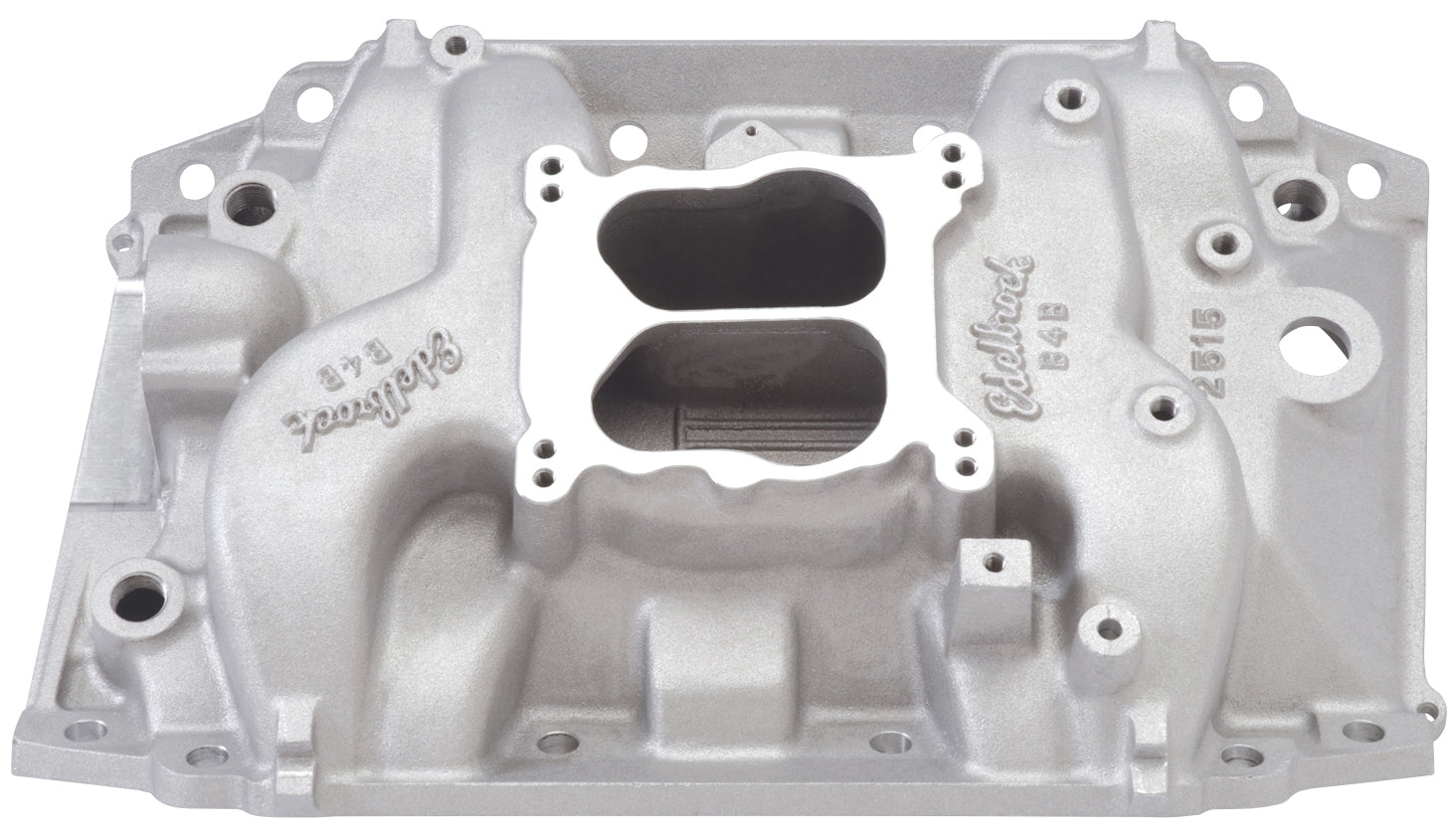

EDELBROCK PART #2515 BUICK B-4B INTAKE MANIFOLD IS A RESURRECTION OF THE POPULAR B-4B MANIFOLD MADE IN THE LATE 1960S FOR STREET 400-430-455 C.I.D. BUICK V8. THE ONLY CHANGE TO THE ORIGINAL DESIGN IS THE ADDITION OF OUR PROVEN PERFORMER-STYLE CARB PAD THAT ACCEPTS EITHER SQUARE-BORE OR SPREAD-BORE CARBS, MAKING THIS MANIFOLD AN EXCELLENT CHOICE FOR BOTH RESTORATION AND PERFORMANCE-MINDED BUICK FANS.

EDELBROCK PATENTED DUAL-PLANE, LOW-RISE DESIGN WITH A 180-DEGREE FIRING ORDER GREATLY IMPROVES TORQUE OVER A WIDE RPM RANGE FOR EXCELLENT THROTTLE RESPONSE FROM OFF-IDLE THROUGH 5500RPM. THIS PERFORMER INTAKE MANIFOLD IS IDEAL FOR PASSENGER CARS, TRUCKS, 4X4S, TOW VEHICLES AND RVS.

NOTE: USE RTV SEALANT TO PROPERLY SEAL END SEALS, SUCH AS EDELBROCK HIGH TEMP SILICONE SEALANT #1076, DO NOT USE END SEALS GASKETS

NOTE: HARDENED WASHERS MUST BE USED WITH INTAKE BOLTS TO ENSURE PROPER TORQUE AND PREVENT GALLING OF THE ALUMINUM

FEATURES:

• ACCEPTS EITHER OEM 4-BBL OR 4150-STYLE SQUARE-BORE CARBURETORS
• NON-EGR
• RECOMMENDED INTAKE GASKETS: FOR 1967-76, EDELBROCK #7246 OR FEL-PRO #MS96005; 1972-76, FEL-PRO #MS96014
• MANIFOLD HEIGHT: A-3.80", B-4.75"
• CARB PAD HEIGHT: 4.27"
• CARB RECOMMENDATIONS: OEM 4-BBL. EDELBROCK AVS2 OR PERFORMER SERIES 650-800 CFM
• PORT EXIT DIMENSIONS: 1.14" X 2.26"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
