EDELBROCK POWER PKG,COMPLETE E-STREET CYLINDER HEADS,SBC 262-400,INSTALL KIT

Brand New E-Street Cylinder Head Kit for SB Chevy 262-400, Hydraulic Flat Tappet (Part #2240).

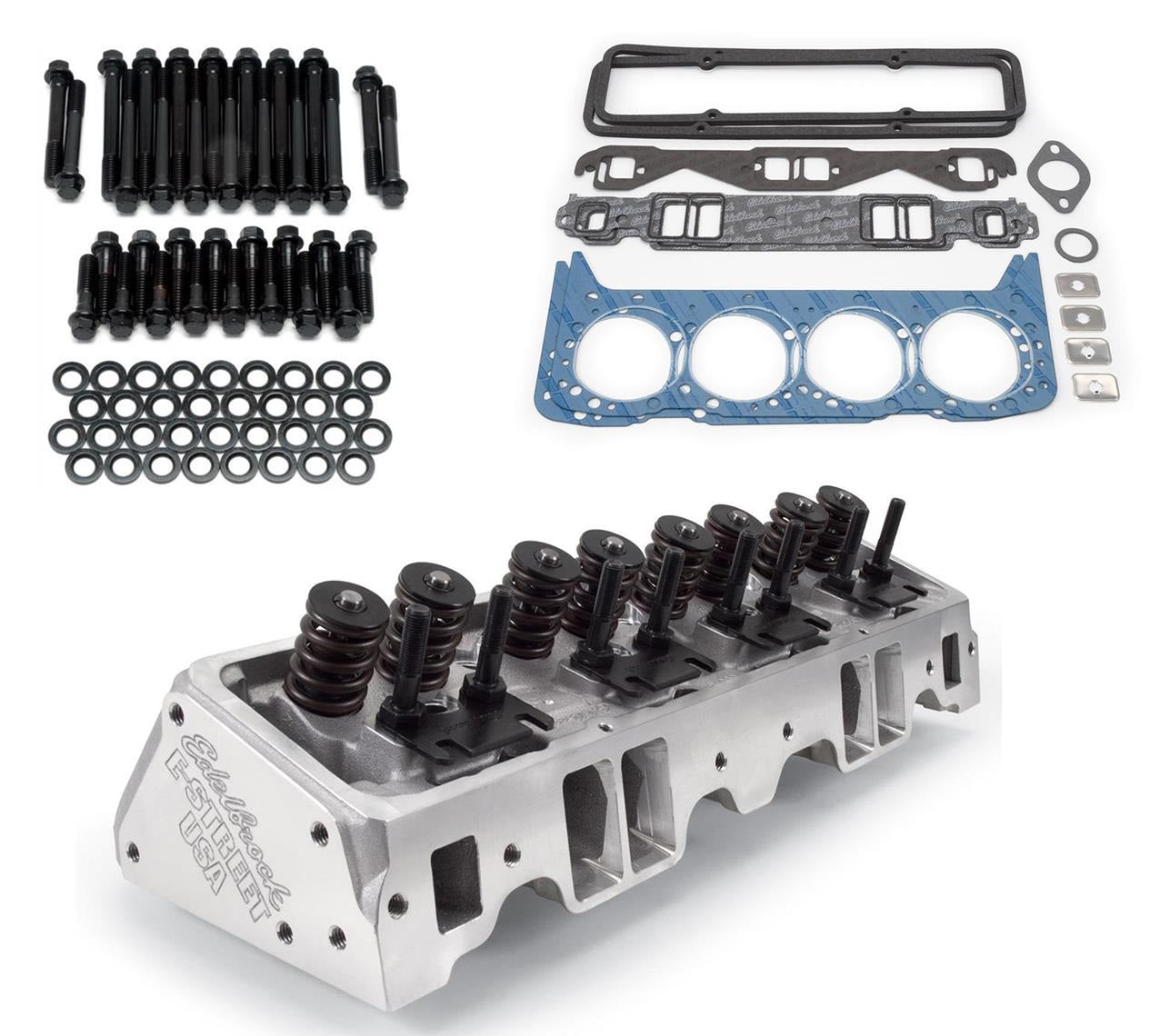

This Edelbrock cylinder head kit part #2240 includes the following: Part#5089 E-Street 64cc Cylinder Heads, part#8550 Cylinder head Bolt kit, and part#7361 Engine Gasket kit. 14mm x 3/4” reach Spark plugs, Adjustable Rocker Arm assembly and Hardened Pushrods will need to be purchased separately to successfully install this kit.

Note: Designed for use with Hydraulic Flat Tappet Camshafts .550" max lift. (NOT Compatible with Hydraulic Roller Camshafts) | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. | Requires hardened pushrods.

Specs:

• Series: E-Street
• Quantity: Set of 2

• Horsepower: 300-400 HP

• Intake Valve Diameter: 2.02 in

• Camshaft Type: Flat Tappet

• Guide Plate Material: Hardened Steel

• Seat Angle: Exhaust 45 deg/Intake 45 deg
• Intake Runner Volume: 185 cc

• Material: Aluminum

• Push Rod Diameter: (Suggested) 0.3125 in

• Rocker Stud Diameter: 0.375 in

• Valve Angle: 23 deg

• Valve Spring Diameter: 1.46 in

• Valve Spring Maximum Lift: 0.550 in

• Valve Stem Diameter: 0.3438 in

You can view and download the complete assembly instruction booklet here.
