MANIFOLD, 1969-00 HOLDEN 253-308, PERFORMER

MANIFOLD, 1969-00 HOLDEN 253-308, PERFORMER

EDL 2194

$394.95
$394.95
View full details

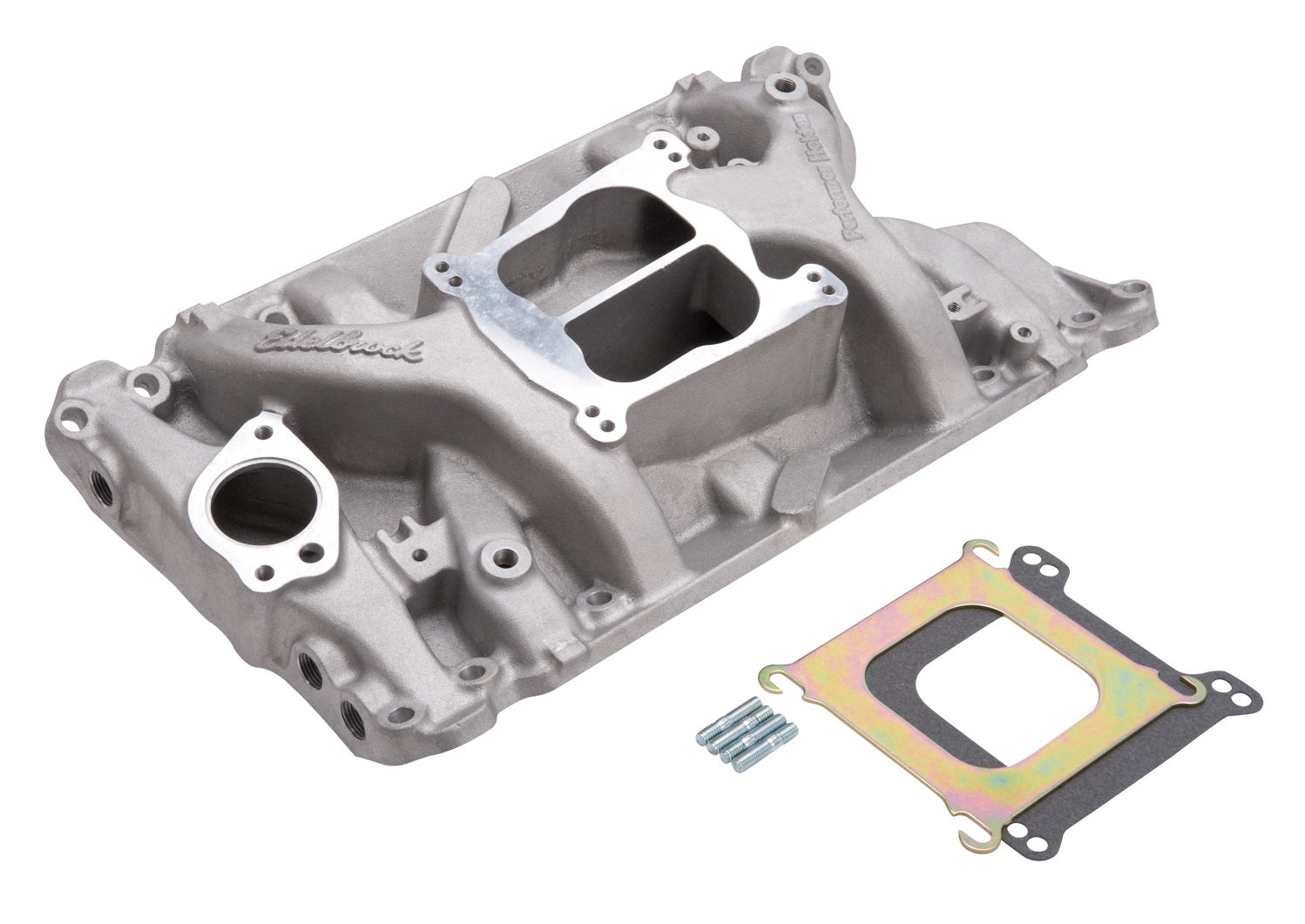

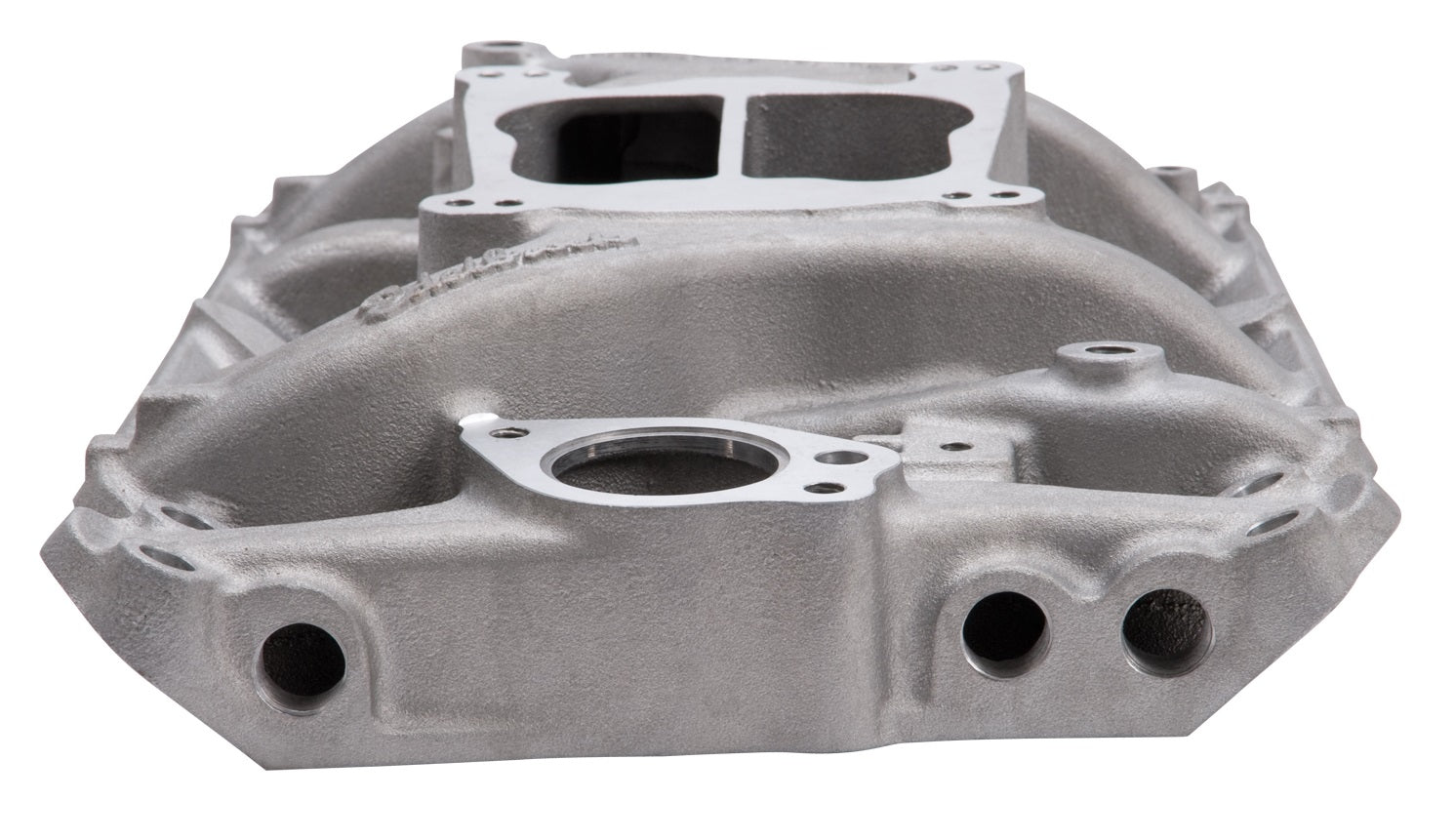

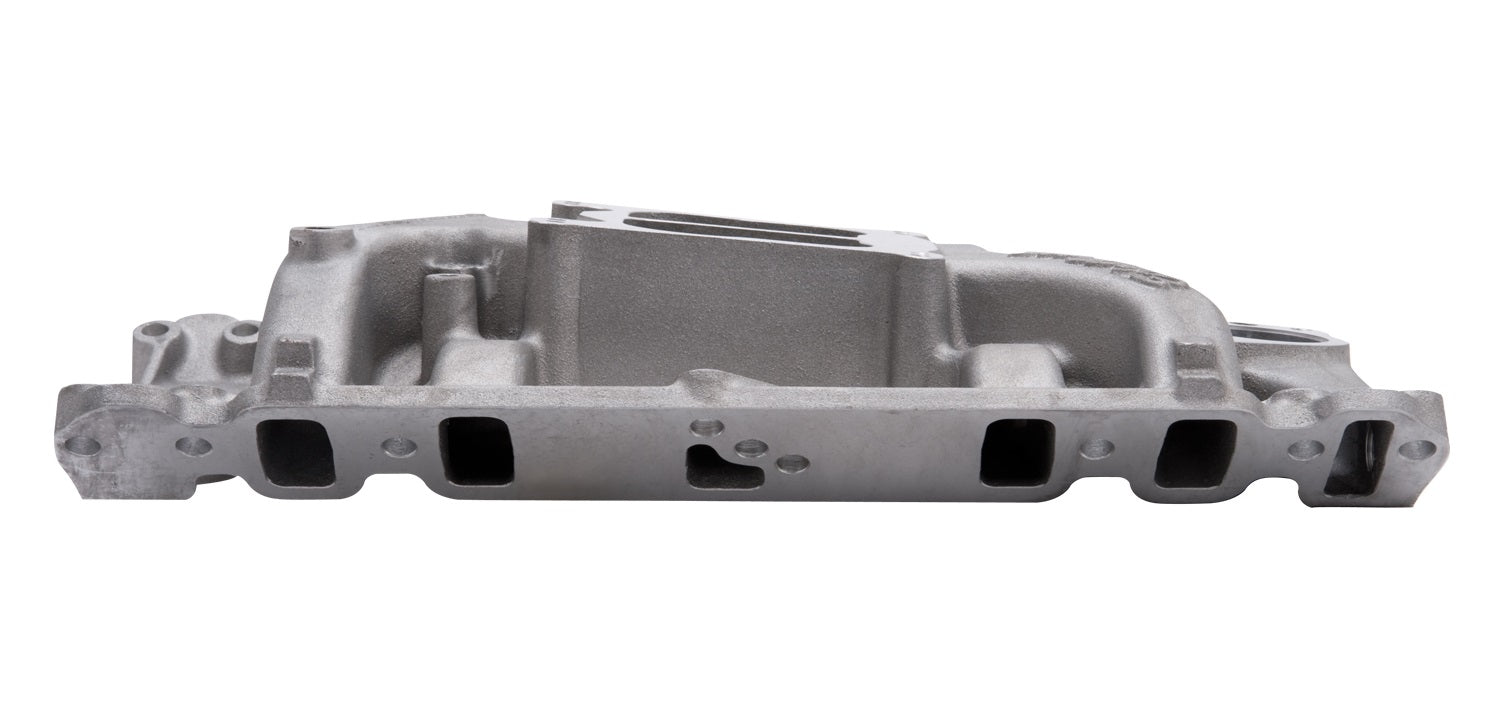

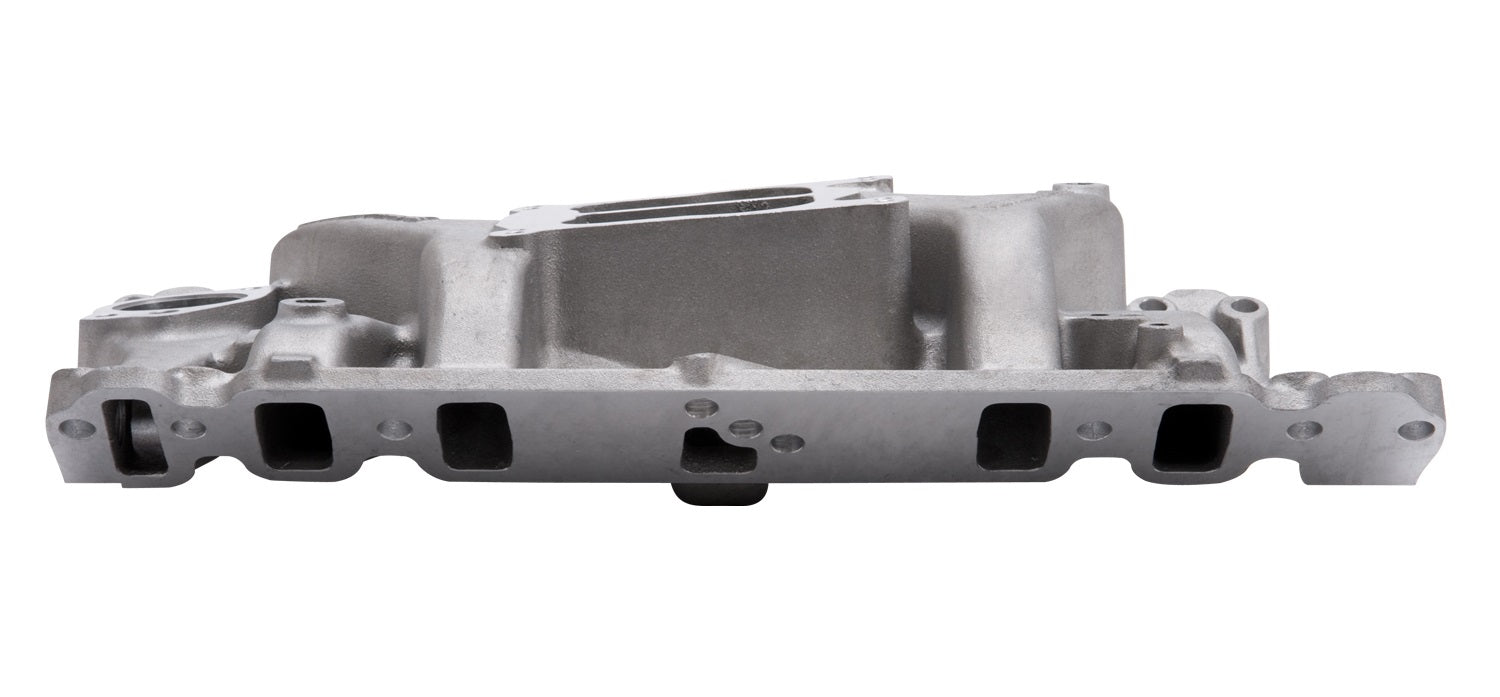

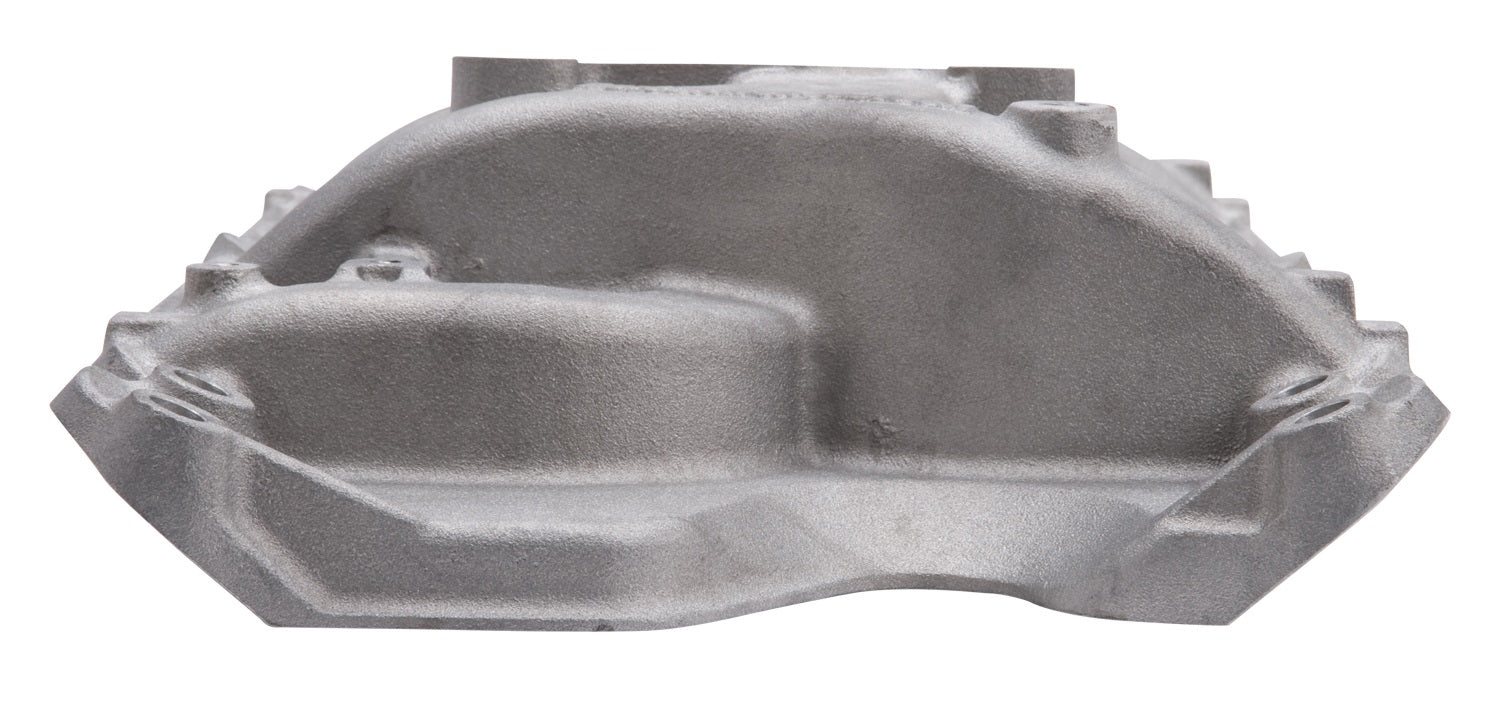

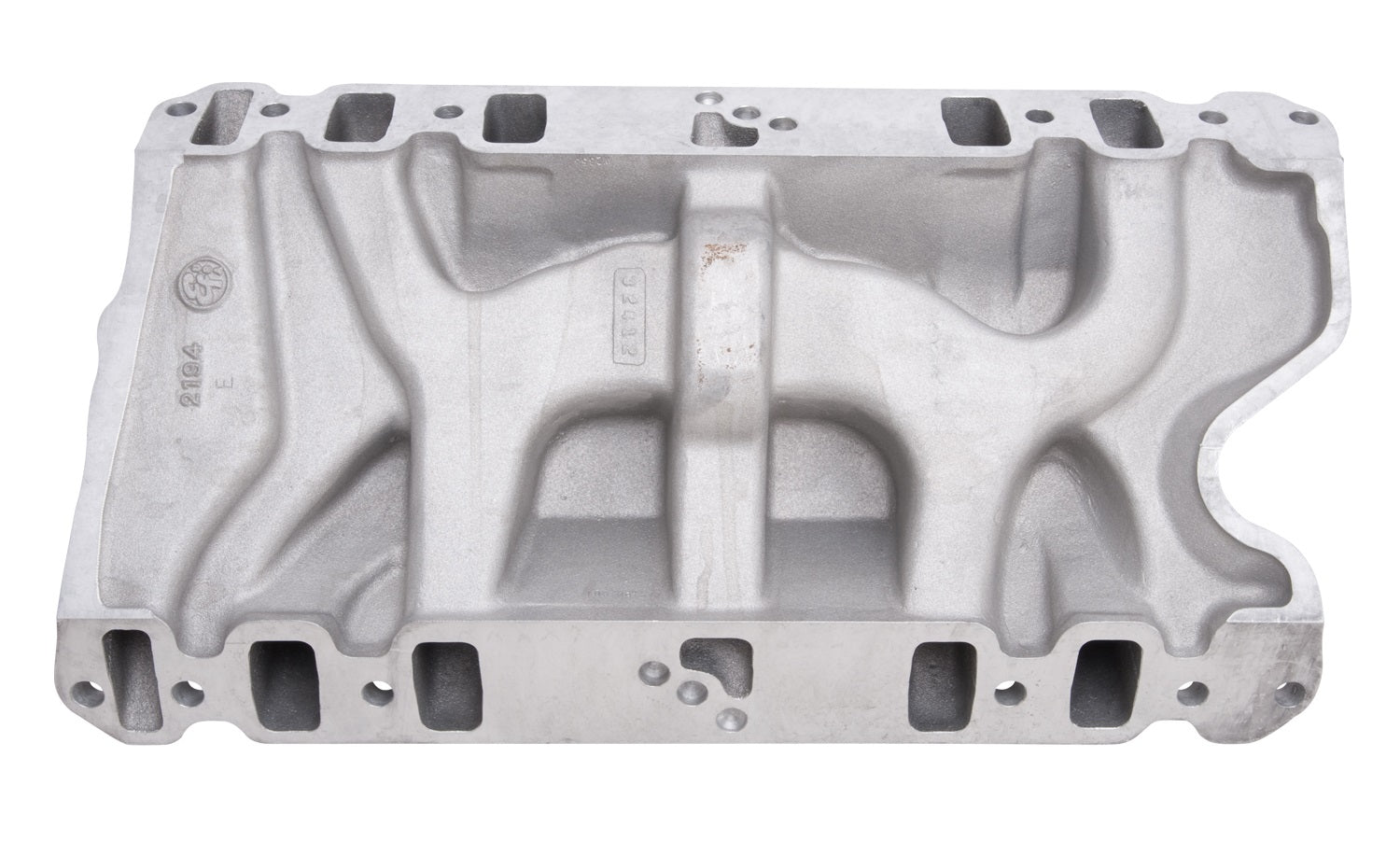

Brand New Edelbrock Performer Intake Manifold for Holden V8 253-308 CID Engines (Part #2194).

Edelbrock Performer intake manifold is designed for street 253-304-308 C.I.D. Holden V8 engines. This Performer intake manifold is a dual-plane design that is tuned for excellent throttle response from idle to 5500 rpm. The Performer Holden manifold has been designed to fit both cylinder head bolt hole patterns. Pilot holes have been drilled on each side of the exhaust crossover for early or late model cylinder heads and will need to be drilled out depending on application. Will not fit EFI Heads (see #7594). Accepts both square-bore and spread-bore carbs. Fits Red/Blue/Black engines. Does not have a provision for external heat crossover. Includes Edelbrock square-bore carb adaptor plate #2732, carb gasket and carb studs.

Installation Notes:
  • Do not use high performance or competition type intake gaskets for street application.
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, Do NOT use end seal gaskets.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

  • Series: Performer
  • Material: Aluminum
  • Grade Type: Performance
  • Manifold Height: A-3.25", B-4.67"
  • Carb Pad Height: 3.96"
  • Gasket Or Seal Included: No
  • Recommended intake gasket: HA265
  • Carb recommendations: OEM 4-Bbl, Edelbrock AVS2 or Performer Series 600-750 cfm
  • Port exit dimensions: 1.07" x 1.83"
  • Vehicle Model: Holden
  • RPM Range: Idle-5500 RPM
  • Finish: Satin
  • Rear Maximum Height: 4.67 in
  • Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
