PERFORMER-PLUS CAMSHAFT KIT FOR BIG-BLOCK CHRYSLER 383-400-440 V8

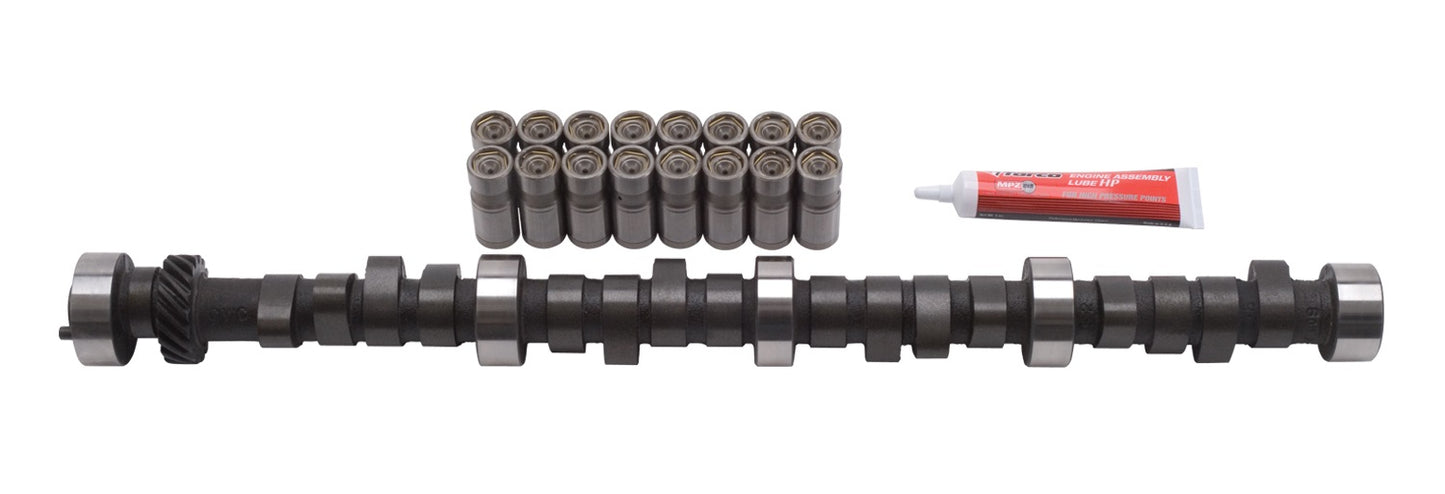

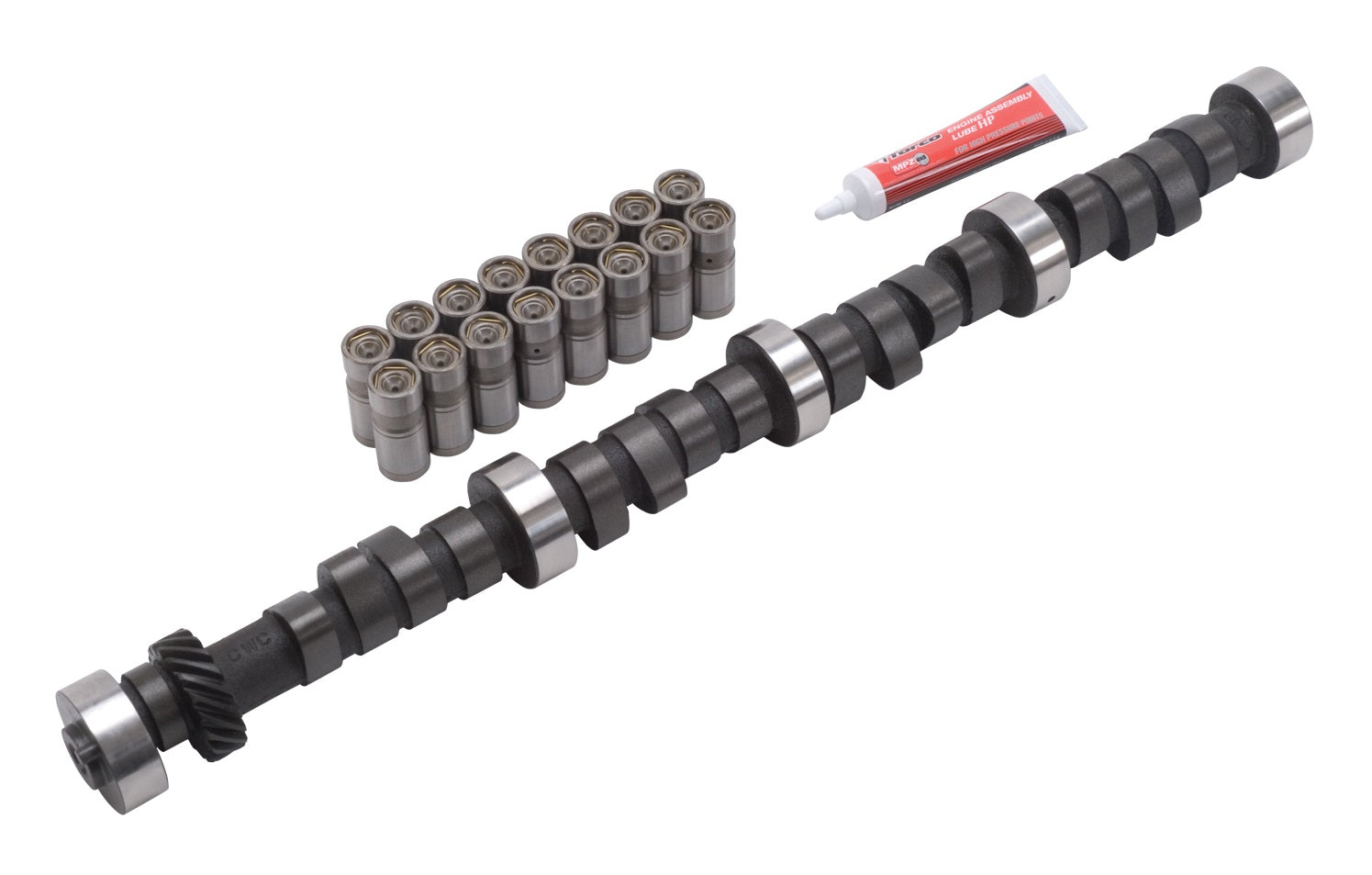

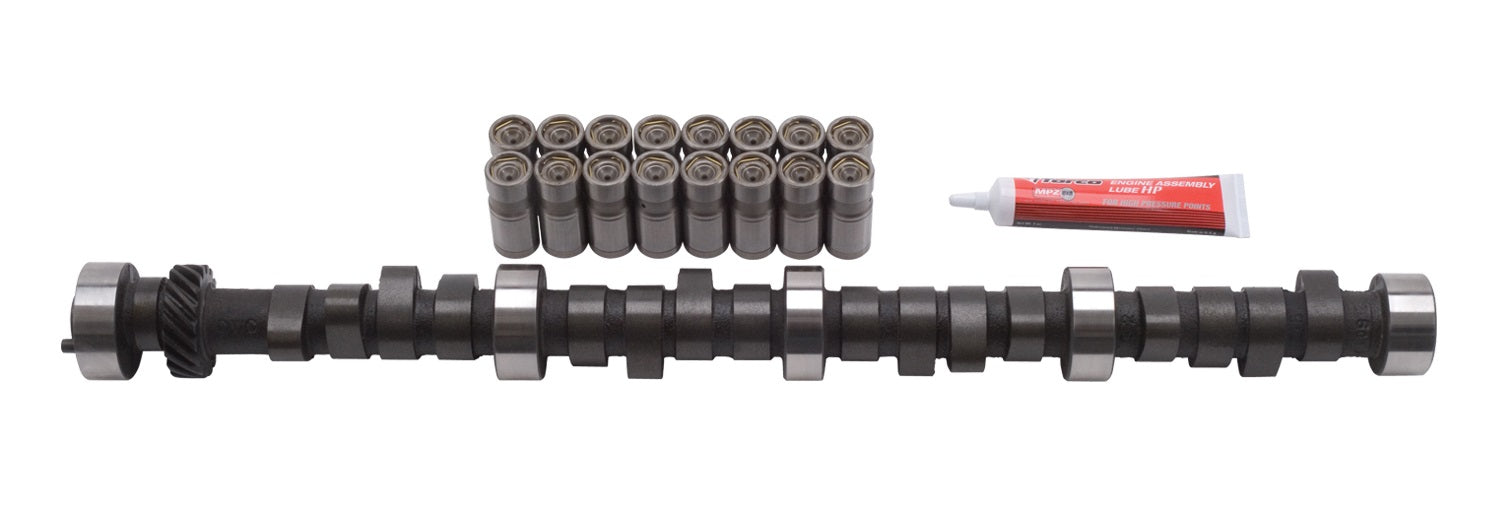

Brand New Edelbrock Performer-Plus Camshaft Kit for Big-Block Chrysler 383-400-440 V-8 (Part #2192).

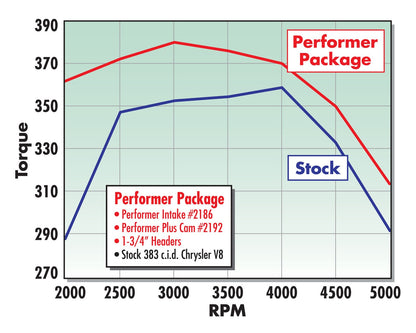

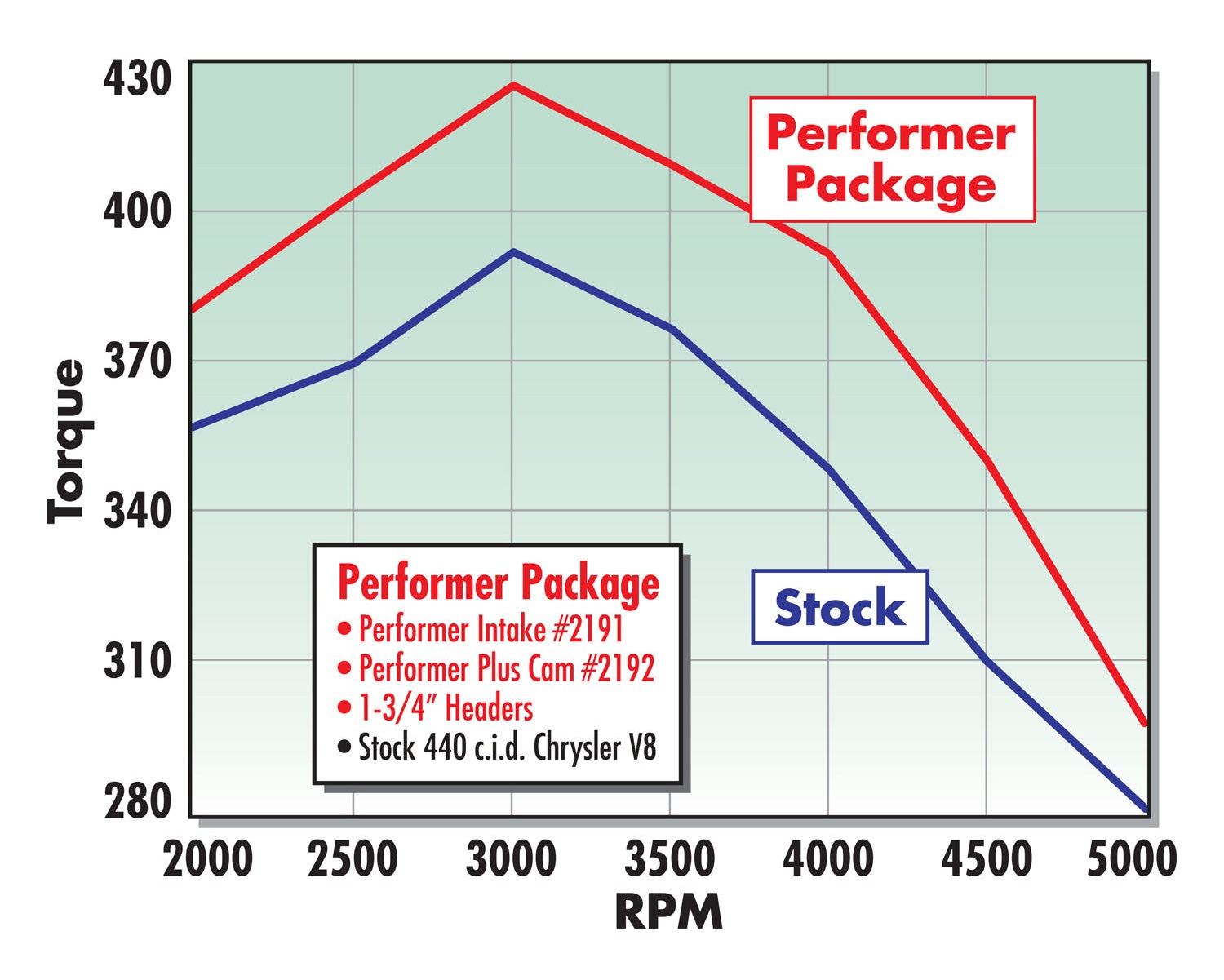

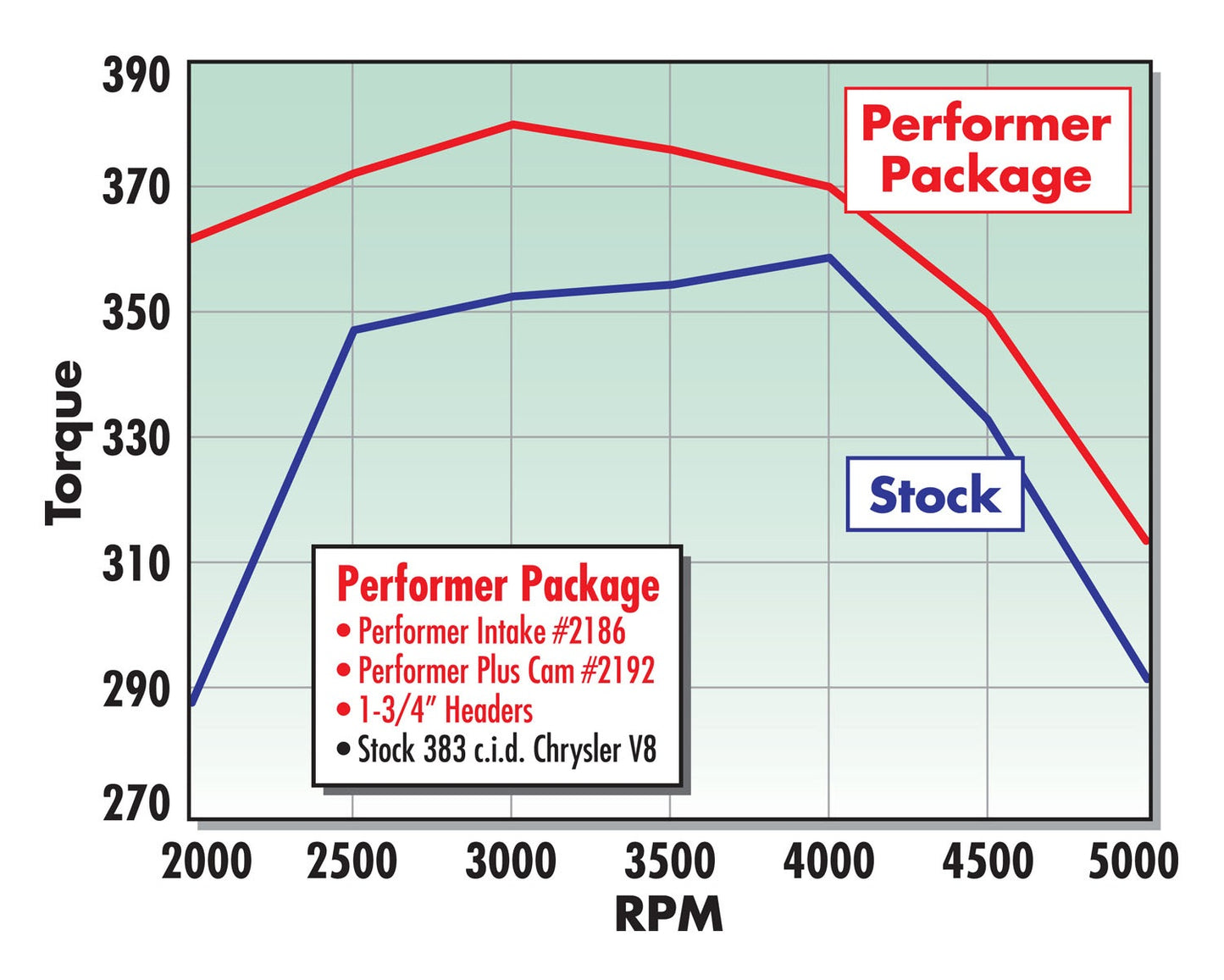

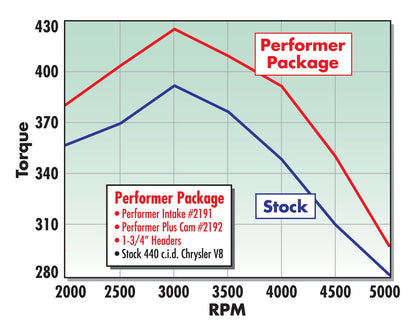

Edelbrock Performer-Plus camshaft is designed for 1968 and later big-block Chrysler 383-400-440 V-8 applications. This Edelbrock cam kit produced 427 ft-lbs. of torque when used with #2191 intake and stock iron cylinder heads on a 440 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions.

Installation Notes:

• Recommended Valve Springs for OEM heads: Edelbrock part #5892 non-rotator/# 5992 Rotator for 1968 and later
• Camshaft utilizes one bolt configuration

• Oil/additive must contain Zinc designed for use with flat tappet camshafts
• Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up
• Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm.

Specs:

• Series: Performer-Plus

• Grade Type: Performance

• Lifter Materials: Hardened Steel

• Computer Controlled Compatible: No

• Lifter Type: Hydraulic Flat Tappet
• Duration @ .050 Intake: 204 degrees
• Duration @ .050 Exhaust: 214 degrees
• Lift @ Valve Intake: .420"
• Lift @ Valve Exhaust: .442"
• Lobe Separation: 112 Degrees
• Intake Centerline: 107 Degrees
• Idle Vacuum @ 1000 RPM's: 14"

You can view and download the complete assembly instruction booklet here.
