MANIFOLD, 1969-97 FORD 351W, PERFORMER, NON-EGR

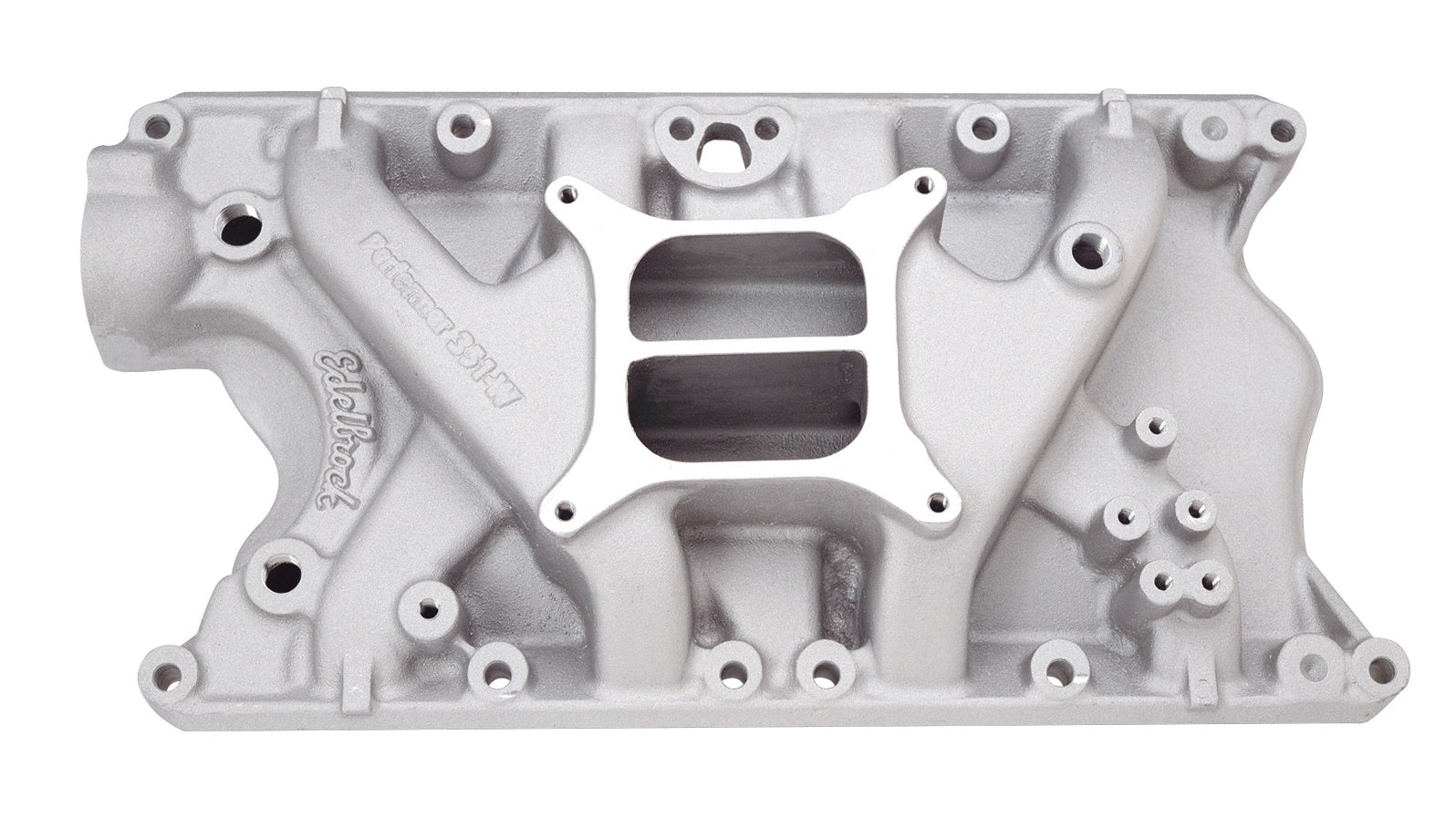

Brand New Performer 351-W Intake Manifold for S/B Ford 351 Windsor (Part #2181).

Edelbrock part #2181 Performer 351W intake manifold is designed for street 351 c.i.d. Ford Windsor V8's. Will not fit Boss 351. Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with Lokar bracket SRK-4000. For more info call (865) 966-2269 or go to www.lokar.com. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.

Notes:

• Recommended intake gasket: Edelbrock #7220
• Manifold height: A-3.50", B-4.75"
• Carb pad height: 4.12"
• Carb recommendations: Edelbrock AVS2 or Performer Series 600-650 cfm
• Port exit dimensions: 1.09" x 1.84"
• Choke block-off plate #8981 included
• Van installation use OEM Ford van gasket set
• Will fit early 16-bolt head with Ford 16-bolt intake gasket.
• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
• Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

• Series: Performer

• Material: Aluminum

• Gasket Or Seal Included: No

• Vehicle Model: Ford
• RPM Range: Idle-5500 RPM
• Finish: Satin

• Rear Maximum Height: 4.750 in

• Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
