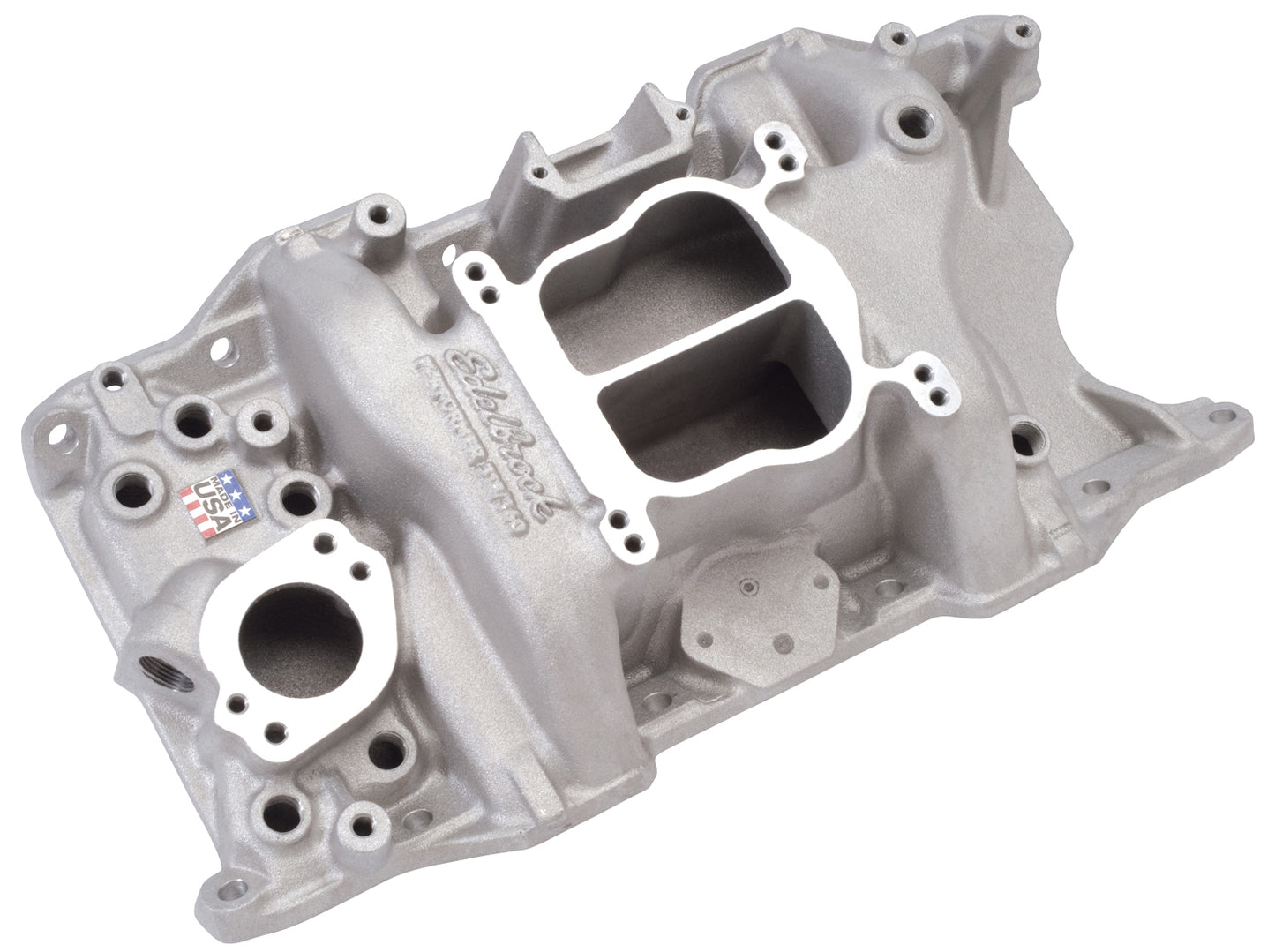

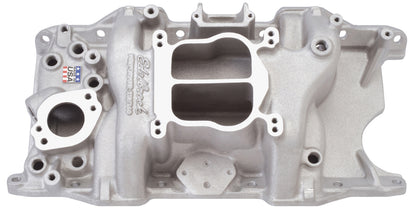

EDELBROCK MANIFOLD,PERFORMER,NON-EGR,1967-91 CHRYSLER LA 318-360

BRAND NEW EDELBROCK PERFORMER INTAKE MANIFOLD FOR 1966-1987 CHRYSLER "LA" SMALL BLOCK ENGINES

EDELBROCK PART #2176 PERFORMER INTAKE MANIFOLD IS DESIGNED FOR STREET 318, 340 AND 360 C.I.D. CHRYSLER V8 ENGINES. EDELBROCK PATENTED DUAL-PLANE, LOW-RISE DESIGN WITH A 180-DEGREE FIRING ORDER GREATLY IMPROVES TORQUE OVER A WIDE RPM RANGE FOR EXCELLENT THROTTLE RESPONSE FROM OFF-IDLE THROUGH 5500RPM.

NOTE: USE RTV SEALANT TO PROPERLY SEAL END SEALS, SUCH AS EDELBROCK HIGH TEMP SILICONE SEALANT #1076, DO NOT USE END SEALS GASKETS.

NOTE: HARDENED WASHERS MUST BE USED WITH INTAKE BOLTS TO ENSURE PROPER TORQUE AND PREVENT GALLING OF THE ALUMINUM.

NOTE: THIS MANIFOLD IS NOT FOR USE ON MARINE ENGINES USED IN SALT WATER

NOTE: WILL NOT FIT 1992 AND LATER MAGNUM ENGINES

FEATURES:

• ACCEPTS EITHER OEM 4-BBL OR 4150-STYLE SQUARE-BORE CARBURETORS
• NON-EGR
• THIS PERFORMER INTAKE MANIFOLD IS IDEAL FOR PASSENGER CARS, TRUCKS, 4X4S, TOW VEHICLES AND RVS
• RECOMMENDED INTAKE GASKET: EDELBROCK #7276, CHRYSLER #4494462AB FOR 318, #4397642 FOR 340 AND 360 (OR EQUIVALENT)
• MANIFOLD HEIGHT: A-4.13", B-5.13"
• CARB PAD HEIGHT: 4.63"
• CARB RECOMMENDATIONS: OEM 4-BBL, EDELBROCK AVS OR PERFORMER SERIES 600-650 CFM
• USE #1481 #1483 THROTTLE/TRANSMISSION LEVER KIT
• PORT EXIT DIMENSIONS: .97" X 1.95"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
