MANIFOLD, 1971-82 FORD 351M-400, PERFORMER

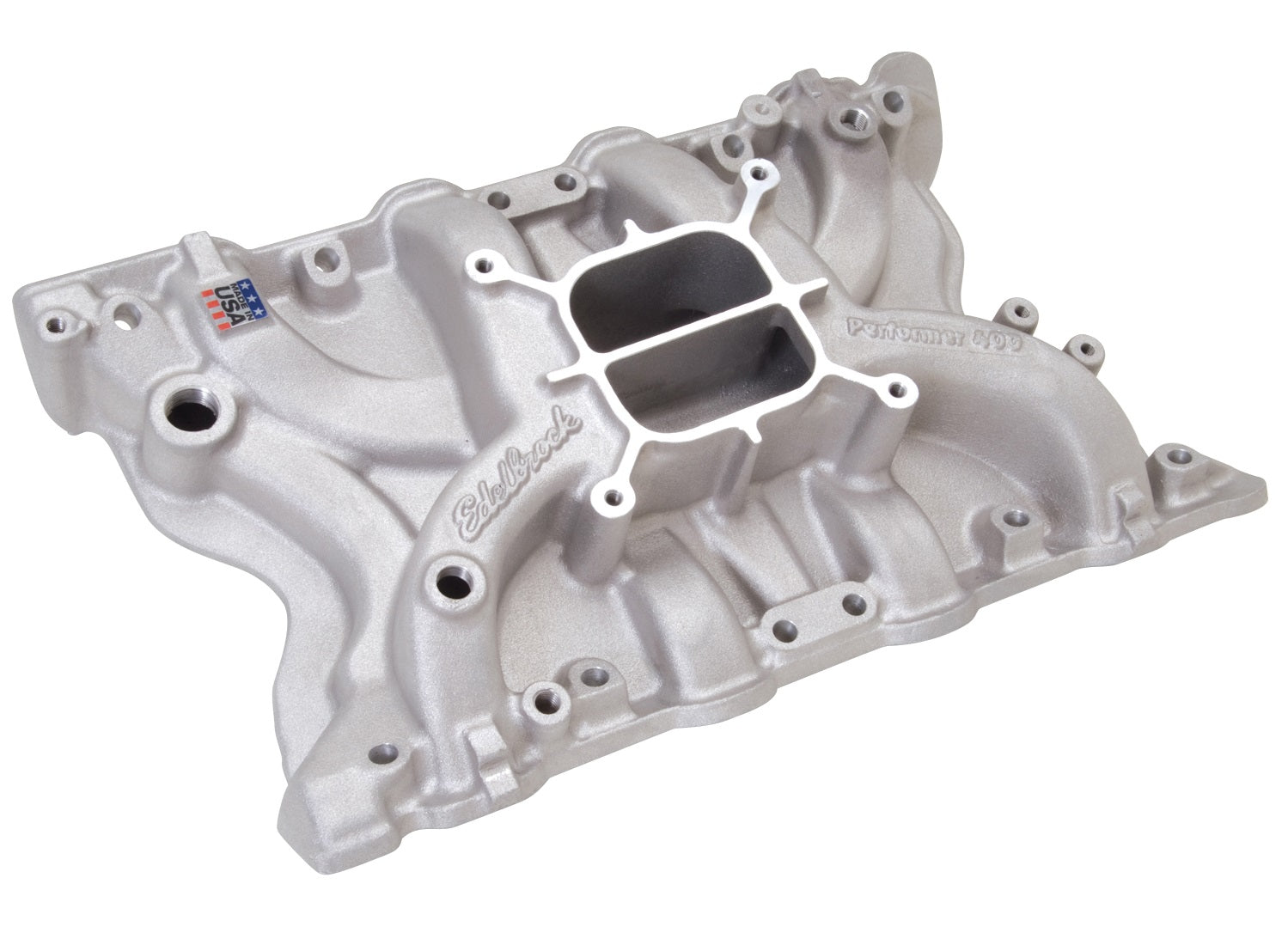

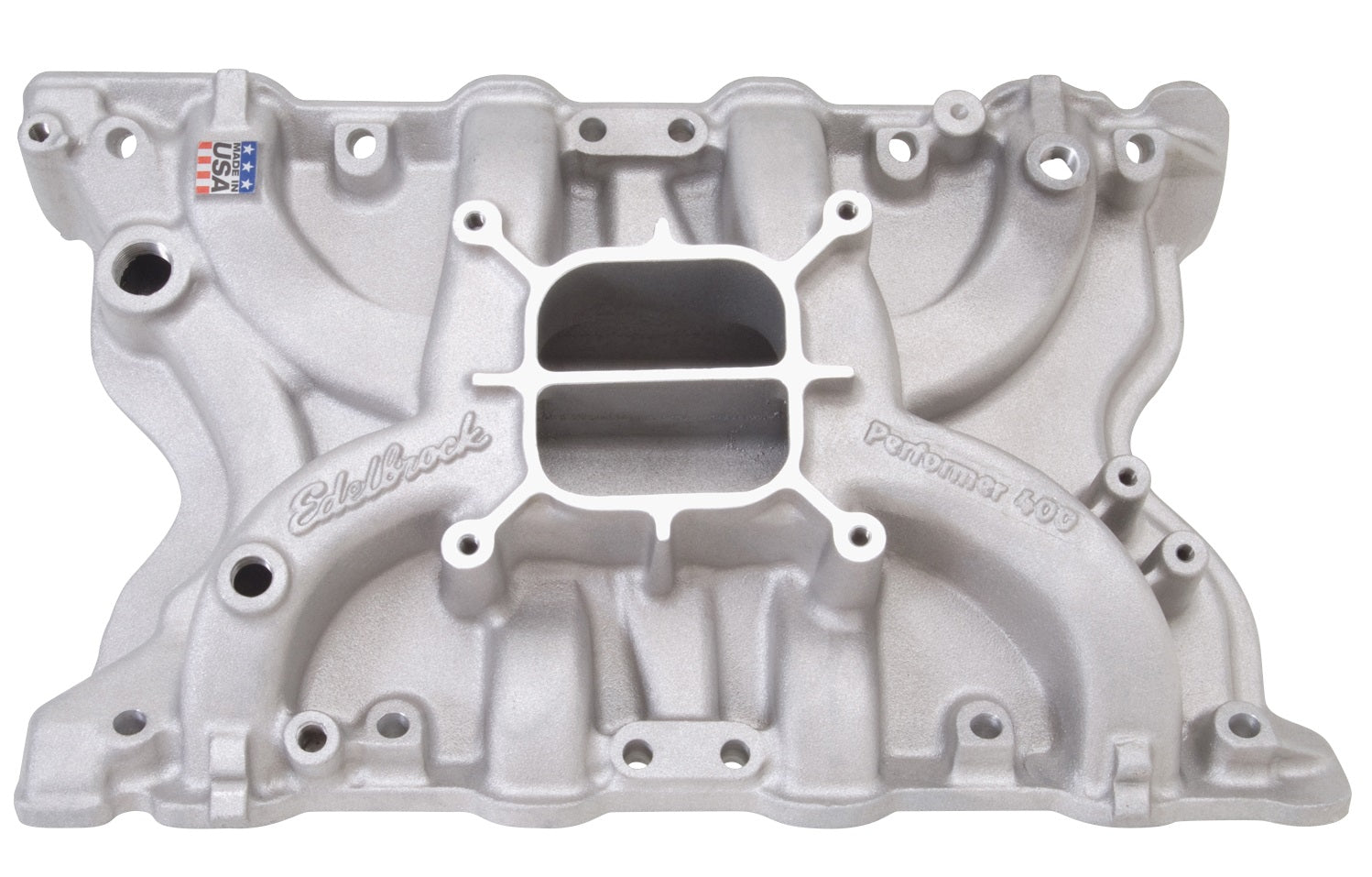

Brand New Edelbrock Performer 400 Intake Manifold for 1971-1982 Ford 351/M400 Engines (Part #2171).

Edelbrock Performer 351M/400M intake manifold is designed for 400 C.I.D. Ford V8's produced from 1971 to 1982 with 2V Cleveland heads and 351M V8's produced from 1975 to 1982. Will not fit 1974 and earlier 351C V8's. Valley width measures 8-17/32". Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.

Installation Notes:

• Edelbrock carburetor flange plate #2732 is included

• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, Do NOT use end seal gaskets
• Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

• Series: Performer

• Material: Aluminum
• Gasket Or Seal Included: No

• Port exit dimensions: 1.24" x 1.70"
• Manifold height: A-3.60", B-4.75"
• Carb pad height: 4.17"
• Carb recommendations: Edelbrock AVS2 or Performer Series 600-650 cfm, for auto trans use #1483 and #1493 or #1844

• Recommended Intake Gasket: Fel-Pro #MS96020

• RPM Range: Idle-5500 RPM
• Vehicle Model: Ford
• Finish: Satin

• Rear Maximum Height: 4.75 in

• Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
