MANIFOLD, 1968-87 FORD 429-460, PERFORMER

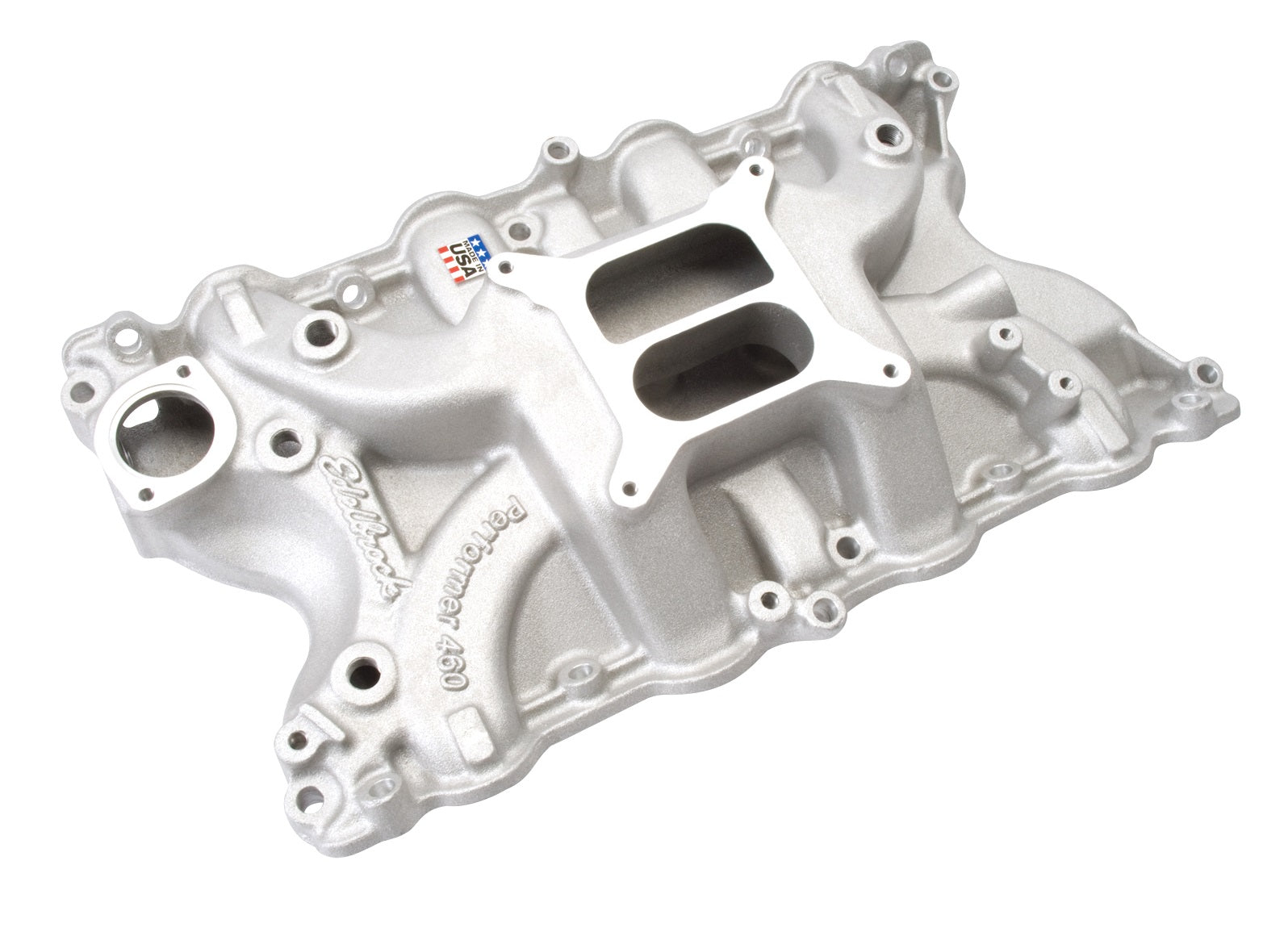

Performer 460 Intake Manifold #2166 for Ford 429/460, Non-EGR, Satin Finish (Part #2166).

Edelbrock part #2166 Performer 460 intake manifold is designed for street 429/460 c.i.d. Ford V8's. Will not fit 429 Cobra-Jets or 1966-68 462 Lincolns and will not accept stock spread-bore carb. Will not fit 1988 and later models. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.

Notes:

• Recommended intake gasket: Edelbrock #7223 or Fel-Pro #MS96018
• Manifold height: A-3.75", B-4.49" same as stock
• Carb pad height: 4.12"
• Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm, for automatic transmissions use #1483 and #1495 or #1844
• Port exit dimensions: 1.65" x 1.96"
• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
• Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

• Series: Performer

• Material: Aluminum
• Gasket Or Seal Included: No

• Vehicle Model: Ford
• RPM Range: Idle-5500 RPM
• Finish: Satin

• Rear Maximum Height: 4.490 in

• Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
