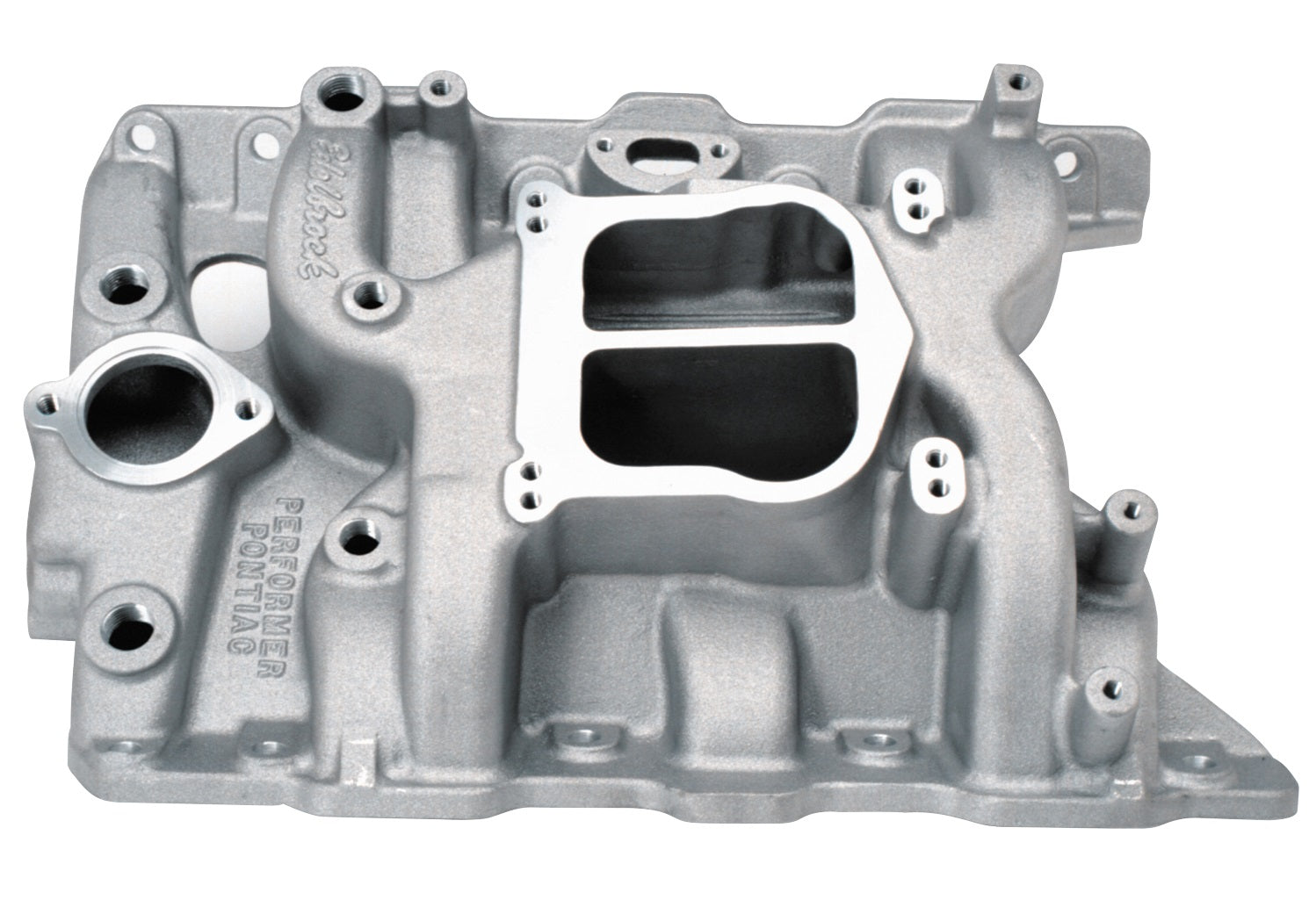

EDELBROCK INTAKE MANIFOLD,PERFORMER,65-79 PONTIAC,326>455

Brand New Edelbrock Performer Intake Manifold for 1965-1979 Pontiac 326-455 Engines, Non-EGR (Part #2156).

Edelbrock Performer Pontiac intake manifold is designed for 1965-79 Pontiac 326-455 C.I.D. V8's (except Ram Air V and 265/301 V8's). Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.

Installation Notes:

• Recommended intake gasket: Edelbrock #7280 and for 1968-71 use #8015 throttle bracket
• Manifold height: A-5.50", B-6.60" measured to engine block same as stock 4-bbl. intake

• For Trans Am use OEM 4-bbl. carb for Shaker Hood clearance
• Choke Plate included
• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, Do NOT use end seal gaskets
• Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

• Series: Performer

• Material: Aluminum
• Gasket Or Seal Included: No

• Port exit dimensions: 1.06" x 1.92"
• Manifold height: A-5.50", B-6.60"
• Carb pad height: 6.05"
• Recommended Intake Gasket: Edelbrock #7280 and for 1968-71 use #8015 throttle bracket

• RPM Range: Idle-5500 RPM
• Vehicle Model: Pontiac
• Finish: Satin

• Rear Maximum Height: 6.6 in

• Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
