MANIFOLD, 1965-76 OLDS 400-455, PERFORMER

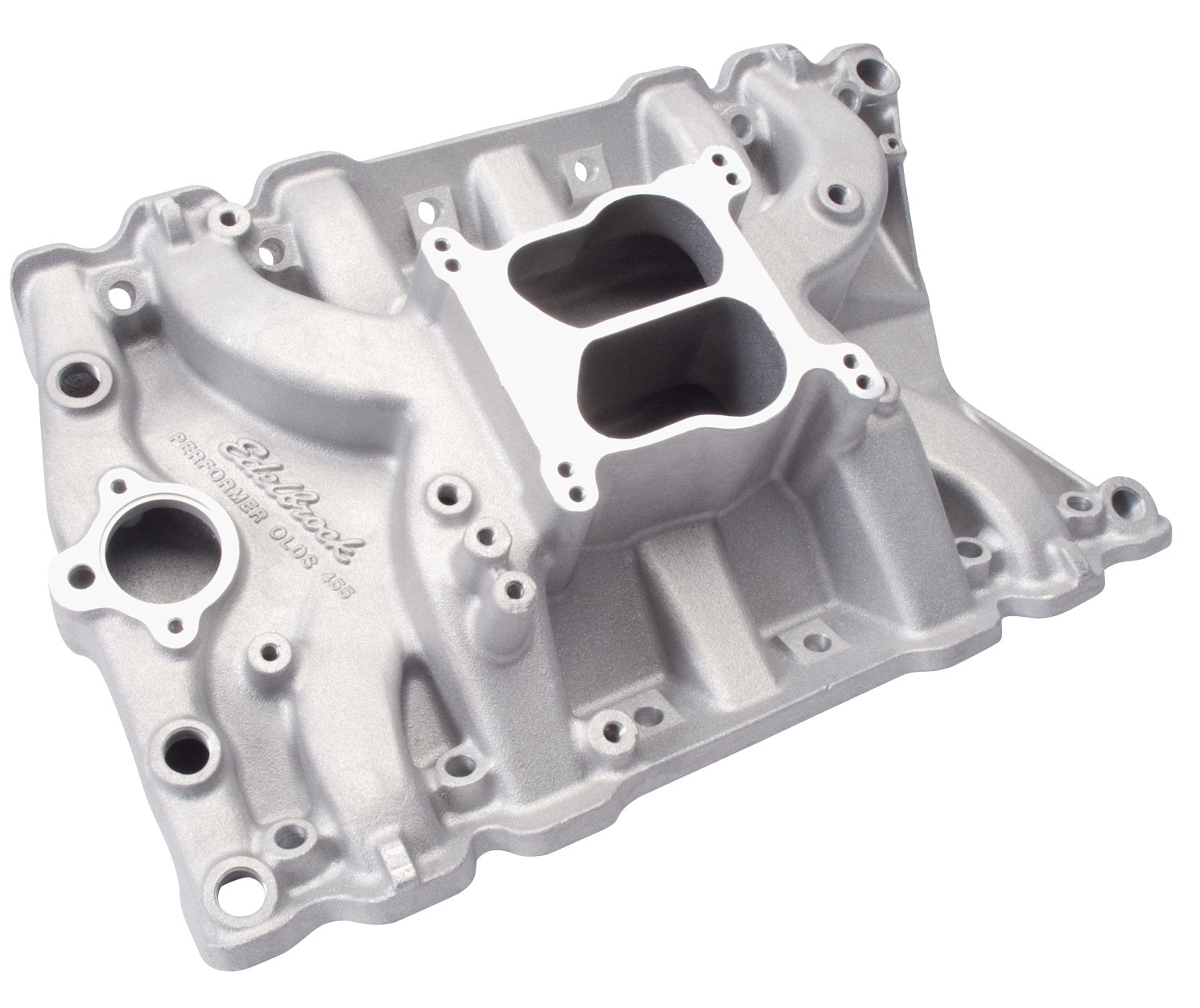

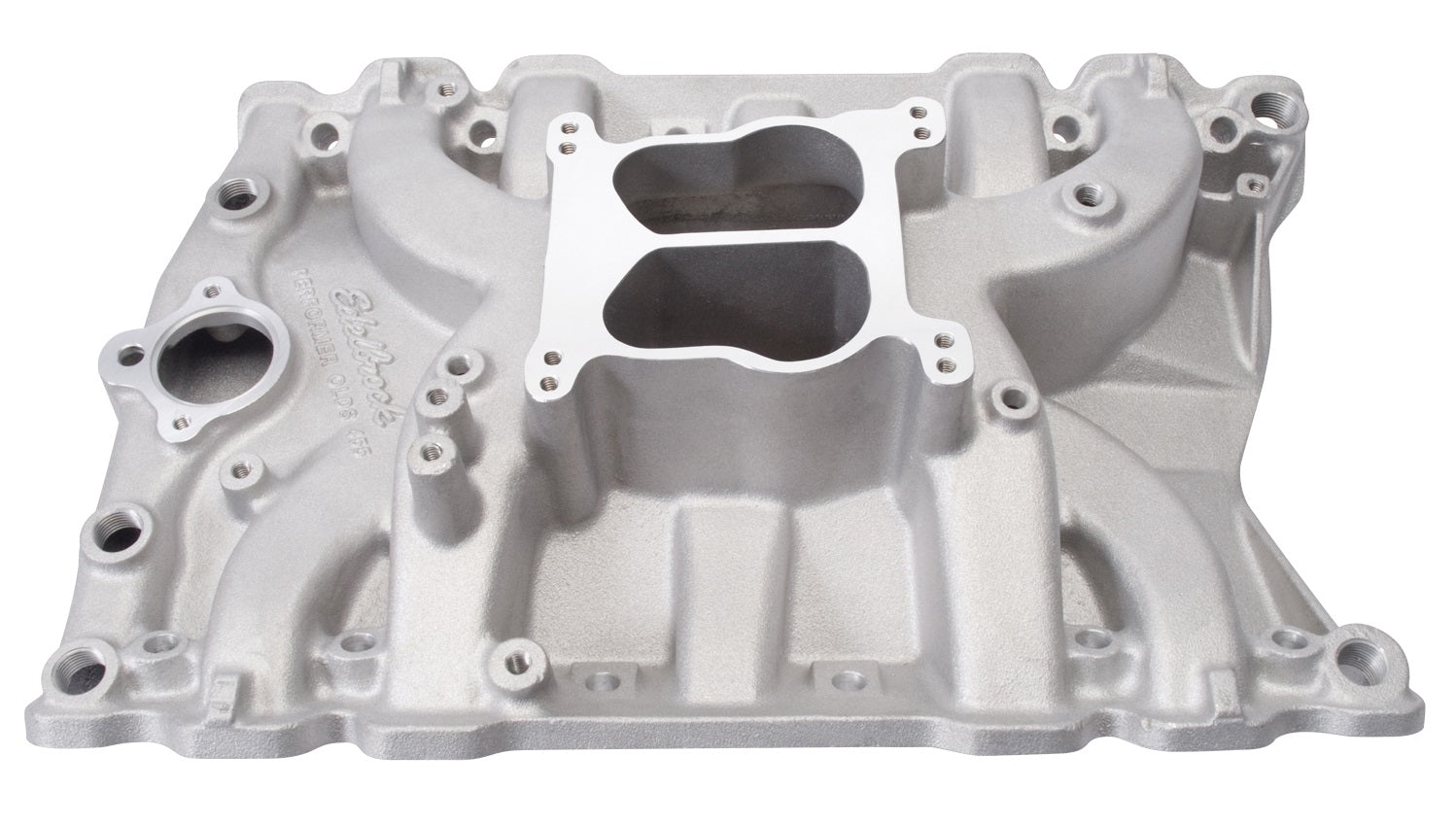

Brand New Edelbrock Performer Intake Manifold for Oldsmobile 400-455 Engines, Non-EGR (Part #2151).

Edelbrock Performer Oldsmobile 455 intake manifold is designed for street 400-425-455 C.I.D. applications. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Includes exhaust crossover plugs #2733 which must be used for marine and off-road use.

Installation Notes:

• Manifold has no provision for OEM choke operation
• Will not fit Toronado or 4-4-2 Ram-Air scoop without hood modification or 1964-67 Cutlass
• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, Do NOT use end seal gaskets
• Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum
• HEI will clear

Specs:

• Series: Performer

• Material: Aluminum
• Gasket Or Seal Included: No

• Port exit dimensions: 1.22" x 2.22"
• Manifold height: A-4.40", B-5.50"
• Carb pad height: 4.95"
• Carb recommendations: Edelbrock AVS2 or Performer Series 750-800cfm
• Recommended Intake Gasket: Edelbrock #7213 Fel-Pro MS96011

• RPM Range: Idle-5500 RPM
• Vehicle Model: Oldsmobile
• Finish: Satin

• Rear Maximum Height: 5.5 in

• Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
