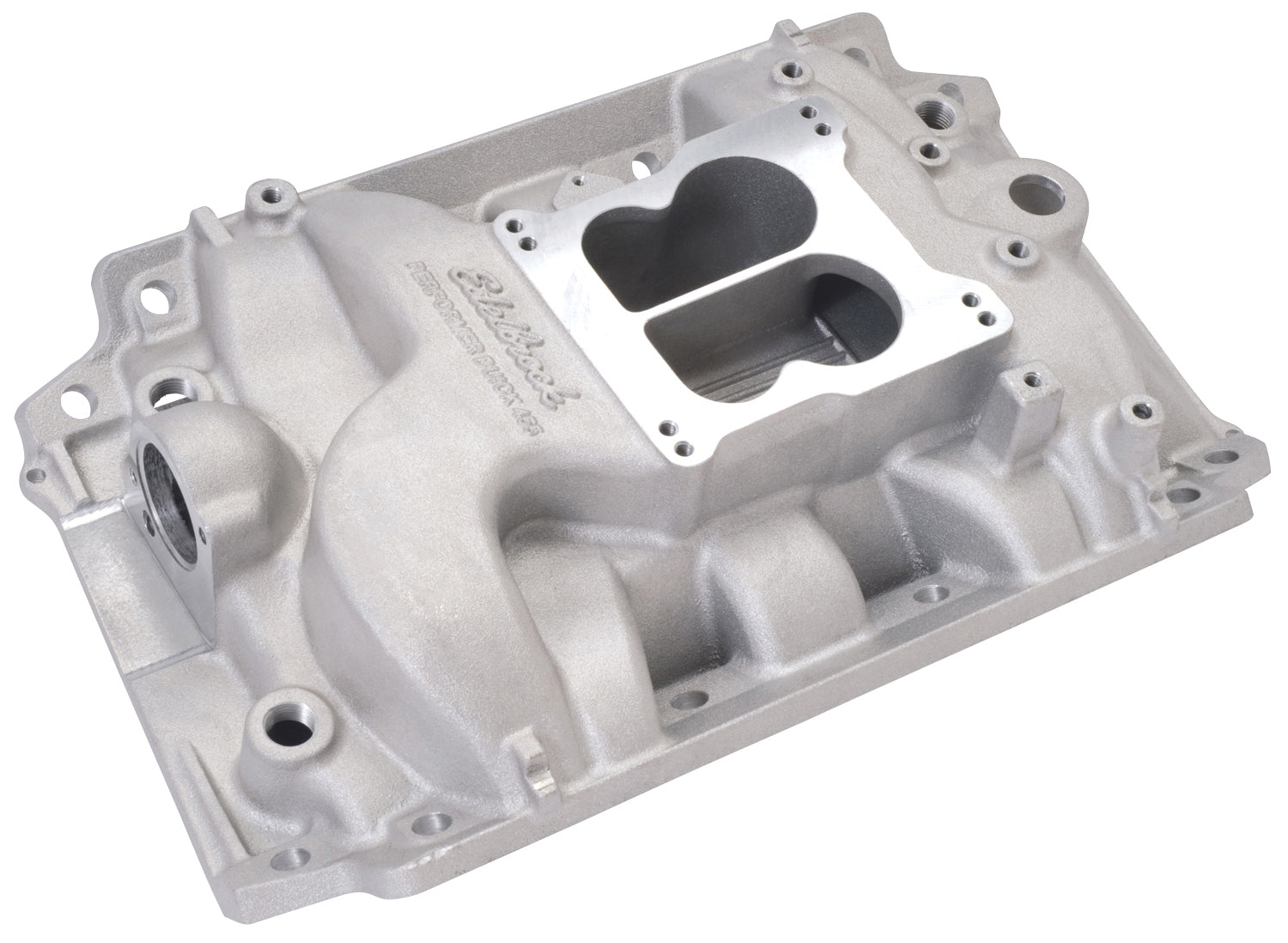

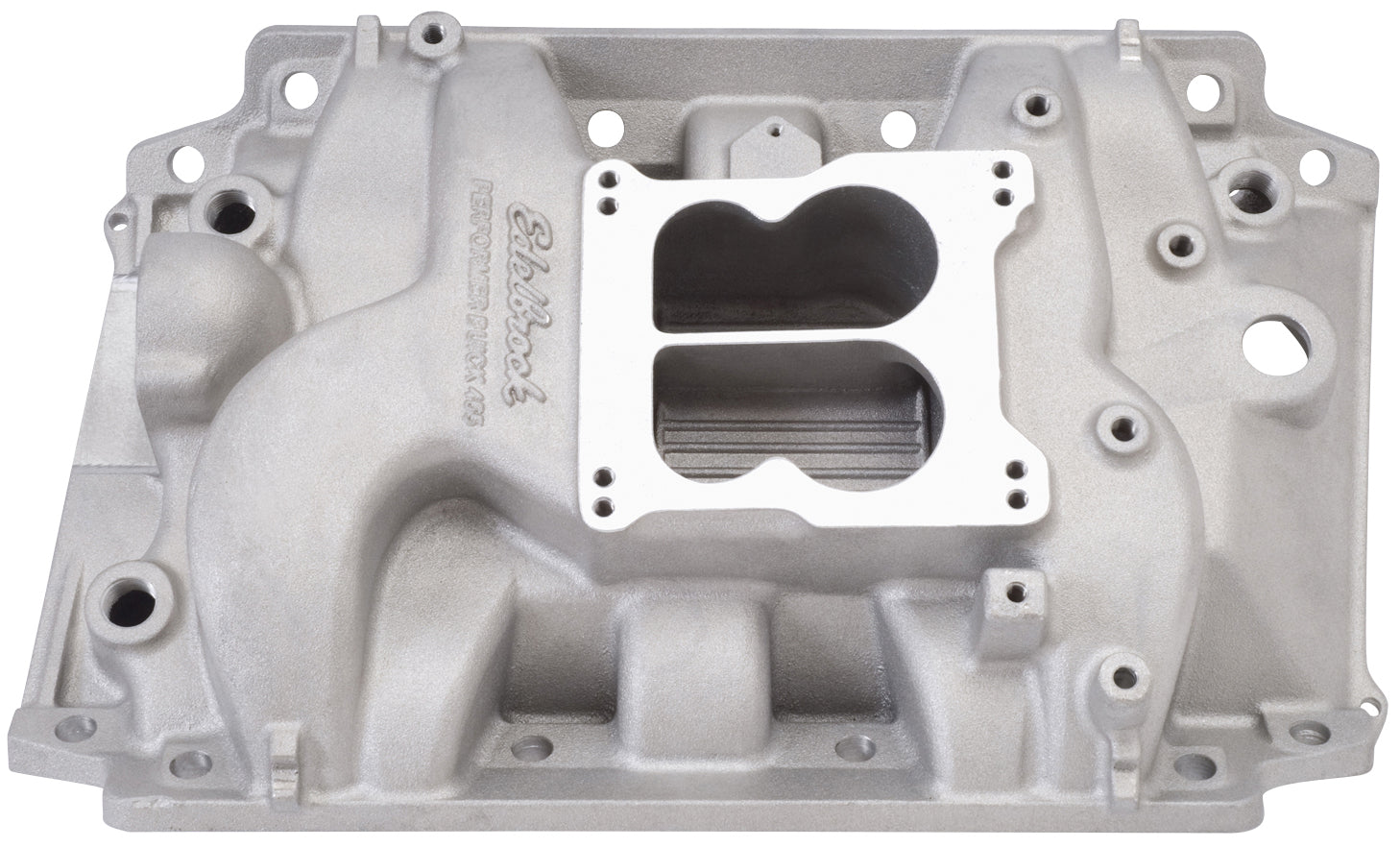

EDELBROCK INTAKE MANIFOLD,PERFORMER,1967-76 BUICK 400-455

Brand New Edelbrock Performer Intake Manifold for Buick 400-455 V8, Non-EGR, Satin Finish (Part #2146).

Edelbrock Performer Buick 455 intake manifold is designed for street 400-430-455 C.I.D. Buick V8's. Manifold not equipped with EGR. Will fit cold air induction hoods. Will not fit Buick 350. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.

Installation Notes:

• Recommended intake gaskets for 1967-71, Fel-Pro # MS96005; 1972-76, Fel-Pro # MS96014
• Accepts OEM 4-bbl or 4150-Style Carburetors
• Manifold height: A-3.80", B-4.75"
• Carb pad height: 4.27"
• Carb recommendations: OEM 4-Bbl, Edelbrock AVS2 or Performer Series 650-800cfm
• Port exit dimensions: 1.14" x 2.26"
• # 2146 accepts divorced choke-type Quadrajet only.
• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
• Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Specs:

• Series: Performer
• Material: Aluminum
• Gasket or Seal Included: No
• RPM Range: Idle-5500RPM
• Application: Buick Big Block - 400 (6.6L), 430 (7.0L), 455 (7.5L)
• Rear Maximum Height: 4.750"
• Single or Dual Plane: Dual

You can view and download the assembly instruction booklet here.
