MANIFOLD, 1970-91 AMC 290-401, PERFORMER, NON-EGR

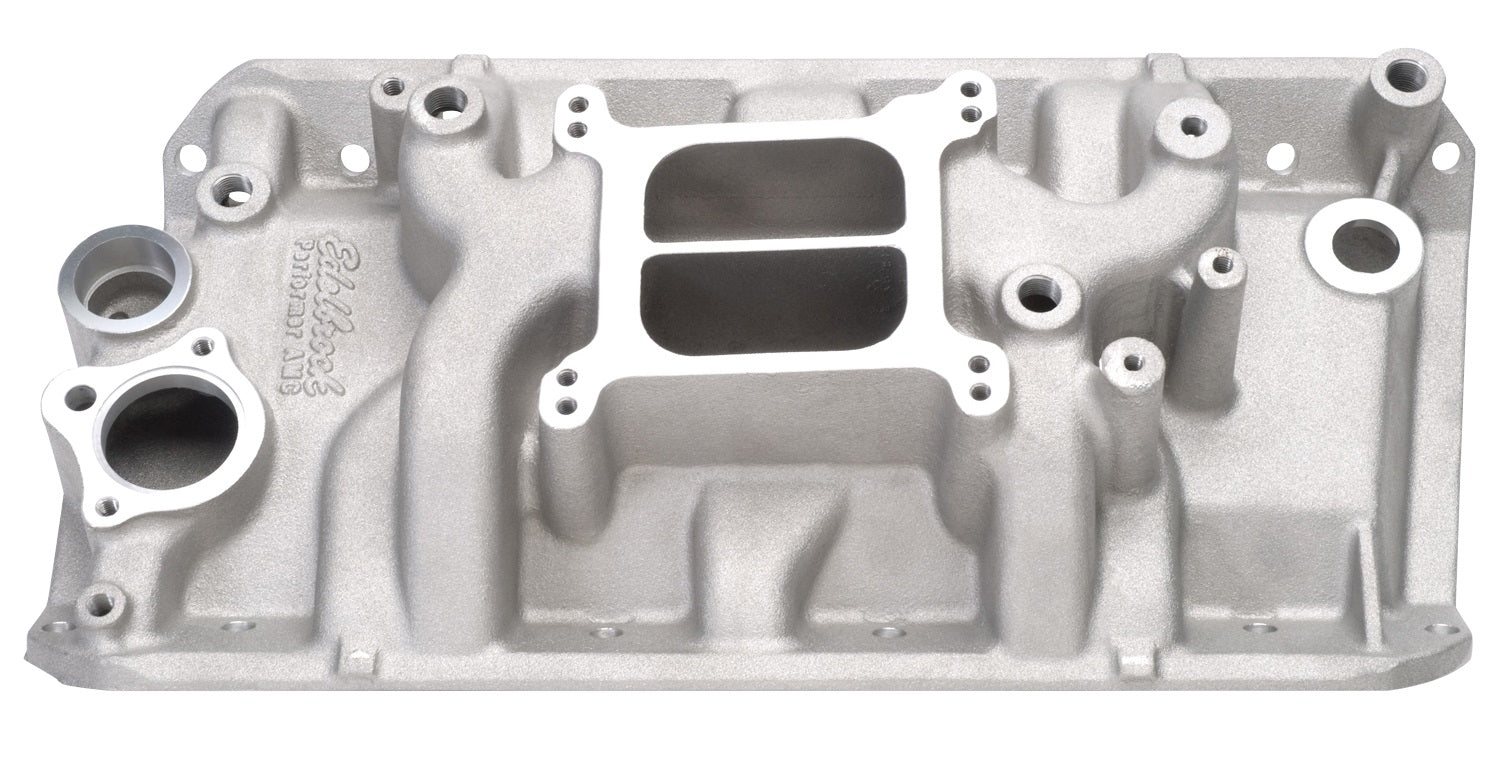

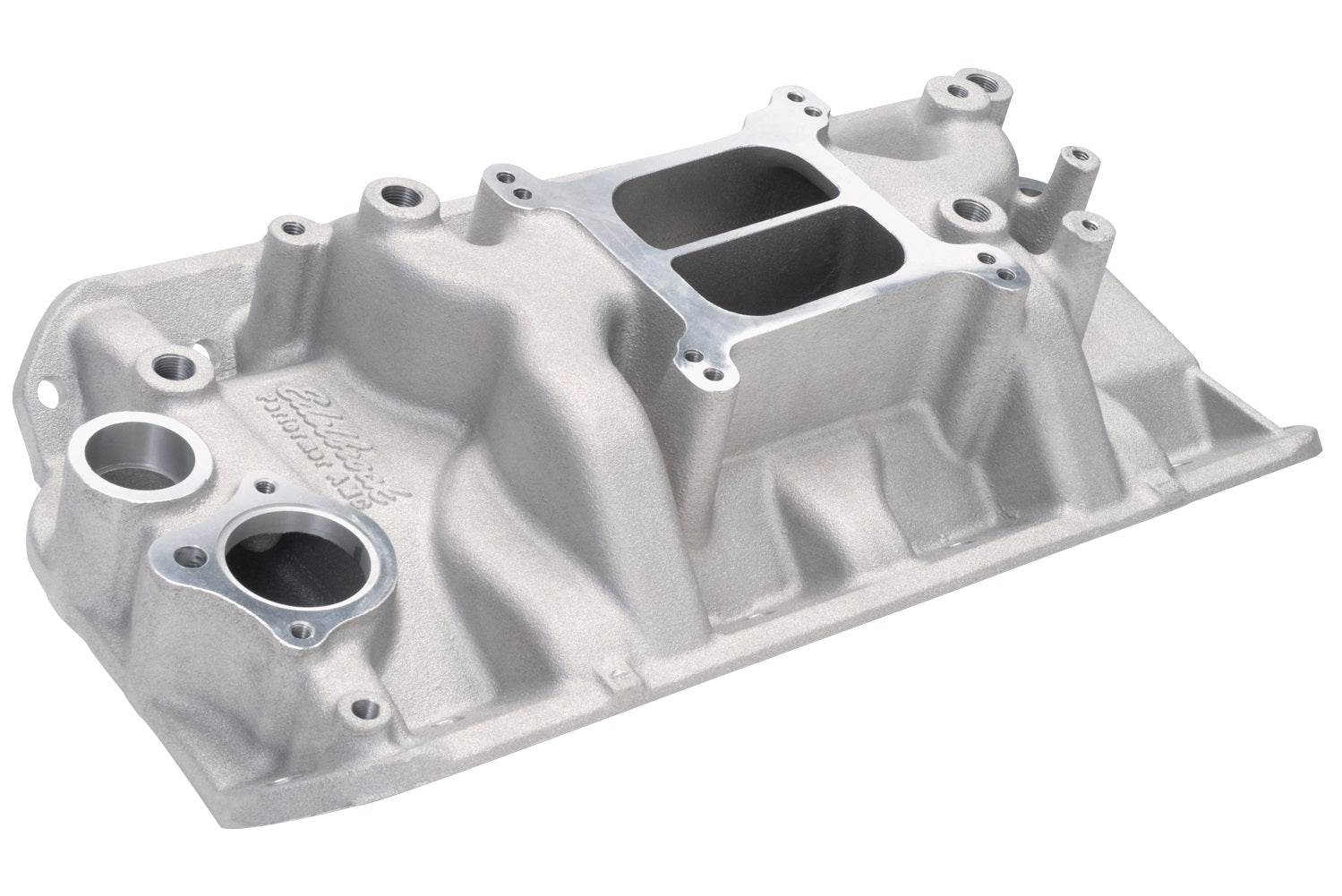

Brand New Edelbrock Performer Intake Manifold for 1970-1991 AMC Engines, Non-EGR (Part #2131).

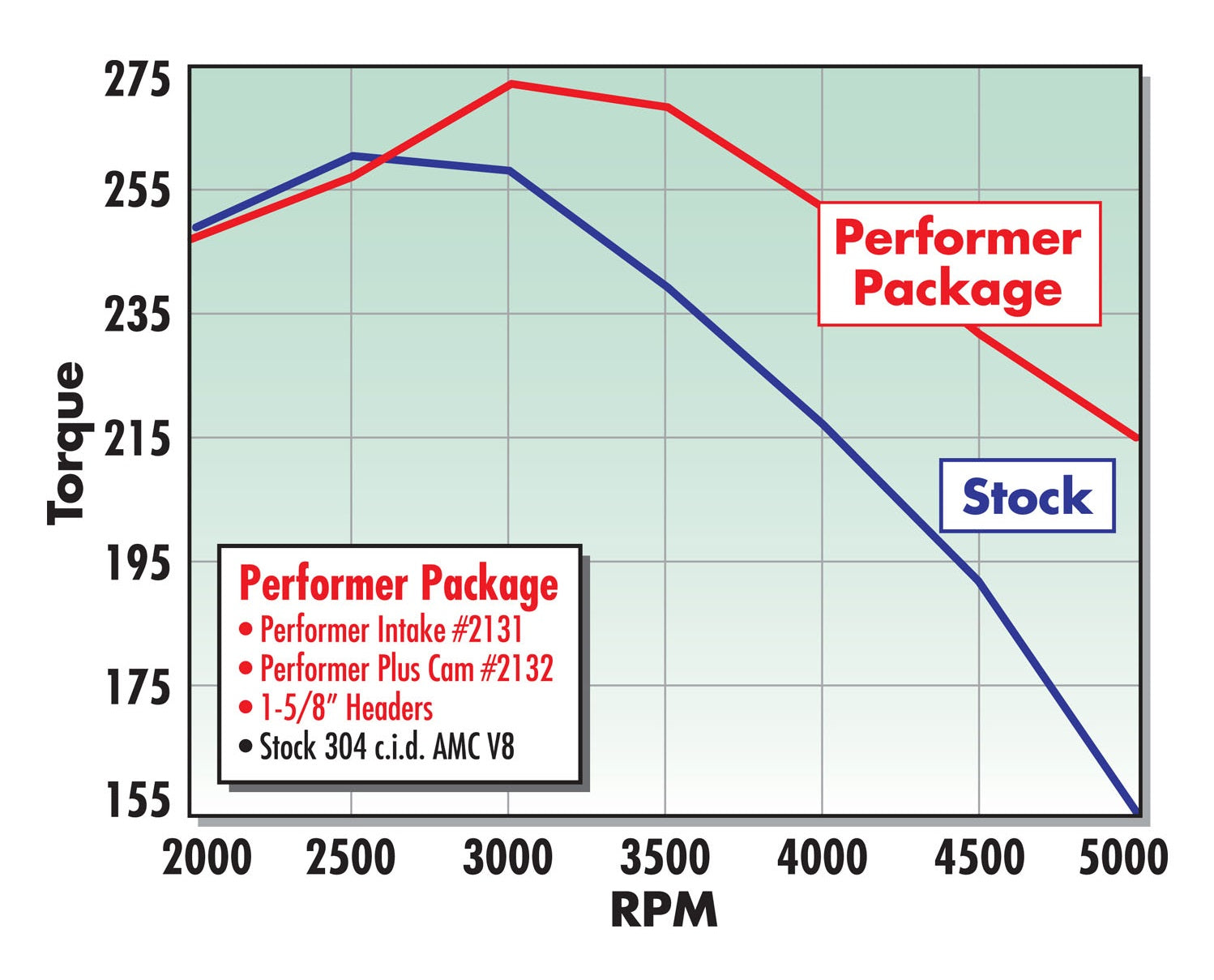

Edelbrock part Performer AMC intake manifold is designed for 1970-91 street 304-360-401 C.I.D. V8 engines. Will not accept stock Motorcraft spread-bore carburetor. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.

Installation Notes:

• Must use factory style metal valley tray
• Requires #8008 or #8024 Stud, nut and washer kit

• #2131 must use factory style metal valley tray
• Manifolds have two center bolt holes offset
• Edelbrock bracket #8034 required for 1979 and later vehicles
• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, Do NOT use end seal gaskets
• Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum
• Manifold will not accept factory Motorcraft spread-bore carburetors


Specs:

• Series: Performer

• Material: Aluminum
• Gasket Or Seal Included: No

• Port exit dimensions: 1.03" x 2.07"
• Manifold height: A-4.20", B-5.50"
• Carb pad height: 4.85"
• Carb recommendations: OEM 4-Bbl Non-EGR square-bore Edelbrock AVS2 or Performer Series 500-650cfm
• Recommended Intake Gasket: Edelbrock #7213 Fel-Pro MS96011

• RPM Range: Idle-5500 RPM
• Vehicle Model: AMC/Jeep
• Finish: Satin

• Rear Maximum Height: 5.280 in

• Plane Type: Dual

You can view and download the complete assembly instruction booklet here.
