EDELBROCK INTAKE MANIFOLD,PERFORMER,NON-EGR,1962-01 FORD 289/302

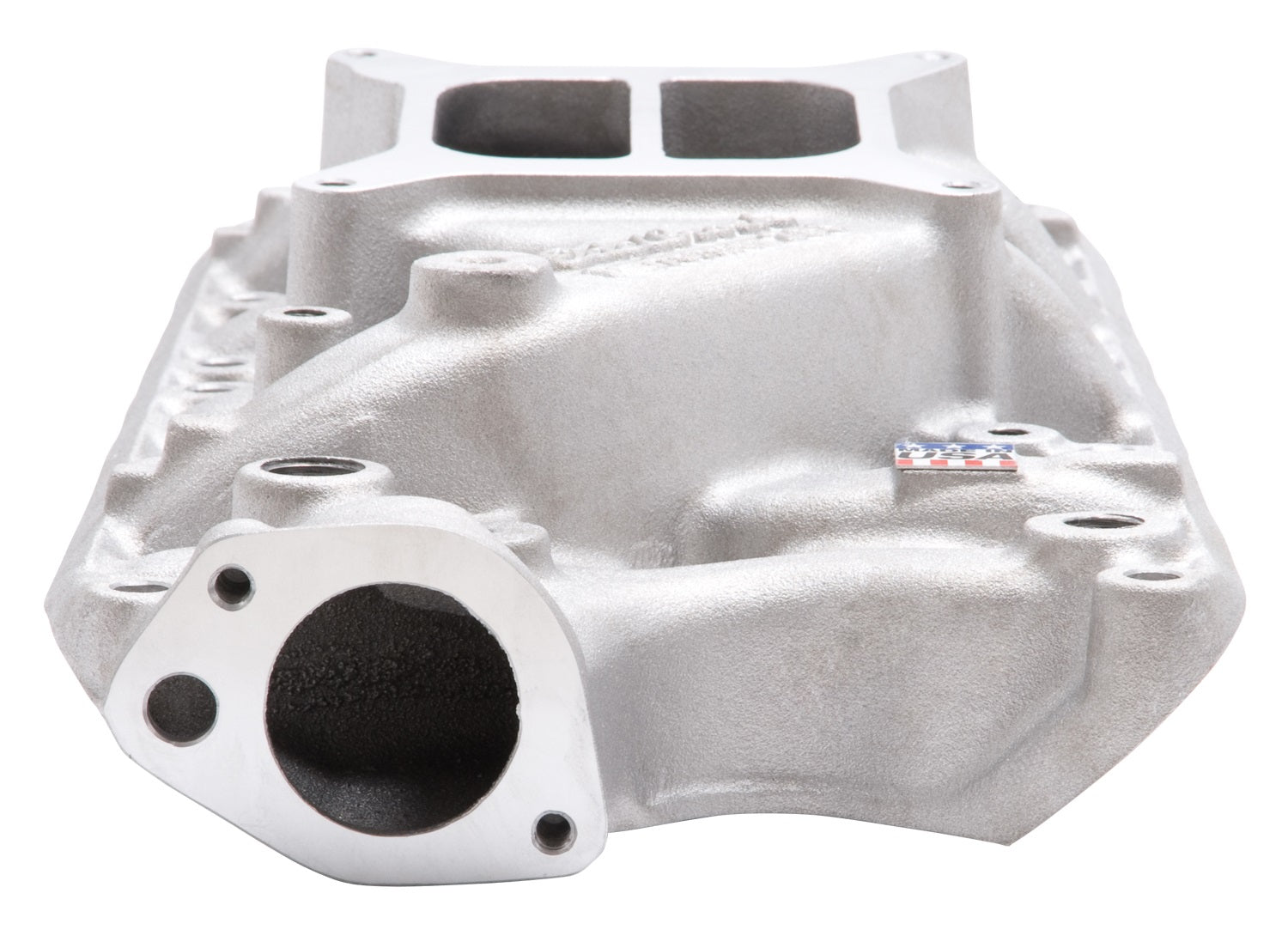

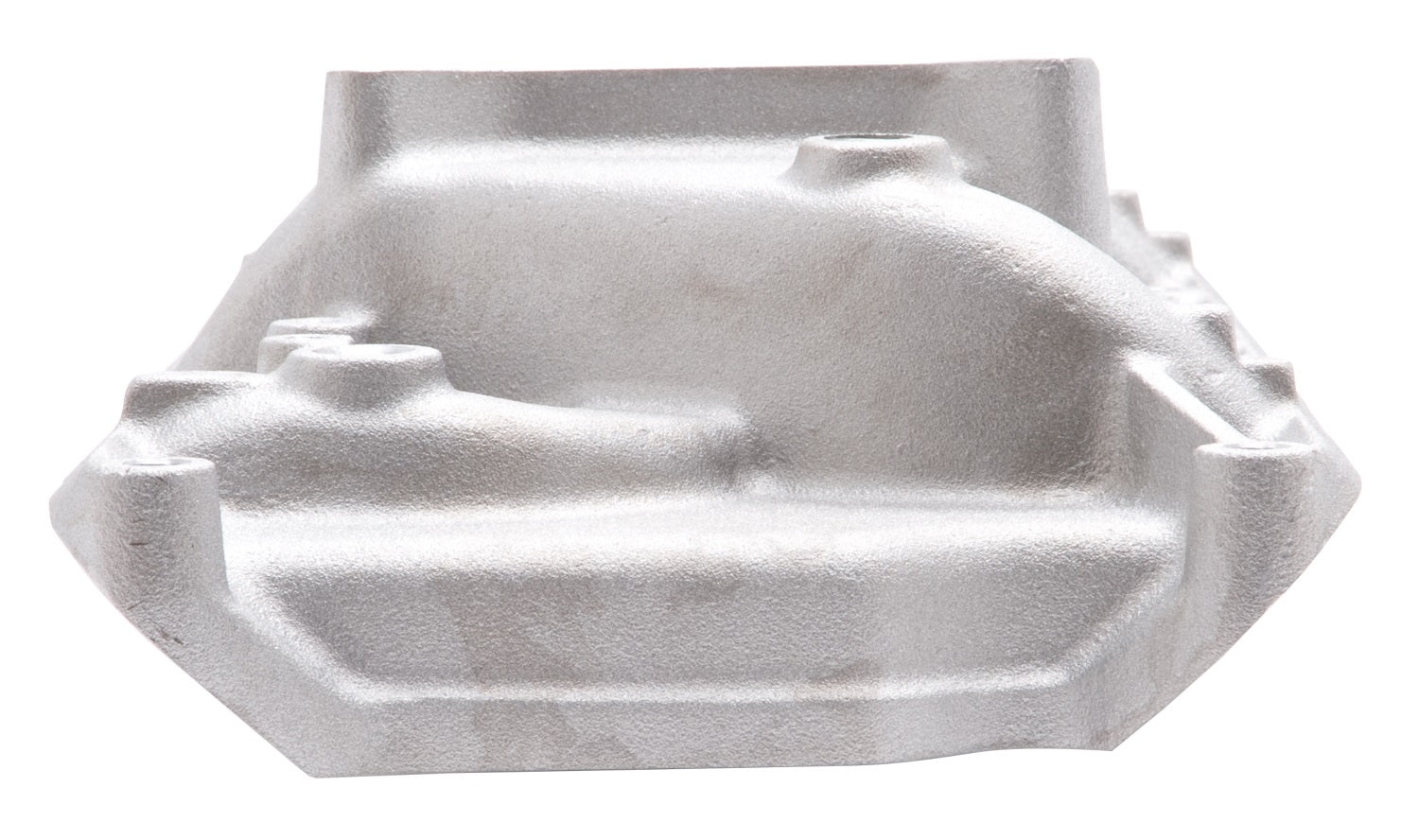

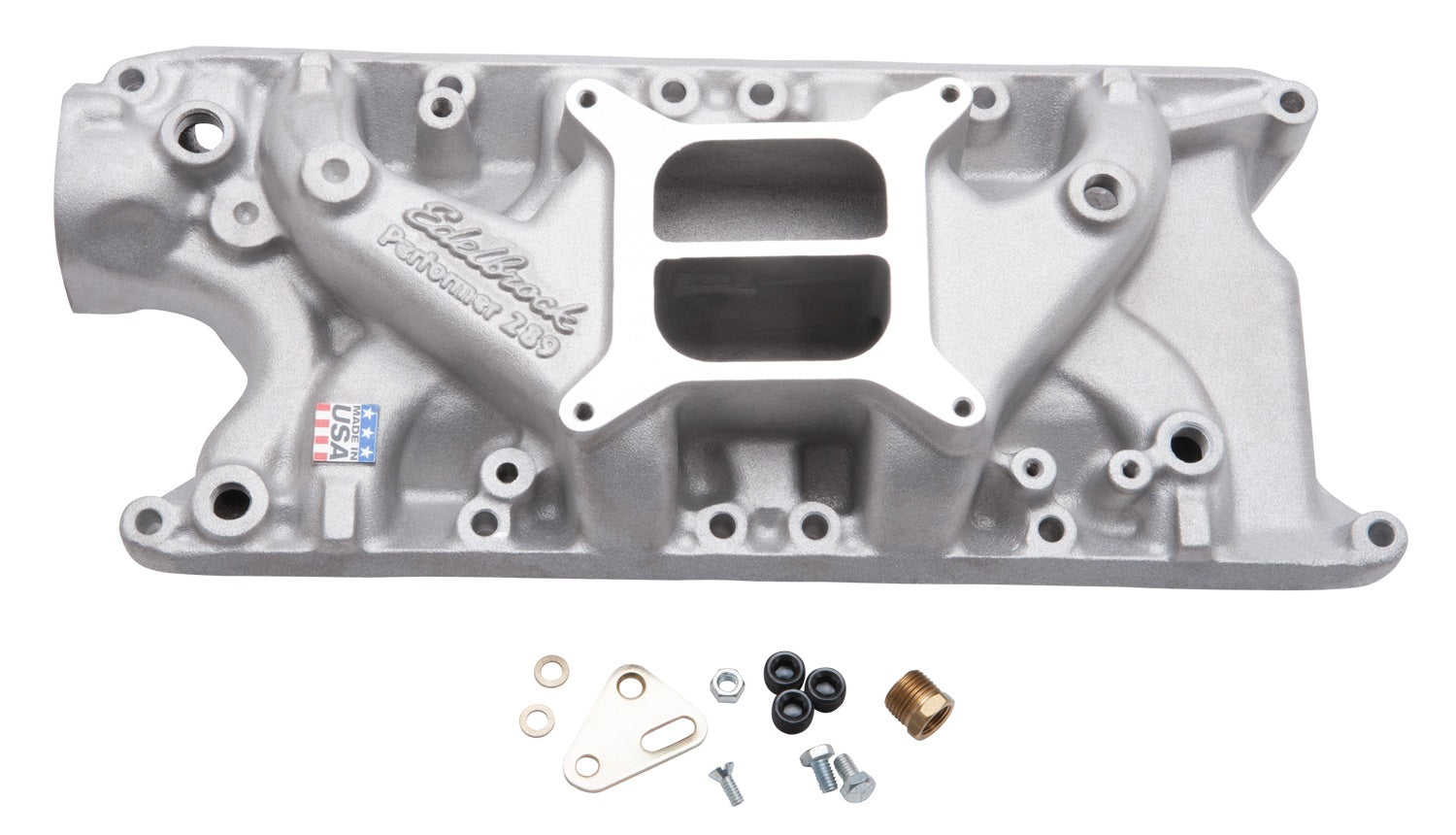

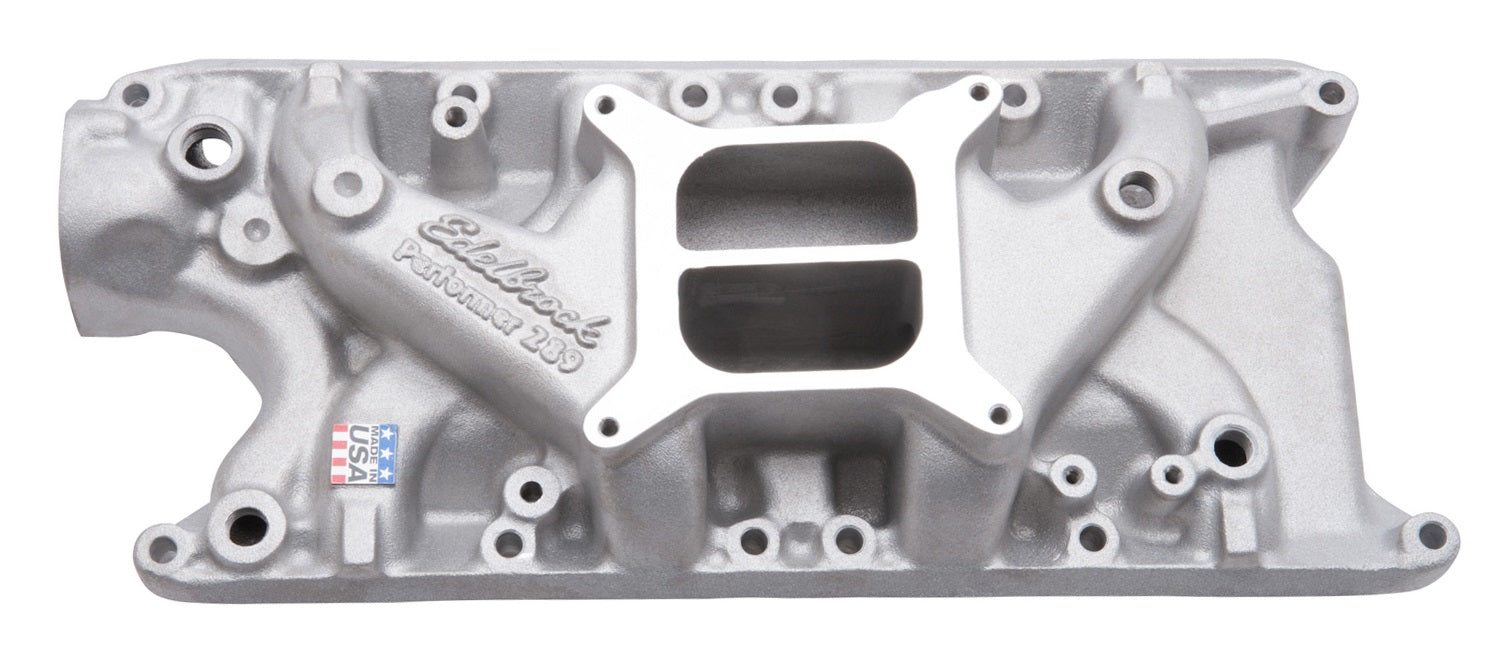

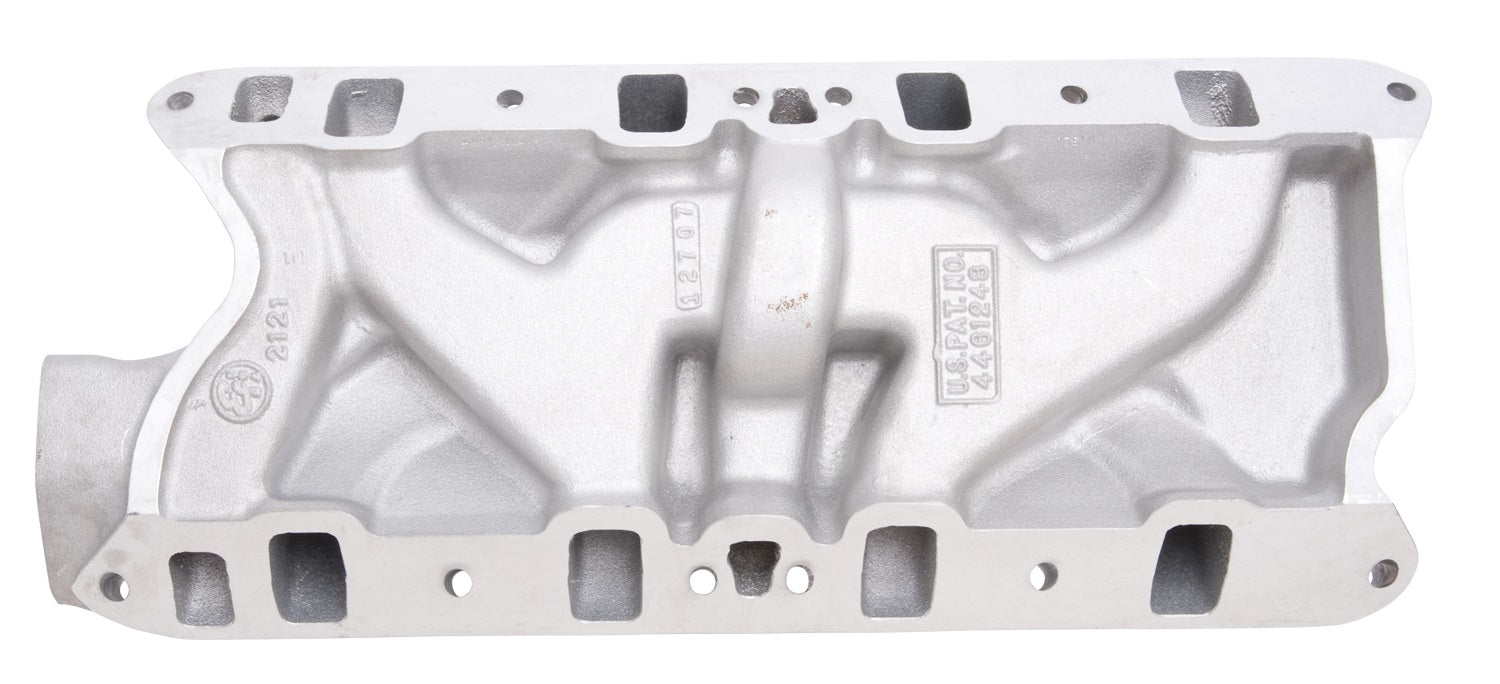

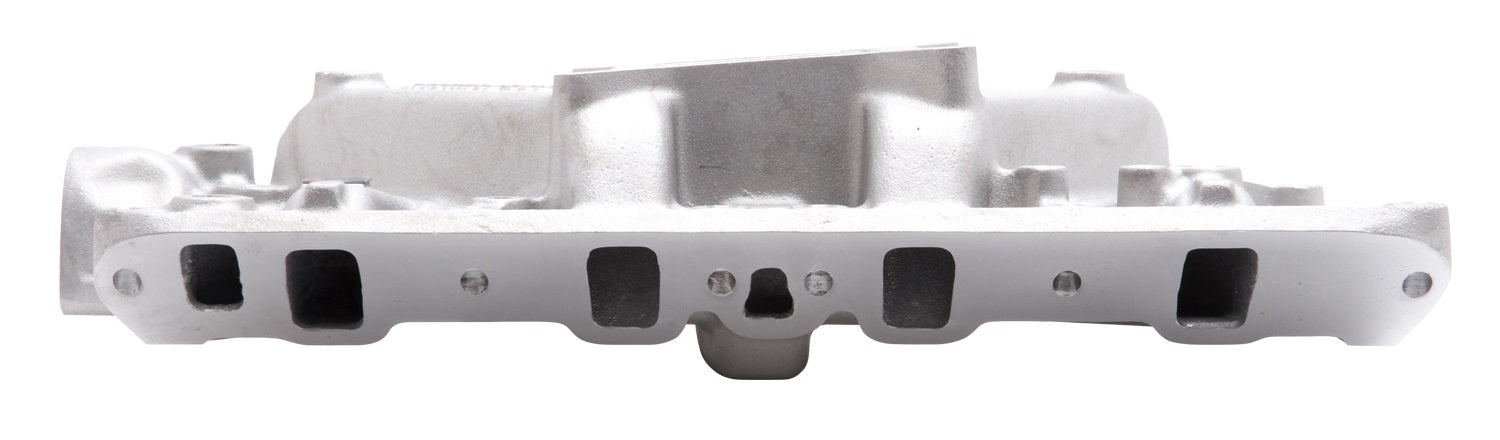

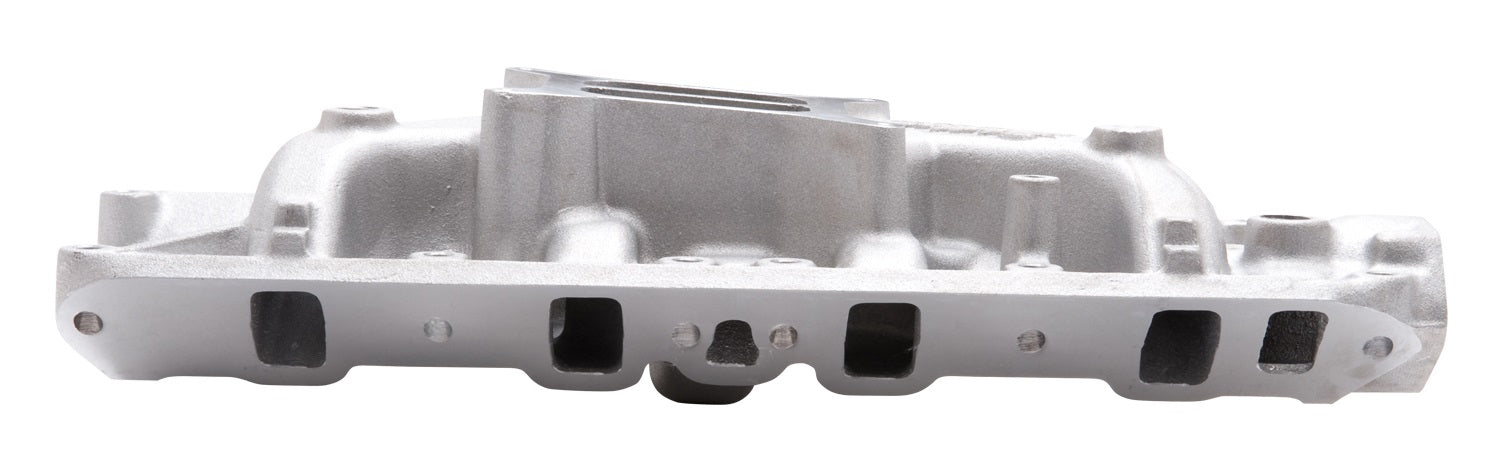

Brand New Edelbrock Performer 289 Intake Manifold for Small-Block Ford (Part #2121).

Edelbrock Performer Intake Manifold for 289/302 Small-Block Ford V8 is Designed for Street-Performance 260-289-302 C.I.D. Windsor V8 Applications. Will not fit Boss 302 or 255 C.I.D. Accepts 4150-Style Square-Bore Carburetors. Non-EGR.

Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000.

Note: Carb recommendations: Edelbrock AVS2 or Performer Series 500-650cfm, for automatic transmissions use #1483 & #1490 or #1844.

Specs:

• Series: Performer

• Material: Aluminum
• Grade Type: Performance
• RPM Range: Idle-5500 RPM
• Single Or Dual Plane Type: Dual
• Manifold Height: A-3.50", B-4.75"
• Carb Pad Height: 4.12"
• Port Exit Dimensions: 1.09" x 1.84"
• Finish: Satin

You can view and download the complete assembly instruction booklet here.
