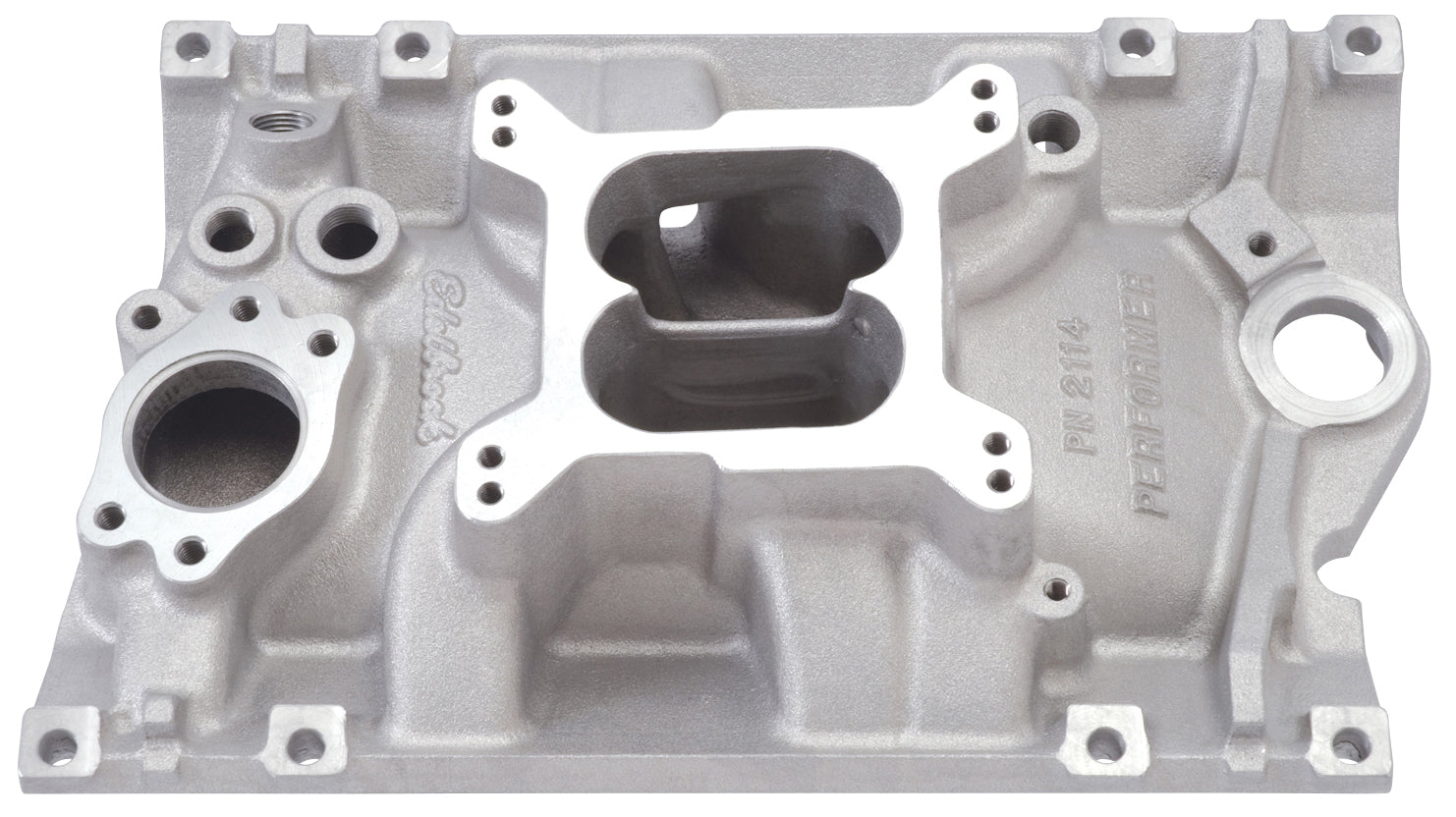

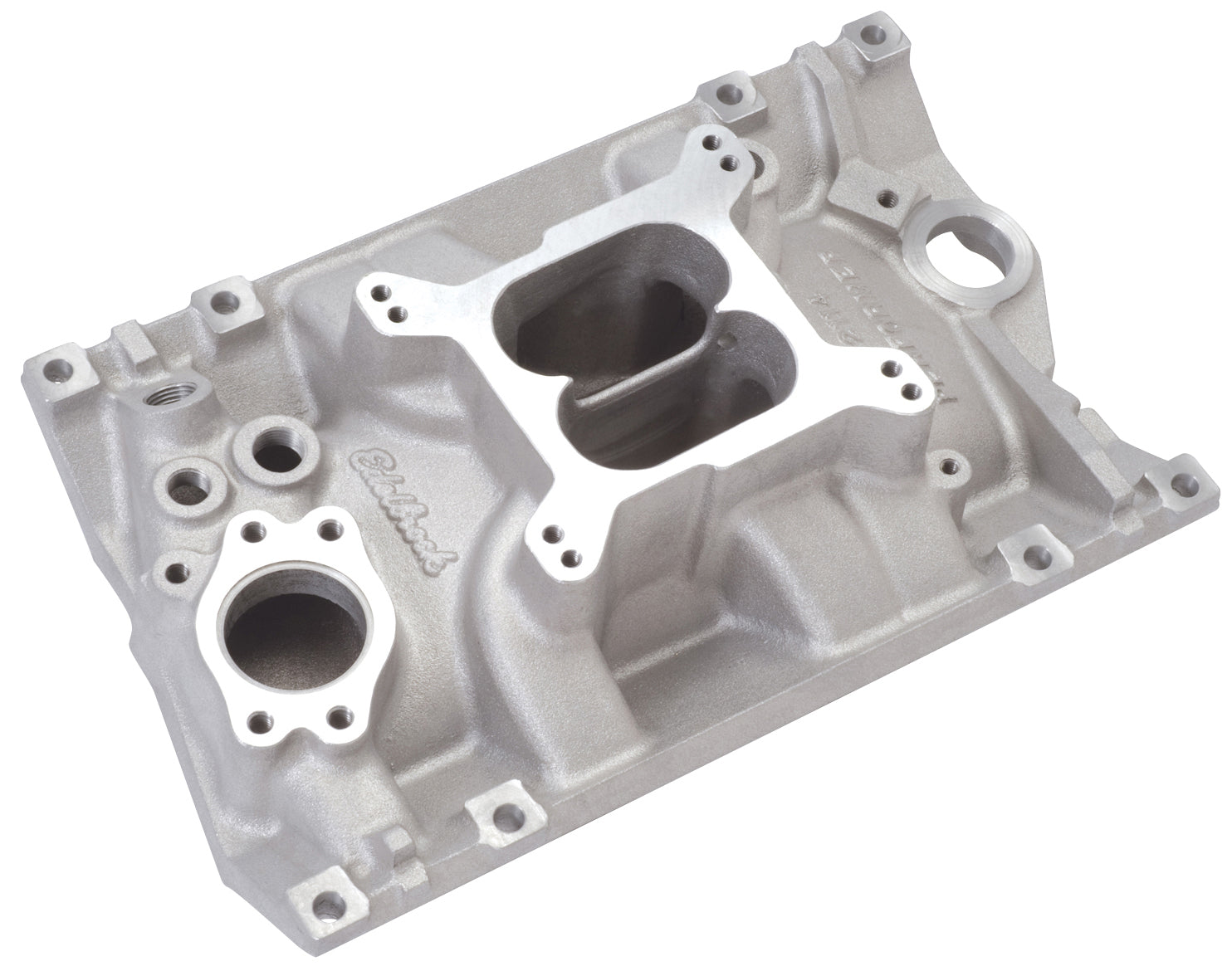

EDELBROCK INTAKE MANIFOLD,PERFORMER,VORTEC,1996-09 GM 4.3L V6

BRAND NEW EDELBROCK PERFORMER VORTEC INTAKE MANIFOLD FOR 90 DEGREE GM V6, 200-229-262 C.I.D. (3.8L AND 4.3L) ENGINES

EDELBROCK PART #2114 PERFORMER VORTEC V6 INTAKE MANIFOLD IS BASED ON THE POWERFUL EDELBROCK #2111. THIS DUAL-PLANE INTAKE IS DESIGNED FOR THE ENGINE SWAP MARKET UTILIZING 1985 AND LATER CHEVY 200-229-262 C.I.D. (3.8L AND 4.3L) V6 ENGINES WITH VORTEC HEADS. WITH THIS MANIFOLD, RODDERS CAN TAKE ADVANTAGE OF THE HIGHER FLOW AVAILABLE WITH THE VORTEC HEAD DESIGN. THIS PERFORMER VORTEC INTAKE MANIFOLD HAS PROVISIONS FOR EXTERNAL WATER BYPASS AND MAY BE USED ON EITHER VORTEC BLOCKS OR 1995 AND EARLIER BLOCKS. DESIGNED FOR USE WITH EDELBROCK THUNDER SERIES AVS OR PERFORMER SERIES 500 CFM CARBS, IT ACCEPTS LATE MODEL WATER NECK, ALTERNATOR, HEI AND AIR CONDITIONING.

NOTE: USE RTV SEALANT TO PROPERLY SEAL END SEALS, SUCH AS EDELBROCK HIGH TEMP SILICONE SEALANT #1076, DO NOT USE END SEALS GASKETS

NOTE: HARDENED WASHERS MUST BE USED WITH INTAKE BOLTS TO ENSURE PROPER TORQUE AND PREVENT GALLING OF THE ALUMINUM.

FEATURES:

• 1985 AND UP CHEVY 200/229/262 (3.8 AND 4.3) WITH VORTEC HEADS
• 4-BBL SQUARE BORE CARB FLANGE (NON-EGR)
• IDLE-5500 RPM RANGE
• ACCEPTS LATE MODEL WATER NECK, ALTERNATOR, AC, AND HEI (PROVISIONS FOR EXTERNAL WATER BYPASS)
• PORT EXIT DIMENSIONS: 2.05" TALL WITH SLANTED SIDE WALLS
• MANIFOLD HEIGHT: (A) 3.50", (B) 4.18"
• CARB PAD HEIGHT: 3.84"
• RECOMMENDED INTAKE GASKET: GM 89017866
• MANIFOLD HEIGHT: A-3.50", B-4.18"
• CARB PAD HEIGHT: 3.84"
• CARB RECOMMENDATIONS: EDELBROCK AVS2 SERIES OR PERFORMER SERIES 500CFM
• PORT EXIT DIMENSIONS: PORT EXIT IS 2.05" TALL WITH SLANTED SIDE WALLS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
