EDELBROCK INDUCTION KIT,SINGLE-QUAD MANIFOLD & CARB,BIG-BLOCK CHEVY OVAL PORT

BRAND NEW EDELBROCK SINGLE QUAD PERFORMER MANIFOLD AND CARBURETOR KIT FOR OVAL PORT BIG BLOCK CHEVY ENGINES (PART #2061)

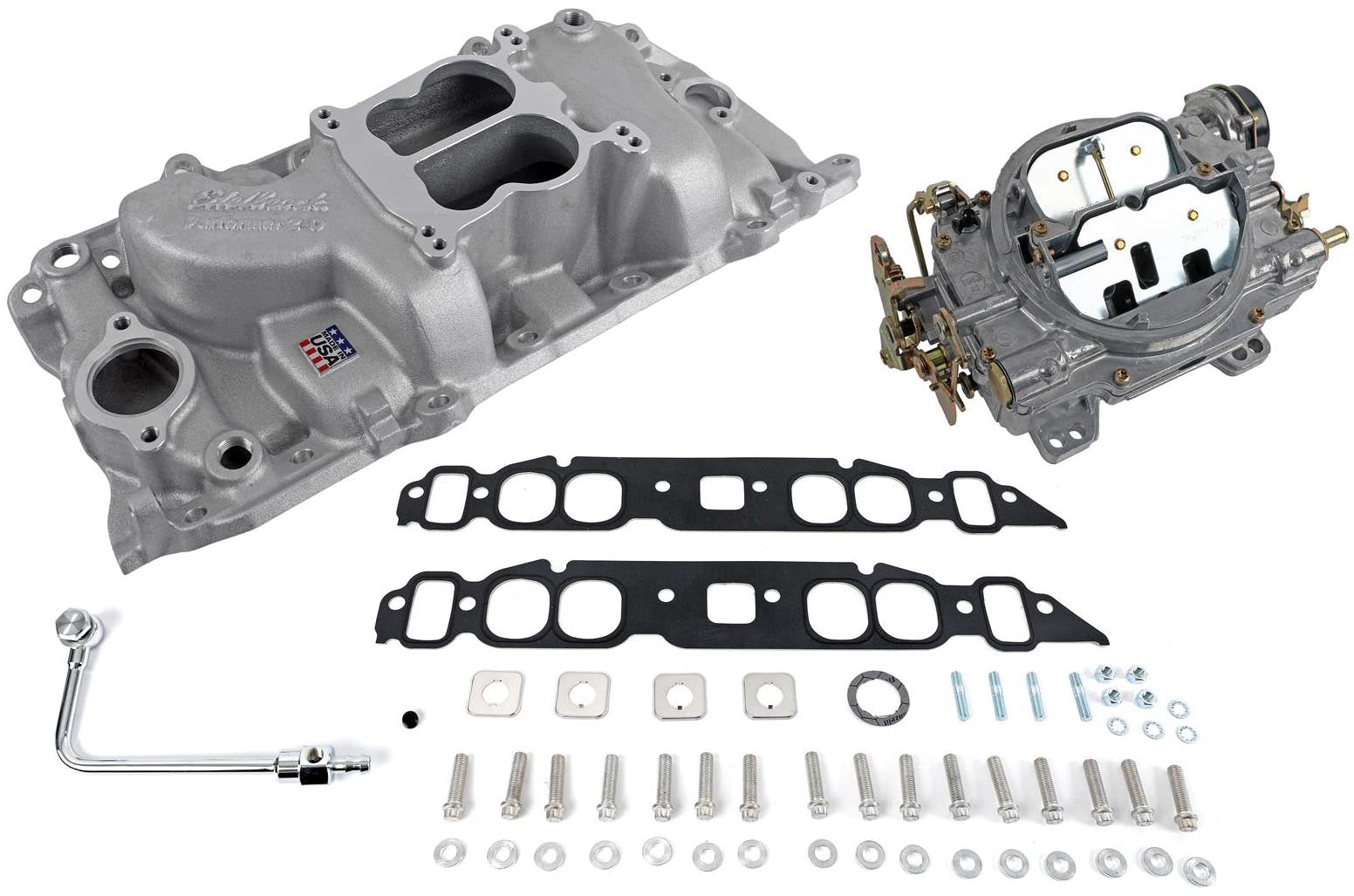

THE EDELBROCK #2061 SINGLE-QUAD MANIFOLD AND CARBURETOR KIT IS DESIGNED FOR BIG-BLOCK CHEVY OVAL PORT APPLICATIONS. WITH A MANIFOLD AND CARB KIT, IT IS EASY TO UPGRADE YOUR INDUCTION SYSTEM WITH THE BEST COMBINATION OF EDELBROCK PROVEN PERFORMANCE AND LOOKS IN A SINGLE BOX. THESE KITS INCLUDE: AN EDELBROCK MANIFOLD, THUNDER SERIES AVS 800 CFM CARBURETOR, CHROME FUEL INLET, INTAKE GASKET SET, INTAKE BOLT SET AND CARB STUD KIT.

EDELBROCK PERFORMER 2-O INTAKE MANIFOLD IS DESIGNED FOR STREET 396-502 C.I.D. BIG-BLOCK CHEVY V8 USING GENERAL DUTY OVAL-PORT CYLINDER HEADS. WILL NOT FIT UNDER HOOD OF CORVETTE WITHOUT HOOD MODIFICATIONS. WILL NOT FIT "TALL BLOCK" V8. MAY BE USED WITH OEM OR AFTERMARKET CARBS. WILL FIT 1965-90 OVAL PORT HEADS. EDELBROCK PATENTED DUAL-PLANE, LOW-RISE DESIGN WITH A 180-DEGREE FIRING ORDER GREATLY IMPROVES TORQUE OVER A WIDE RPM RANGE FOR EXCELLENT THROTTLE RESPONSE FROM OFF-IDLE THROUGH 5500RPM. THIS PERFORMER INTAKE MANIFOLD IS IDEAL FOR PASSENGER CARS, TRUCKS, 4X4S, TOW VEHICLES AND RVS.

EDELBROCK ANNULAR FLOW BOOSTER TECHNOLOGY BRINGS SUPERIOR FUEL ATOMIZATION TO ALL HIGH-HORSEPOWER BIG-BLOCK ENGINES WITH THE AVS2 800 CFM ELECTRIC CHOKE CARBURETOR THAT IS SPECIALLY CALIBRATED TO MAKE POWER. ANNULAR FLOW BOOSTERS DELIVER NEAR EFI-LIKE DRIVABILITY THAT YOU CAN FEEL AS SOON AS YOU STEP ON THE GAS. FUEL DISTRIBUTION IS REFINED BY EIGHT EQUALLY SPACED ORIFICES IN THE BOOSTER RINGS THAT REPLACE DOWN-LEG BOOSTERS WHICH SIMPLY DUMP RAW FUEL INTO THE VENTURI. FLAT SPOTS ARE COMPLETELY ELIMINATED, AND THROTTLE RESPONSE IN THE LOW- TO MID-RPM RANGE IS IMPROVED TREMENDOUSLY WITHOUT SACRIFICING THAT TOP-END POWER THAT EDELBROCK IS KNOWN FOR. THE AVS2 IS UNAFFECTED BY ENGINE BACKFIRES SINCE THERE ARE NO POWER VALVES TO BLOW OUT. FOR FAST AND SIMPLE PART-THROTTLE TUNING, METERING RODS AND SPRINGS CAN BE CHANGED IN SECONDS WITHOUT CARBURETOR REMOVAL OR FUEL DRAINING. AVS2 CARBS HAVE THE UNIQUE ABILITY TO "HOLD A TUNE" WHEN COMPARED TO OTHER CARBURETORS. YOUR TUNING AND ADJUSTMENTS STAY UNCHANGED, SO PERFORMANCE REMAINS CONSISTENT. UPDATED PRIMARY AND SECONDARY BOOSTER CLUSTERS IN THE AVS2 OFFER THE MOST ACCURATE AND UP-TO-DATE CALIBRATION AVAILABLE FOR MODERN FUELS AND OCTANE LEVELS. ADDITIONALLY, THE UNIQUE QWIK-TUNE SECONDARY AIR VALVE ALLOWS FOR LIMITLESS CALIBRATION OF THE SECONDARY CIRCUIT. ADJUSTMENTS CAN BE WITH SIMPLE HAND TOOLS IN SECONDS TO SUIT YOUR APPLICATION. THE AVS2 FEATURES A TWO-PIECE EASE-OF-TUNING DESIGN THAT ALLOWS YOU TO MAKE FLOAT LEVEL ADJUSTMENTS OR REPLACE INTERNAL COMPONENTS WITHOUT DRAINING THE FUEL FROM THE CARBURETOR OR REMOVING IT FROM THE ENGINE. THESE CARBS ARE DESIGNED, MANUFACTURED, ASSEMBLED AND CALIBRATED BY EDELBROCK IN THE USA.

FEATURES:

• EDELBROCK PERFORMER 2.0 INTAKE MANIFOLD
• IDLE-5500 RPM RANGE
• MANIFOLD HEIGHT: A-4.30", B-5.40"
• CARB PAD HEIGHT: 4.85"
• PORT EXIT DIMENSIONS: 1.70" X 1.68"
• USE EDELBROCK #8028 WATERNECK ADAPTER FOR 1986 AND LATER EDELBROCK CHOKE PLATE #8961 INCLUDED
• USE RTV SEALANT TO PROPERLY SEAL END SEALS, SUCH AS EDELBROCK HIGH TEMP SILICONE SEALANT #1076, DO NOT USE END SEALS GASKETS; HARDENED WASHERS MUST BE USED WITH INTAKE BOLTS TO ENSURE PROPER TORQUE AND PREVENT GALLING OF THE ALUMINUM
