EDELBROCK MANIFOLD INSTALL KIT,7501 SBC RPM AIR GAP,GASKETS,BOLTS,STUDS,RTV

BRAND NEW EDELBROCK SMALL BLOCK CHEVY RPM AIR GAP INTAKE MANIFOLD KIT FOR 1957-1986 SBC

EDELBROCK PART #7501 PERFORMER RPM AIR GAP INTAKE MANIFOLD IS DESIGNED FOR 1955-86 262-400 C.I.D. CHEVY V8 FOR MAXIMUM POWER AND A BROAD TORQUE CURVE FOR HIGH-PERFORMANCE STREET/MARINE ENGINES.

THE AWARD-WINNING RPM AIR-GAP INTAKE MANIFOLD INCORPORATES THE SAME RACE-WINNING TECHNOLOGY THAT IS USED ON EDELBROCK VICTOR SERIES COMPETITION INTAKES. THE AIR-GAP DESIGN FEATURES AN OPEN AIR SPACE THAT SEPARATES THE RUNNERS FROM THE HOT ENGINE OIL RESULTING IN A COOLER, DENSER CHARGE FOR MORE POWER.

NOTE: USE RTV SEALANT TO PROPERLY SEAL END SEALS, SUCH AS EDELBROCK HIGH TEMP SILICONE SEALANT #1076, DO NOT USE END SEALS GASKETS

NOTE: USE #8504 EDELBROCK BOLT KIT; SEALANT MUST BE USED ON INTAKE BOLT THREADS IF THE THREADS EXTEND INTO LIFTER VALLEY OR COOLANT PASSAGE

NOTE: NPT/PIPE THREAD FITTINGS REQUIRE THE USE OF TEFLON TAPE OR PASTE ON THREADS TO ENSURE PROPER SEAL.; DO NOT OVERTIGHTEN NPT/PIPE FITTINGS, THIS MAY CAUSE THE ALUMINUM TO CRACK AROUND THE FITTING BOSS. NPT/PIPE THREAD IS A TAPERED THREAD

NOTE:HARDENED WASHERS MUST BE USED WITH INTAKE BOLTS TO ENSURE PROPER TORQUE AND PREVENT GALLING OF THE ALUMINUM

NOTE: WILL NOT FIT UNDER STOCK CORVETTE HOOD

NOTE: PROPER INSTALLATION IS THE RESPONSIBILITY OF THE INSTALLER. IMPROPER INSTALLATION WILL VOID YOUR WARRANTY AND MAY RESULT IN POOR PERFORMANCE AND ENGINE OR VEHICLE DAMAGE.

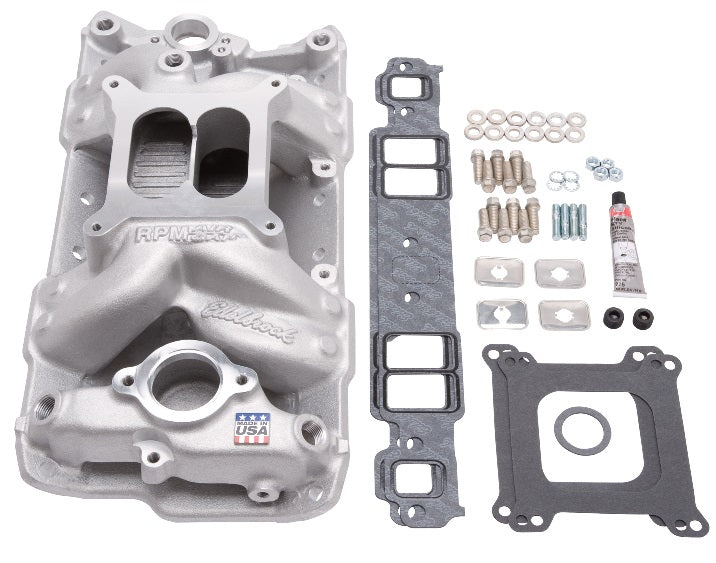

KIT INCLUDES ALL THE NECESSARY COMPONENTS TO REPLACE YOUR EXISTING INTAKE:

• 7501 RPM AIR GAP INTAKE MANIFOLD
• INTAKE GASKET SET
• CARBURETOR BASE GASKET
• RTV SEALANT
• INTAKE BOLTS
• CARB STUDS

FEATURES:

• 1500-6500 RPM RANGE
• 4-BBL SQUARE-BORE CARB FLANGE
• MANIFOLD HEIGHT: A-4.20", B-5.25"
• CARB PAD HEIGHT: 4.27"
• PORT EXIT DIMENSIONS: 1.14" X 1.95"
