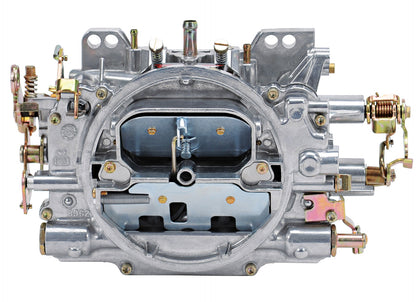

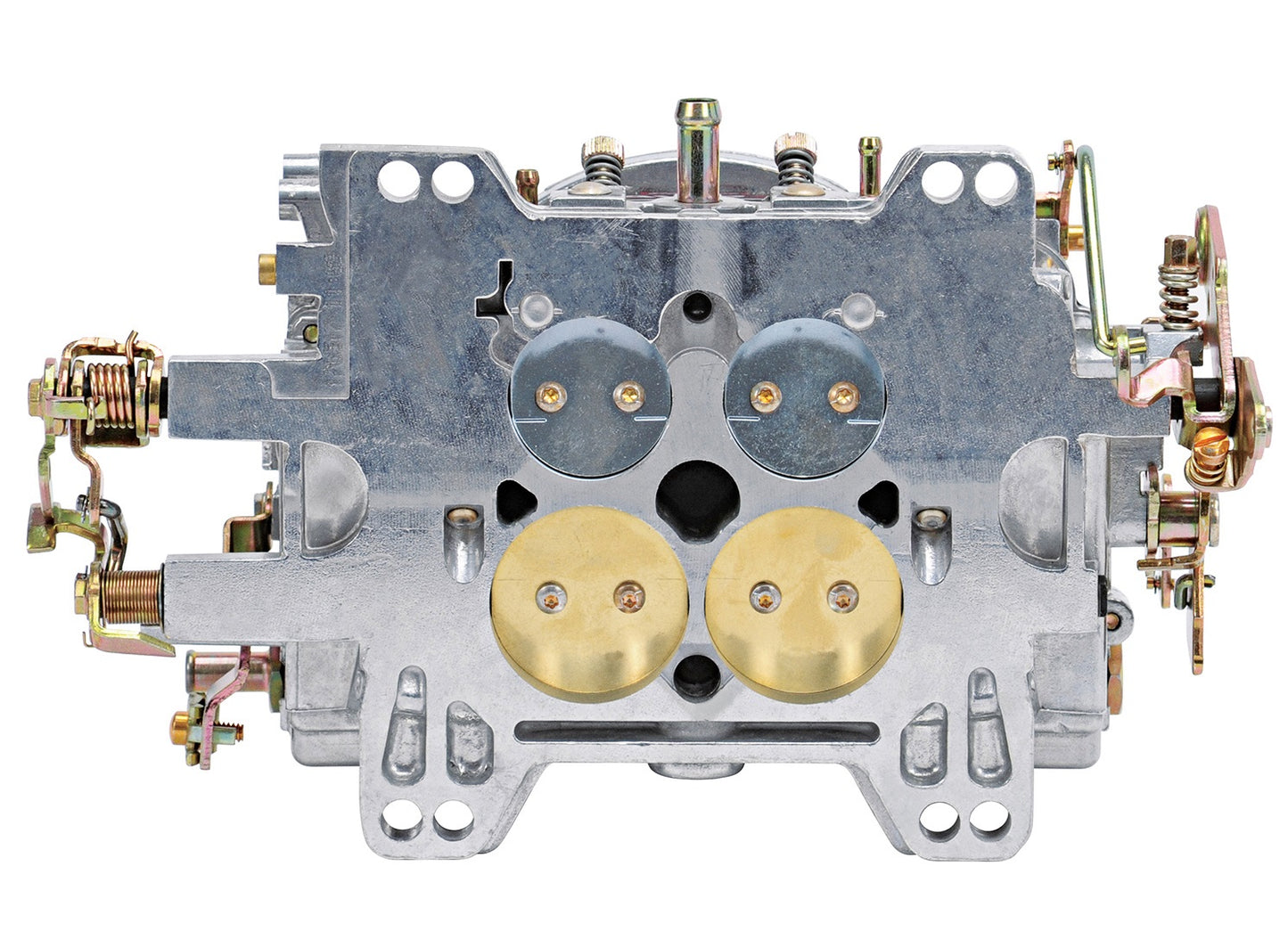

CARB, AVS2, ANNULAR BOOSTER, 500 CFM, MANUAL CHOKE

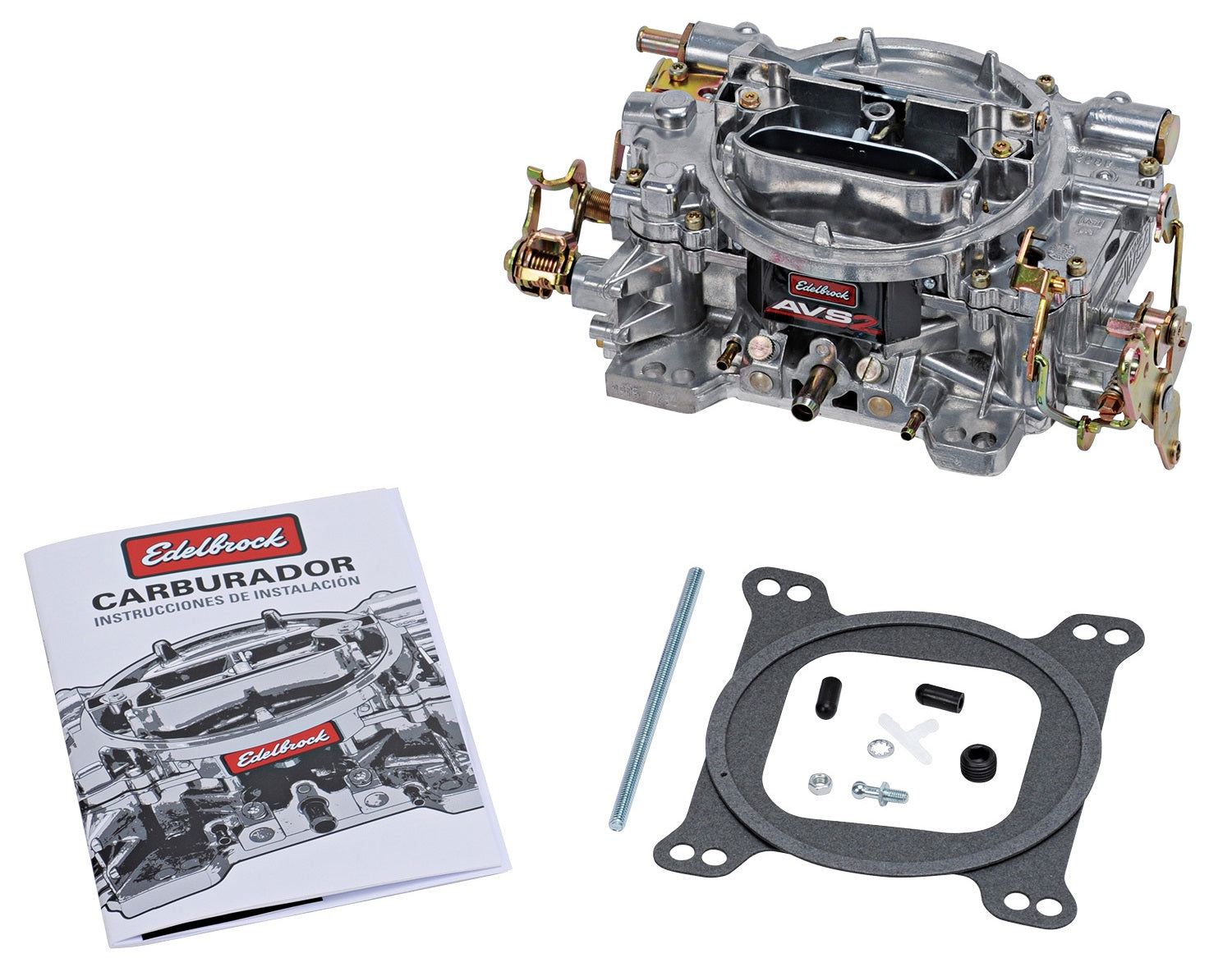

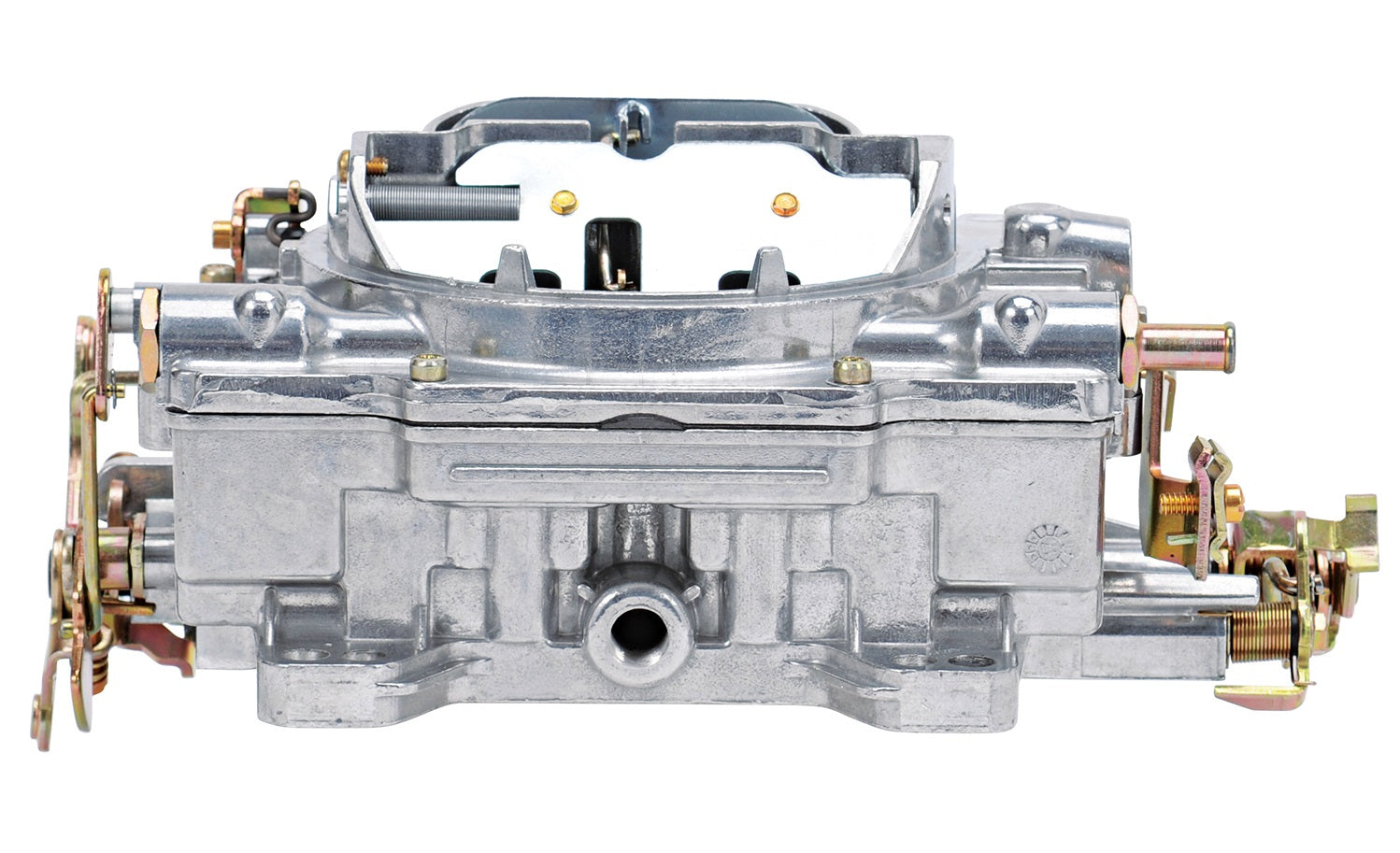

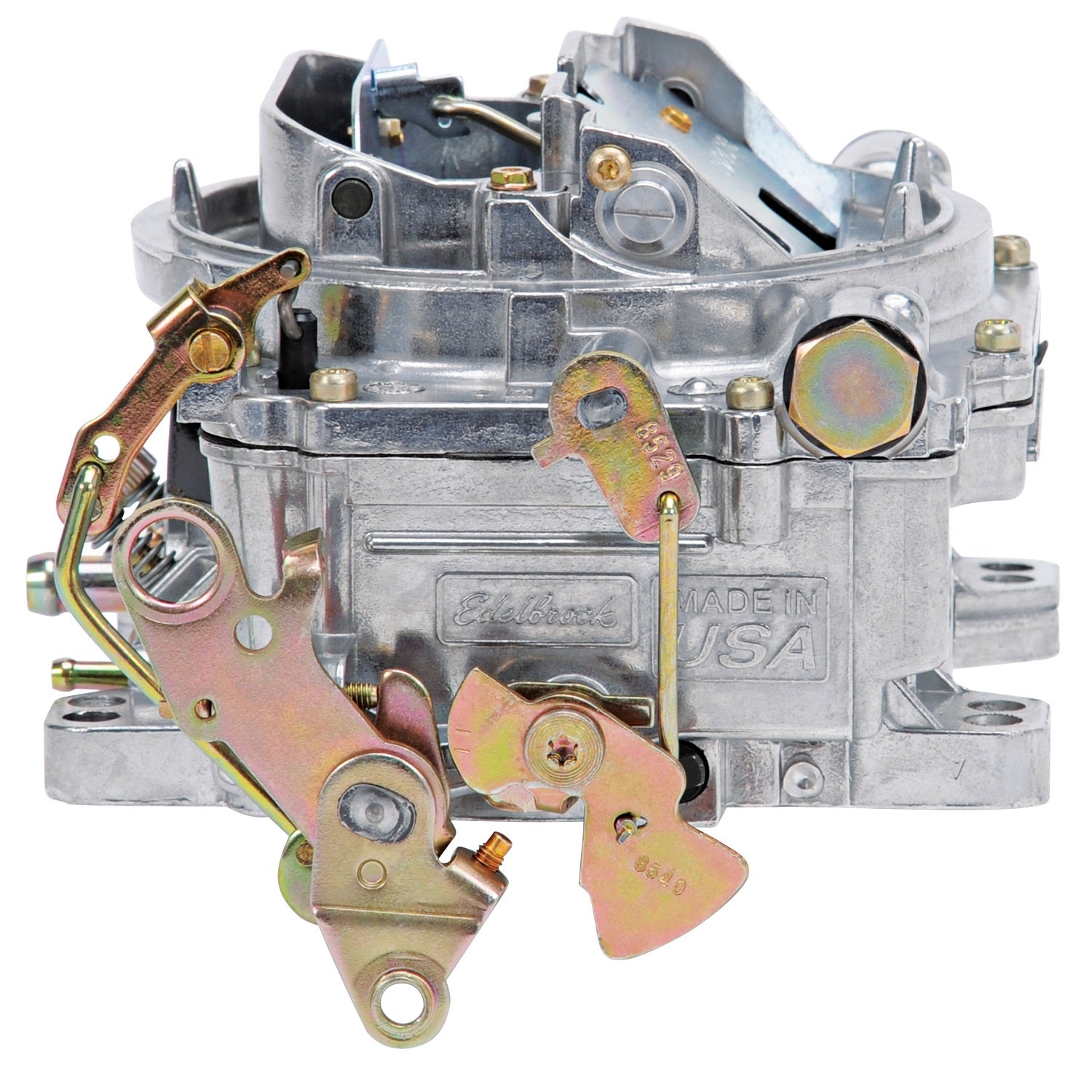

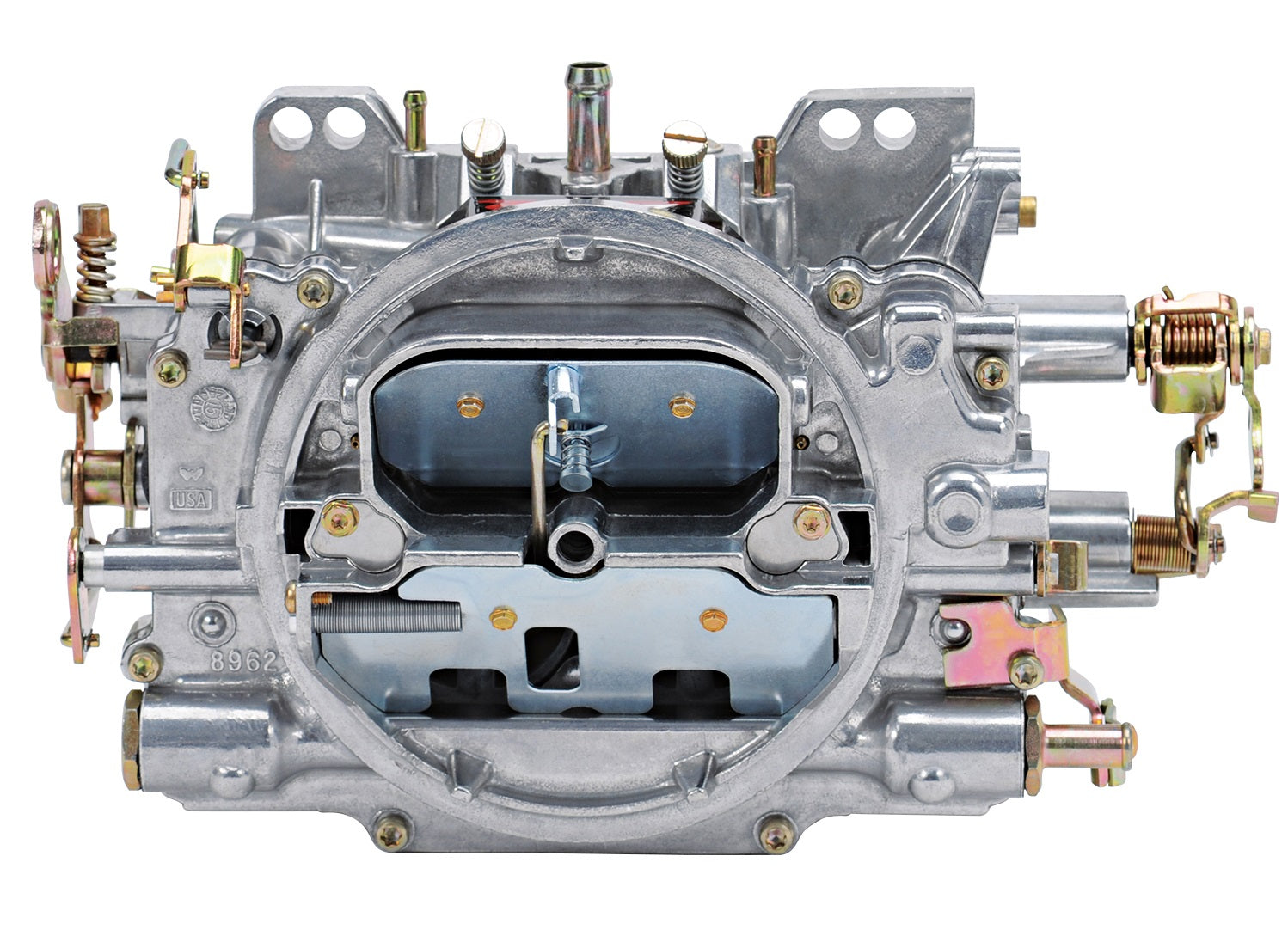

Brand New Edelbrock AVS2 Carburetor 500 CFM with Manual Choke (Part #1902).

The Edelbrock AV2 Series 500 CFM Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. The AVS2 is calibrated for single-quad applications and equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

Installation Notes:

• Manual choke AVS2 Carbs cannot be converted to electric choke
• Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000
• Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor
• The use of a new fuel filter between the fuel pump and carburetor is required.

Specs:

• Series: AVS2

• Recommended Use: For Single Carb Applications
• CFM Rating: 500 CFM

• Choke Type: Manual

• Barrel Quantity: 4 Barrel

• Flange Type: Square

• Material: Aluminum

• Bore Diameter: Primary Bore 1.44; Secondary Bore 1.6875

• Primary Jet Diameter: 0.095

• Secondary Jet Diameter: 0.095

• Metering Rod Size: .070 x .052 in

• Main Venturi Diameter: 1.19

• Body Height: 3.25

• Spring Force: 5" Hg (Orange)

• Gasket Or Seal Included: Yes

You can view and download the complete assembly instruction booklet here.
