EDELBROCK CARBURETOR KIT,289-302 SBF,500 CFM,ELECTRIC CHOKE,INTAKE MANIFOLD,AIR

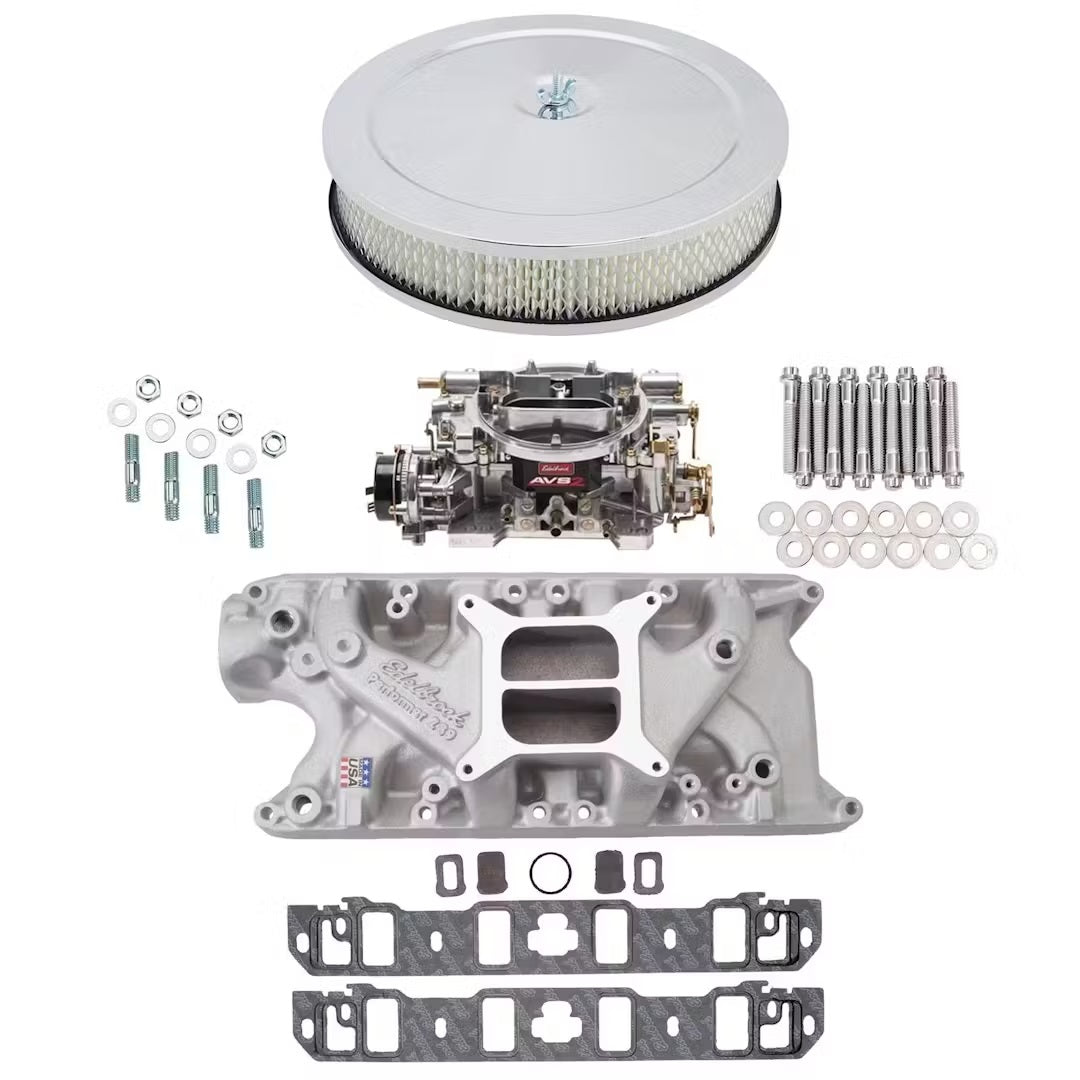

Brand New Edelbrock 500 CFM AVS2 Carburetor Kit with Intake Manifold, Gaskets, & Air Filter (Part #1901-2121).

The Edelbrock AV2 Series 500 CFM Carburetor Kit comes ready to run right out of the box and is ideal for 289-302 Small-Block Ford Windsor V8s without EGR. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. It features annular flow primary boosters to enhance off-idle and cruising performance, helping eliminate flat spots during throttle transitions.

Fits:

• Ford Small Block 289-302 V8s without EGR

Notes:

• Will not fit Boss 302 or 255 C.I.D. V8's.
• Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000.

Kit Includes:

• Edelbrock AVS2 Series 4 Barrel Carb (Part #1901):
  • 500 CFM
  • Electric Choke
  • Satin finish
  • Square flange

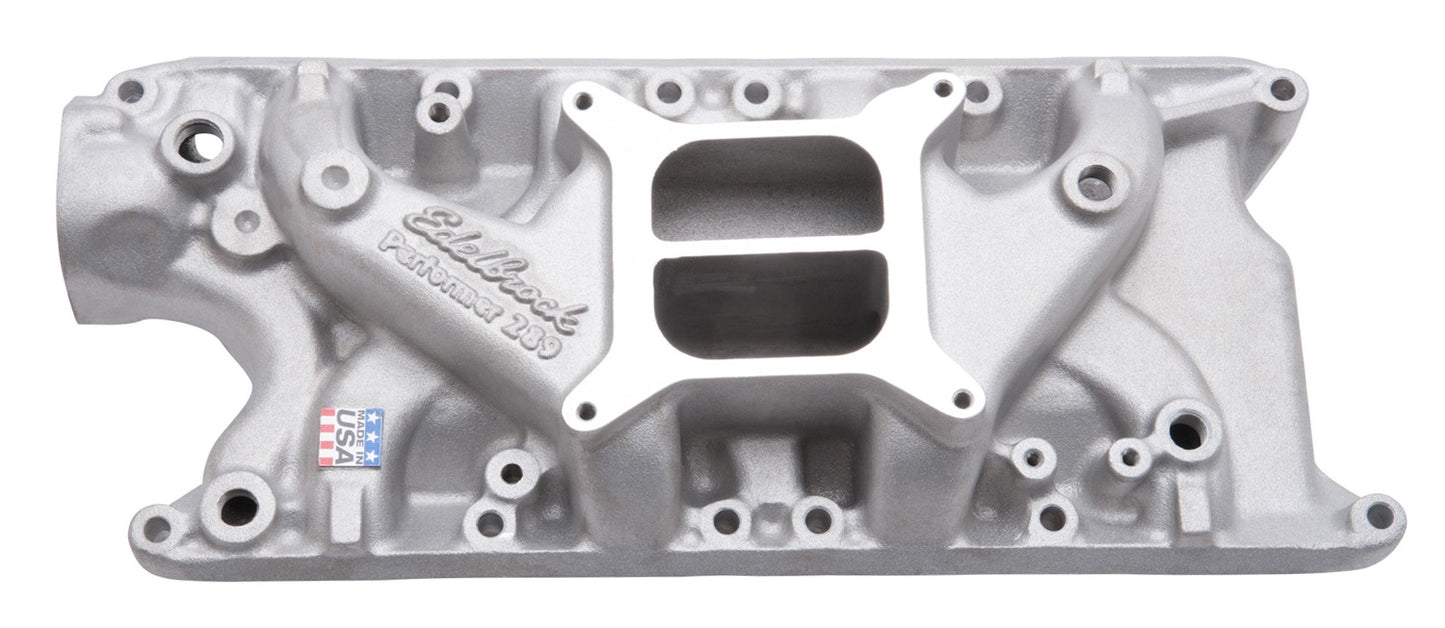

• Edelbrock SBF 289-302 Intake Manifold without EGR (Part #2121):
  • Accepts 4150-Style Square-Bore Carburetors
  • Excellent throttle response from off-idle through 5500rpm
  • Non-EGR
• Carburetor Stud Kit, 1-3/4 Inch (Part #8024):
  • End 1 Thread Type: Fine
  • End 2 Thread Type: Coarse
  • Thread Size: 5/16-18
  • Material: Zinc
• Edelbrock SBF Intake Manifold Gasket Set (Part #7220):
  • Matched To Manifolds And Cylinder Heads
  • Synthetic Fiber Composite
• Edelbrock Intake Manifold Bolt Set (Part #8524):
  • Cadmium Finish Steel Bolt
  • Cadmium Finish Hardened Washer Kit
  • Contains All Bolts/Washers
• 10 Inch Chrome 4 Barrel Carb Air Cleaner (Part #1208):
  • 10" diameter and 2" tall filter element
  • 3-1/4" assembled height not including hold down nut
  • Fits 4 barrel carbs with 5-1/8" neck
  • 0.625" tube stem diameter
  • Includes stud and wing nut

You can view and download the assembly instruction booklet here and here.
