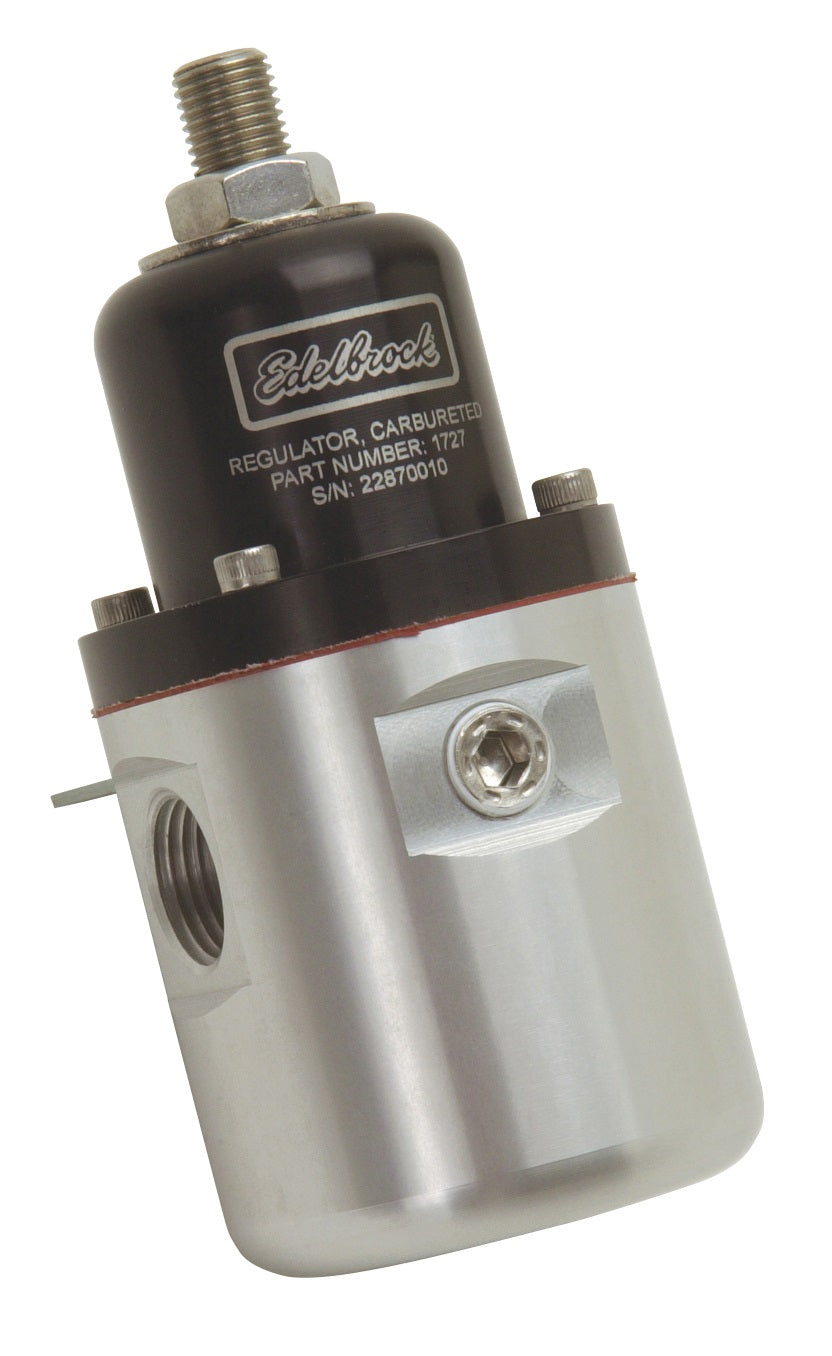

EDELBROCK FUEL PRESSURE REGULATOR,CARBURATED,ADJUSTABLE,NON BYPASS,160 GPH

Brand New Edelbrock Adjustable Carbureted Fuel Pressure Regulator, 160 GPH, Black/Clear (Part #1727).

This Edelbrock fuel pressure regulator #1727 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #1727 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps.

Specs:

• Inlet Port Diameter: 0.375 in

• Inlet Type: Threaded

• Mounting Type: Bracket

• Outlet Port Diameter: 0.375 in

• Outlet Type: Threaded

• Port Quantity: 4

You can view and download the complete assembly instruction booklet here.
