E-FORCE SUPERCHARGER FOR 2010-13 CAMARO SS LS3 MANUAL TRANSMISSION

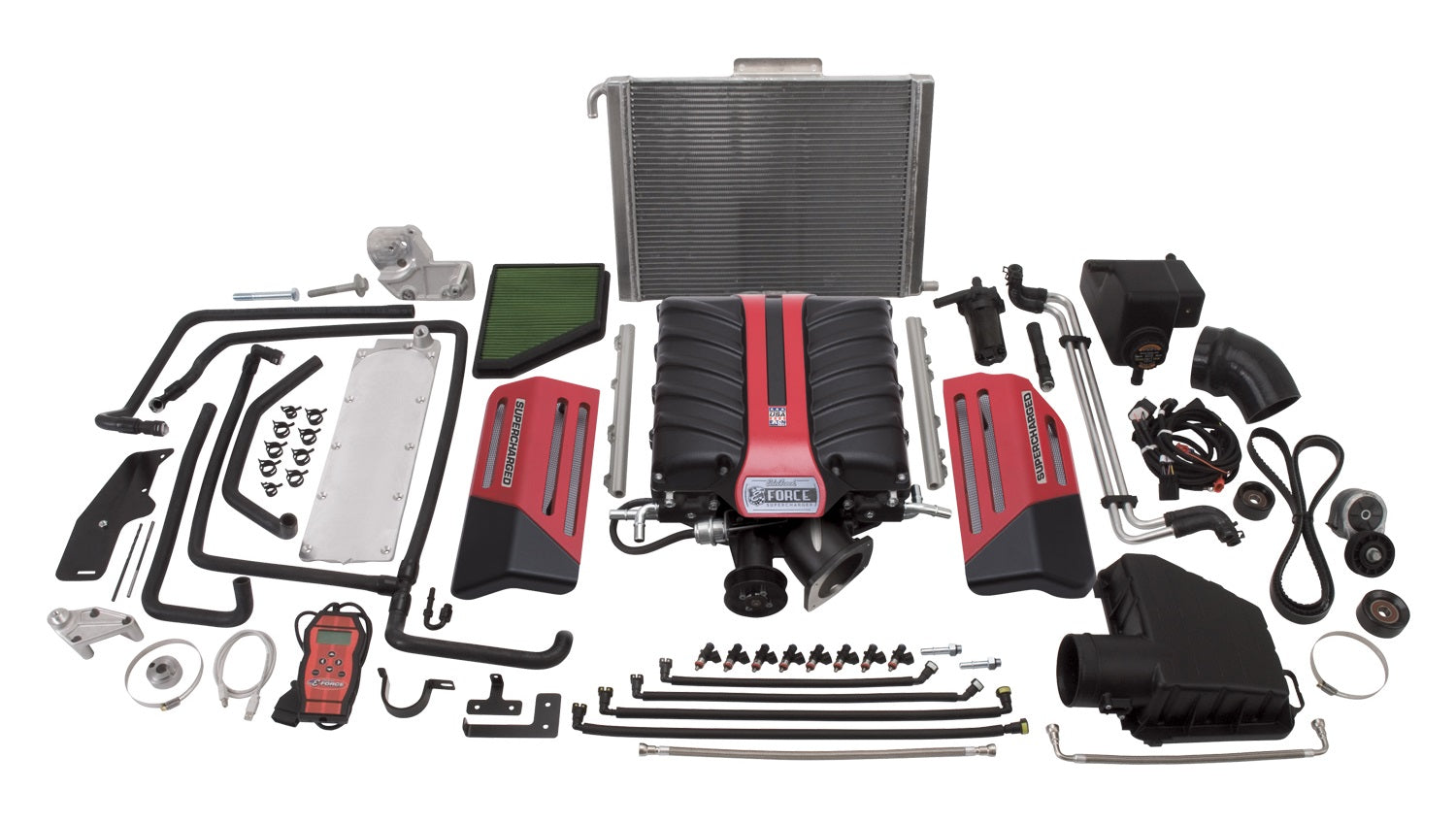

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 10-13 Camaro SS LS3 Manual Trans with Tuner (Part #1598).

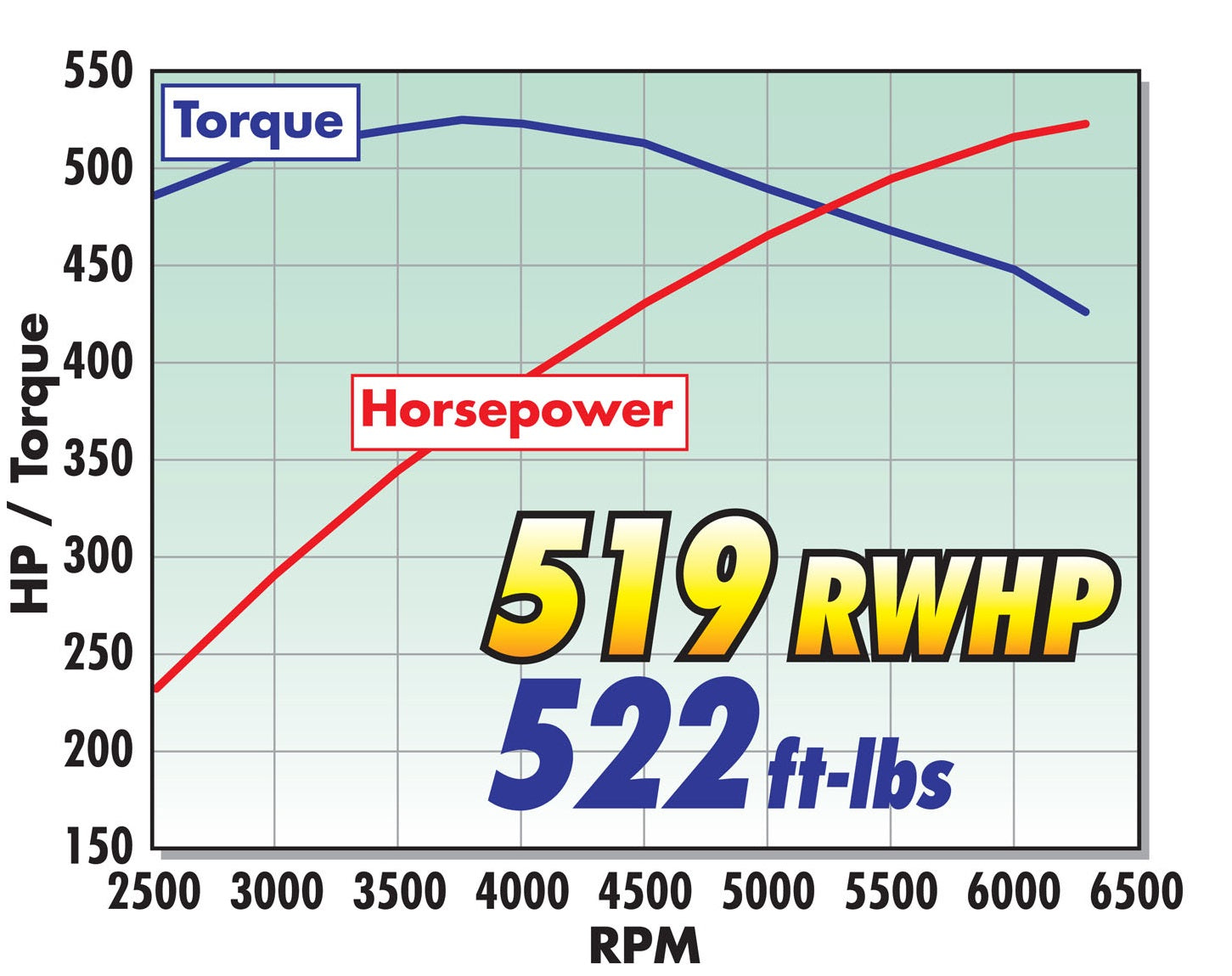

The Edelbrock supercharger Stage 1 Street system for 2010-2013, Manual Trans, Camaro SS increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1598 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. 2010-15 convertible installations will require the use of Edelbrock Convertible Brace #15956 (sold separately).

Compatible with:

• Chevrolet:
  • 2010-2013 Camaro SS with LS3 Engine & Manual Transmission

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.5 in

• Maximum Torque: 547 ft-lb

• Maximum Horsepower: 599 HP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 7.5 PSI

You can view and download the complete assembly instruction booklet here and here.
