E-FORCE SUPERCHARGER FOR 2011-14 MUSTANG GT 5.0L COYOTE - STAGE 2

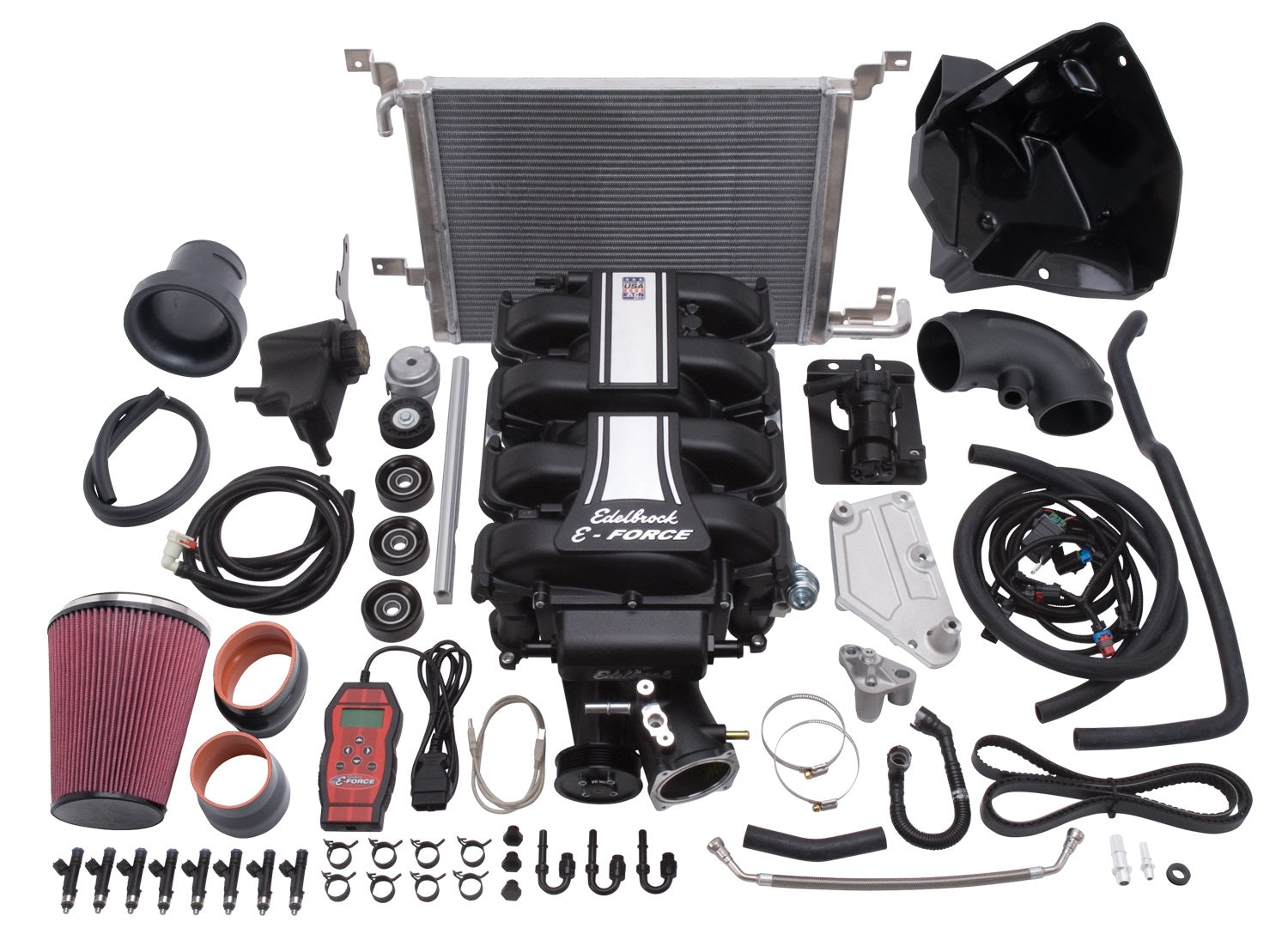

Brand New Edelbrock Stage 2 Supercharger Kit Compatible with 2011-2014 Mustang 5.0L 4V with Tuner (Part #15896).

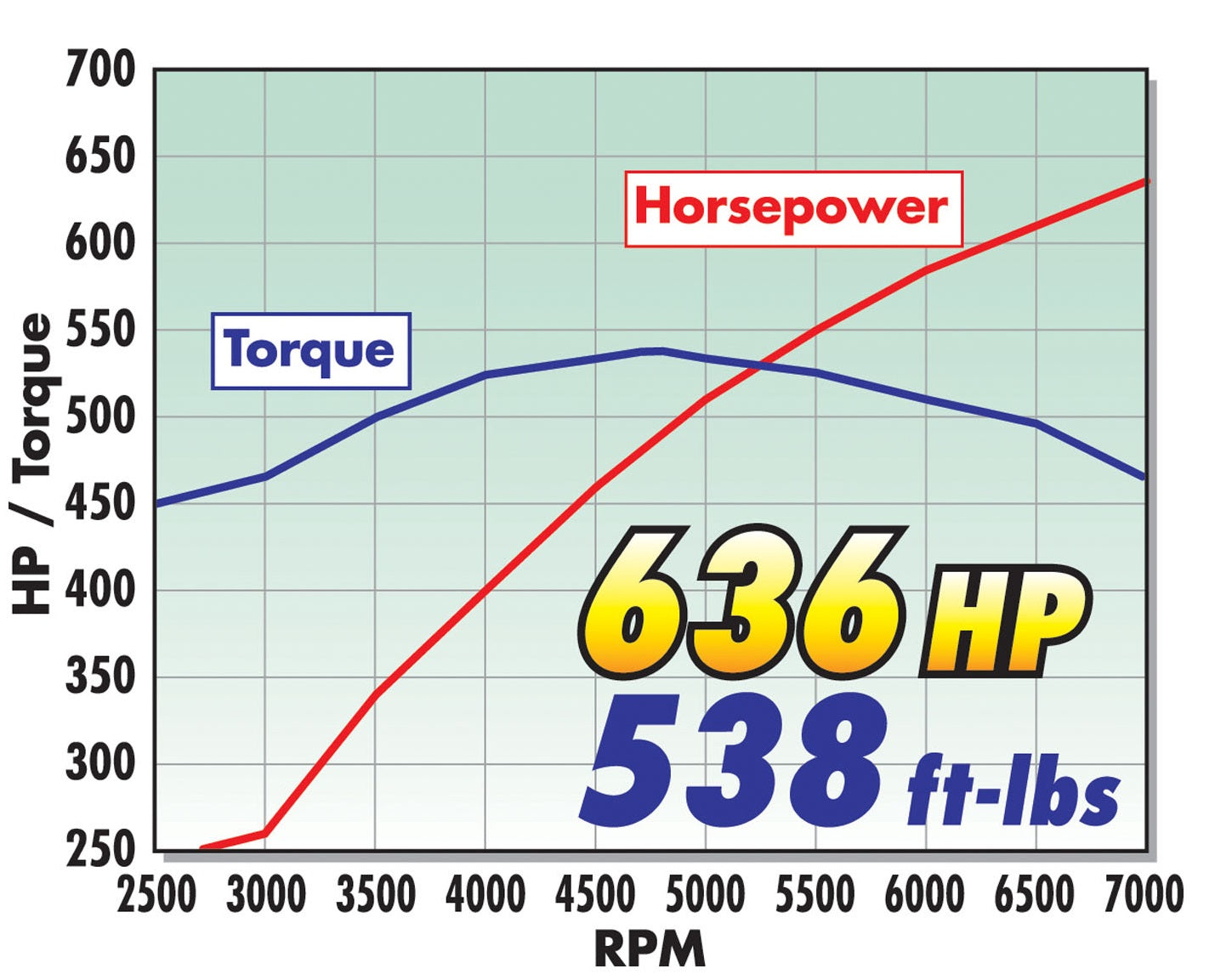

The Edelbrock supercharger stage 2 system for 2011-14 Ford Mustang increases the performance of your Coyote 5.0L 4V engine to 636 horsepower and 538 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

Compatible with:

• Ford:
  • 2011-2014 Mustang with 5.0L 4V

Specs:

• System Type: Stage 2 - Street/Strip System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.25 in

• Maximum Torque: 538 ft-lb

• Maximum Horsepower: 636 HP

• Finish: Black Powder Coated

You can view and download the complete assembly instruction booklet here and here.
