SC 2015-2019 UNIVERSAL COYOTE MOD INLET

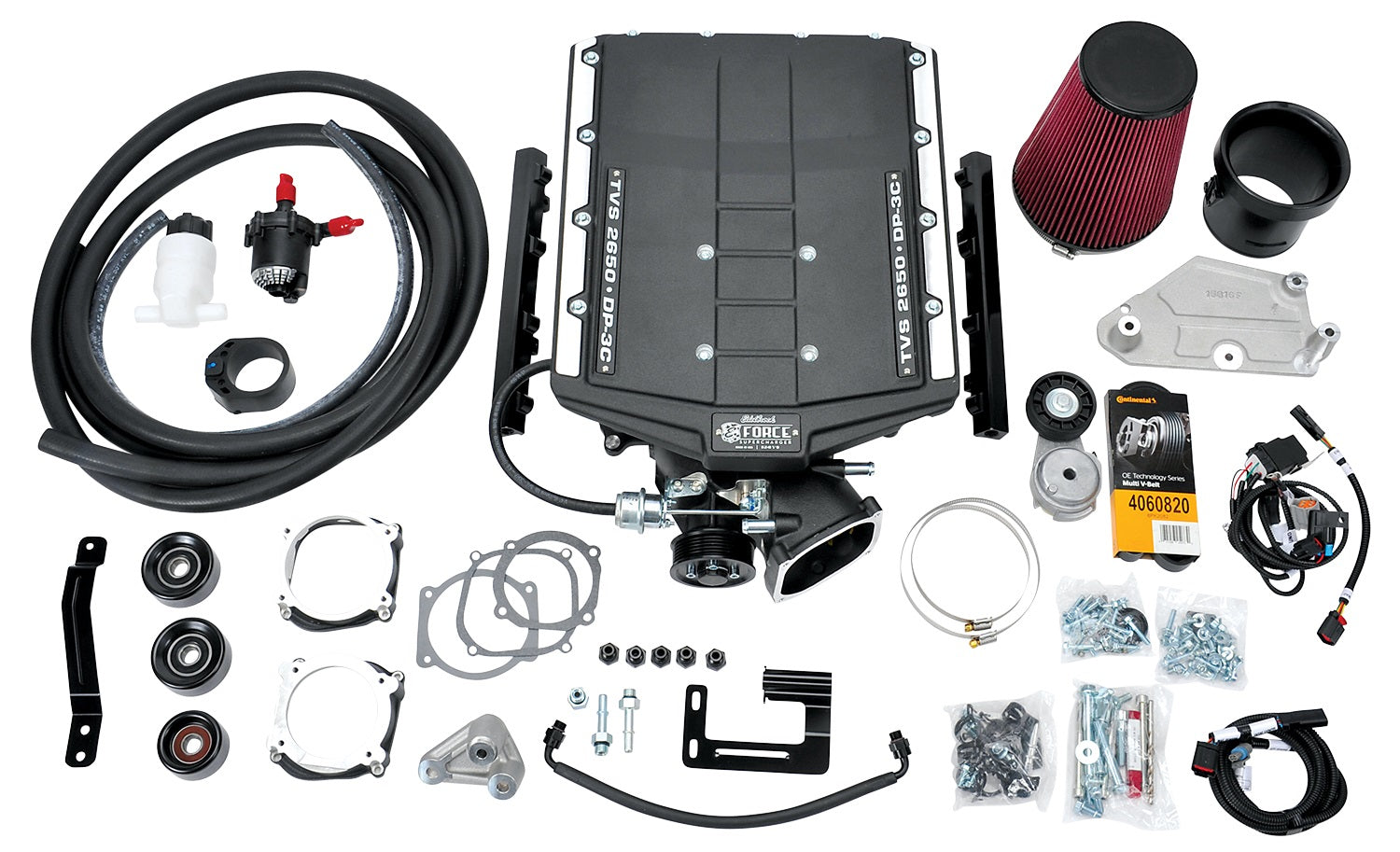

Brand New Edelbrock Universal Supercharger Kit Compatible with Ford Gen I, II, or III Coyote 5.0 V8 Swap (Part #15885).

The Edelbrock Universal Supercharger System is intended for Coyote engine swap applications using a Gen 1, Gen 2 or Gen 3 Coyote 5.0L engine. Its compact design fits under the stock hood on most applications and complements the clean look of any engine compartment. The core of this system is the Eaton Gen VI 2650 TVS rotating assembly coupled with Edelbrock's patented Dual Pass 3-Core intercooler making this the perfect choice for mild to wild power goals.

Our unique, modular inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power robbing jack-shaft. This system includes two throttle body adapters, one with the stock Coyote bolt pattern and the other with the wider GT350 bolt pattern. Edelbrock 103mm throttle bodies (sold separately) use the GT350 bolt pattern. Two versions of the 103mm throttle body are available, part #38988 analog (for 2015-17 Gen 2 PCM) and part #38989 digital (for 2018+ Gen 3 PCM).

Compatible with:

• Ford:
  • Gen I,II, or III Coyote 5.0 V8 Swap

Installation Notes:

• Edelbrock 103mm throttle bodies are NOT compatible with 2011-14 Gen 1 PCMs. Gen 1 applications may use the stock or Ford Racing 90mm throttle body part #M-9926-M5090 (not included).
• This kit includes the standard 6-rib belt drive system with 3.25" pulley for about 10-11psi. For high horsepower applications, an optional 8-Rib belt drive system part #15879 is available separately.
• This system DOES NOT include fuel injectors, fuel pump, spark plugs, intake piping and calibration. PCM calibration is not available through Edelbrock for this system. Custom tuning is required.
• Due to the nature of swap applications, a front mount heat exchanger is not included. See Edelbrock Universal Heat Exchangers for options.

Specs:

• System Type: Universal System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.25 in
• Finish: Black Powder Coated


You can view and download the complete assembly instruction booklet here and here.
