SC 2005-09 4.6L 3V FORD MUSTANG MODULAR INVERTED HIGH HORSEPOWER

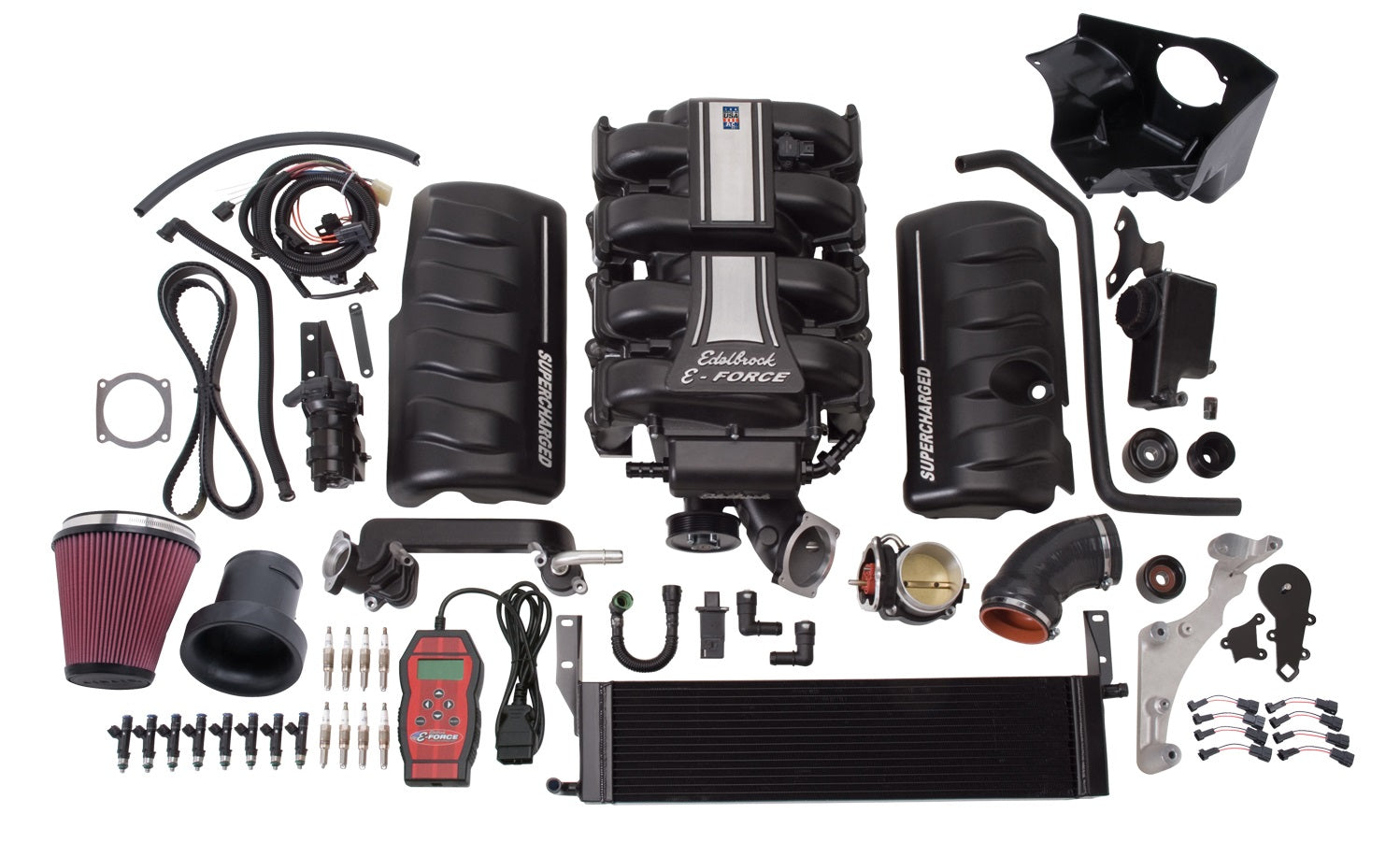

Brand New Edelbrock Stage 2 Supercharger Kit Compatible with 2005-2009 Mustang 4.6L 3V with Tuner (Part #15856).

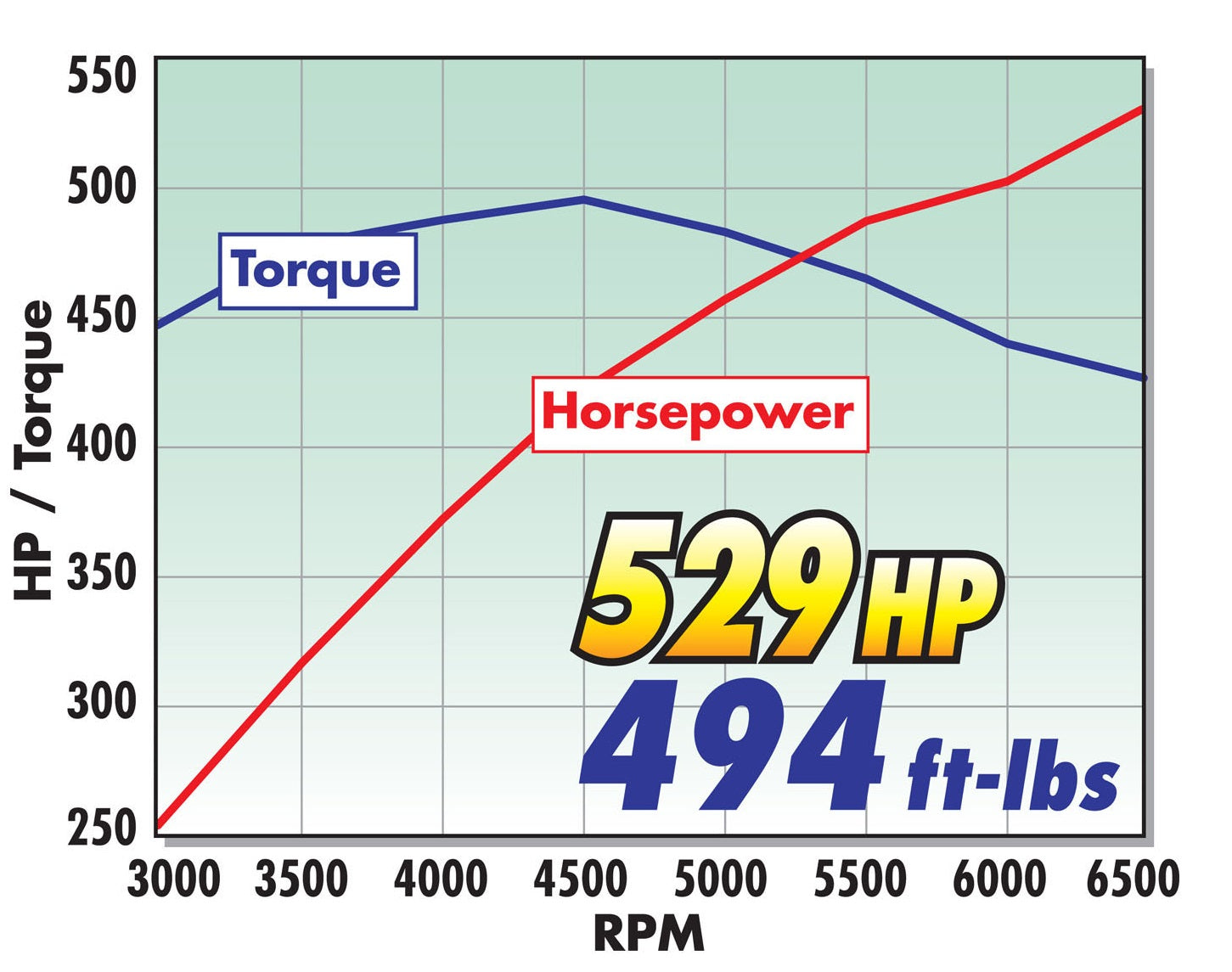

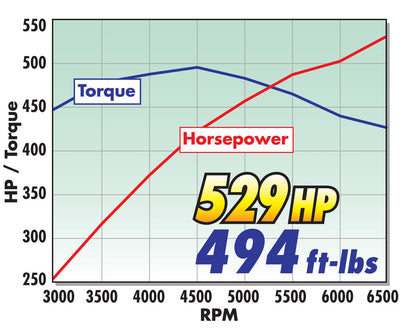

The Edelbrock supercharger Stage 2 system for 2005-2009 Ford Mustang increases the performance of your 4.6L 3V engine to 529 horsepower and 494 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

Compatible with:

• Ford:
  • 2005-2009 Mustang with 4.6L 3V

Specs:

• System Type: Stage 2 - Street/Strip System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.25 in

• Maximum Torque: 494 ft-lb

• Maximum Horsepower: 529 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 9 PSI

You can view and download the complete assembly instruction booklet here and here.
