E-FORCE SUPERCHARGER FOR 2005-09 MUSTANG GT 4.6L 3V - PRO TUNER

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2005-2009 Mustang GT 4.6L 3V without Tuner (Part #1585).

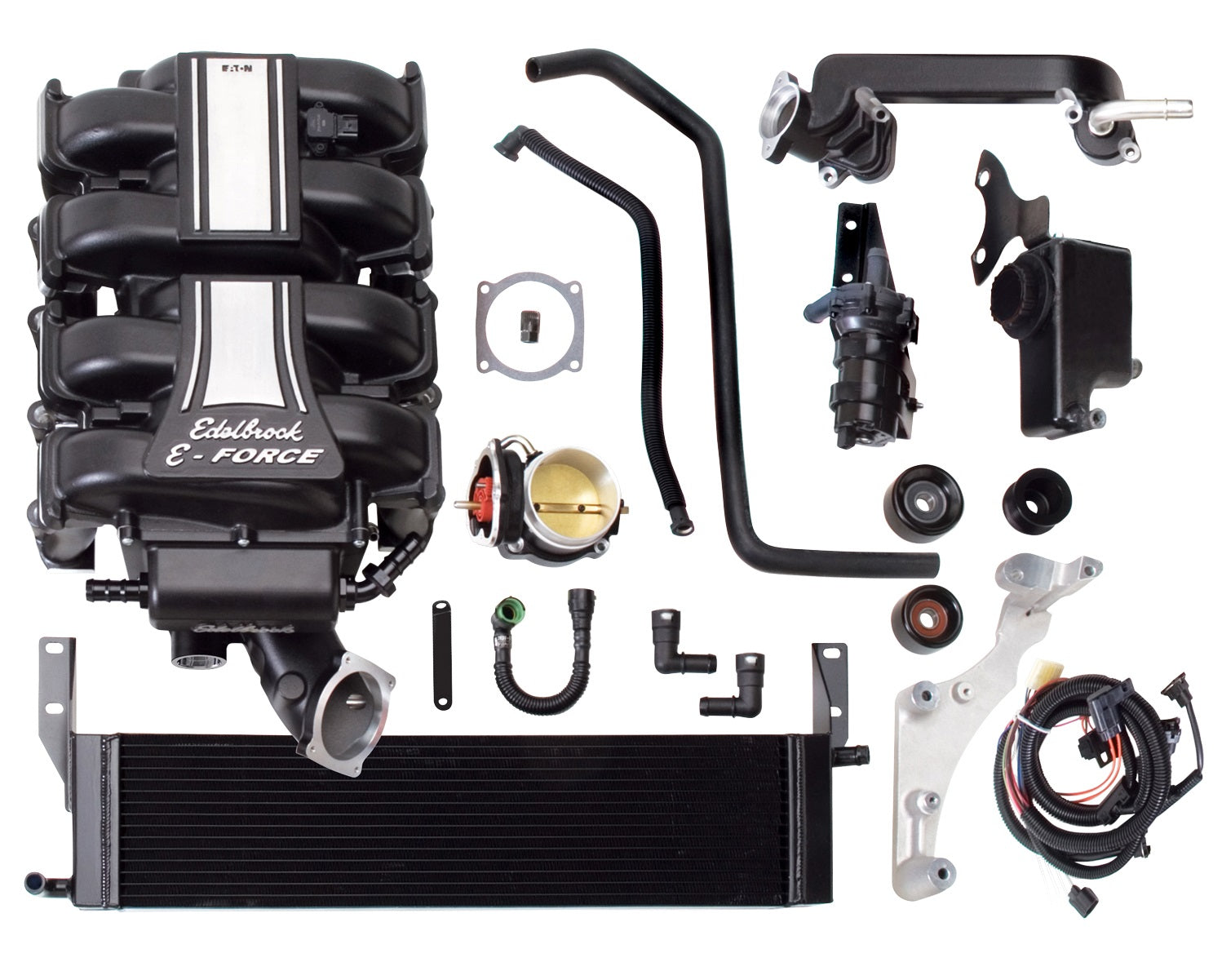

The Edelbrock supercharger Pro-Tuner system is designed for use with 2005-2009 Ford Mustang applications with the 4.6L 3V engine. The Edelbrock competition supercharger is based off of our street supercharger kit but is paired down to the essential components that a racer needs, without the extras that experienced racers prefer to customize for their own competitive advantage. Featuring a unique design with minimal components and fits under the stock hood. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. This system offers flexibility in pulley selection, cold air intake and more. Supercharger pulley, belt, coil covers, and fuel system upgrades, not included.

Compatible with:

• Ford:
  • 2005-2009 Mustang GT with 4.6L 3V

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.25 in

• Maximum Torque: 588 ft-lb

• Maximum Horsepower: 690 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 15.5 PSI

You can view and download the complete assembly instruction booklet here and here.
