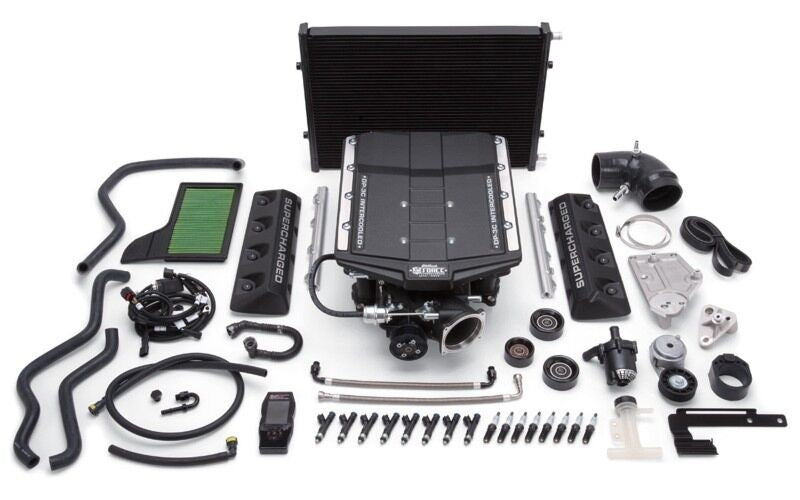

SC 2015-17 FORD MUSTANG MODULAR NOSE 5.0L V8 STAGE 1

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2015-2017 Ford Mustang 5.0L Coyote Engine with Tuner (Part #15838).

Edelbrock's performance-proven modular-inlet supercharger system is now available for owners of 2015-2017 Ford Mustangs with the 5.0L Coyote engine. The new Edelbrock supercharger is a complete bolt-on kit that produces an impressive 690 horsepower with 588 ft-lbs of torque. At the heart of this system is Eaton's biggest R2650 TVS rotor assembly housed in a new manifold with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler for lower inlet air temperatures and increased power potential. The 170-degree high-twist lobes, bigger bearings and beefier timing gears ensure maximum reliability with smooth acceleration throughout the powerband.

The Edelbrock supercharger for the 5.0L V8 fits under the stock hood with absolutely no cutting or modifications required. And if you're concerned about the effect on MPG, the increase in power comes with little to no loss in fuel economy thanks to the supercharger's integrated bypass valve that mitigates parasitic power loss during normal driving. This new kit is a true bolt-on that requires no additional modifications to the stock engine. The Edelbrock supercharger for the 2015-17 Mustang has a self-contained lubrication system with a 100,000-mile service interval and comes finished in a durable black powder-coating that blends nicely into the engine compartment. Each kit includes a complete set of preformed hoses, hardware and a full-color manual that provides clear step-by-step instructions for ease of installation.

Compatible with:

• Ford:
  • 2015-2017 Ford Mustang with 5.0L Coyote Engine

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.25 in

• Maximum Torque: 588 ft-lb

• Maximum Horsepower: 690 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 15.5 PSI

You can view and download the complete assembly instruction booklet here and here.
