E-FORCE SUPERCHARGER FOR 2009-10 FORD F-150 5.4L 3V

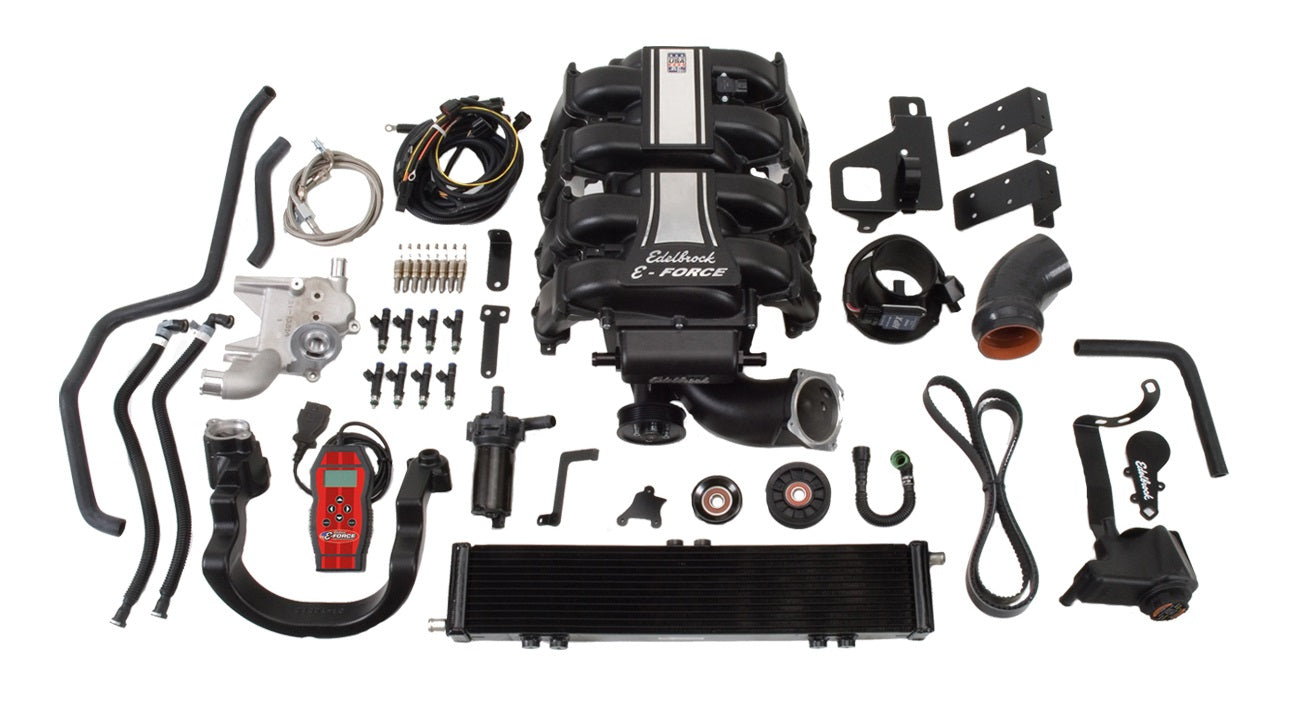

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2009-2010 Ford F-150 5.4L 3V with Tuner (Part #1583).

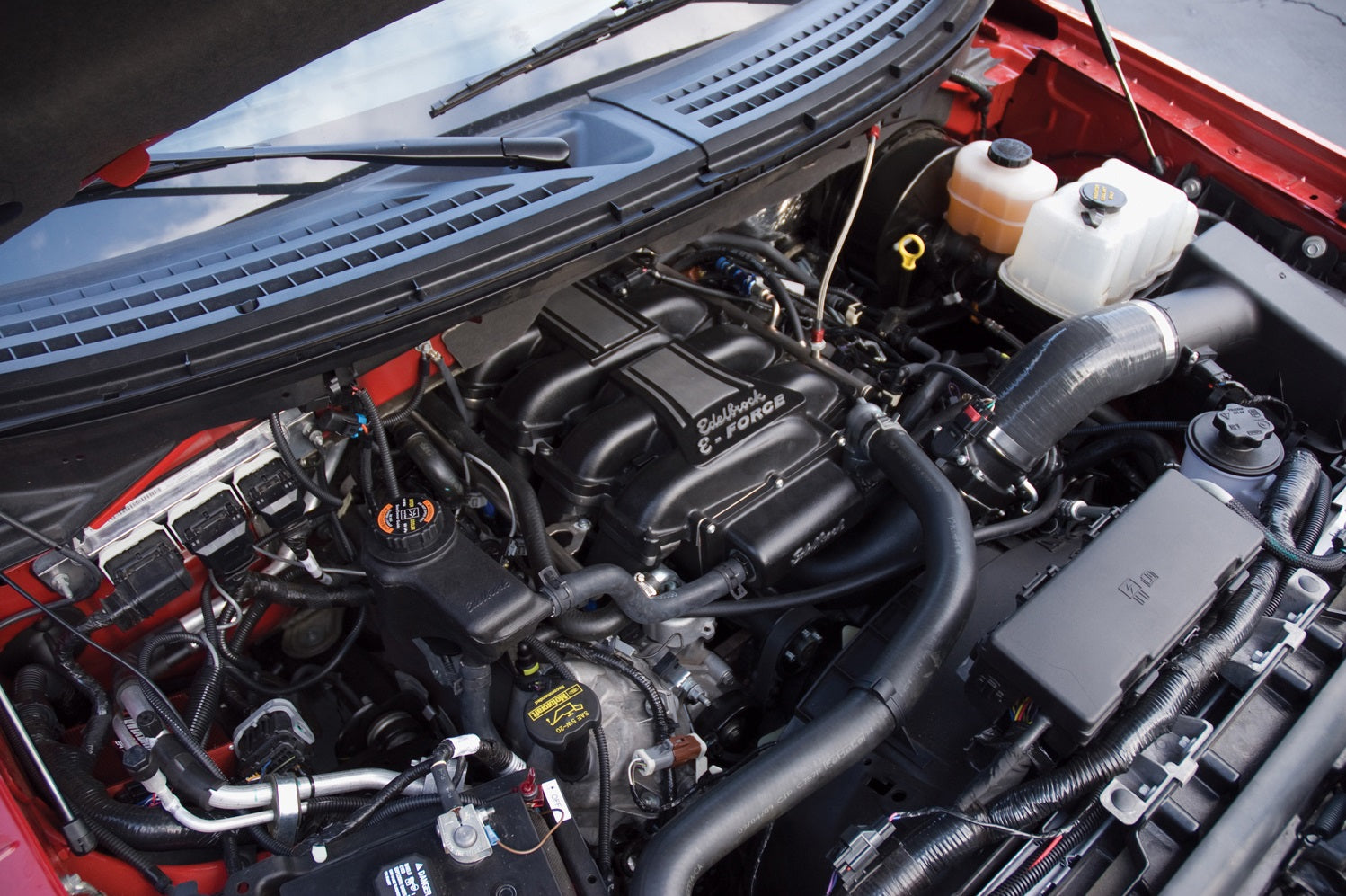

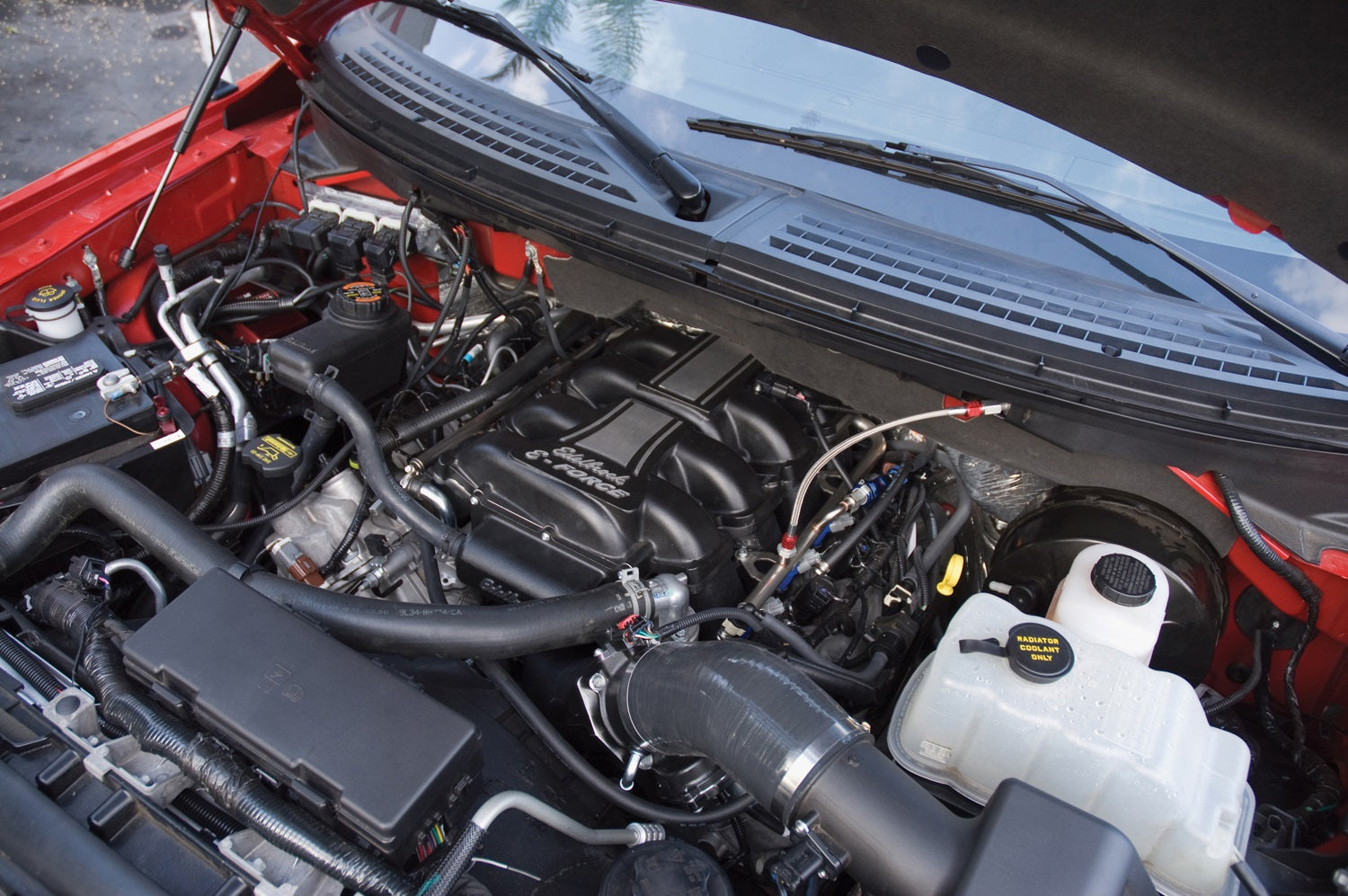

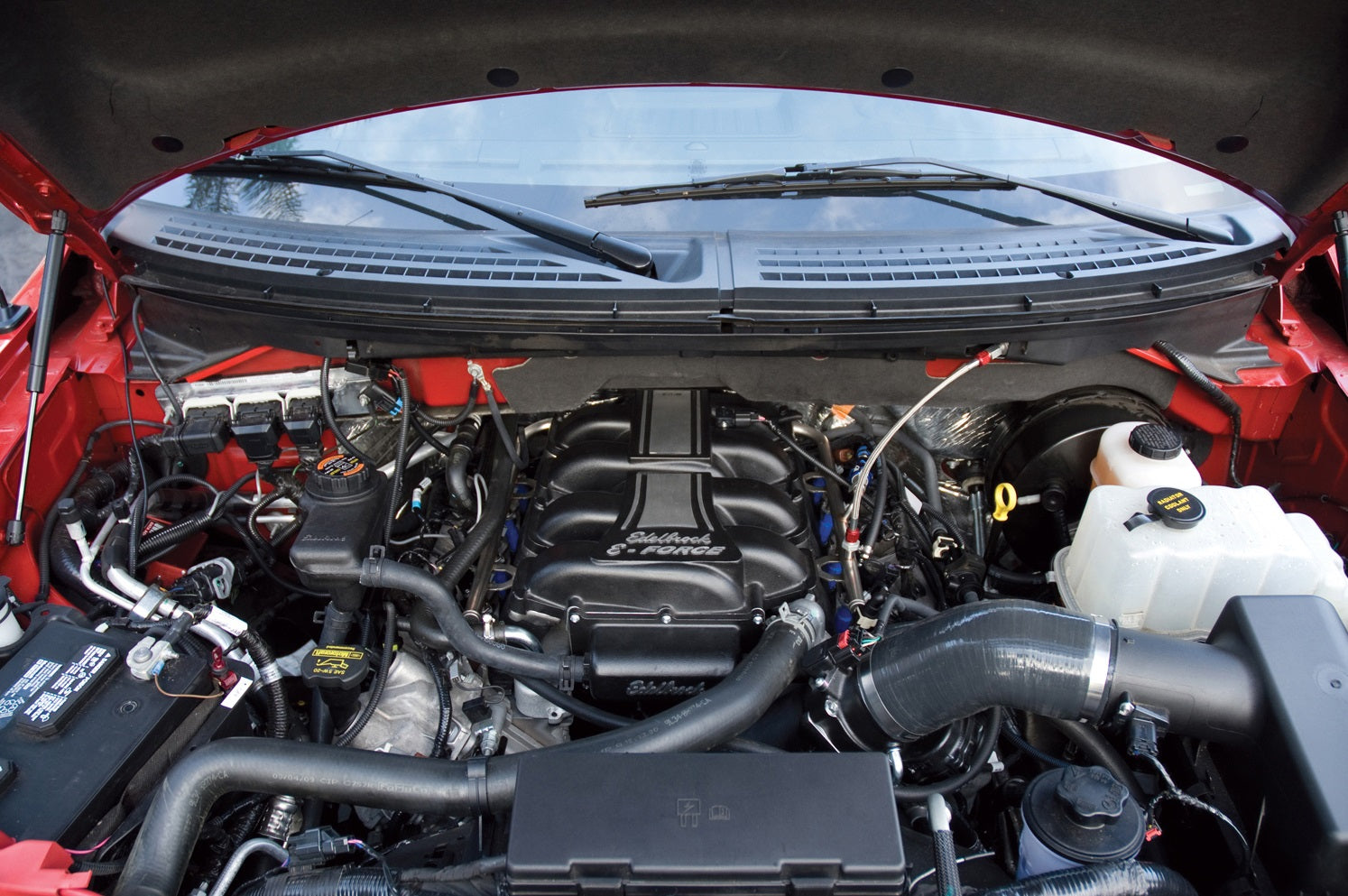

The Edelbrock supercharger Stage 1 Street system for 2009-10 2-Wheel Drive Ford F-150 Trucks. This kit produces excellent horsepower and torque. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Compatible with:

• Ford:
  • 2009-2010 Ford F-150 with 5.4L 3V 2WD

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.25 in

• Maximum Torque: 504 ft-lb

• Maximum Horsepower: 478 HP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 7 PSI

You can view and download the complete assembly instruction booklet here and here.
