E-FORCE SUPERCHARGER FOR 2005-09 MUSTANG GT 4.6L 3V - STAGE 1

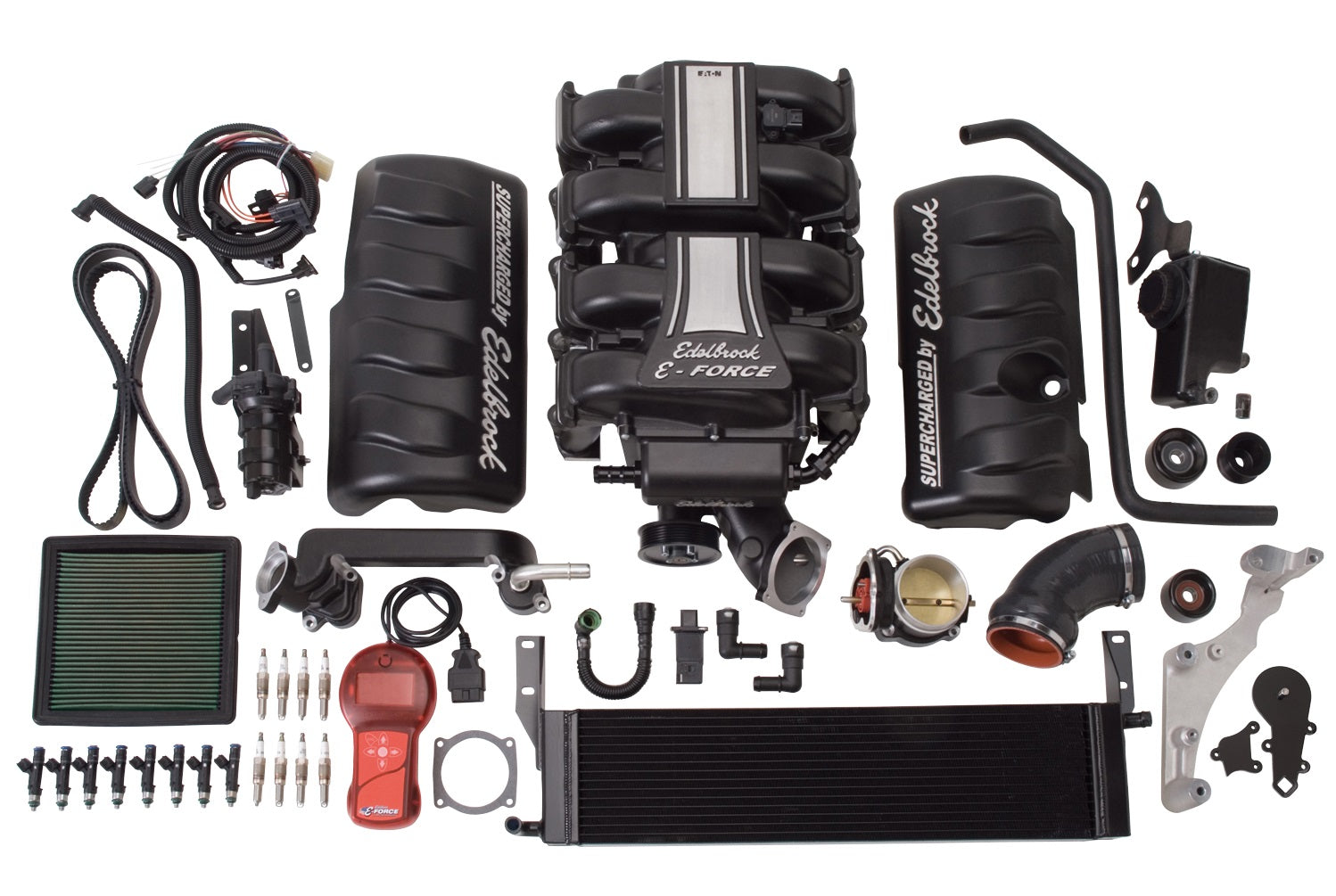

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2005-2009 Mustang GT 4.6L 3V with Tuner (Part #1580).

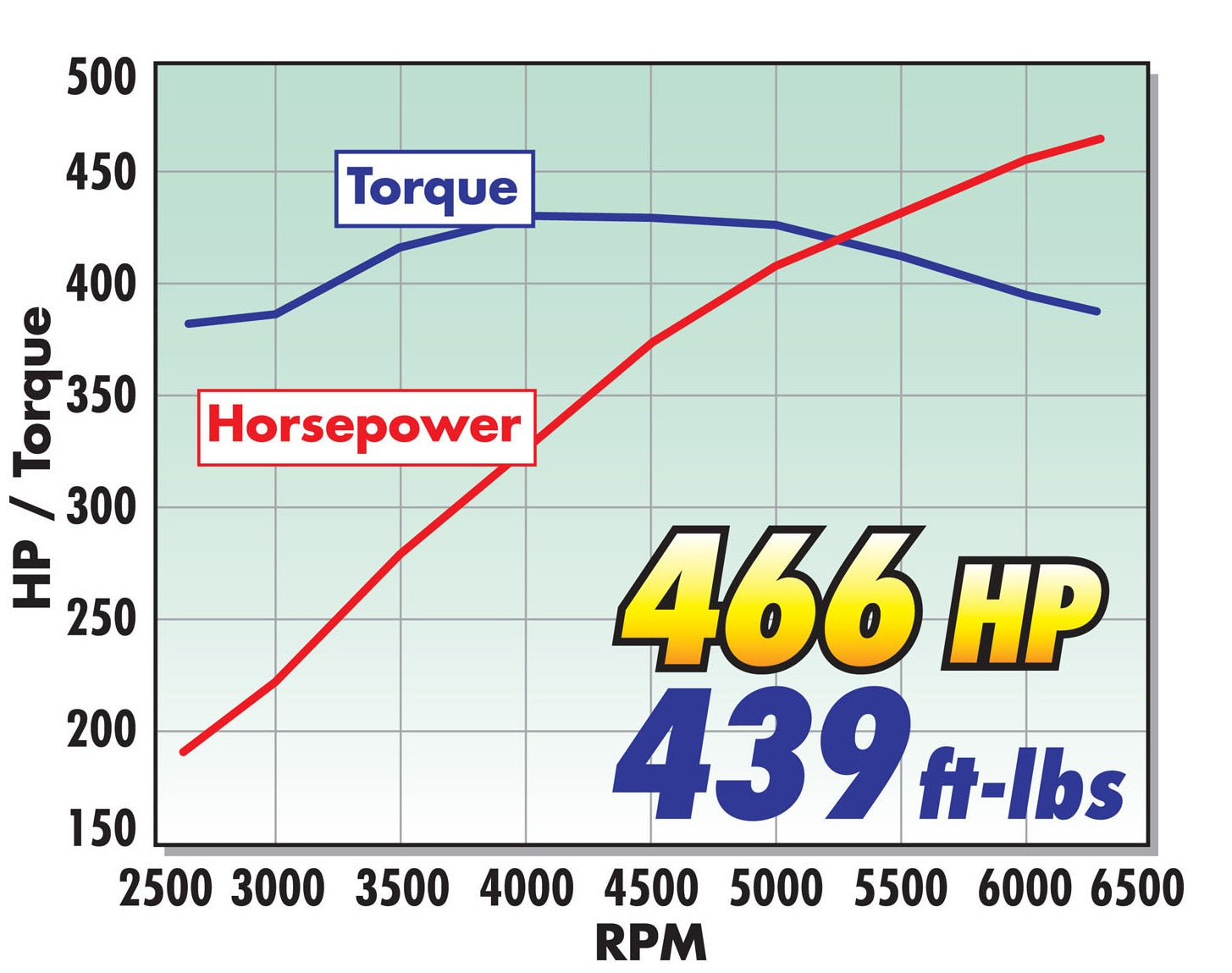

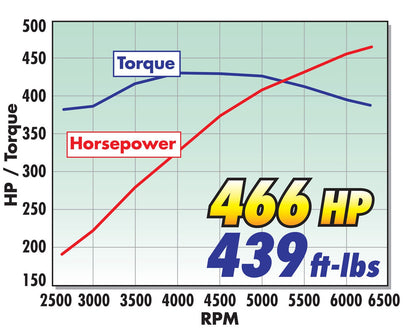

The Edelbrock supercharger Stage 1 Street system part for 2005-2009 Ford Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Compatible with:

• Ford:
  • 2005-2009 Mustang GT with 4.6L 3V

Installation Notes:

• For safety, the Edelbrock program retains the factory vehicle speed limiter setting

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.875 in

• Maximum Torque: 439 ft-lb

• Maximum Horsepower: 466 HP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 4.75 PSI

You can view and download the complete assembly instruction booklet here and here.
