SC 2014-2019 STAGE II CHEVY GEN V CORVETTE 6.2L LT1 DIRECT INJECTION V8,DRY SUMP

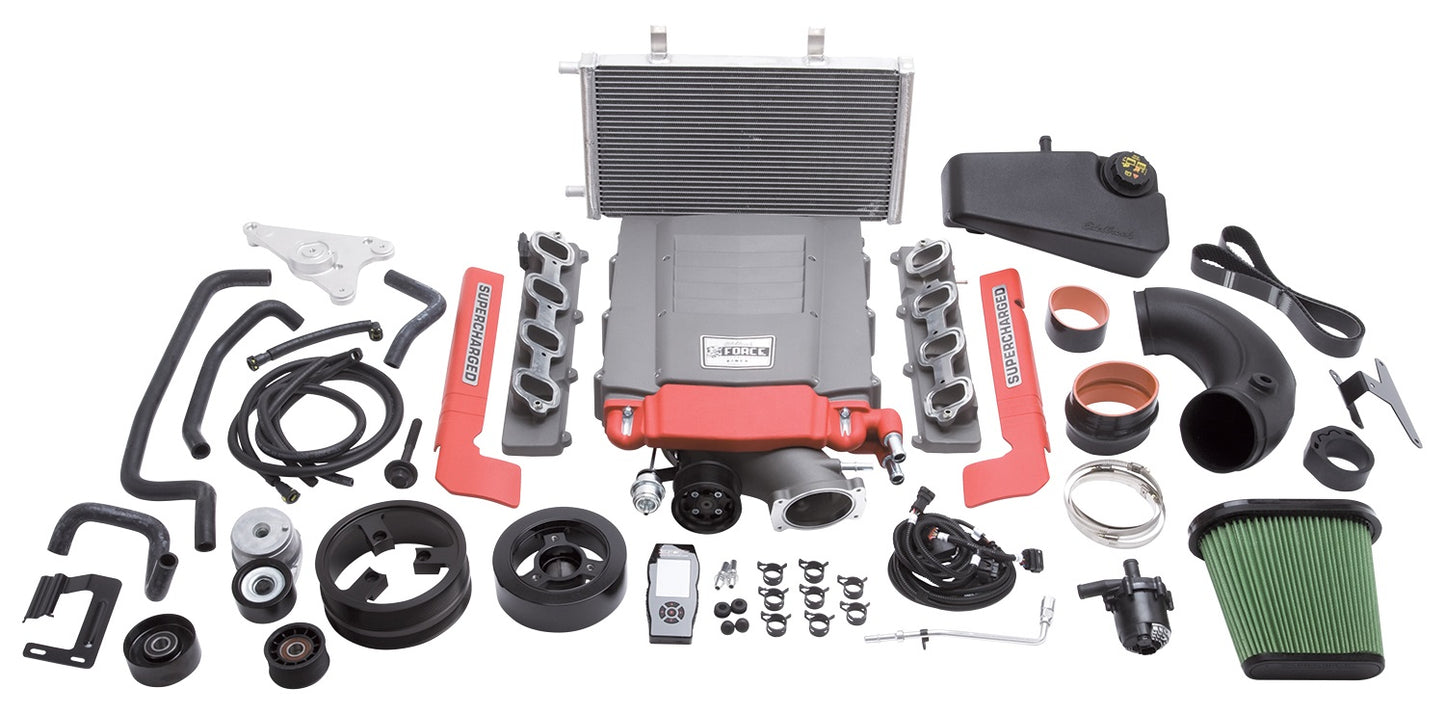

Brand New Edelbrock Stage 2 Supercharger Kit Compatible with 2014-2019 Corvette Stingray Z51/Grand Sport with Dry Sump (Part #15701).

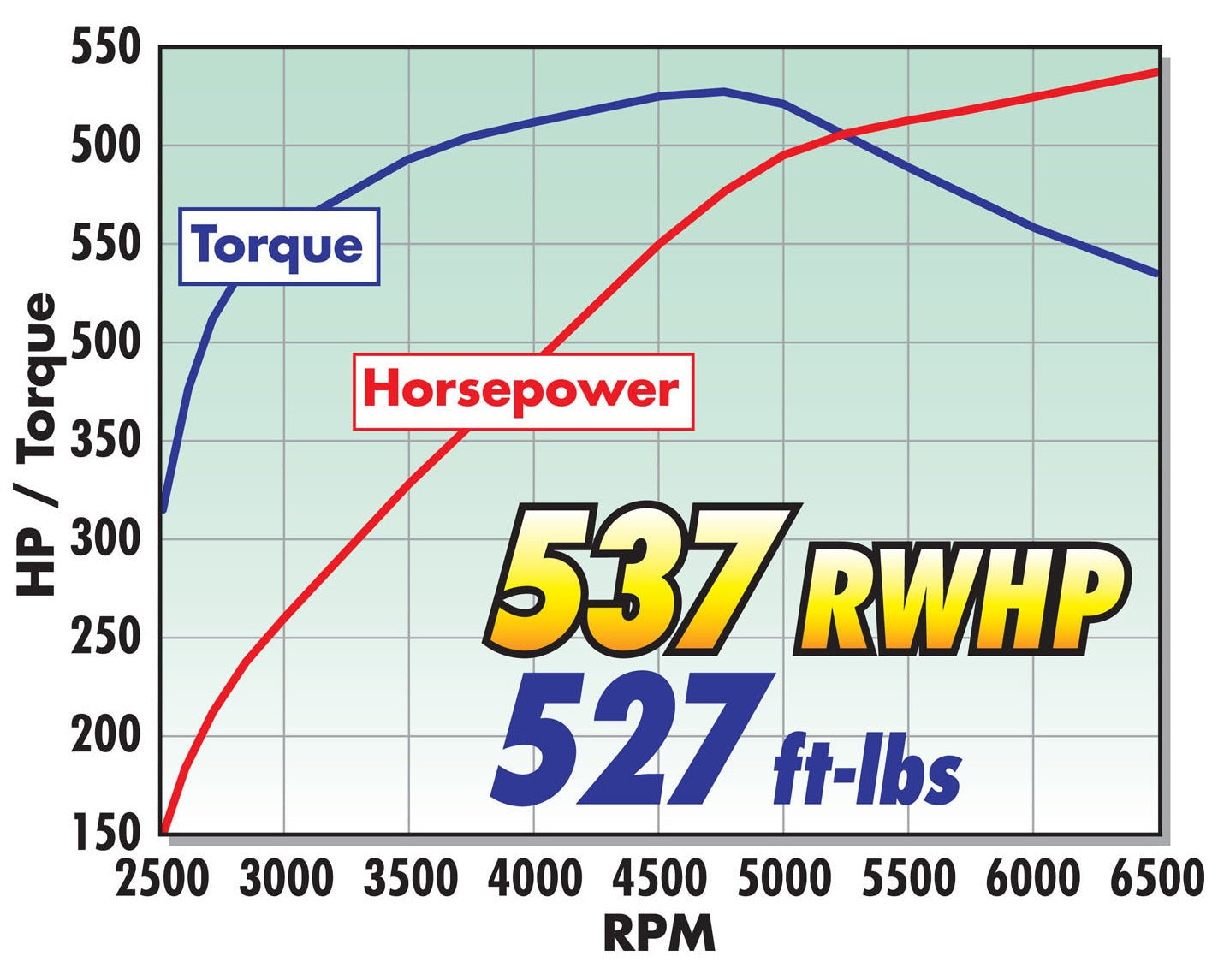

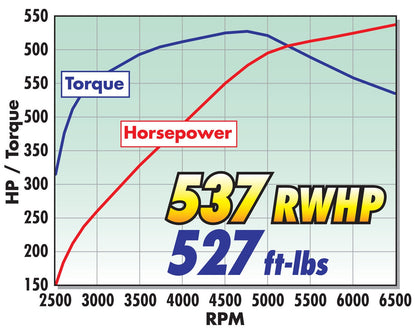

The Edelbrock supercharger stage 2 street/strip system for 2014-19 Chevy Corvette Stingray Z51 LT1 increases the performance of your LT1 engine to 537 horsepower and 527 ft-lbs of torque to the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Compatible with:

• Chevrolet:
  • 2014-2019 Corvette Stingray Z51 with Dry Sump
  • 2017-2019 Corvette Grand Sport with Dry Sump

Specs:

• System Type: Stage 2 - Street/Strip System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 10-Rib

• Outside Pulley Diameter: 3.25 in

• Maximum Torque: 527 RW ft-lb (with 91 Octane), 534RW ft-lb (with 93 Octane)

• Maximum Horsepower: 537 RWHP (with 93 Octane), 551RW ft-lb (with 93 Octane)

• Finish: Black Powder Coated

• Maximum Boost Pressure: 7.5 PSI

You can view and download the complete assembly instruction booklet here and here.
