E-FORCE SUPERCHARGER FOR 2014-19 CORVETTE Z51 DRY SUMP LT1 - STAGE 1

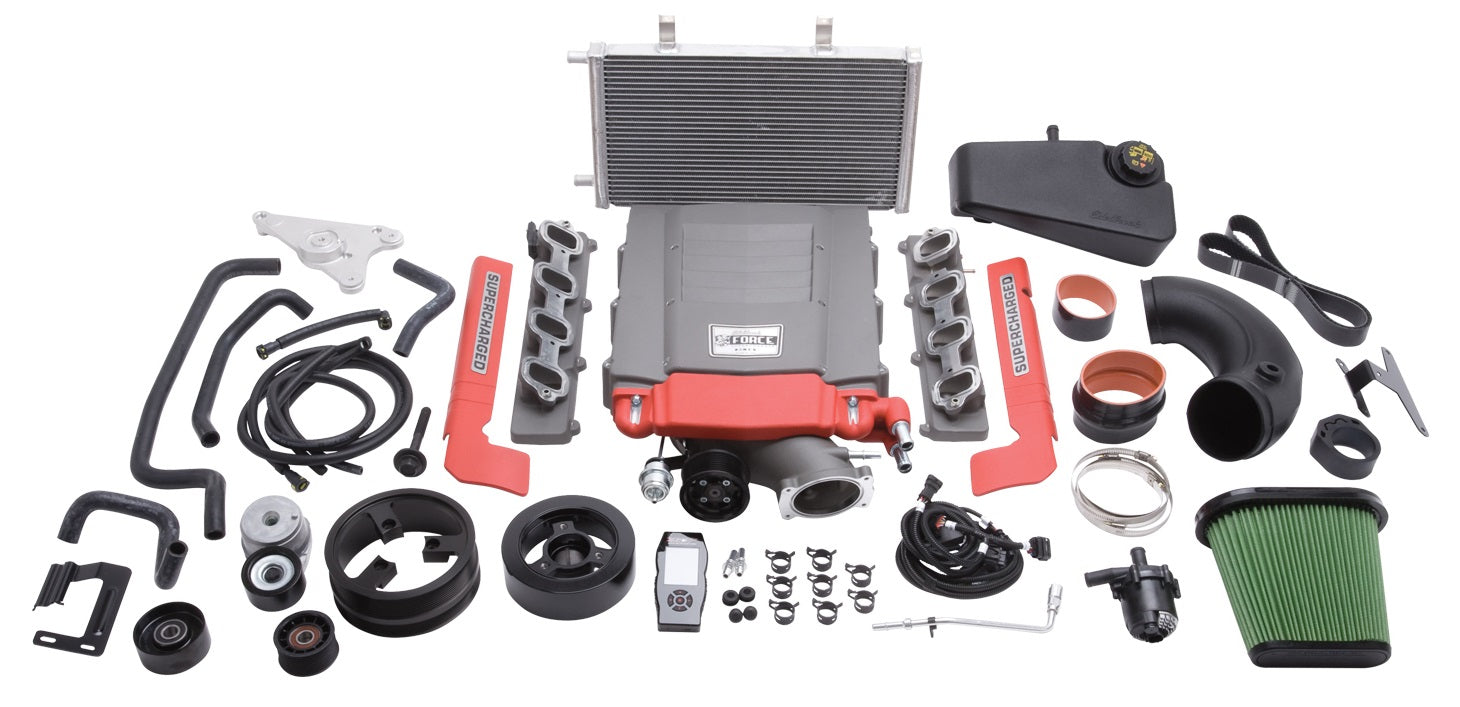

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2014-2019 Corvette Stingray Z51/Grand Sport with Dry Sump (Part #1570).

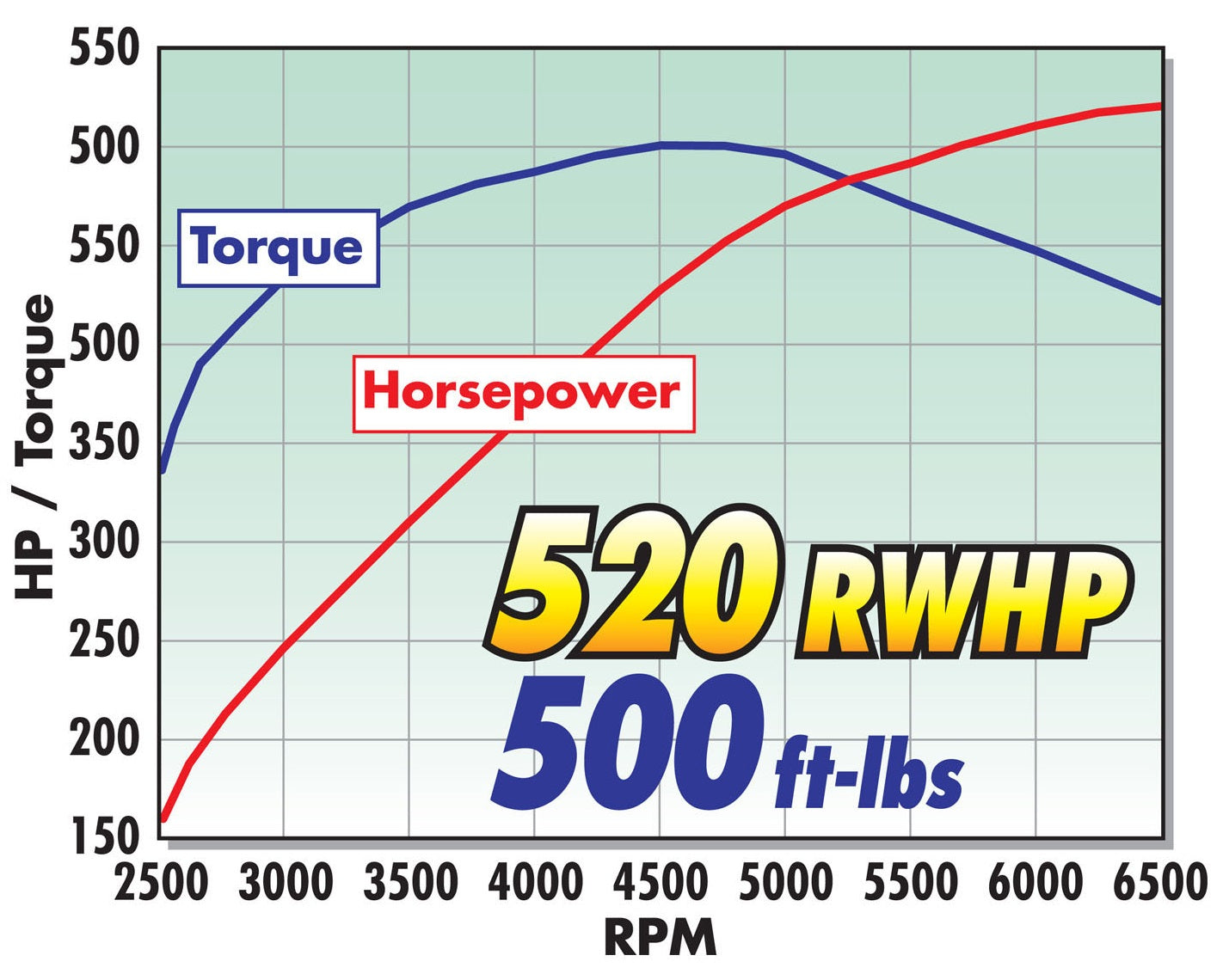

The Edelbrock supercharger Stage 1 Street System for 2014-19 Corvette Stingray Z51 increases the performance of your LT1 engine to 520 horsepower and 500 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Compatible with:

• Chevrolet:
  • 2014-2019 Corvette Stingray Z51 with Dry Sump
  • 2017-2019 Corvette Grand Sport with Dry Sump

Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 10-Rib

• Outside Pulley Diameter: 3.5 in

• Maximum Torque: 500 RW ft-lb

• Maximum Horsepower: 520 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 5.5 PSI

You can view and download the complete assembly instruction booklet here and here.
