SC, R2650 DP3C CHEVY/GMC 2014-18 GEN V TRUCK & SUV 5.3L WITH TUNER

Brand New Edelbrock Stage 1 Supercharger Kit Compatible with 2015-2020 GM SUV & 2014-2019 Truck Gen V 5.3L with Tuner (Part #15663).

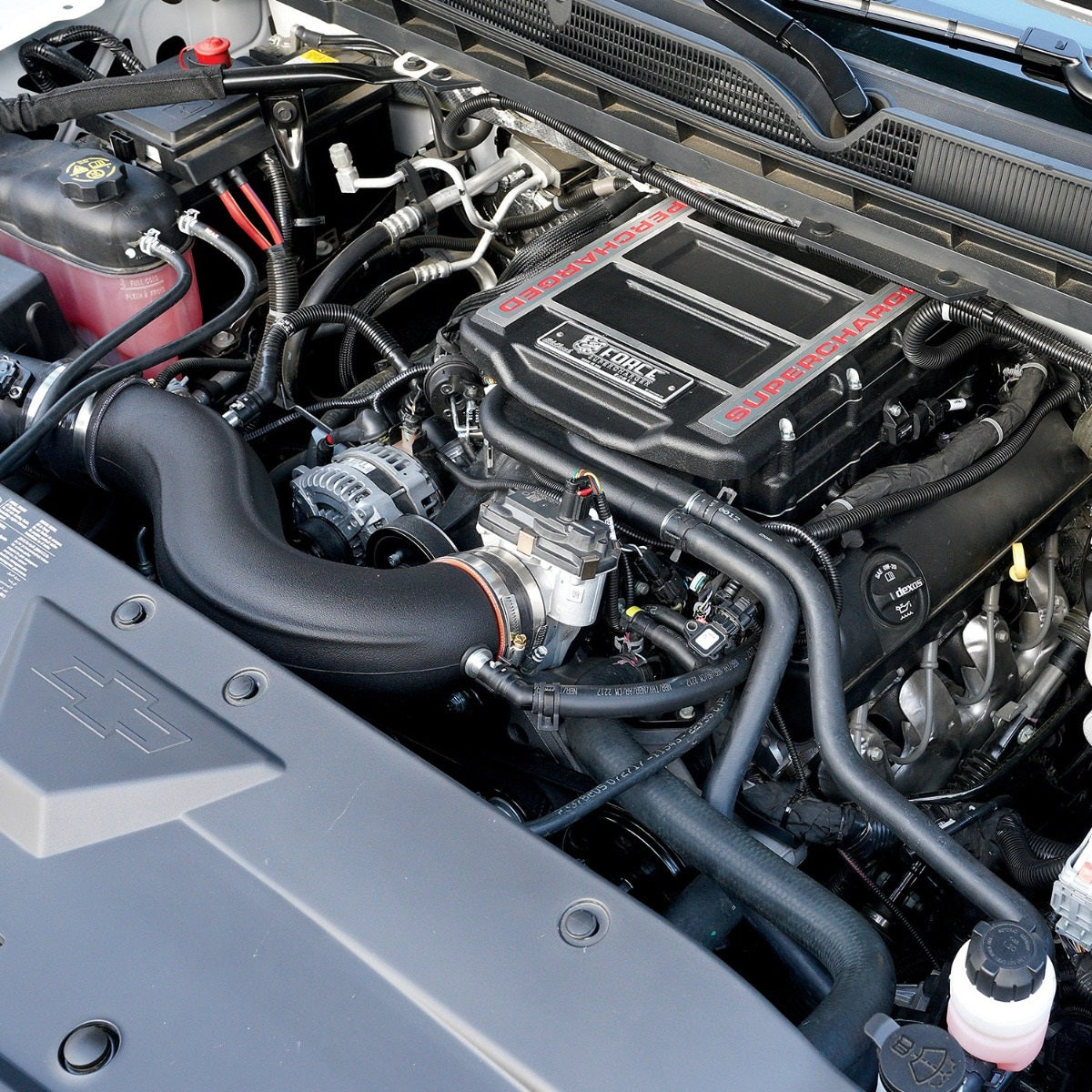

Joining Edelbrock's expanding line of supercharger systems are the Chevrolet & GMC 2015-2020 SUVs, 2014-2018 full size trucks, & 2019 Silverado LD & Sierra LDT (air box on right side) equipped with a Gen V 5.3L L83 engine and L8B engines (does not work with L8B hybrid powertrains). This is a true bolt-on performance kit that is emissions legal in all 50 states and produces an impressive 482 horsepower with 452 ft-lbs of torque at the rear wheel on 93-octane pump gas! Edelbrock supercharger Kit for Silverado, Sierra, Suburban, Tahoe and Yukon models equipped with a Gen V 5.3L V8 engine is a complete redesign of the previous kit featuring a manifold that now houses Eaton's R2650 TVS rotor assembly along with a high-capacity Dual Pass 3-core intercooler system.

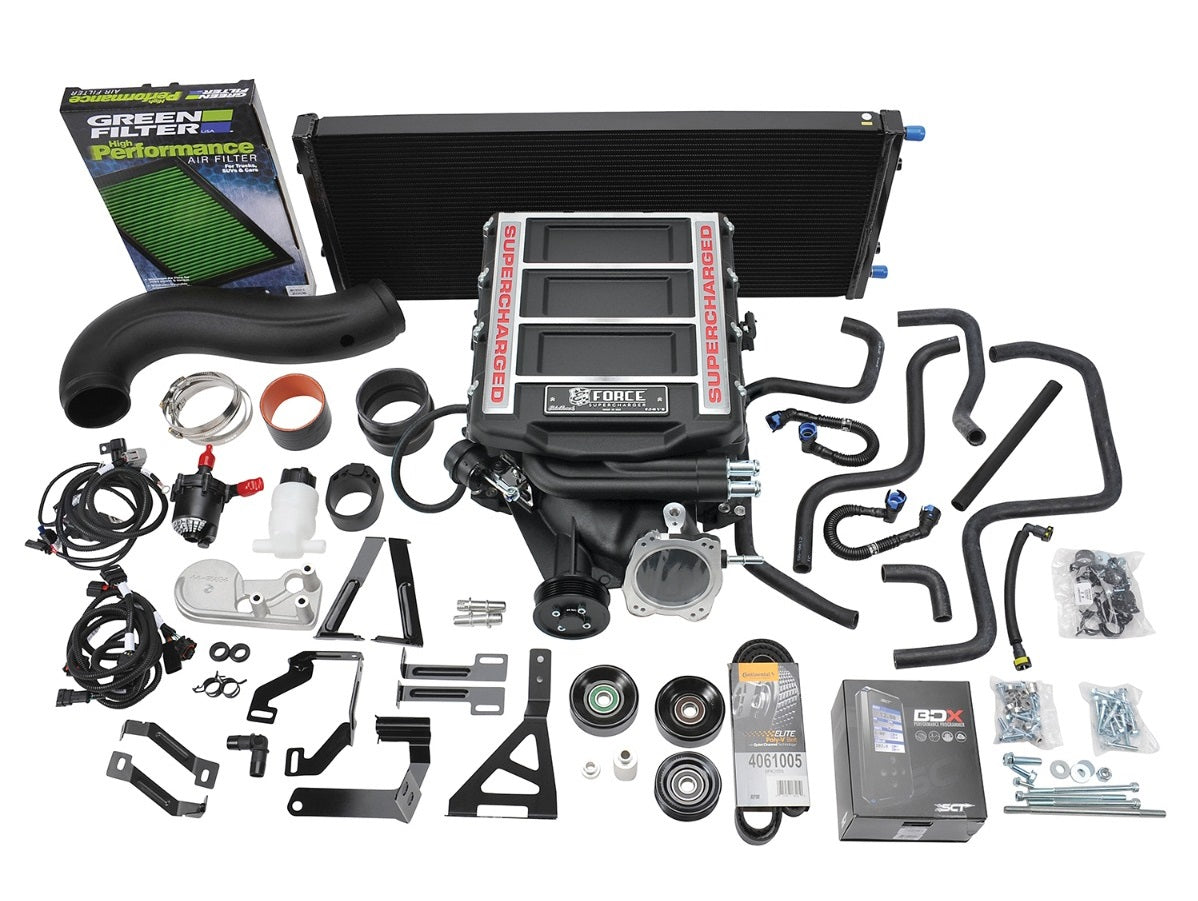

The new rotors have a 170-degree high-twist lobe design with bigger bearings and beefier timing gears for unparalleled efficiency and OEM-like reliability. Like other superchargers in the Edelbrock line, this system is designed to fit under the stock hood with no cutting or modifications required. A self-contained oiling system keeps maintenance to a minimum with a service interval of 100,000 miles. The significant increase in horsepower and torque comes with minimal loss in fuel economy thanks to the system's integrated bypass valve that mitigates parasitic power loss during normal driving conditions. This new Edelbrock supercharger kit requires no internal modifications to the engine. This kit includes everything required for a complete installation including a set of preformed hoses to simplify the process.

Compatible with:

• Chevrolet:
  • 2014-2018 Silverado 1500 with L83/L8B Engine

  • 2019 Silverado 1500 LD with L83/L8B Engine

  • 2015-2020 Suburban with L83 Engine

  • 2015-2020 Tahoe with L83 Engine

• GMC:

  • 2014-2018 Sierra 1500 with L83/L8B Engine

  • 2019 Sierra 1500 LDT with L83/L8B Engine

  • 2015-2020 Yukon with L83 Engine

  • 2015-2020 Yukon XL with L83 Engine

Installation Notes:

• The 8th VIN Digit identifies the vehicle's engine. C = L83. R = L8B.
• The Edelbrock program will disable the Flex-Fuel E85 capability (if originally equipped).
• Fits GM SUVs & GM full size trucks with the air box on the right side
• Does not fit hybrid powertrains


Specs:

• System Type: Stage 1 - Street System

• Housing Material: Cast Aluminum
• Oil Capacity: 150 mL

• Center Housing Cooling Type: Intercooler

• Internal Step Up: Yes

• Pulley Belt Width: 6-Rib

• Outside Pulley Diameter: 3.875 in

• Maximum Torque: 452RW ft-lb

• Maximum Horsepower: 482 RWHP

• Finish: Black Powder Coated

• Maximum Boost Pressure: 13.5 PSI


You can view and download the complete assembly instruction booklet here and here.
